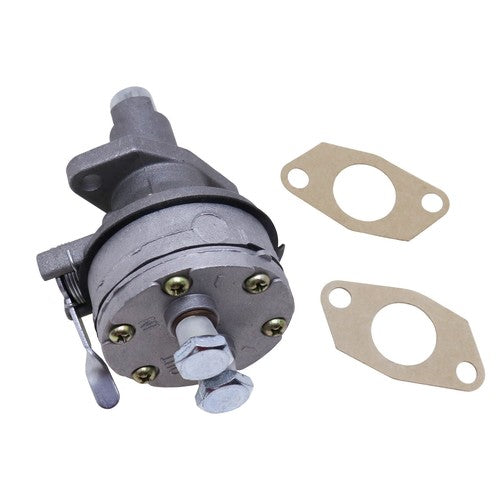

Mechanical Fuel Feed Pump for Volvo Penta MD2010–MD2040 & D2-55 – 3580100
$53.79
In Stock
$53.79
Sale price
$53.79
Regular price
This mechanical fuel feed/lift pump replaces Volvo Penta 3580100 on MD2010, MD2020, MD2030, MD2040 and selected D2-55 marine diesel engines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Volvo Penta engines | MD2010, MD2010A/B/C/D |
|---|---|
| MD2020, MD2020A/B/C/D | |
| MD2030, MD2030A/B/C/D | |
| MD2040, MD2040A/B/C/D | |
| D2-55 / selected D2-55A through D2-55F configurations |
Product Overview
Volvo Penta parts catalogs identify 3580100 as the engine fuel feed pump on the MD2010/2020/2030/2040 family. The pump draws diesel from the tank/filter side and supplies the injection system, with an integral hand-priming function on the relevant configuration.
Application listings also connect 3580100 to early D2-55 variants. A weak diaphragm or leaking check valve can cause hard starting, loss of prime or fuel starvation; external leakage is also a reason to replace the pump promptly in a marine engine compartment.
Key Features & Performance
- Volvo Penta reference 3580100
- Mechanical low-pressure fuel feed pump
- Covers MD2010 through MD2040 A/B/C/D variants in parts data
- Also used on selected D2-55 configurations
Part Numbers & Specifications
- Part number: 3580100
- Component: mechanical fuel feed / lift pump
- Volvo Penta catalogs list 3580100 in the MD20xx fuel system
Before You Order
Compare the existing pump and engine serial number, especially on D2-55 engines where later revisions may use a different pump. Inspect fuel hoses and filters for air leaks or restrictions.
Frequently Asked Questions
What is the difference between this and the injection pump?
The feed pump supplies low-pressure fuel to the injection system; it is not the high-pressure injection pump.
Does 3580100 fit all D2-55 engines?
It is associated with selected D2-55 variants; verify the engine serial and existing pump because later versions can differ.
Can a failed diaphragm leak fuel?
Yes. Any fuel leakage in a marine engine compartment should be addressed immediately.
