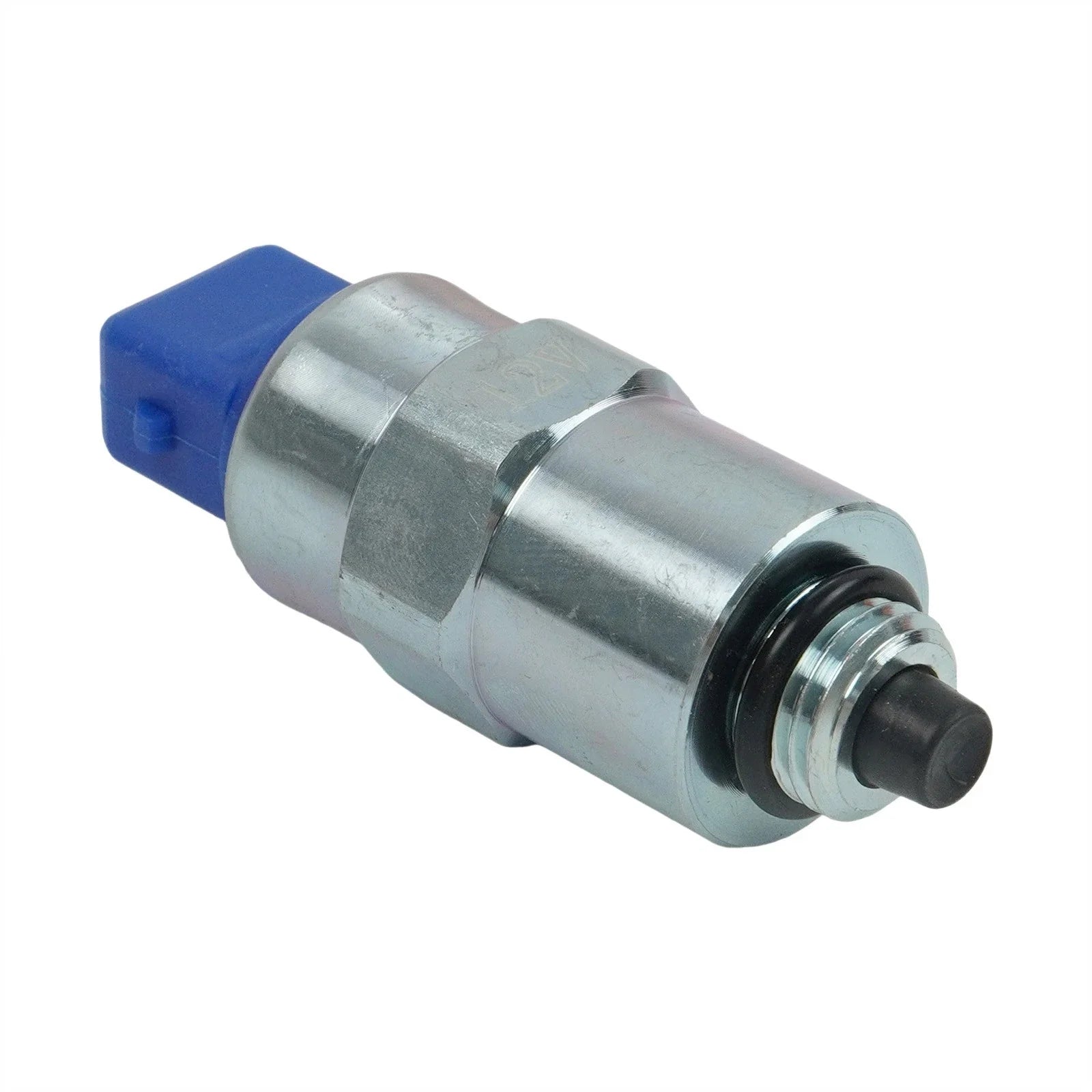

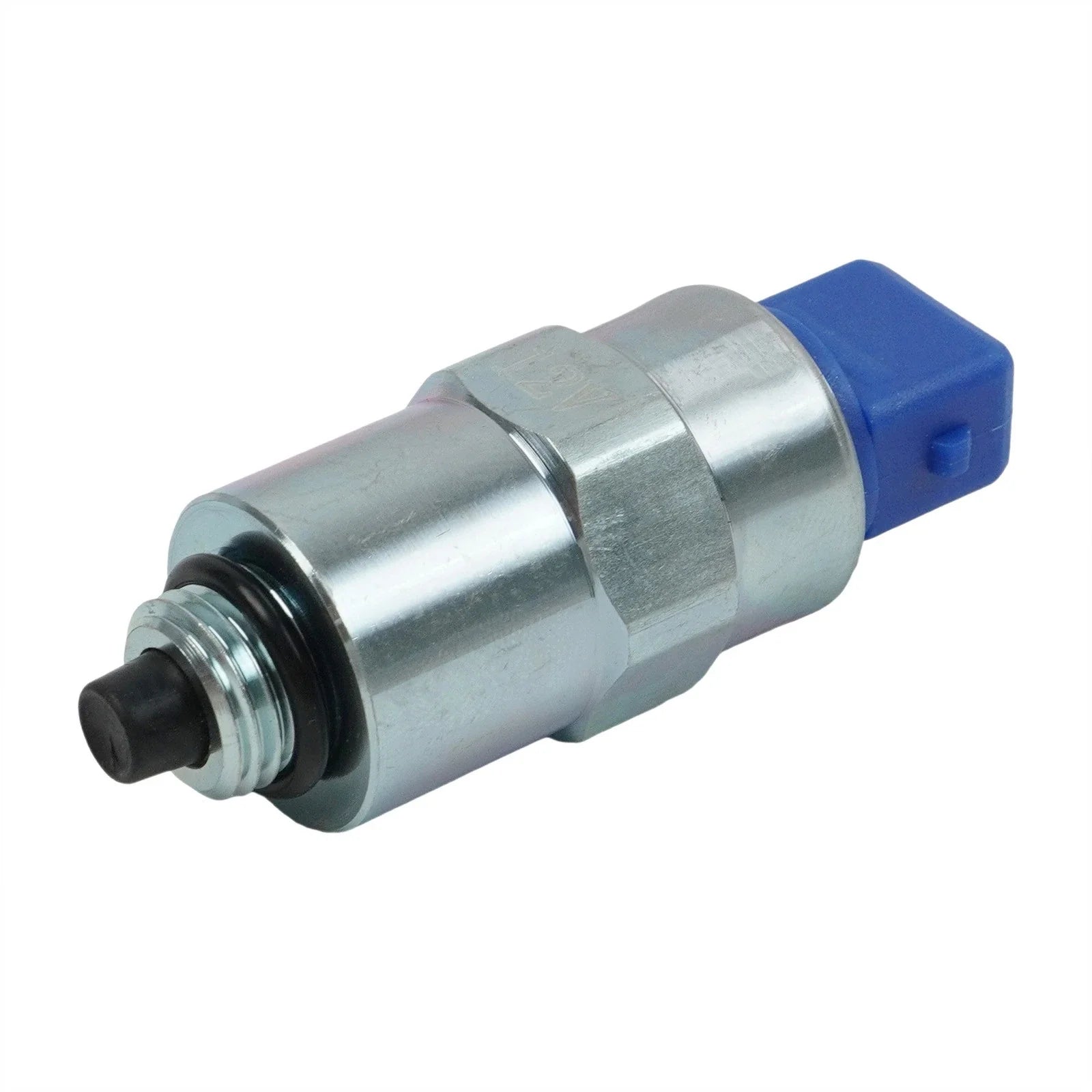

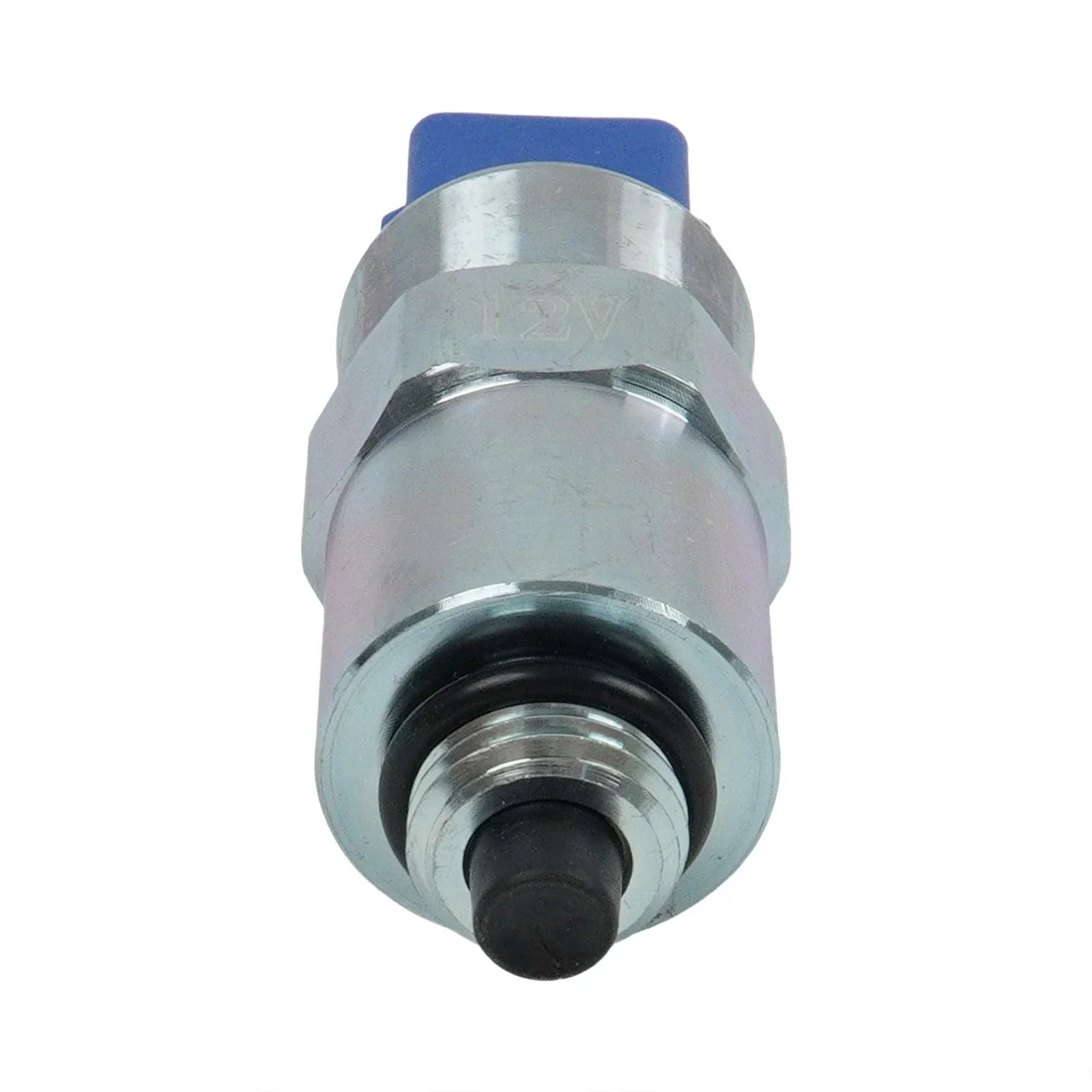

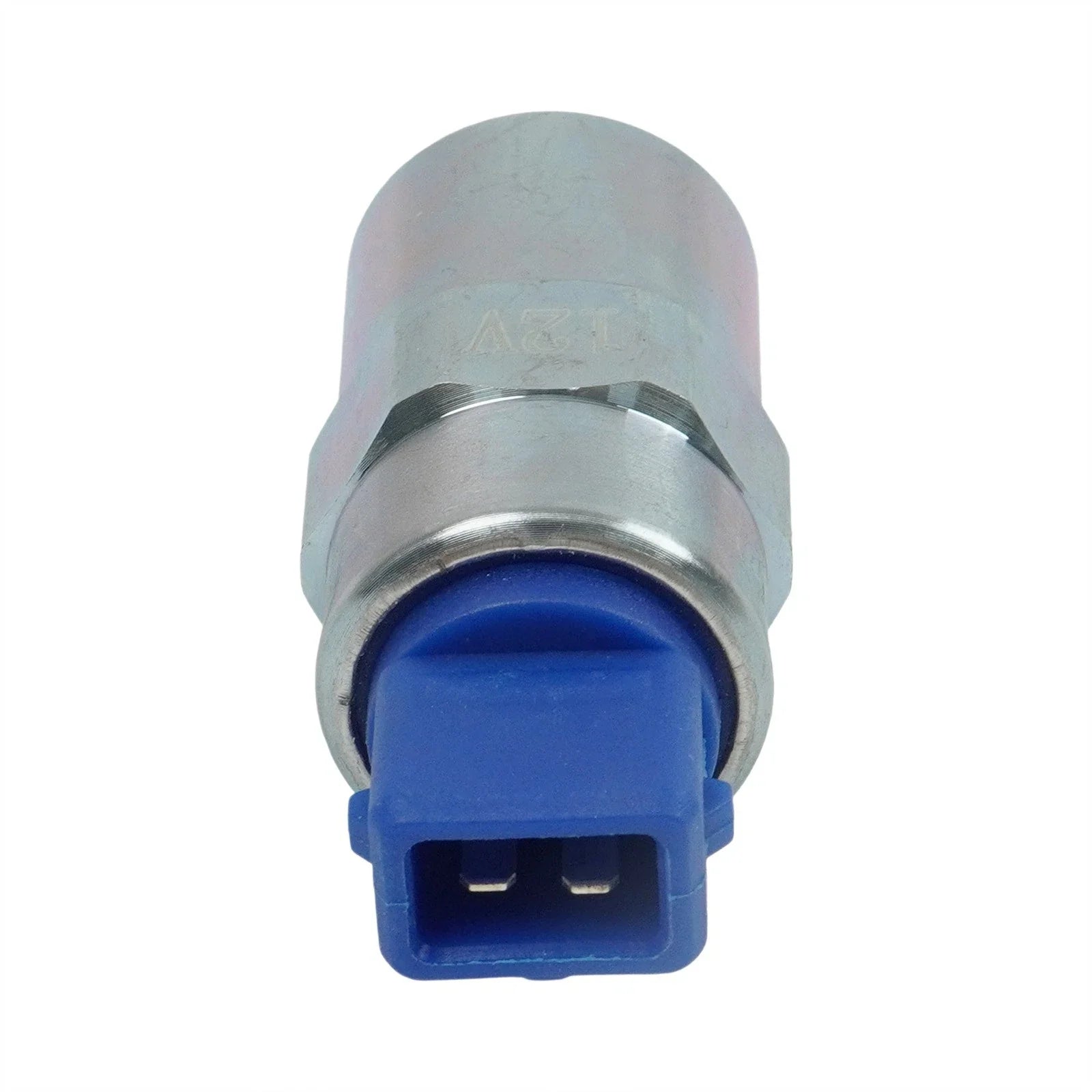

26420469 Fuel Shutoff Solenoid for Perkins 3.152 and 4.236 Engines
$33.99
In Stock
$33.99
Sale price
$33.99
Regular price
Replace the electric fuel cut-off solenoid on compatible Perkins 3.152 and 4.236 engines using reference 26420469.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Perkins 3.152 engines with compatible injection pump
- Perkins 4.236 engines with compatible injection pump
- Select Perkins 900 Series engines using 26420469
- Select Perkins 1000, 1004, and 1006 Series engines using 26420469
- Select Perkins 1103C, 1104A, and 1104C engines with matching pump
Product Overview
If the engine cranks normally but the injection pump stays in the shutoff position, this small solenoid may be the missing link. It can also be the cause when a key-off command no longer stops an engine fitted with the matching pump.
Confirm power and ground first, then compare the thread, plunger, spring, and connector. A failed lift pump or internal injection-pump fault will not be corrected by a new shutoff solenoid.
This is an aftermarket replacement part and is not manufactured or supplied by the original equipment brand.
Key Features & Performance
- Replacement for Perkins reference 26420469
- For compatible CAV, Lucas, and Delphi rotary pumps
- 12V electric fuel cut-off function
- Focused repair for start/stop control at the injection pump
Replaces Part Numbers
- 26420469
- 7185-900C
- 7189-400G
- 28363769
Common Uses
- Repairing a no-start caused by a closed fuel solenoid
- Correcting an engine that will not shut off with the key
- Replacing a burned or open solenoid coil
- Servicing a matching rotary injection pump
Technical Specifications
- Product Type: Fuel cut-off solenoid
- Voltage: 12V DC
- Engine Families: Perkins 3.152 and 4.236, plus matching applications
- Replacement Type: Aftermarket
Installation & Fitment
- Verify voltage at the solenoid before replacement
- Clean the injection pump around the threaded opening
- Compare all moving pieces and seals to the old part
- Do not drop dirt into the pump
- Check for leaks and confirm both start and key-off operation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown. Model names alone may not guarantee fitment. Compare the original component, reference number, connector or mounting design, dimensions, and any serial-number or production-date break before purchase.
Frequently Asked Questions
Q: Is this mounted on the lift pump? A: No. It controls fuel at a compatible injection pump.
Q: Will it fit any Perkins 4.236? A: No. The engine must have the matching pump and 26420469-style solenoid.
Q: What if there is no voltage at the connector? A: Repair the wiring, fuse, relay, or key circuit before blaming the solenoid.
Part Summary
keywords: Perkins 26420469 solenoid, 3.152 fuel shutoff, 4.236 no start repair, CAV injection pump stop valve, Lucas diesel cut off solenoid, Perkins engine will not shut down
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
