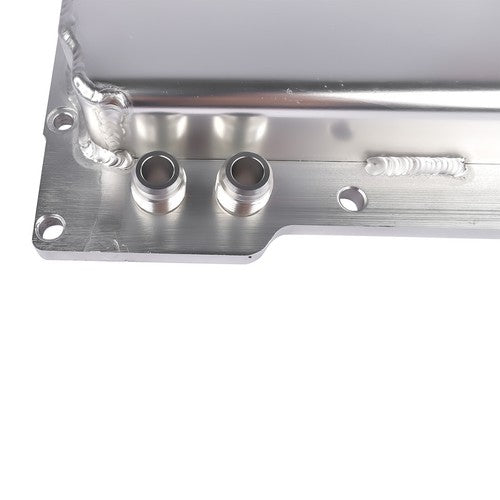

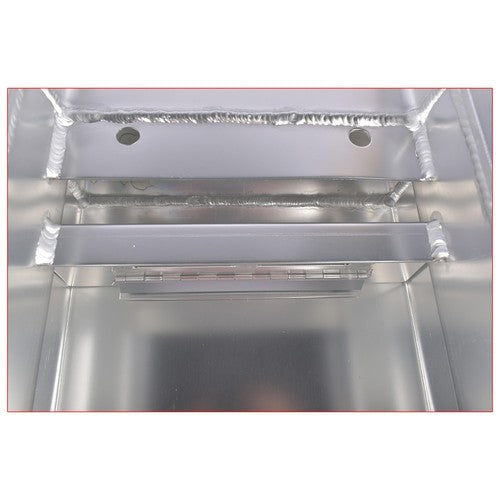

Front-Sump Engine Oil Pan with Gasket for Chevrolet/GM Gen III & IV LS1, LS2, LS3 & LS6 V8
$435.39
In Stock
$435.39
Sale price
$435.39
Regular price

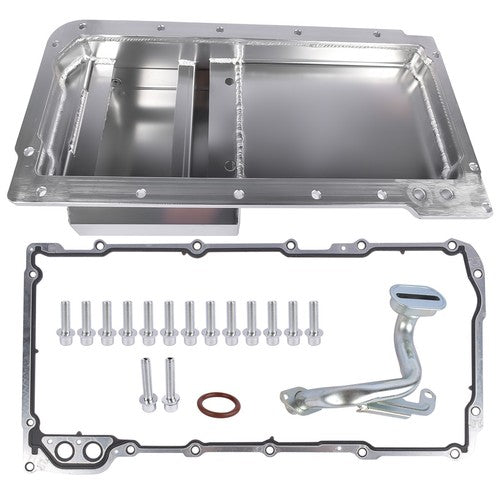

This front-sump LS engine oil pan replaces the matching component on custom GM Generation III/IV LS V8 engine installations using the matching front-sump oil pan, chassis clearance and gasket. Includes the front-sump oil pan and a matching gasket.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
For correctly configured GM Gen III/IV LS-family V8 conversions using a front-sump oil pan. Vehicle-specific fitment requires chassis and oil pickup measurements.
Product Overview
This engine oil pan holds the engine’s oil supply and seals to the lower crankcase on a compatible GM LS V8 setup.
A damaged oil pan, stripped drain plug, or a chassis/engine swap requiring a different sump location can make pan replacement necessary.
Confirm front-sump layout, subframe clearance, oil pickup tube, dipstick, starter and oil-filter routing. LS1/LS2/LS3/LS6 engines in different vehicles do not all accept the same pan in the chassis.
Key Features & Performance
- Front-Sump LS Engine Oil Pan: This engine oil pan holds the engine’s oil supply and seals to the lower crankcase on a compatible GM LS V8 setup.

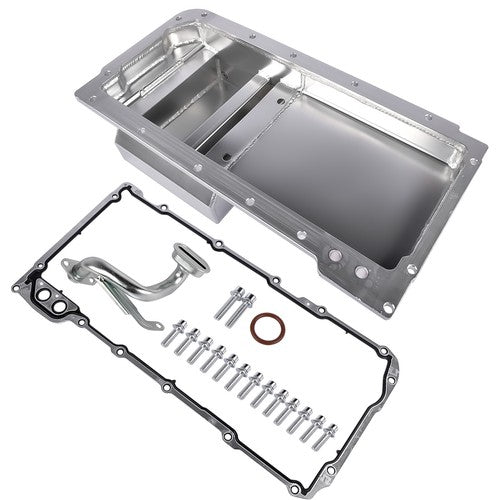

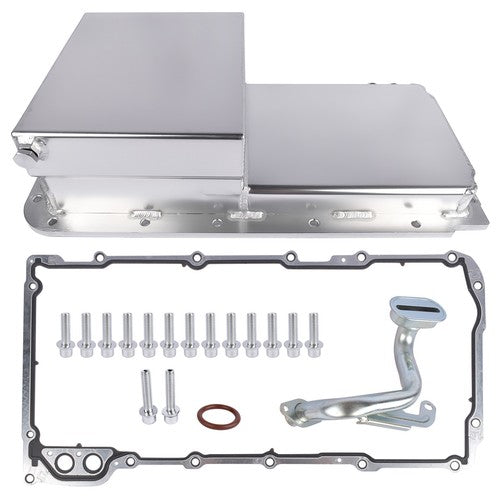

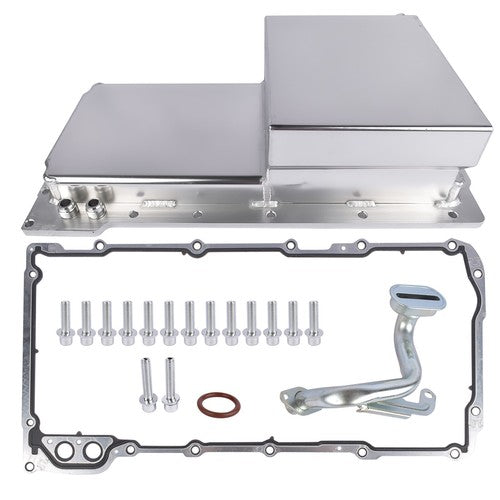

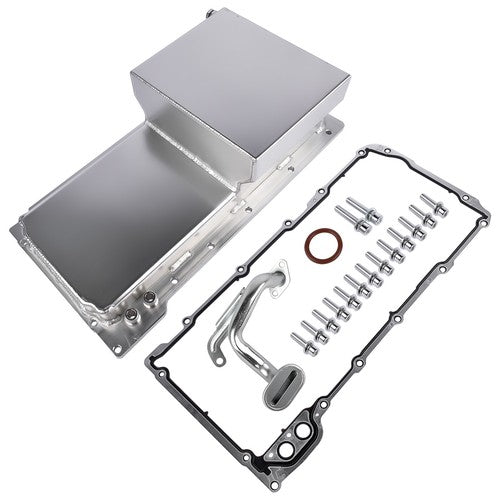

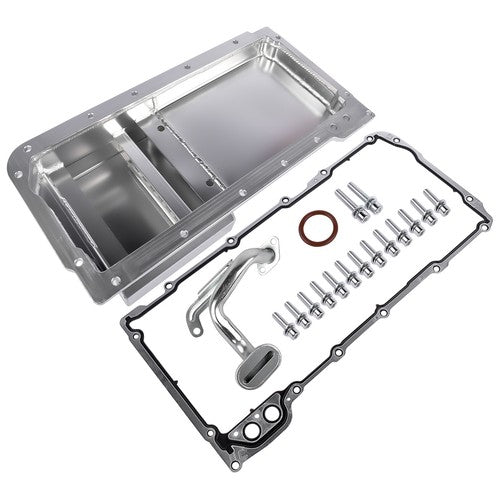

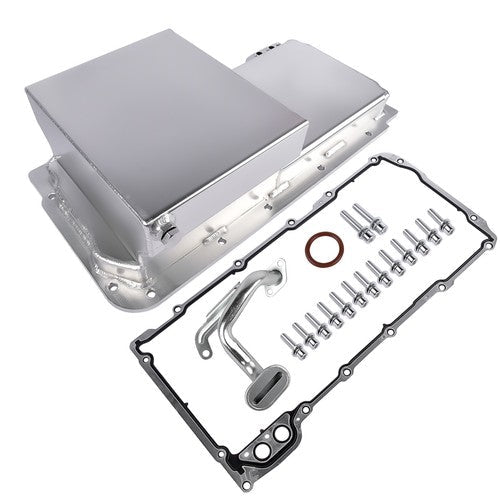

- Package Contents: Includes the front-sump oil pan and a matching gasket.
- Application & Configuration: Confirm front-sump layout, subframe clearance, oil pickup tube, dipstick, starter and oil-filter routing. LS1/LS2/LS3/LS6 engines in different vehicles do not all accept the same pan in the chassis.
Specifications
- Product Type: Front-Sump LS Engine Oil Pan
- Position: Bottom of engine / front sump
- Northline Parts SKU: NLT2S00201
- Included: Includes the front-sump oil pan and a matching gasket
Replaces / Cross-References
No manufacturer OE interchange number has been independently established for this listing. Match the original component, configuration and product photos rather than assuming that similarly named parts interchange.
Installation & Fitment Notes
Confirm front-sump layout, subframe clearance, oil pickup tube, dipstick, starter and oil-filter routing. LS1/LS2/LS3/LS6 engines in different vehicles do not all accept the same pan in the chassis.
Inspect the original component and all mating parts before fitting the replacement. Follow the vehicle or equipment manufacturer’s installation, torque, and safety procedures.
Frequently Asked Questions
Is this an OEM part?
No. This listing is for an aftermarket replacement. Original-equipment names and numbers identify the intended application; they do not indicate OEM manufacture.
How do I confirm that this is the right part?
Confirm front-sump layout, subframe clearance, oil pickup tube, dipstick, starter and oil-filter routing. LS1/LS2/LS3/LS6 engines in different vehicles do not all accept the same pan in the chassis.
What does the listing include?
Includes the front-sump oil pan and a matching gasket.
Part Summary
Part: Front-Sump LS Engine Oil Pan
Compatible Applications: custom GM Generation III/IV LS V8 engine installations using the matching front-sump oil pan, chassis clearance and gasket
Position: Bottom of engine / front sump
OEM / Reference Numbers: Not independently established
Purpose: This engine oil pan holds the engine’s oil supply and seals to the lower crankcase on a compatible GM LS V8 setup.
Northline Parts SKU: NLT2S00201
