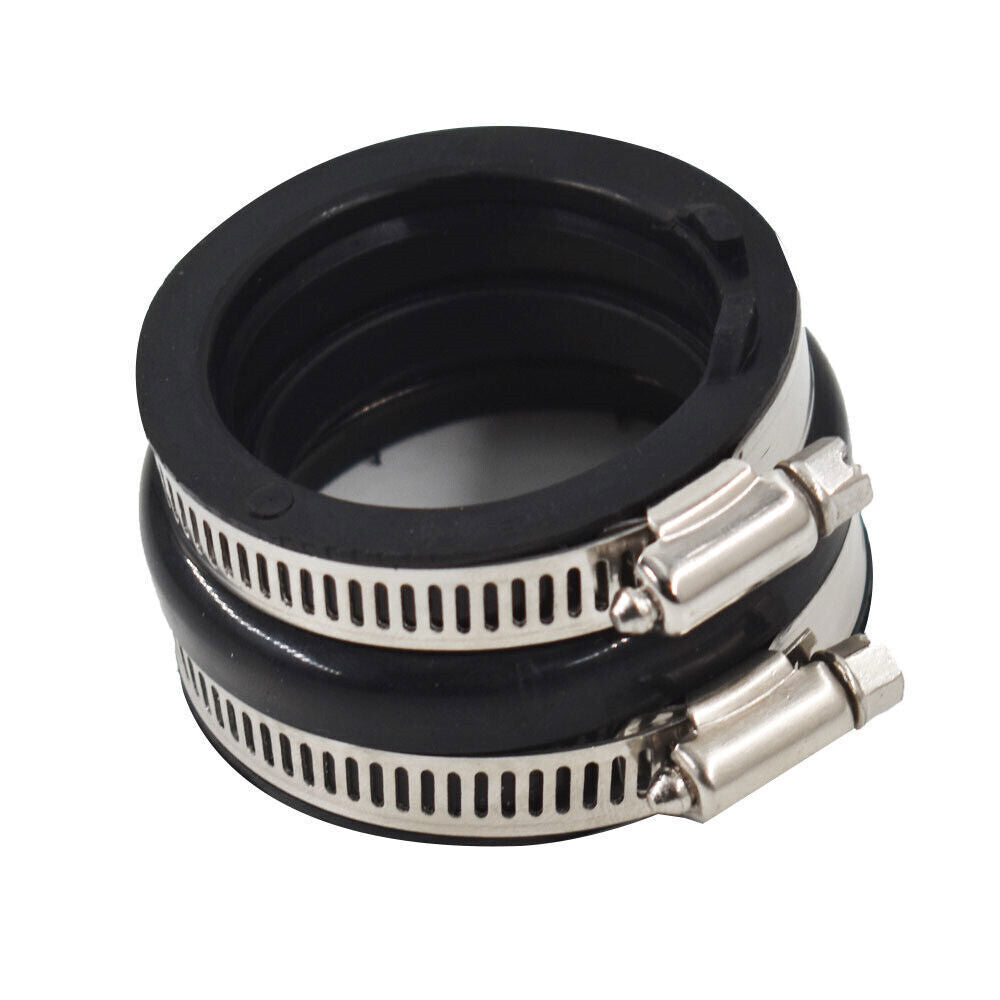

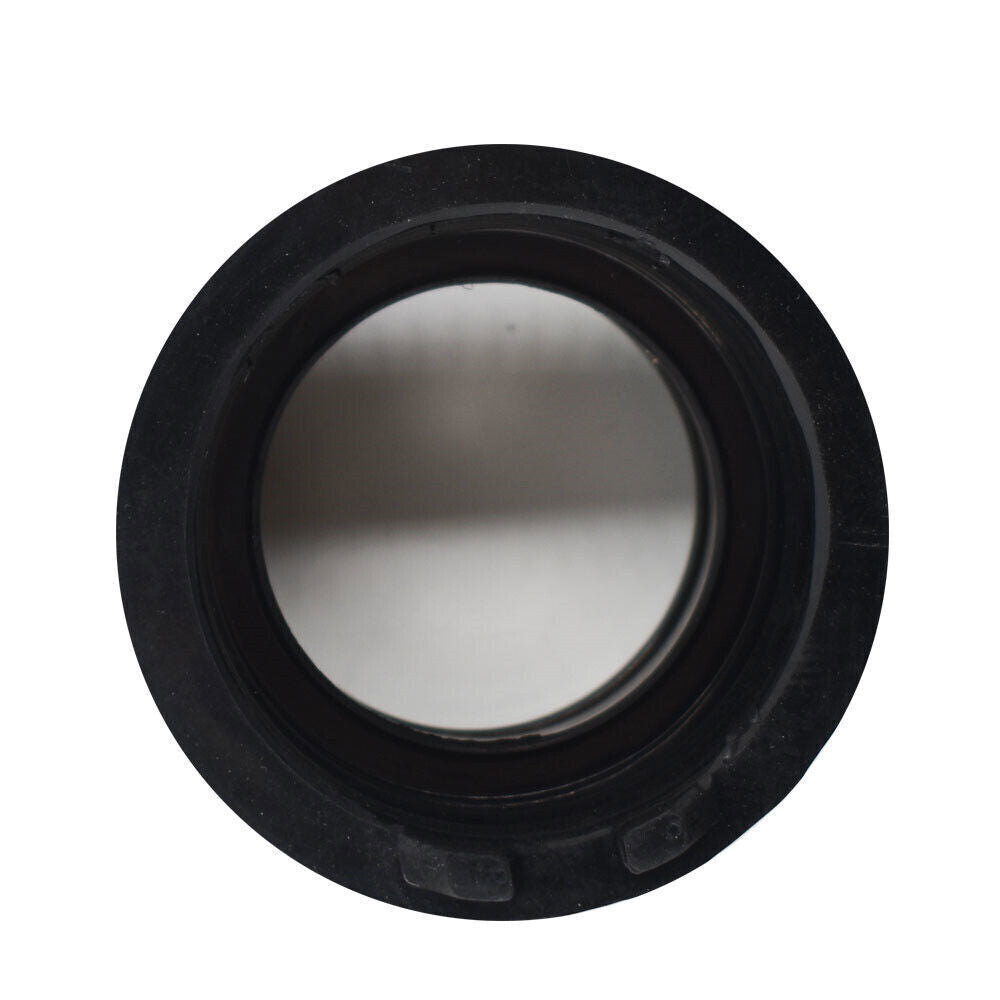

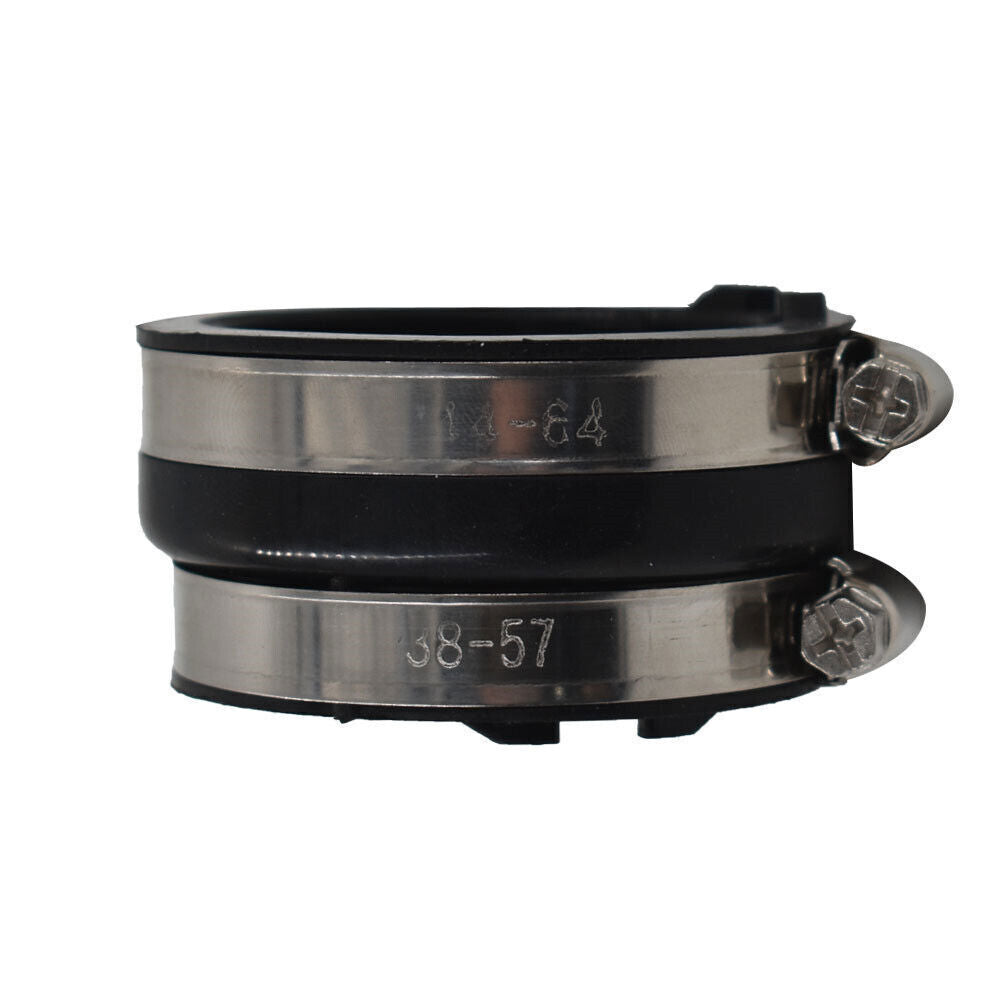

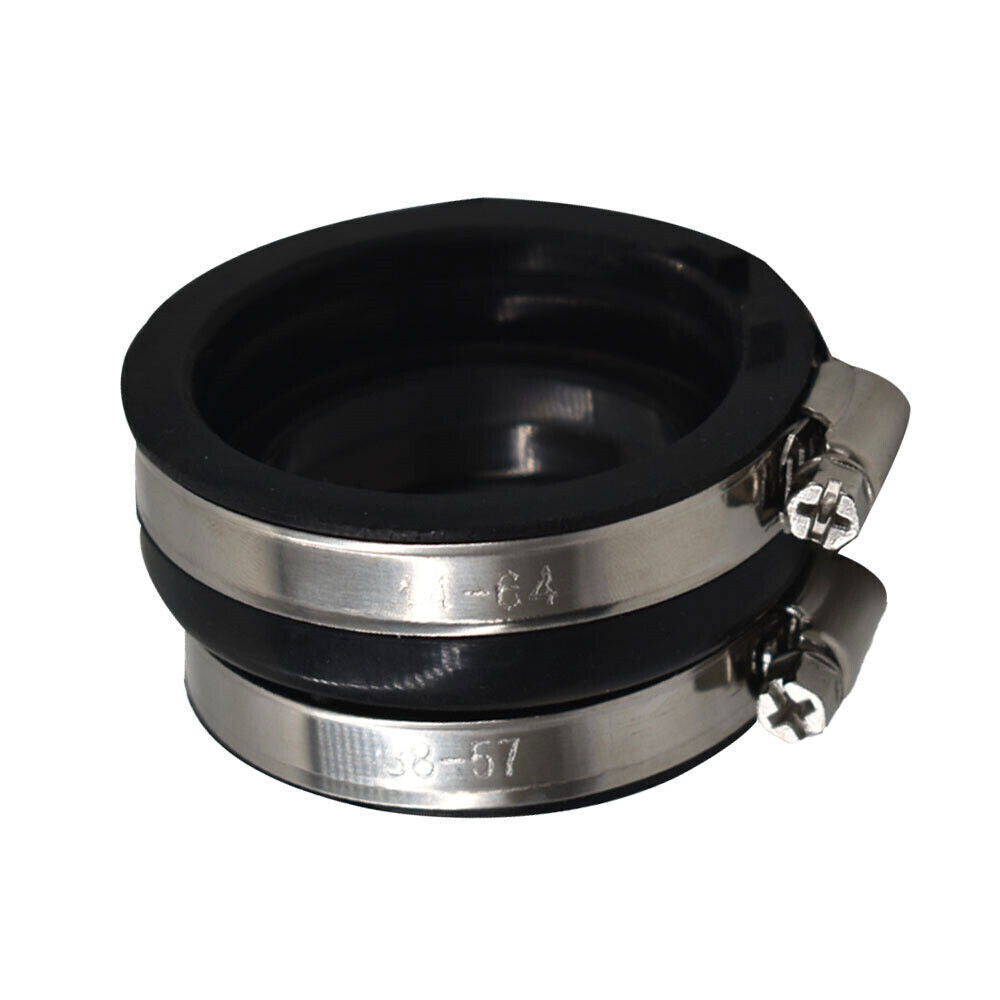

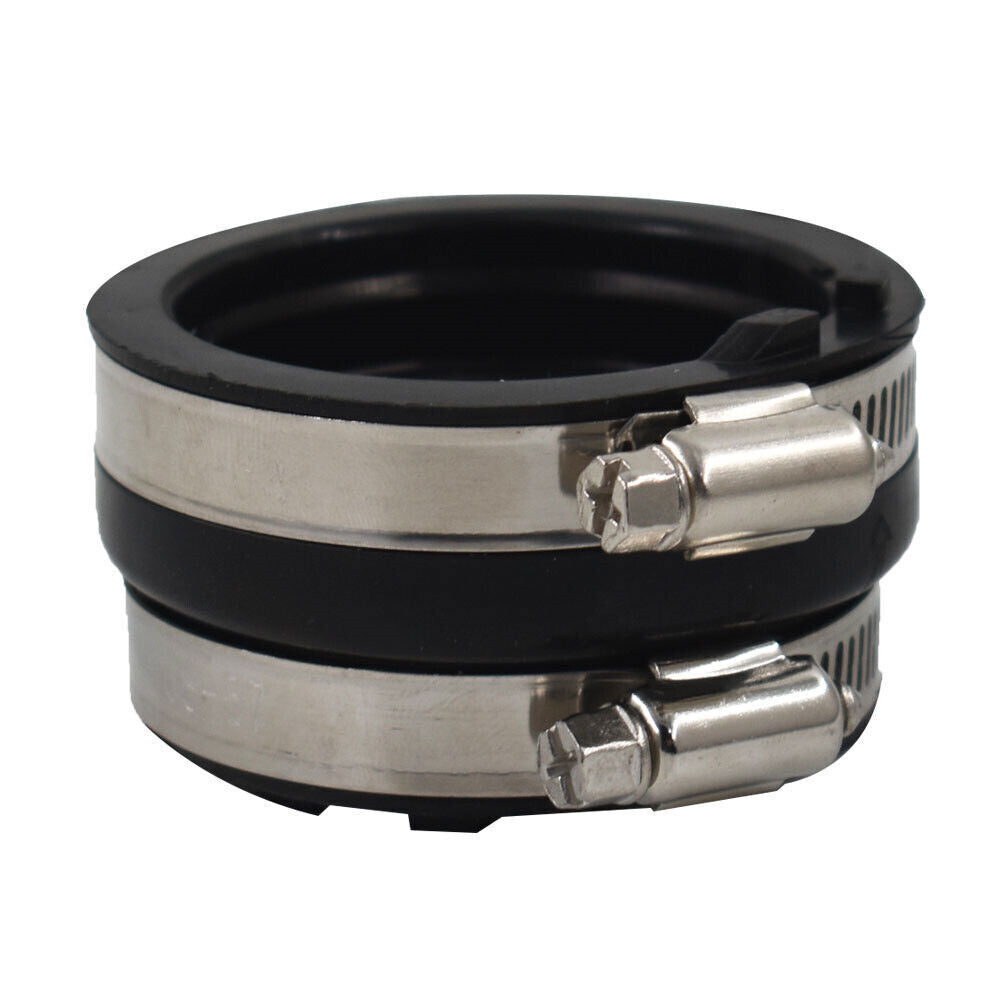

4WV-13596-00 Intake Manifold Boot for Yamaha Grizzly 600
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price

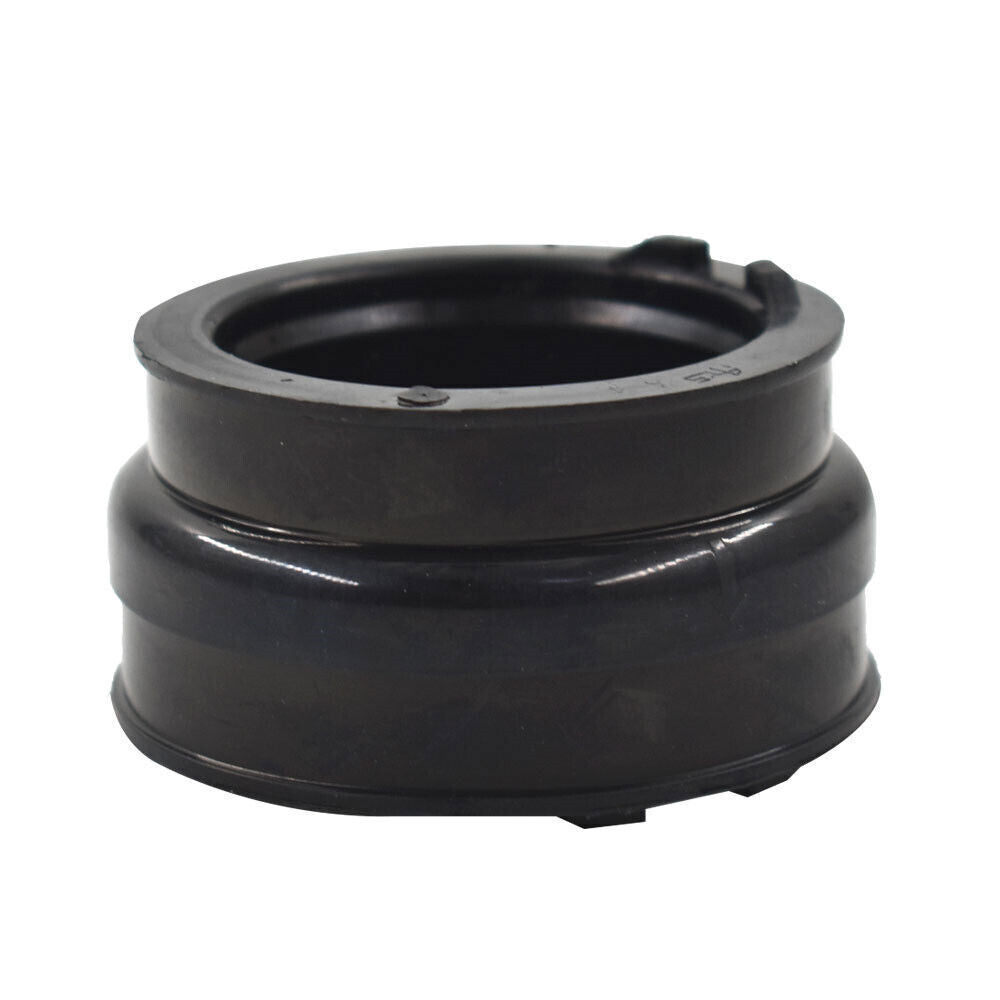

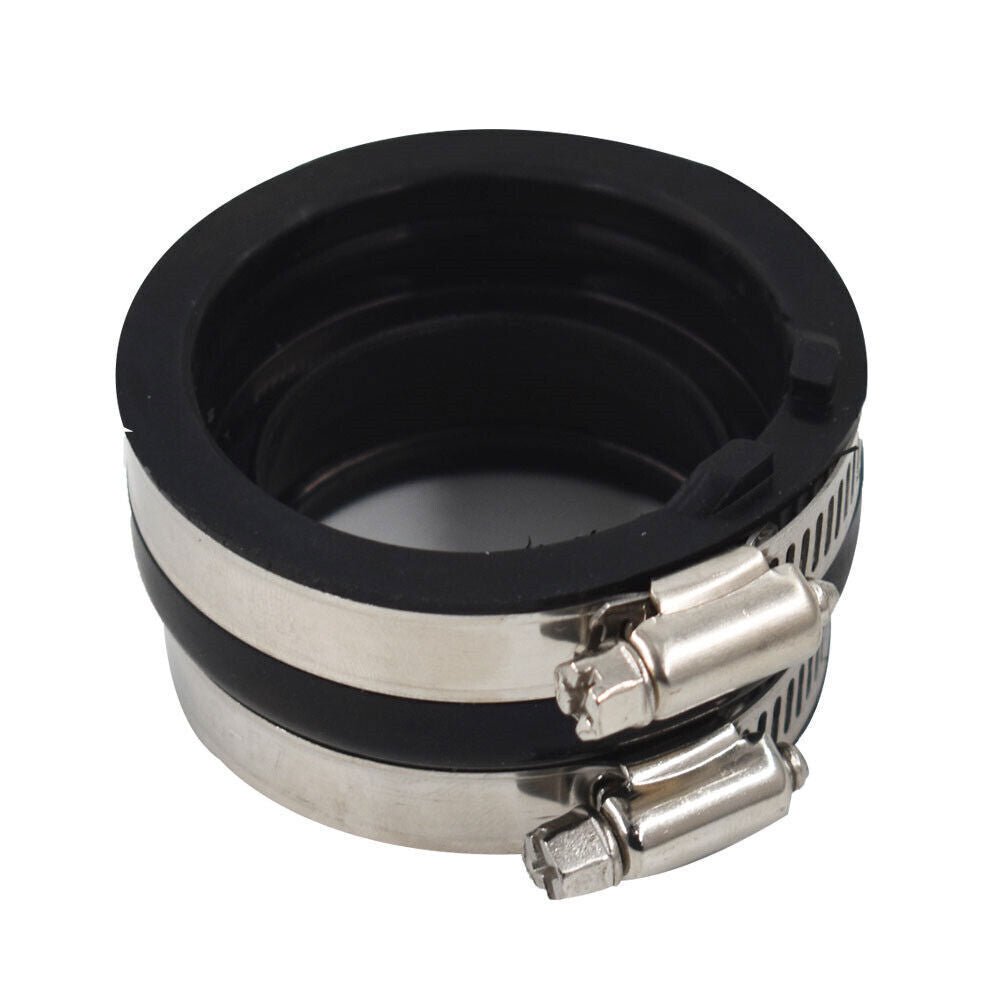

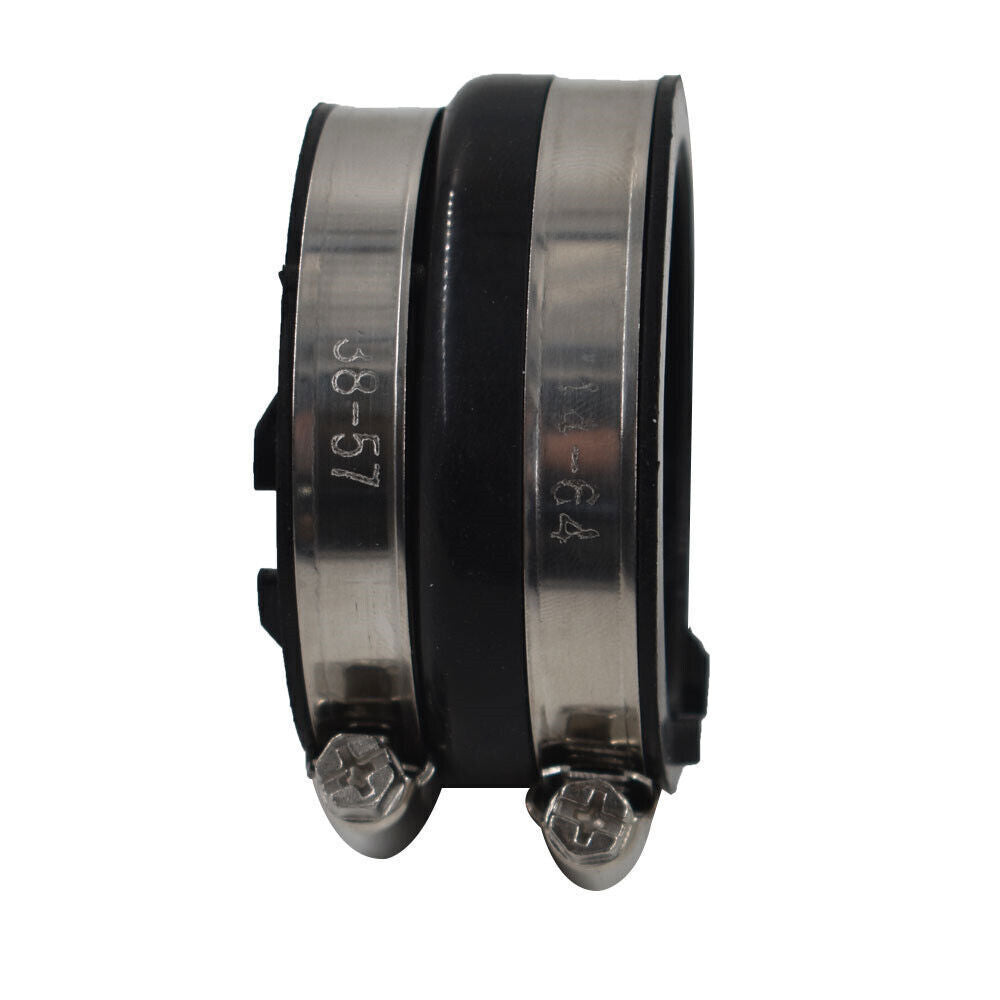

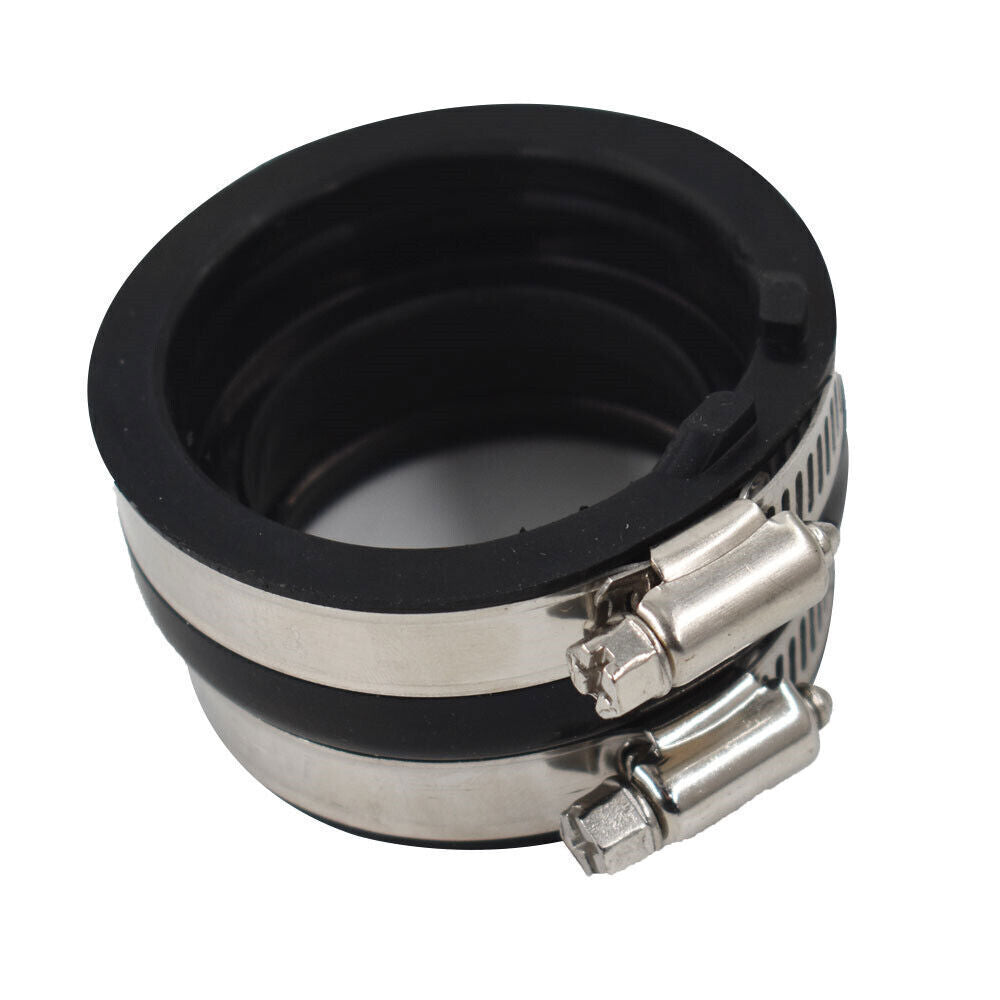

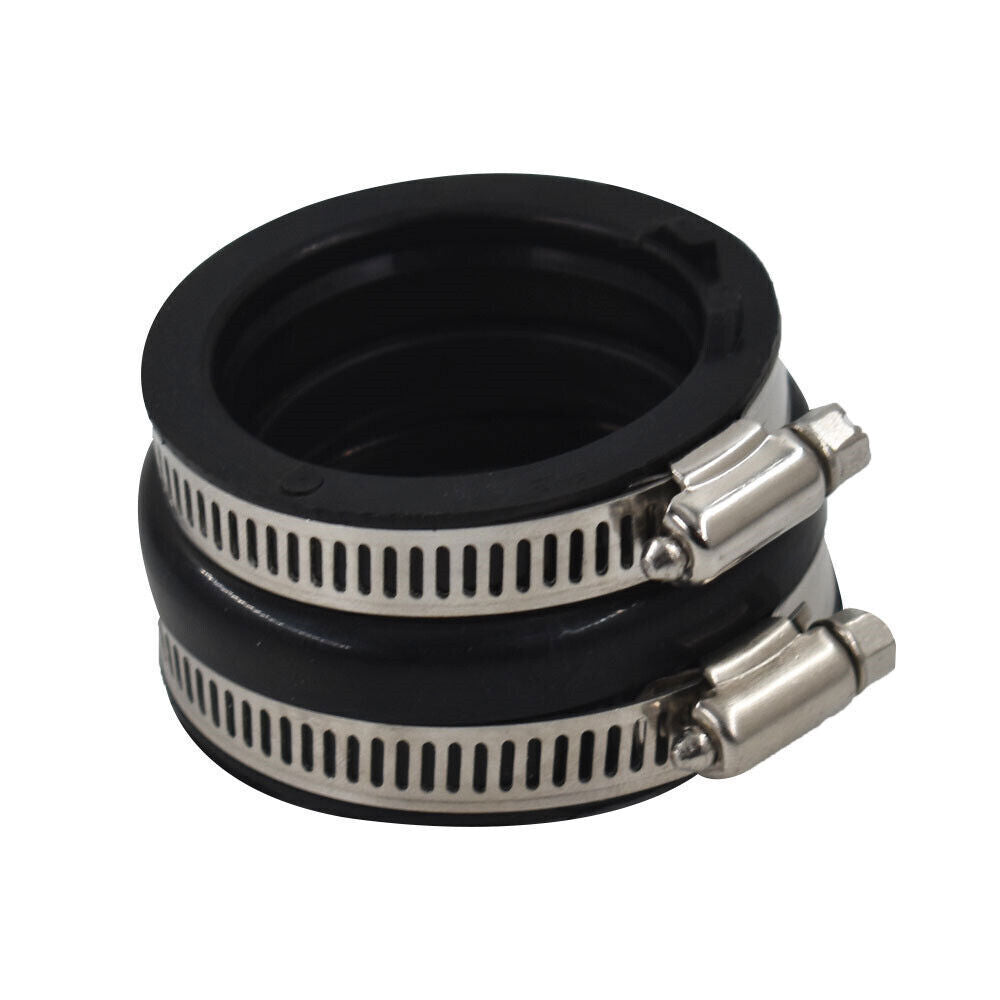

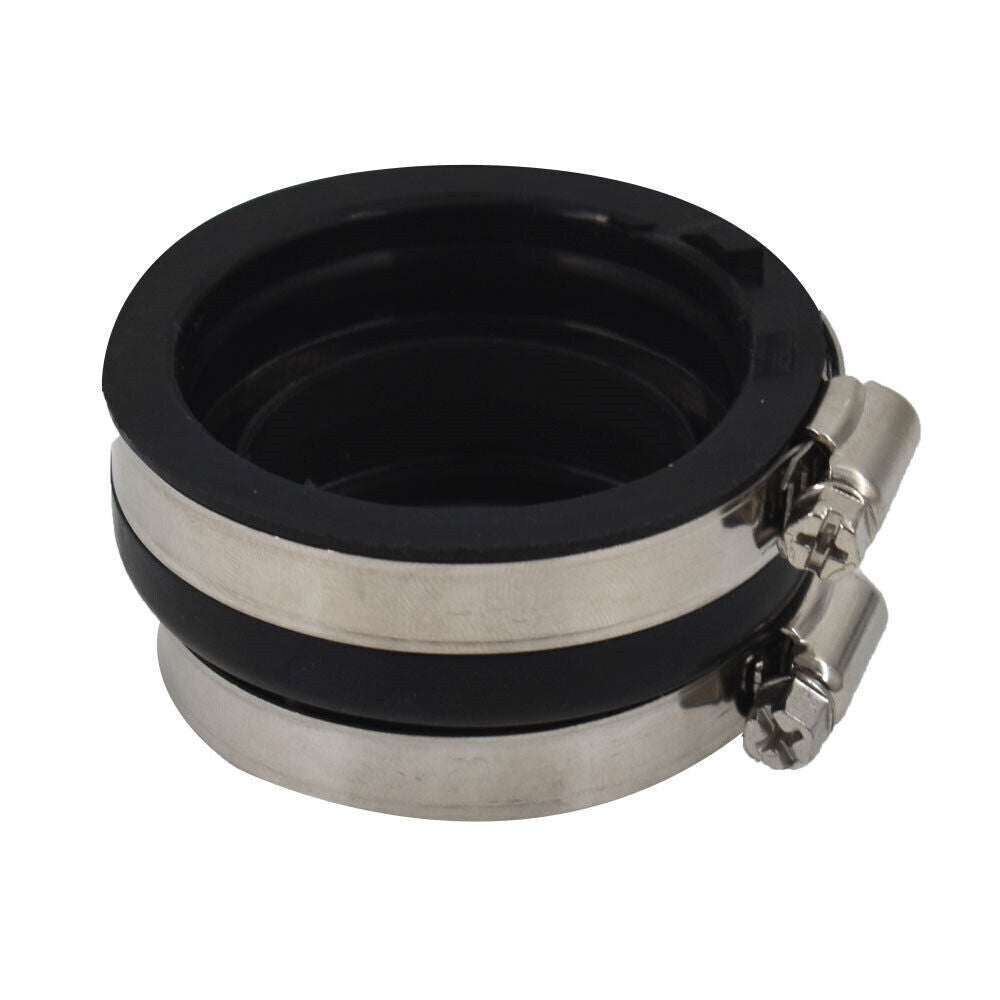

This aftermarket carburetor intake manifold boot replaces Yamaha 4WV-13596-00-00 on compatible Grizzly 600 YFM600 ATV engines.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Yamaha Grizzly 600 YFM600 4x4 (compatible model years)
- Yamaha YFM600 carburetor applications using manifold 4WV-13596-00-00
Product Overview
A cracked intake boot can pull unmetered air into the engine, causing a hanging idle, lean popping, hard starting, or a machine that runs better with the choke on. Because those symptoms often lead owners toward the carburetor first, the rubber manifold should be flexed and inspected before tuning.
This boot connects the carburetor to the cylinder-head intake on matching YFM600 models. Heat, age, and clamp pressure can hide splits on the underside. Match 4WV-13596-00-00, bolt spacing, throat size, vacuum fittings, carburetor diameter, and orientation.
Key Features & Performance
- Replacement rubber intake manifold for compatible Grizzly 600 ATVs
- Seals the carburetor-to-engine connection
- Cross-references Yamaha 4WV-13596-00-00
- Addresses cracks and hardening from heat and age
Replaces Part Numbers
- 4WV-13596-00-00
- 4WV135960000
Common Uses
- Repairing a vacuum leak between carburetor and cylinder head
- Replacing a boot cracked on the underside
- Correcting lean running after fuel and ignition checks
Technical Specifications
- Product Type: Carburetor intake manifold boot
- Vehicle Type: Yamaha ATV
- Engine: YFM600 / Grizzly 600 compatible
- Material: Molded rubber and metal as shown
- Condition: New aftermarket replacement
Installation & Fitment
- Inspect the carb flange and cylinder-head surface

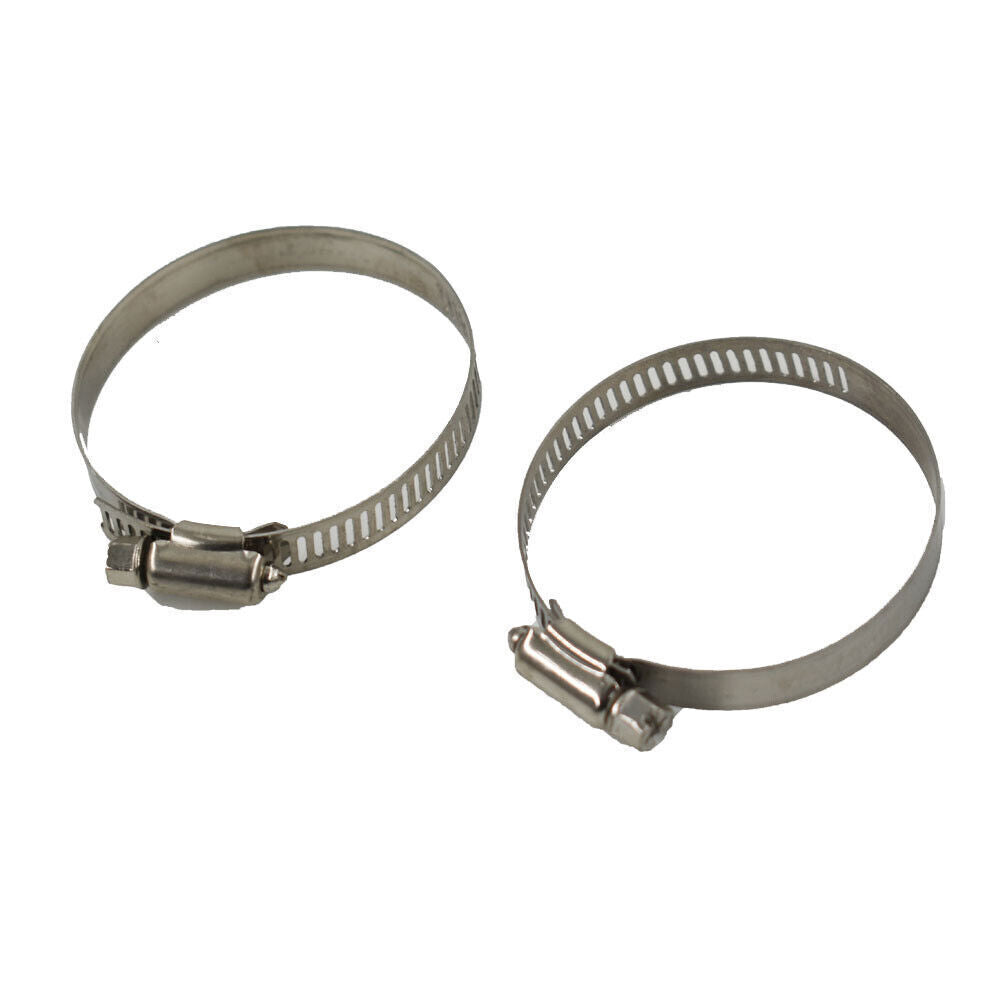

- Use sound seals and tighten clamps evenly
- Check connected vacuum hoses and caps for cracks
- Leak-test the intake before adjusting the carburetor
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can a cracked boot make the ATV run only with choke? A: Yes. Extra air can create a lean mixture that the choke partly masks.
Q: Will carburetor cleaner permanently repair a vacuum leak? A: No. Use approved diagnostic methods and replace a cracked boot.
Q: Does this include the carburetor? A: No. This listing is for the intake manifold boot.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
