EFI Fuel Pump Assembly 2204306 for 2008 Polaris Ranger XP 700 4x4 Browning
$77.99
In Stock
$77.99
Sale price
$77.99
Regular price

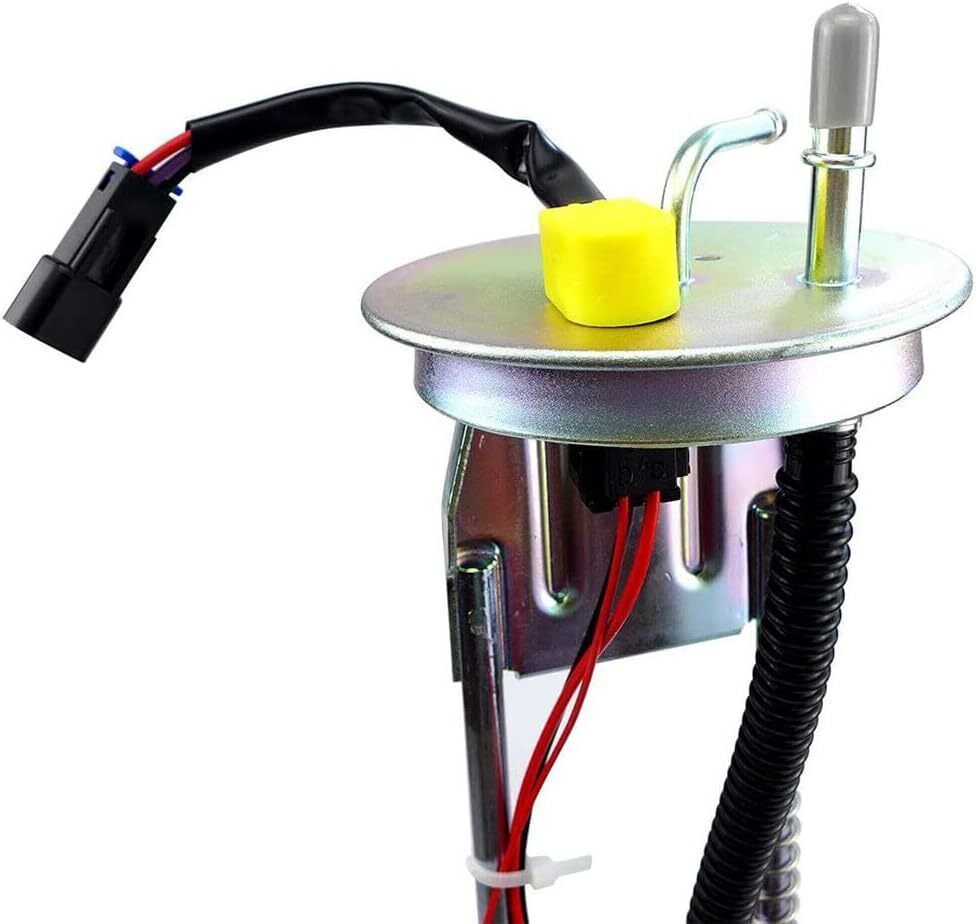

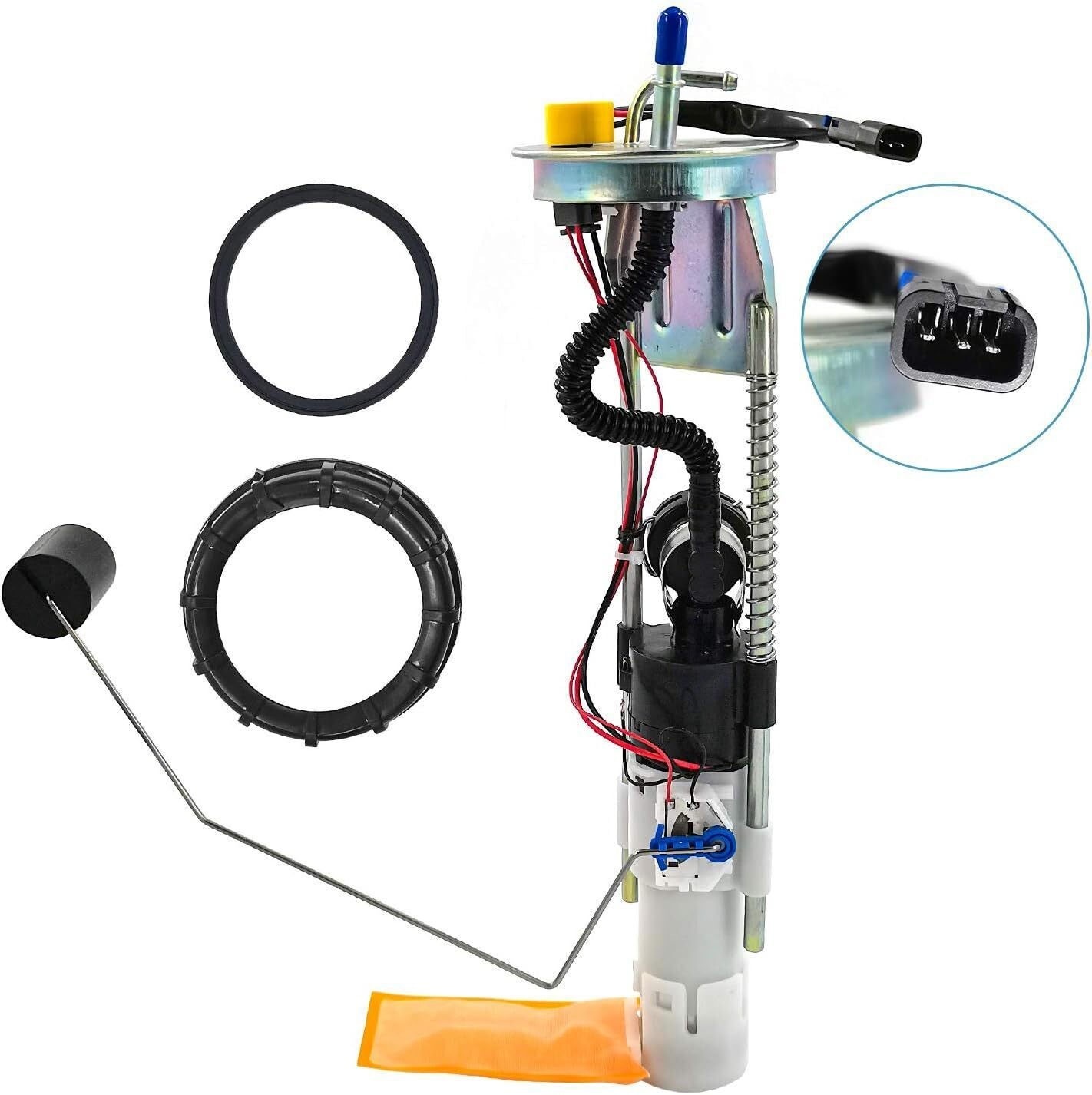

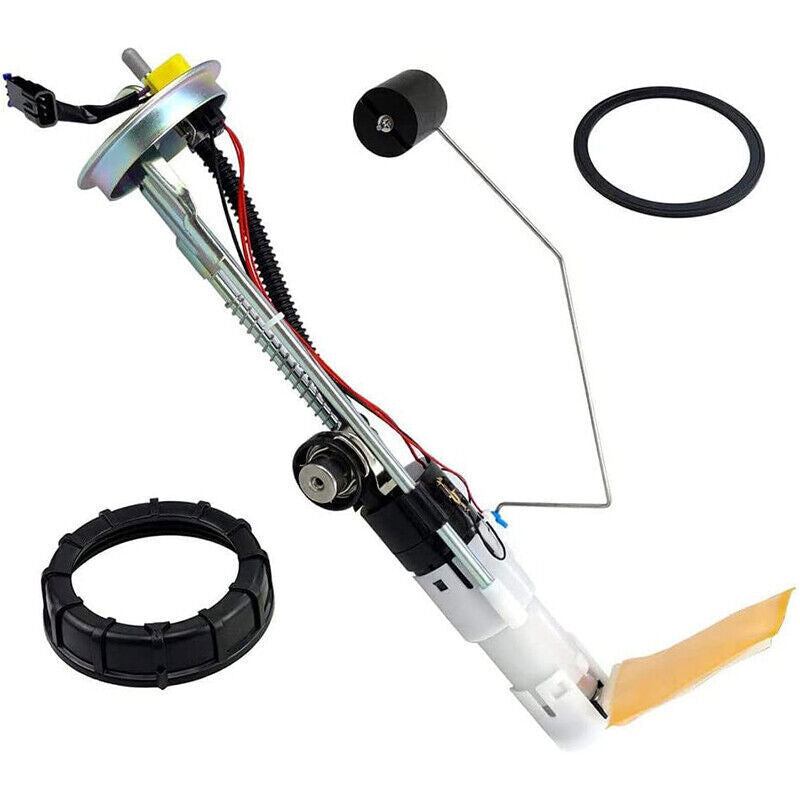

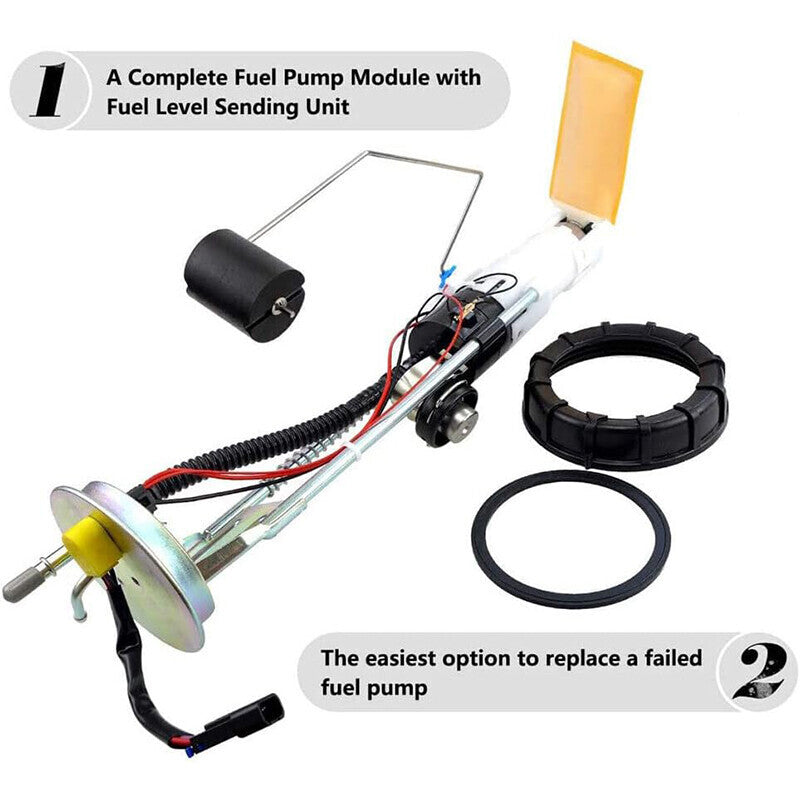

This aftermarket EFI fuel-pump module replaces Polaris 2204306 and 2520817 for compatible Ranger XP 700, Crew 500, Crew 700, Crew 800, and related Ranger applications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer

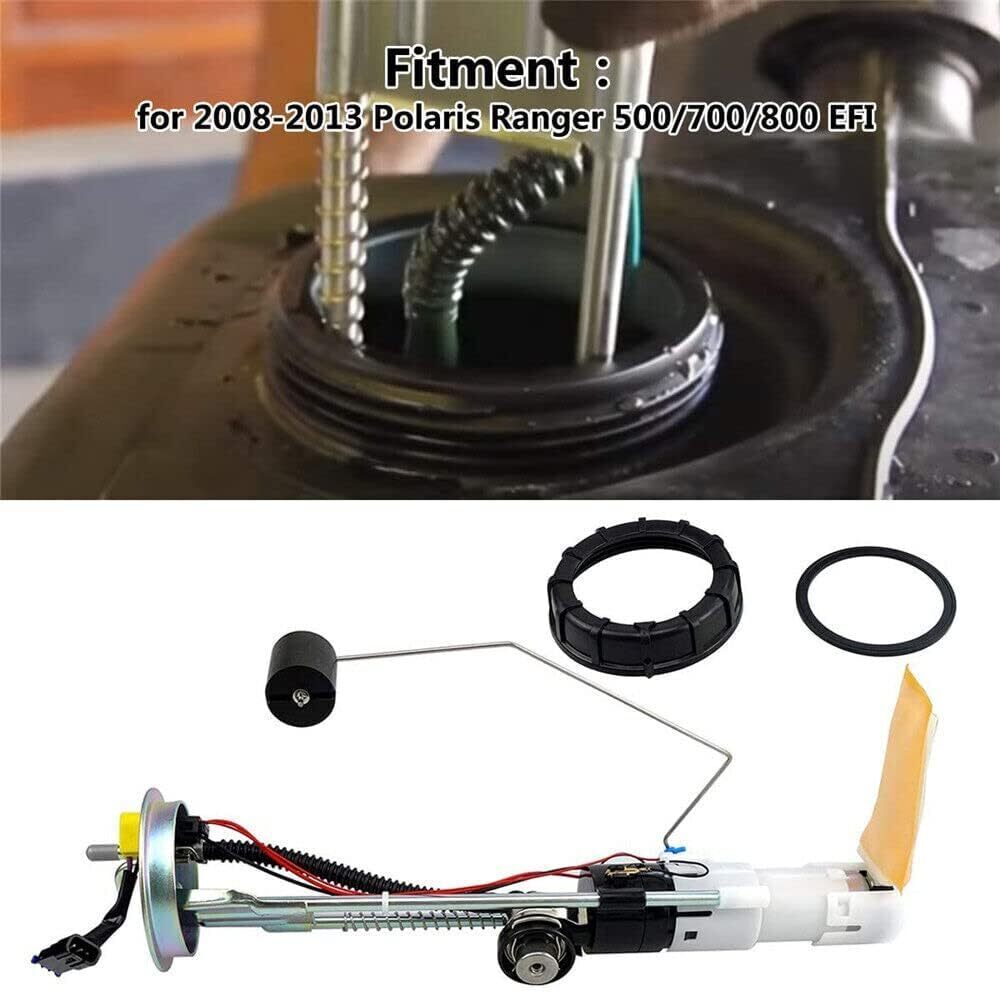

Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Polaris Ranger XP 700 4x4 and Browning, 2008
- Polaris Ranger Crew 500, 2012-2013
- Polaris Ranger Crew 700 including Browning, 2008-2009
- Polaris Ranger Crew 800 4x4 and EPS, 2010
- Polaris Ranger 500 EFI, 2009-2011
- Polaris Ranger 500 4x4 and Midsize applications, 2012-2013
- Polaris Ranger 700 6x6, 2008-2009
- Polaris Ranger 800 6x6, 2010
Product Overview
If a Ranger cranks normally but will not start, loses power on a hill, cuts out hot, or shows fuel pressure below specification, the in-tank pump module may be failing. This replacement restores pressurized fuel delivery after power, ground, relay, injector, ignition, and tank contamination are checked.

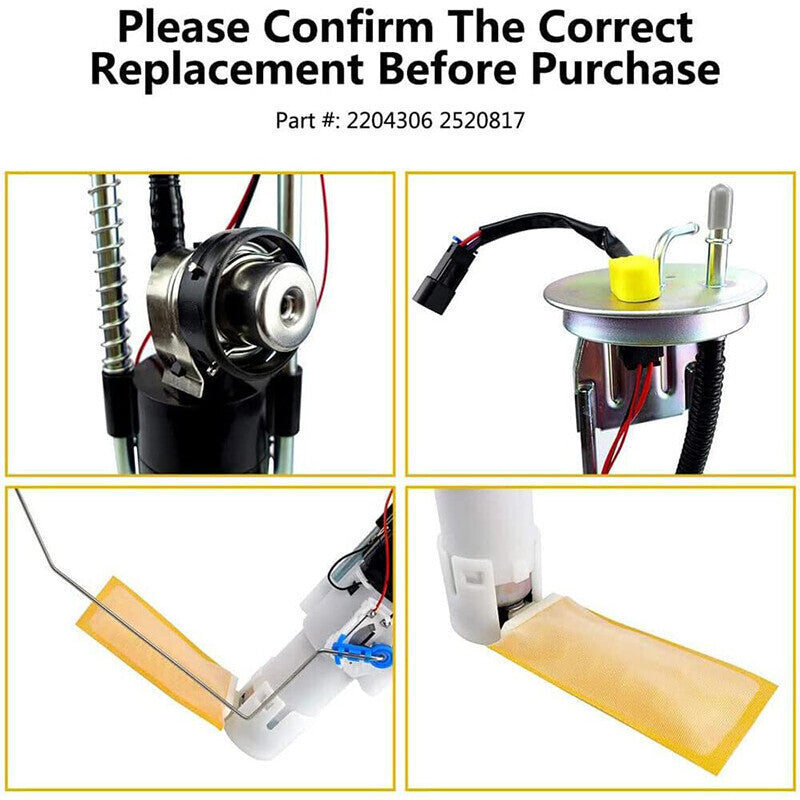

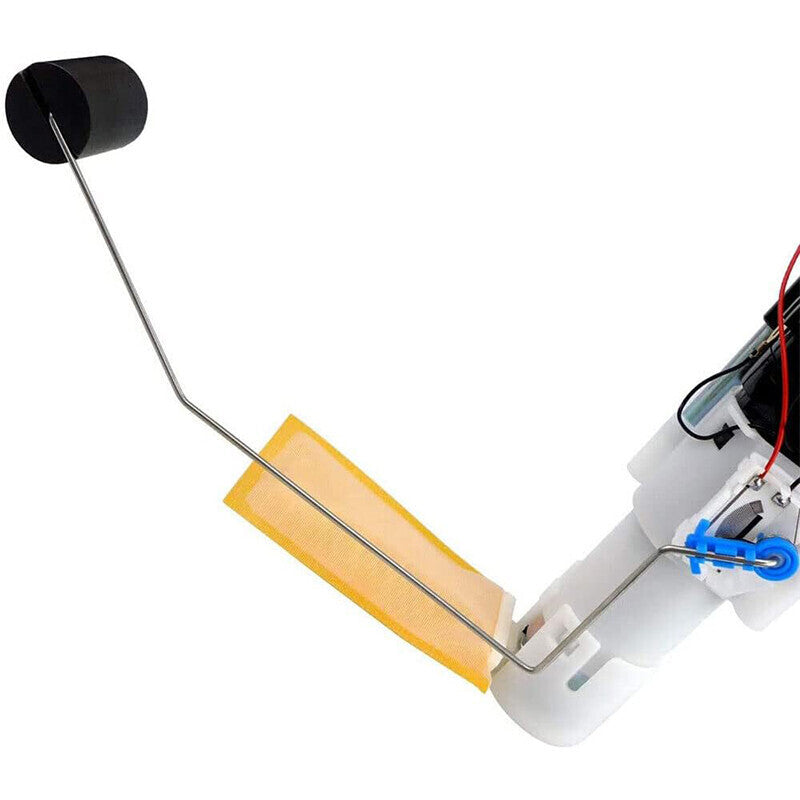

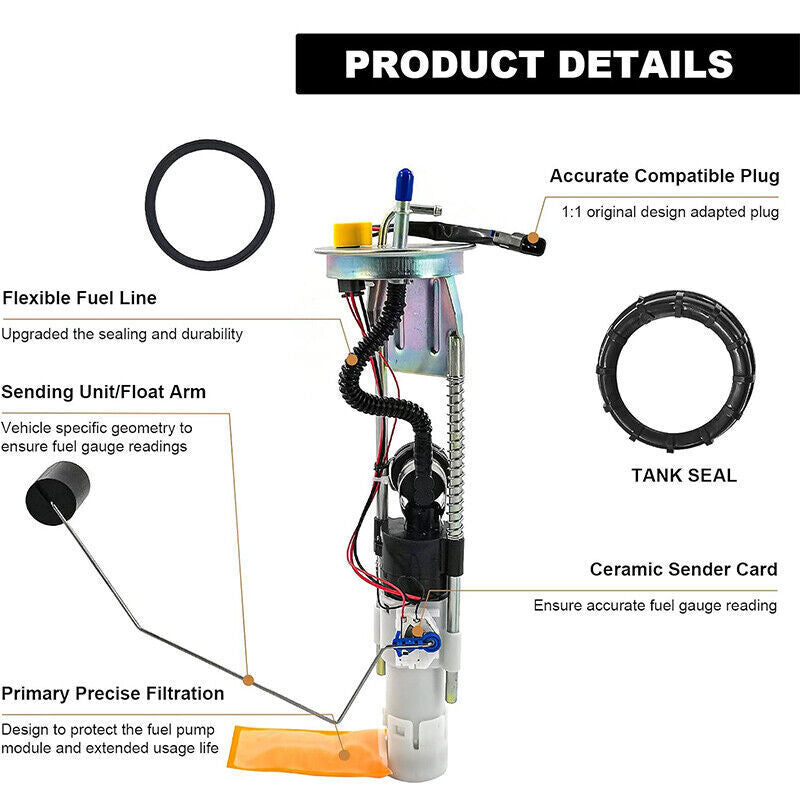

Polaris produced several similar modules. Match the exact model and year plus flange, electrical connector, outlet, sender arrangement, and original numbers.
Key Features & Performance
- In-tank EFI supply module for matching Ranger platforms
- Replaces 2204306 and 2520817-family references
- Addresses confirmed low pressure and intermittent pump operation
- Aftermarket module for compatible 500, 700, and 800 applications
Replaces Part Numbers
- 2204306
- 2520817
- 2520532
- 2521121
- 47-1009
- 1240239
- 1240382
- 2520864
- 2520673
Common Uses
- Restoring verified low fuel pressure
- Repairing intermittent hot no-starts caused by the pump
- Correcting load-related power loss after fuel testing
- Replacing a contaminated or noisy in-tank module
Technical Specifications
- Product Type: EFI fuel-pump module
- Compatible Brand: Polaris
- Primary Applications: Select Ranger XP and Crew models
- Replacement Type: Aftermarket

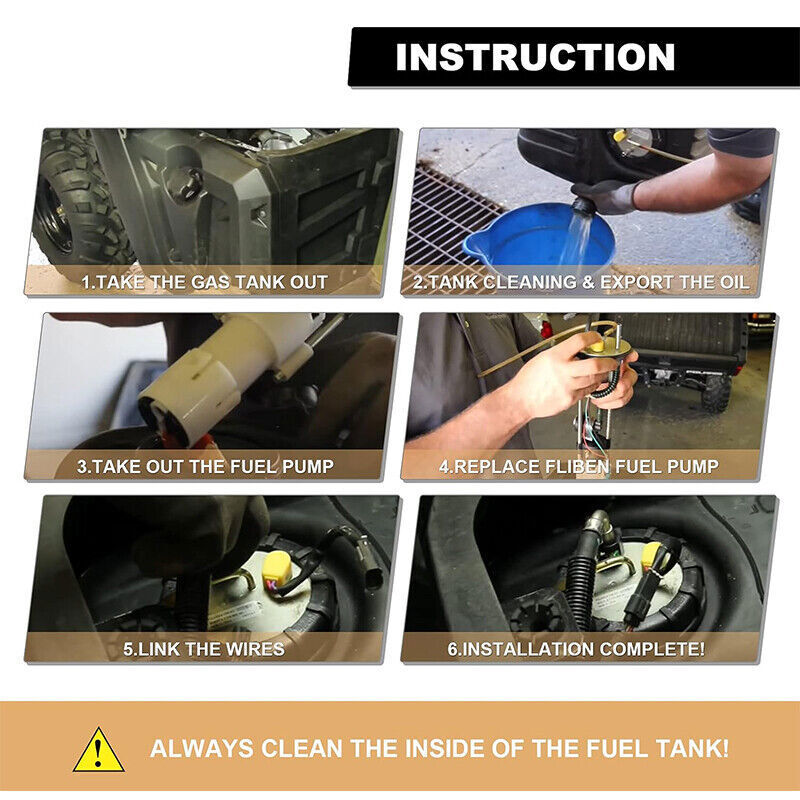

Installation & Fitment
- Work in a ventilated area with no ignition sources
- Relieve pressure and disconnect the battery
- Clean the tank and match the complete module geometry
- Prime, pressure-test, and inspect every connection for leaks
Compatibility Notice
A fuel-pump sound does not prove correct pressure, and a no-start does not prove pump failure. Test the circuit and pressure before replacement.
Frequently Asked Questions
Q: Can the pump run but still be weak? A: Yes. It can make noise yet fail to maintain specified pressure under demand.
Q: Does XP700 alone confirm fit? A: No. Confirm year, trim, reference number, flange, connector, and sender.
Q: Should the fuel filter be checked? A: Yes. Restrictions and contamination can reduce pressure and damage a new pump.
Part Summary
keywords: Polaris XP700 fuel pump, Ranger Crew fuel pump replacement, 2204306 pump module, 2520817 EFI fuel part, Ranger 800 low pressure pump, Crew 500 hard start repair, Polaris in tank pump assembly, aftermarket Ranger XP pump
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
