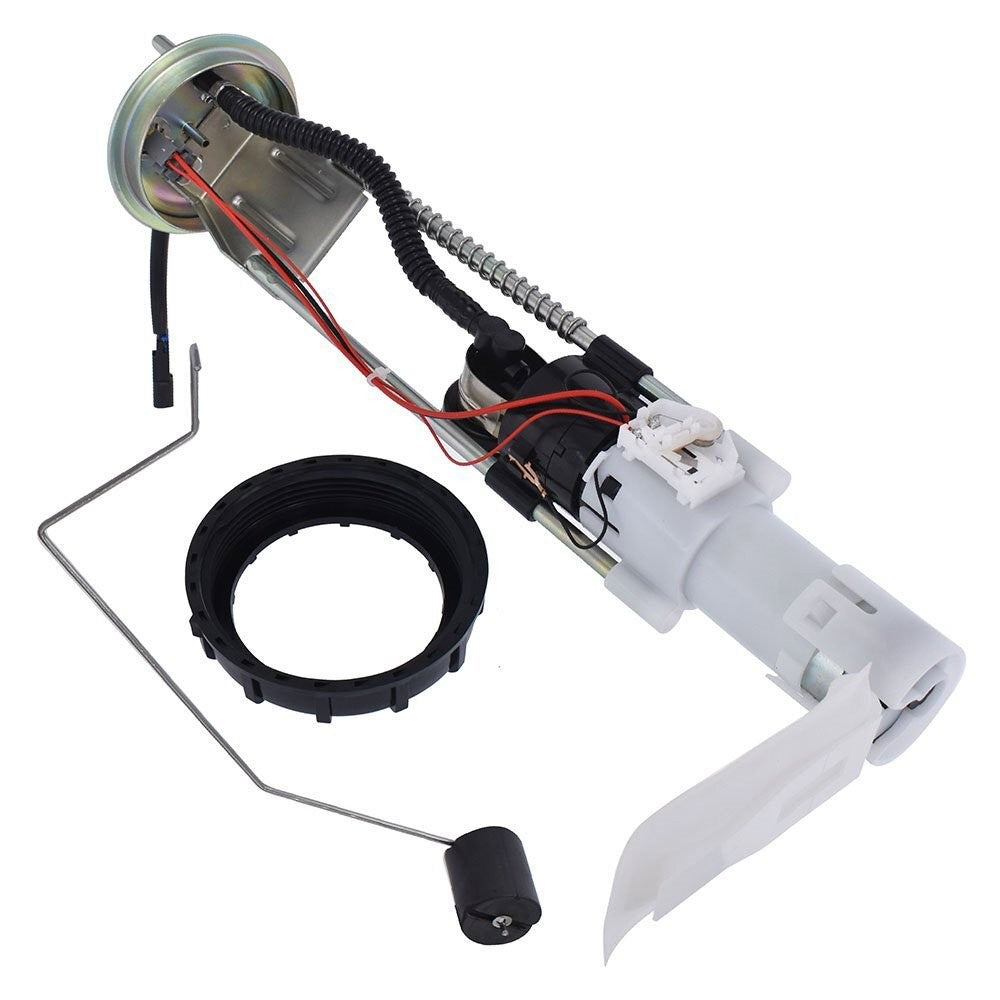

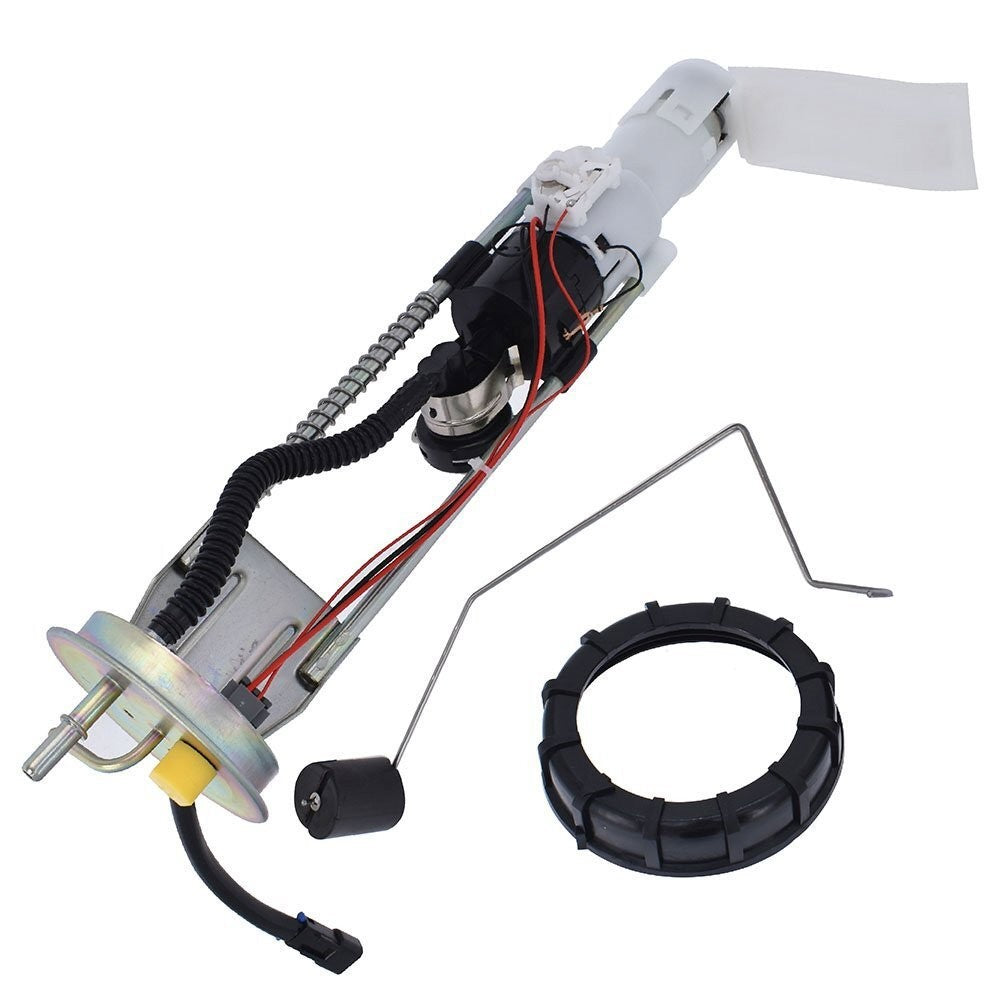

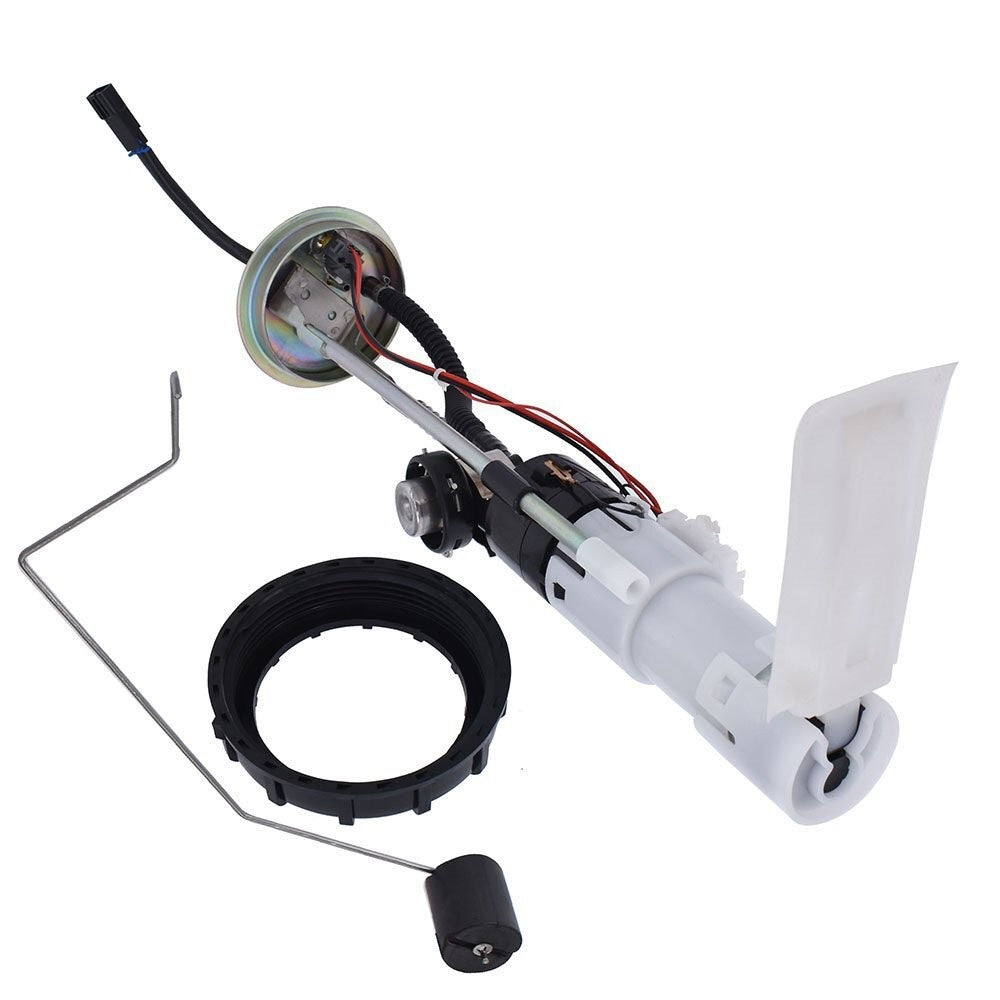

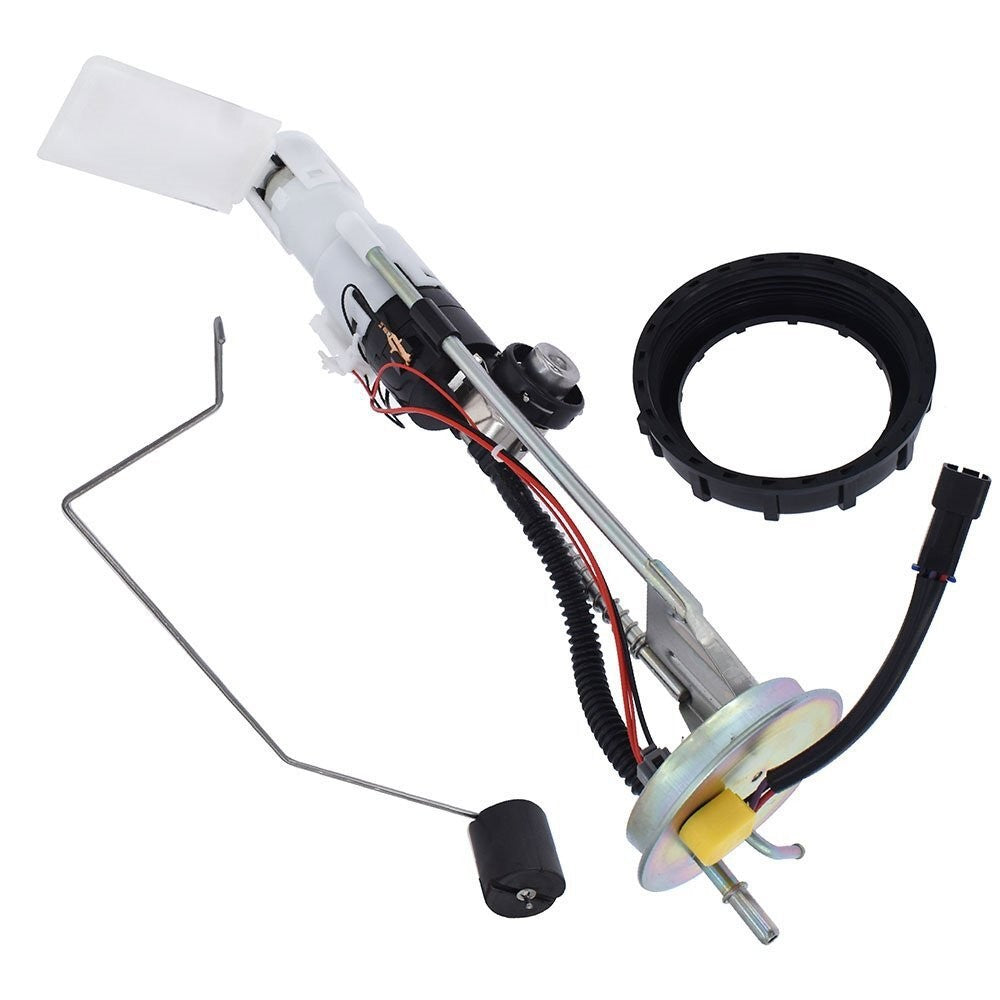

EFI Fuel Pump Assembly 2204306 2520817 for Polaris Ranger 500 700 800 | 2008-2013
$79.99
In Stock
$79.99
Sale price
$79.99
Regular price
This aftermarket EFI fuel-pump module replaces Polaris 2204306 and 2520817 for compatible Ranger 500, 700, 800, Crew, and XP applications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Polaris Ranger 500 EFI, 2009-2011
- Polaris Ranger 500 4x4 and LE, 2012
- Polaris Ranger 500 Midsize and LE, 2013
- Polaris Ranger Crew 500, 2012-2013
- Polaris Ranger 700 6x6, 2008-2009
- Polaris Ranger Crew 700, 2008-2009
- Polaris Ranger XP 700 4x4 and Browning, 2008
- Polaris Ranger 800 6x6, 2010
- Polaris Ranger Crew 800 4x4 and EPS, 2010
Product Overview
Long cranking, loss of power under acceleration, hot restart trouble, or an engine that starts briefly on added fuel can point to low fuel pressure after voltage, relay, filter, injector, and ignition checks. This module restores the in-tank supply on matching Polaris EFI vehicles.
Fuel pressure symptoms require testing, and Polaris used different modules across years and trims. Match the complete model, pump flange, connector, line outlets, sender, and original reference.
Key Features & Performance
- In-tank EFI pump module for matching Ranger applications
- Cross-referenced to 2204306 and 2520817
- Restores pressurized fuel delivery after confirmed pump failure
- Aftermarket replacement for worn or contaminated modules
Replaces Part Numbers
- 2204306
- 2520817
- 2520532
- 2521121
- 47-1009
- 1240239
- 1240382
- 2520864
- 2520673
Common Uses
- Repairing verified low EFI fuel pressure
- Correcting power loss under load caused by a weak pump
- Replacing a noisy, intermittent, or failed in-tank module
- Restoring a contaminated fuel system after the tank is cleaned
Technical Specifications
- Product Type: EFI in-tank fuel-pump module
- Compatible Brand: Polaris
- Application: Select Ranger 500, 700, and 800 models
- Replacement Type: Aftermarket
Installation & Fitment
- Relieve pressure and disconnect battery power
- Drain and clean contaminated fuel from the tank
- Match flange, electrical connector, outlets, and sender geometry
- Prime the system and check fuel pressure and leaks before operation
Compatibility Notice
Year and engine size alone do not guarantee fitment. Do not open the fuel system near flame, sparks, hot surfaces, or unventilated areas.
Frequently Asked Questions
Q: Can a weak pump cause power loss at speed? A: Yes. Pressure may appear adequate at idle but fall under demand; test it to specification.
Q: Will this fix every no-start? A: No. Check battery, relay, power and ground, injector pulse, ignition, compression, and safety circuits.
Q: Why clean the tank? A: Contamination can damage the replacement pump and injectors.
Part Summary
keywords: Polaris Ranger fuel pump replacement, 2204306 EFI pump module, 2520817 fuel pump fit, Ranger 500 low fuel pressure, Ranger 700 pump assembly, Ranger 800 Crew fuel part, Polaris XP700 hard start, aftermarket Ranger pump module
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
