for Pentair Compool, Jandy/Zodiac,Hayward 263045 CVA-24T Valve Actuator 24V
for Pentair Compool, Jandy/Zodiac,Hayward 263045 CVA-24T Valve Actuator 24V
Need help? Call Us: 314-403-0109
Couldn't load pickup availability

Product Overview

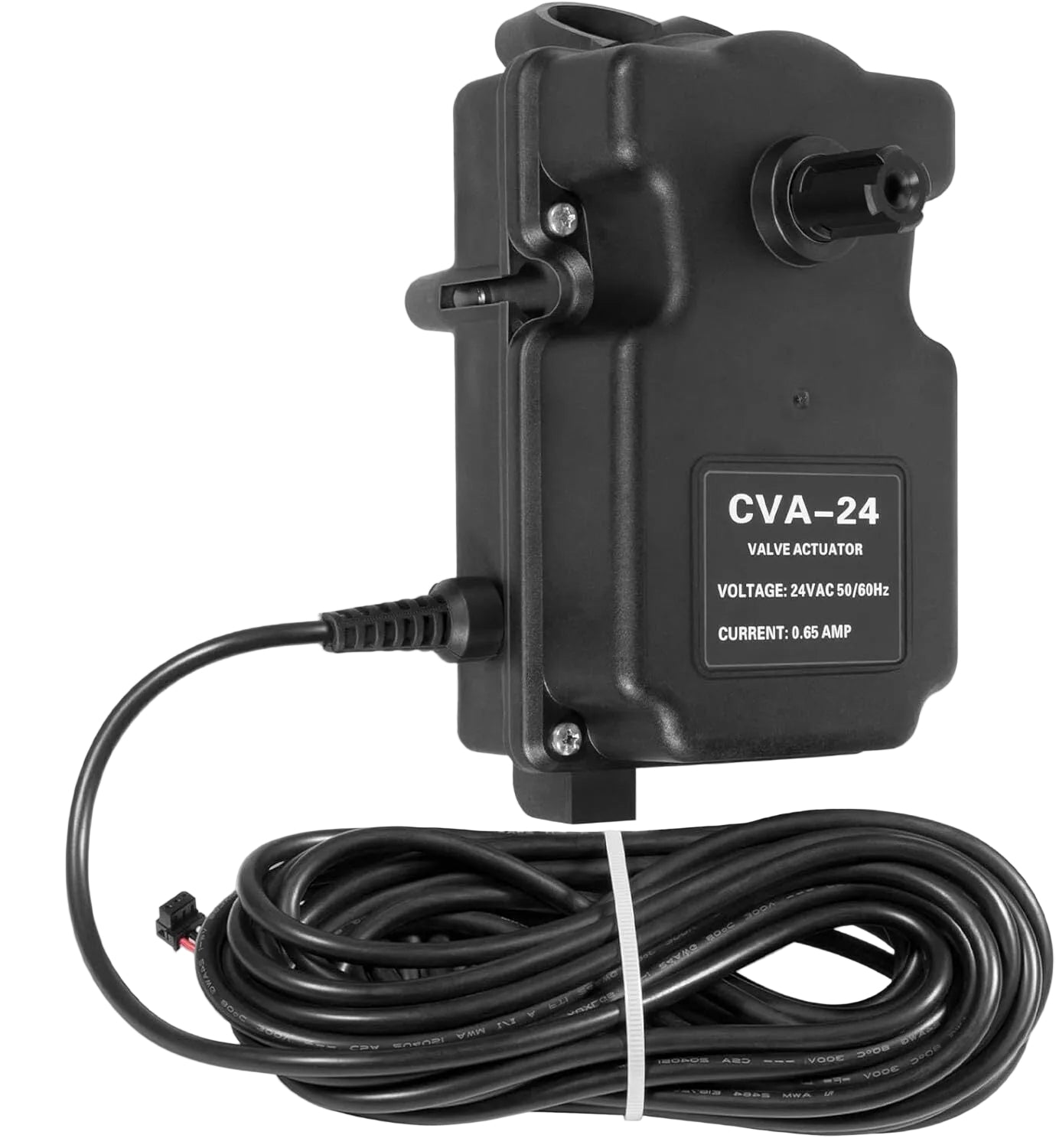

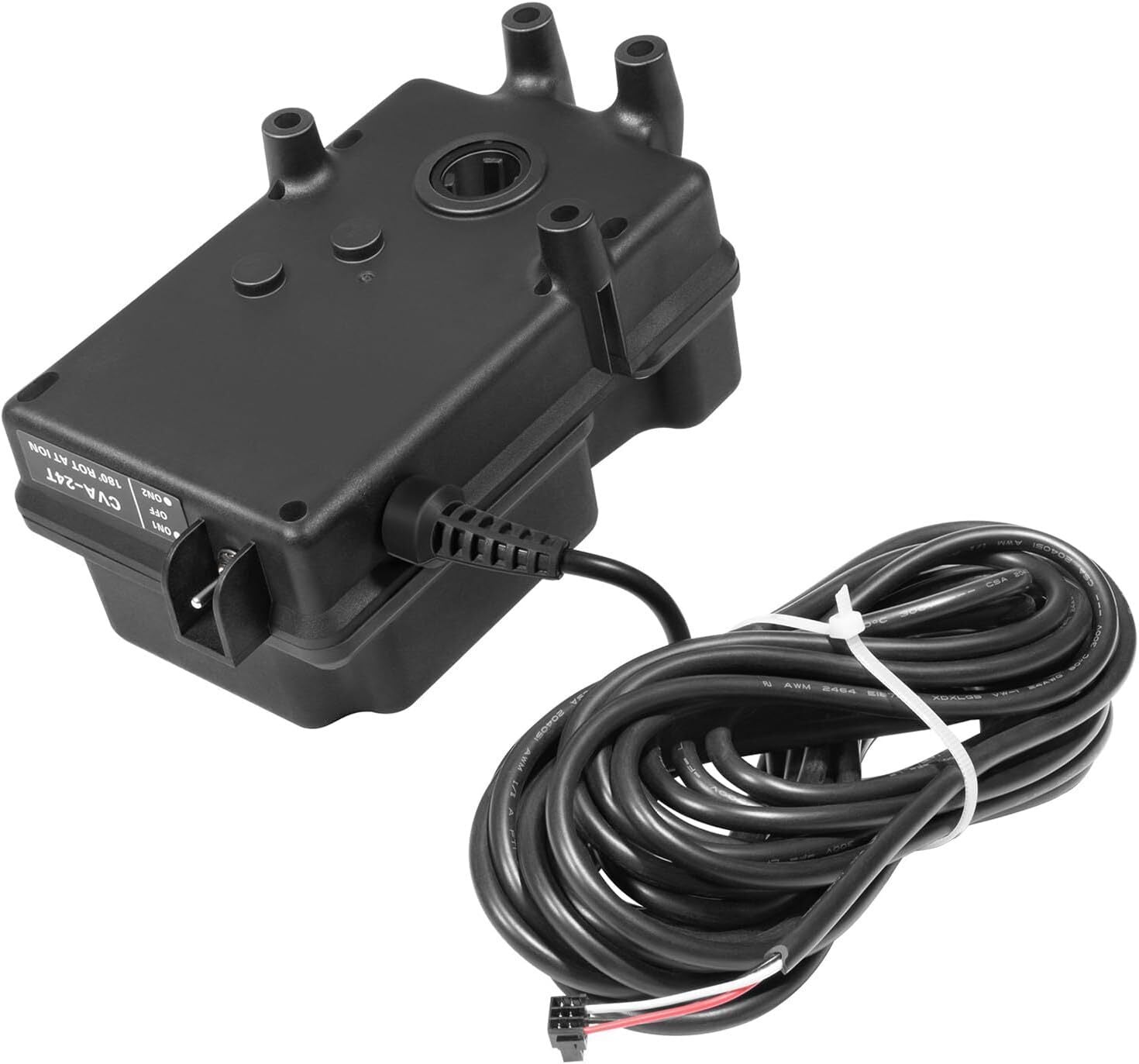

This CVA-24T Valve Actuator is a high-performance motorized device designed to automate the rotation of 2-port and 3-port diverter valves. By installing this CVA-24T Valve Actuator, pool owners can seamlessly switch water flow between pool and spa modes or activate water features via their automation system. This CVA-24T Valve Actuator provides reliable, high-torque operation to ensure consistent performance in demanding outdoor environments.
Key Features & Performance

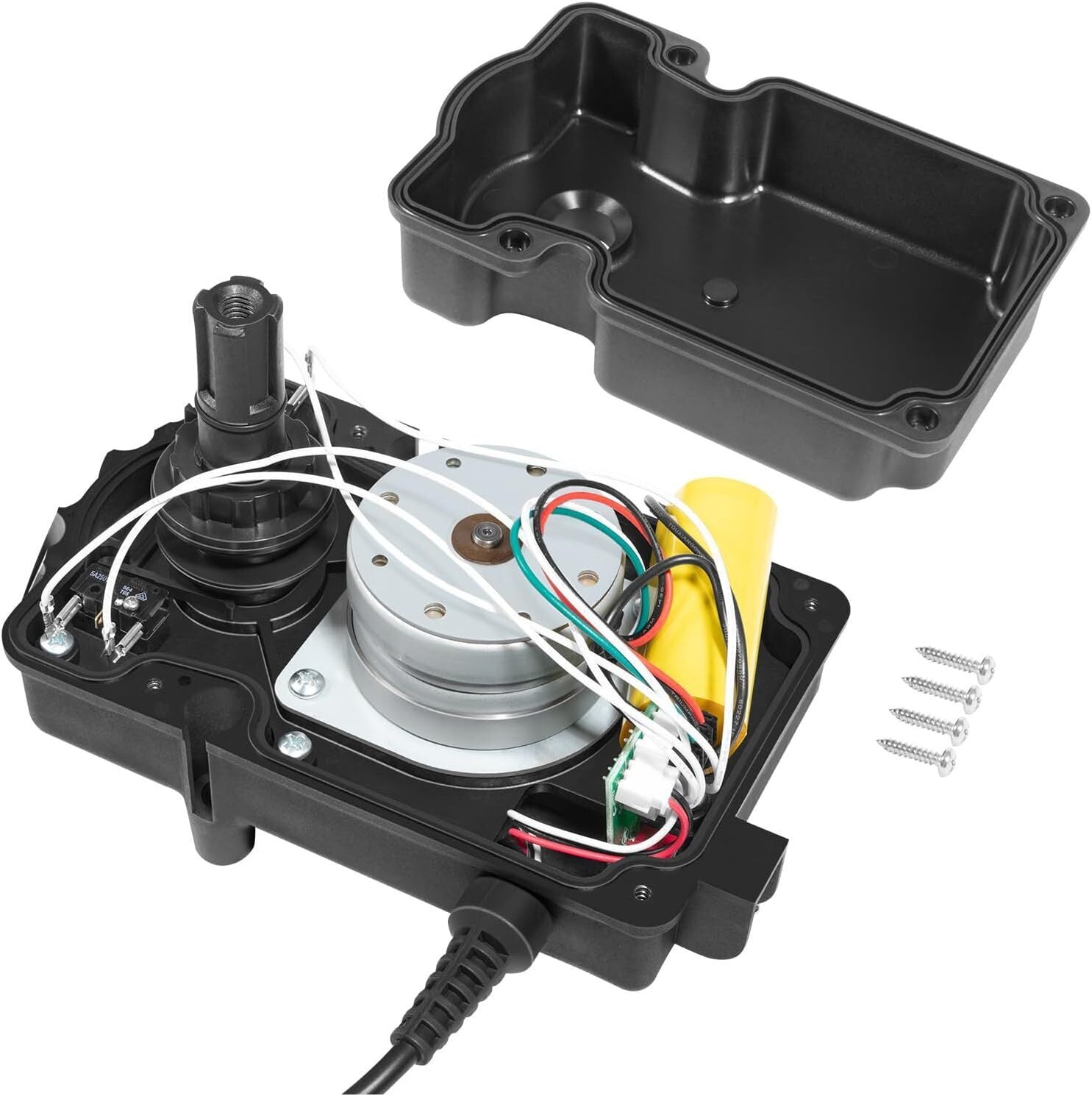

- High-torque 24VAC motor designed for smooth and reliable valve rotation
- Fully adjustable cam settings allow for precise water flow control and positioning

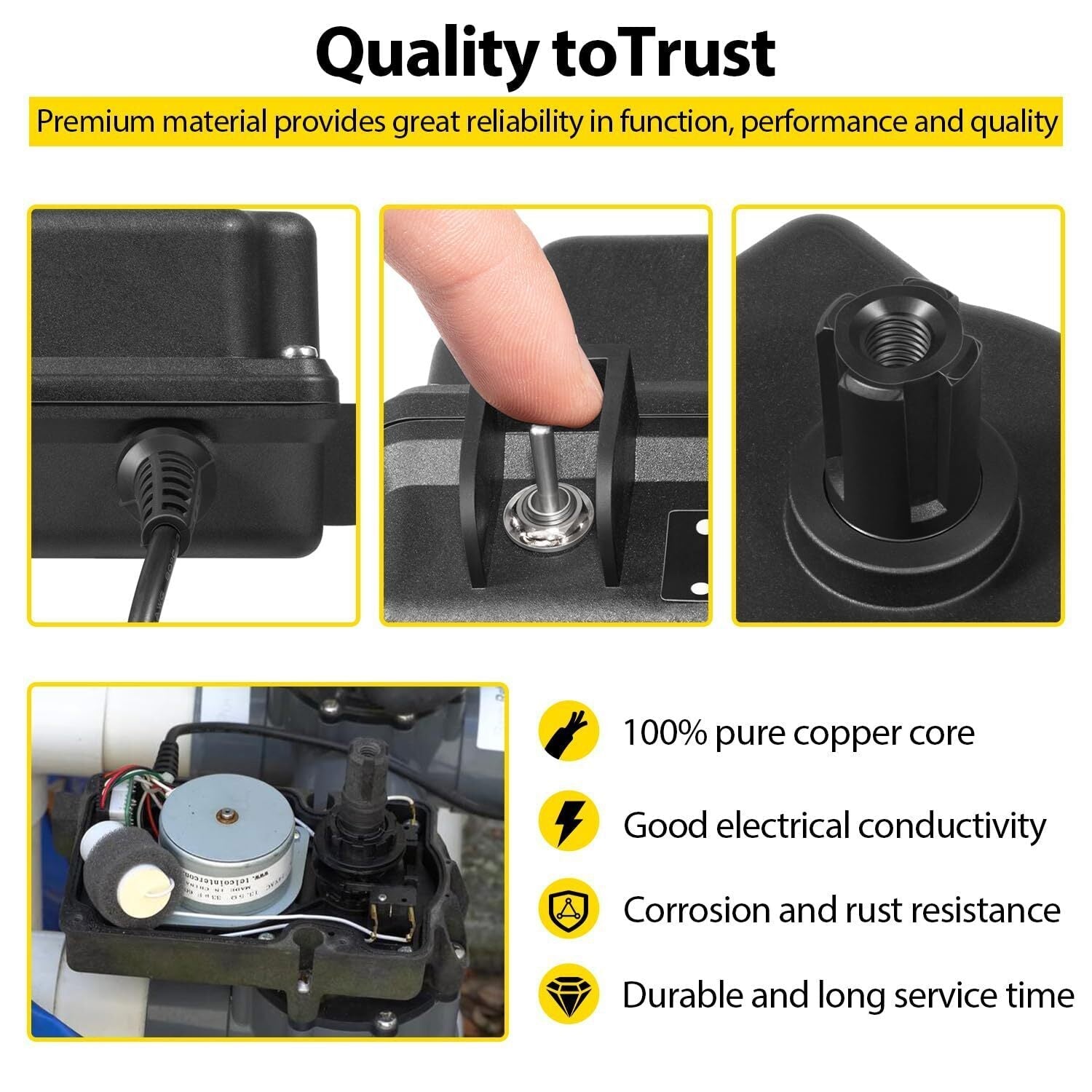

- Weather-resistant Noryl housing protects internal components from harsh outdoor elements
- Equipped with a 25-foot 3-wire cable for flexible installation and system integration
- Integrated service switch allows for easy manual flow direction testing
- Corrosion-proof construction ensures a long service life in pool environments
Fitment & Compatibility

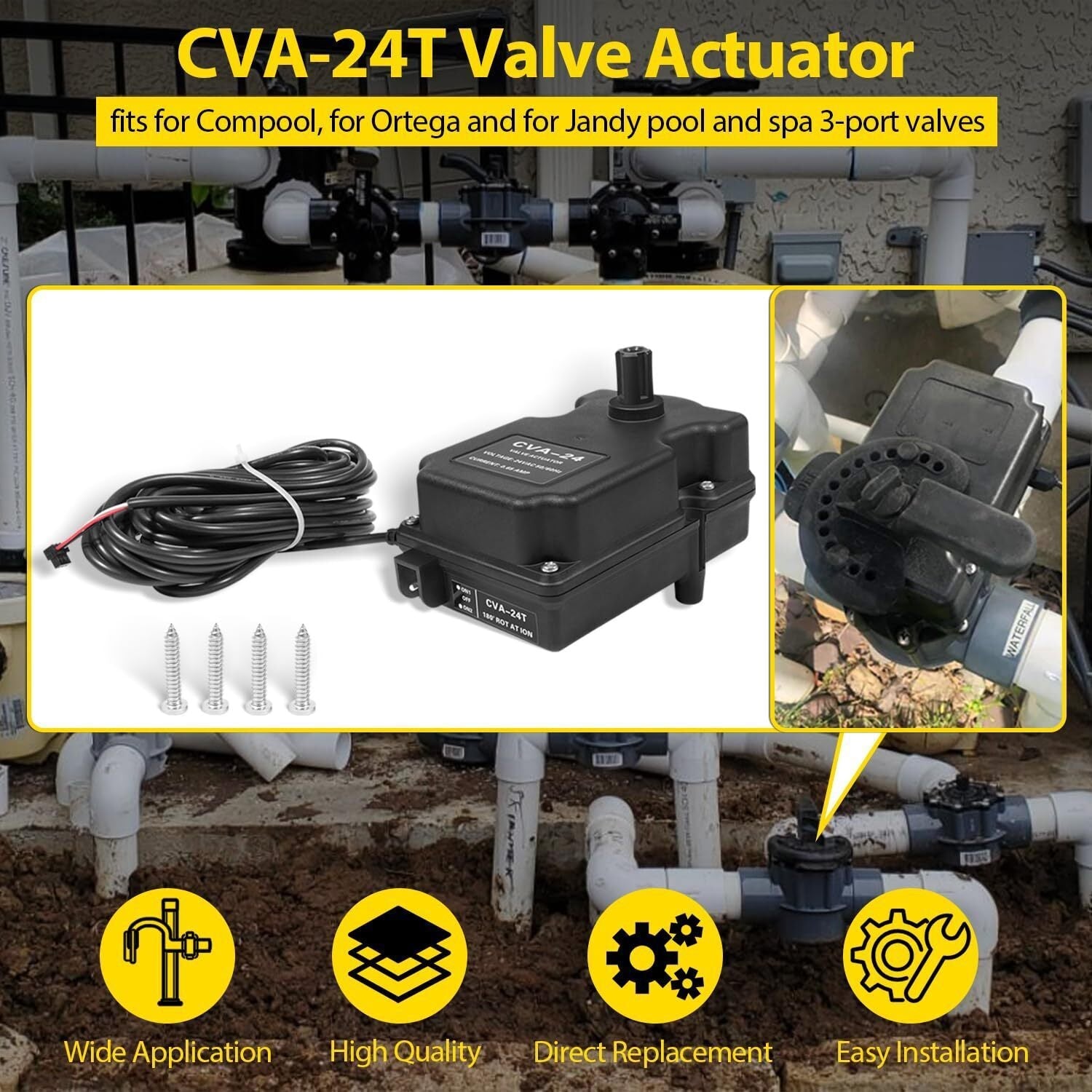

- Pentair Compool systems including EasyTouch, IntelliTouch, and SunTouch
- Jandy and Zodiac 2-port and 3-port diverter valves
- Hayward pool and spa automation systems
- Ortega and other major 24VAC valve control systems
Common Uses
- Automating the switch between pool and spa filtration modes
- Controlling water flow to waterfalls, fountains, and other water features
- Integrating solar heating systems with existing pool plumbing

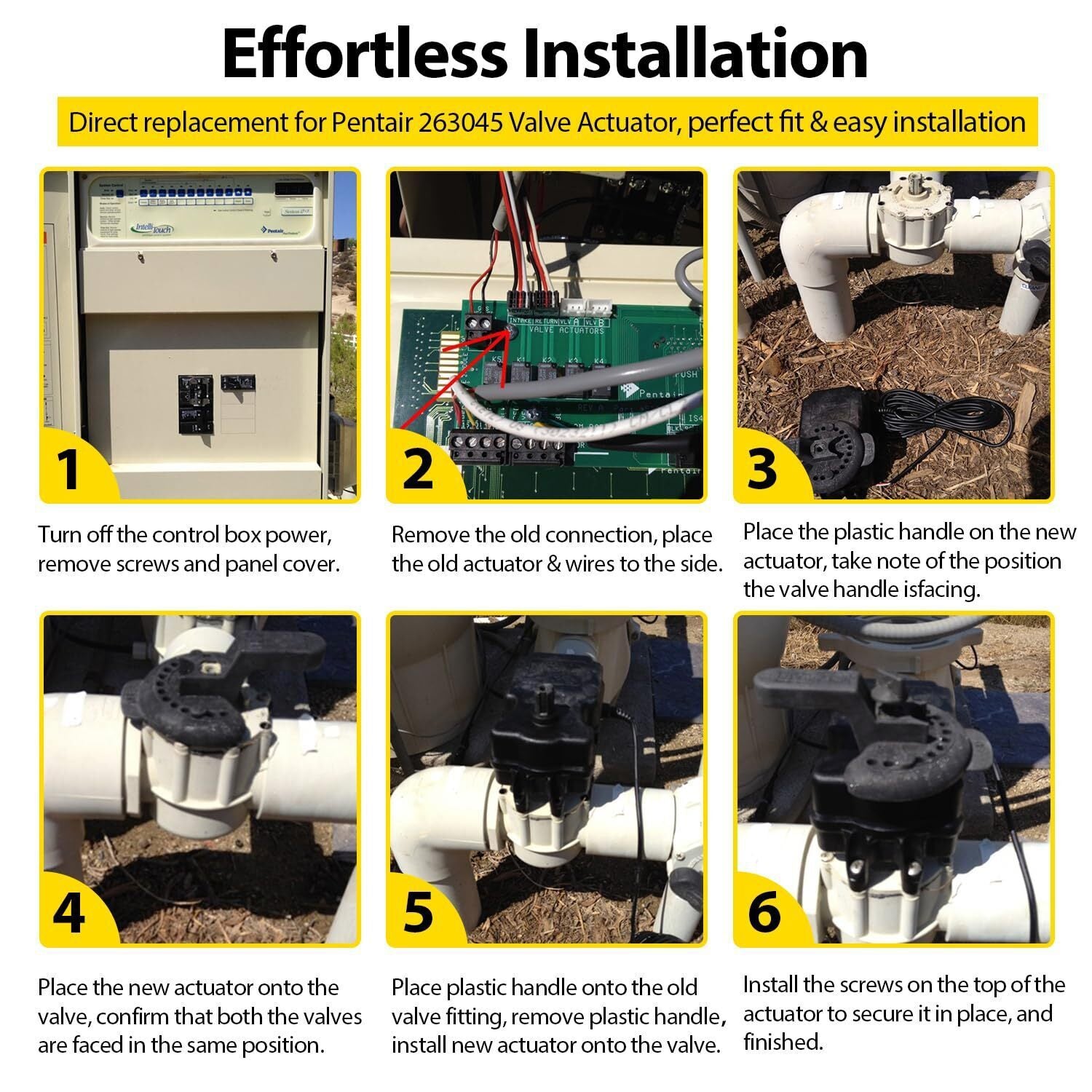

- Replacing worn or damaged 24V actuators in commercial or residential pools

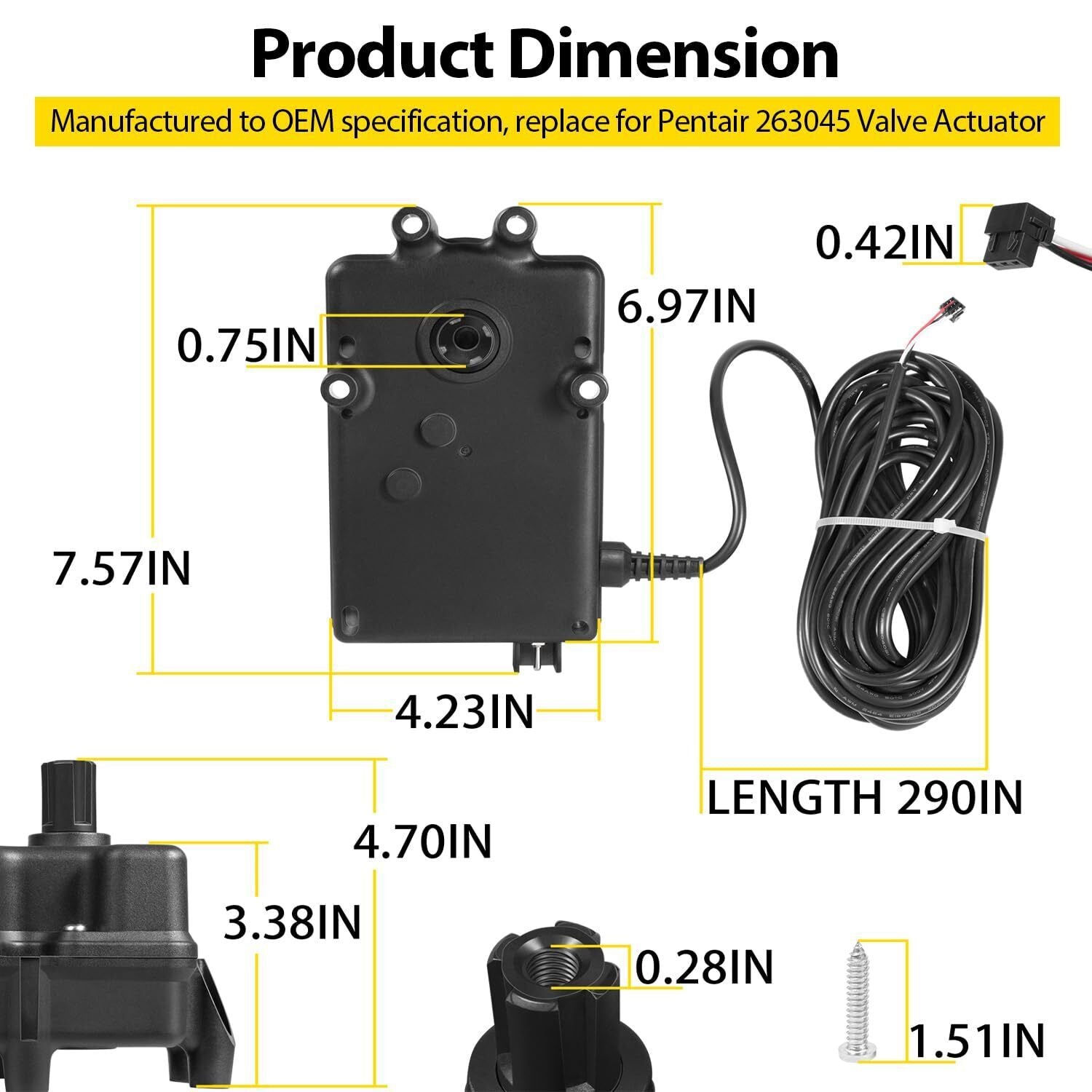

Technical Specifications
- Part Number(s): 263045, CVA-24T
- Voltage: 24 VAC
- Amperage: 0.65 A
- Torque: 250 in-lbs
- Cable Length: 25 Feet
- Material: Noryl and Steel
Frequently Asked Questions
Q: Can this actuator be used with both 2-way and 3-way valves? A: Yes, this actuator is designed to work with most standard 2-port and 3-port diverter valves from major brands.

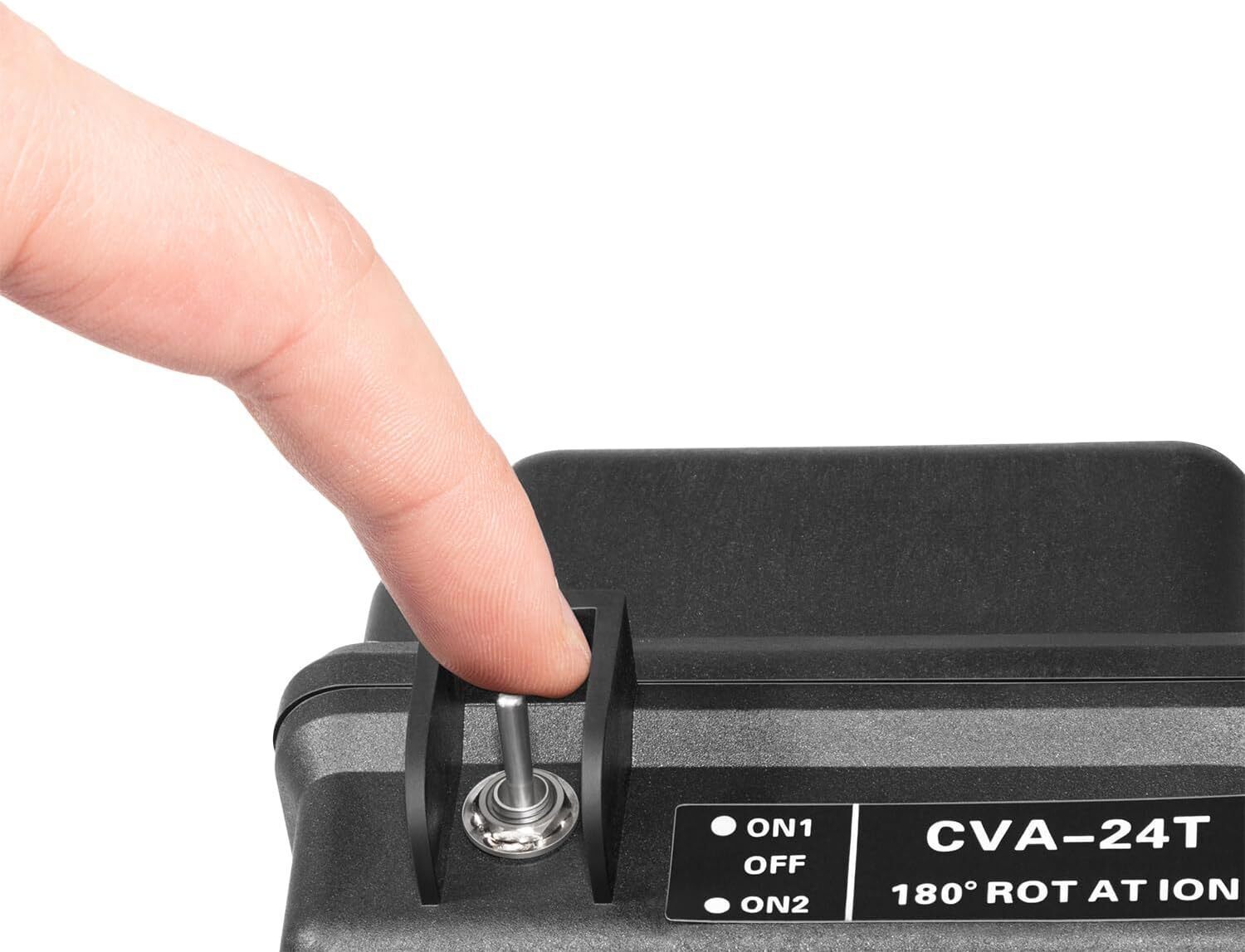

Q: Does this unit include a manual override? A: The actuator features a toggle switch on the bottom that allows users to manually change the direction of flow for servicing.
Product appearance and specifications may vary slightly by batch. Compatibility may vary by serial number. Verify fitment before purchase.
