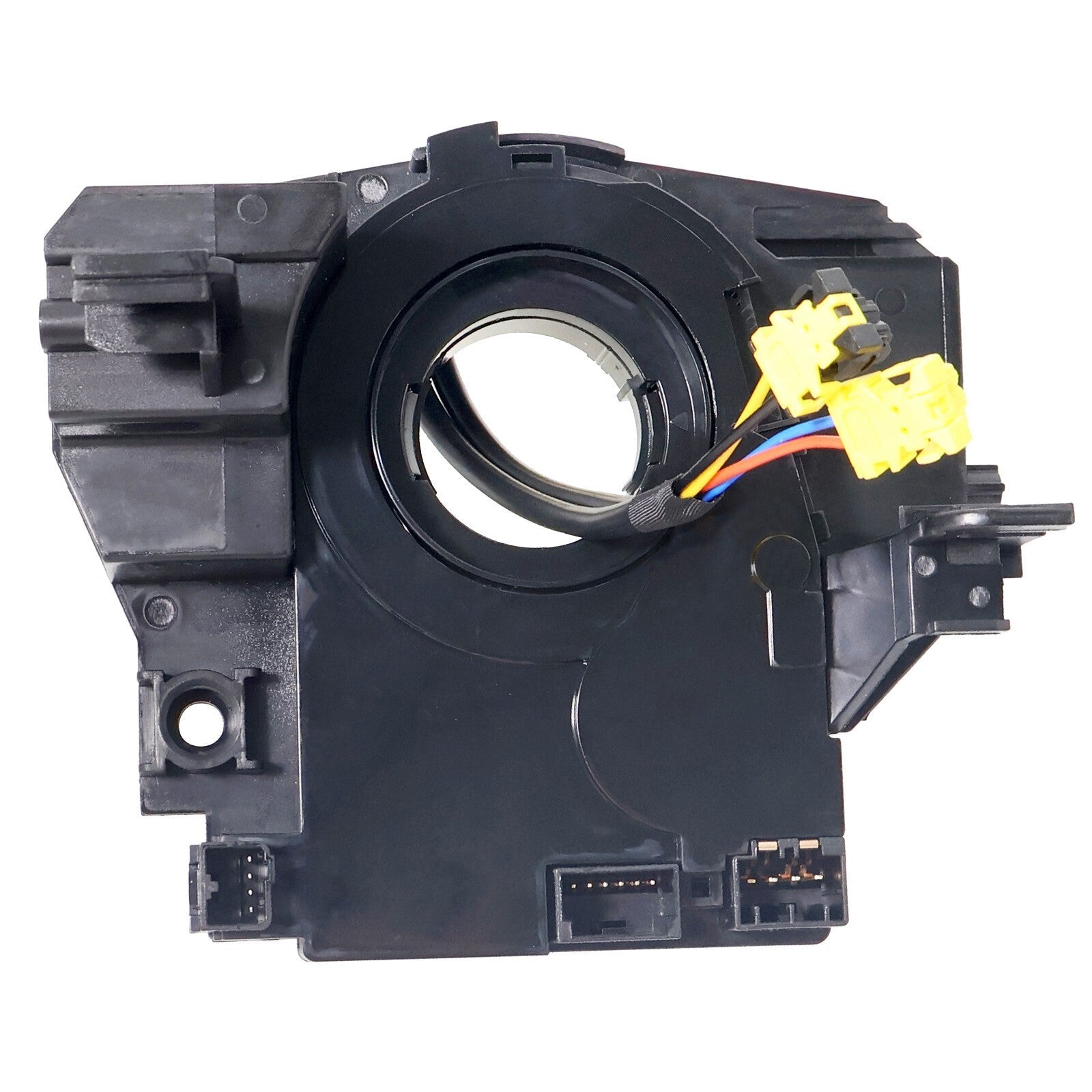

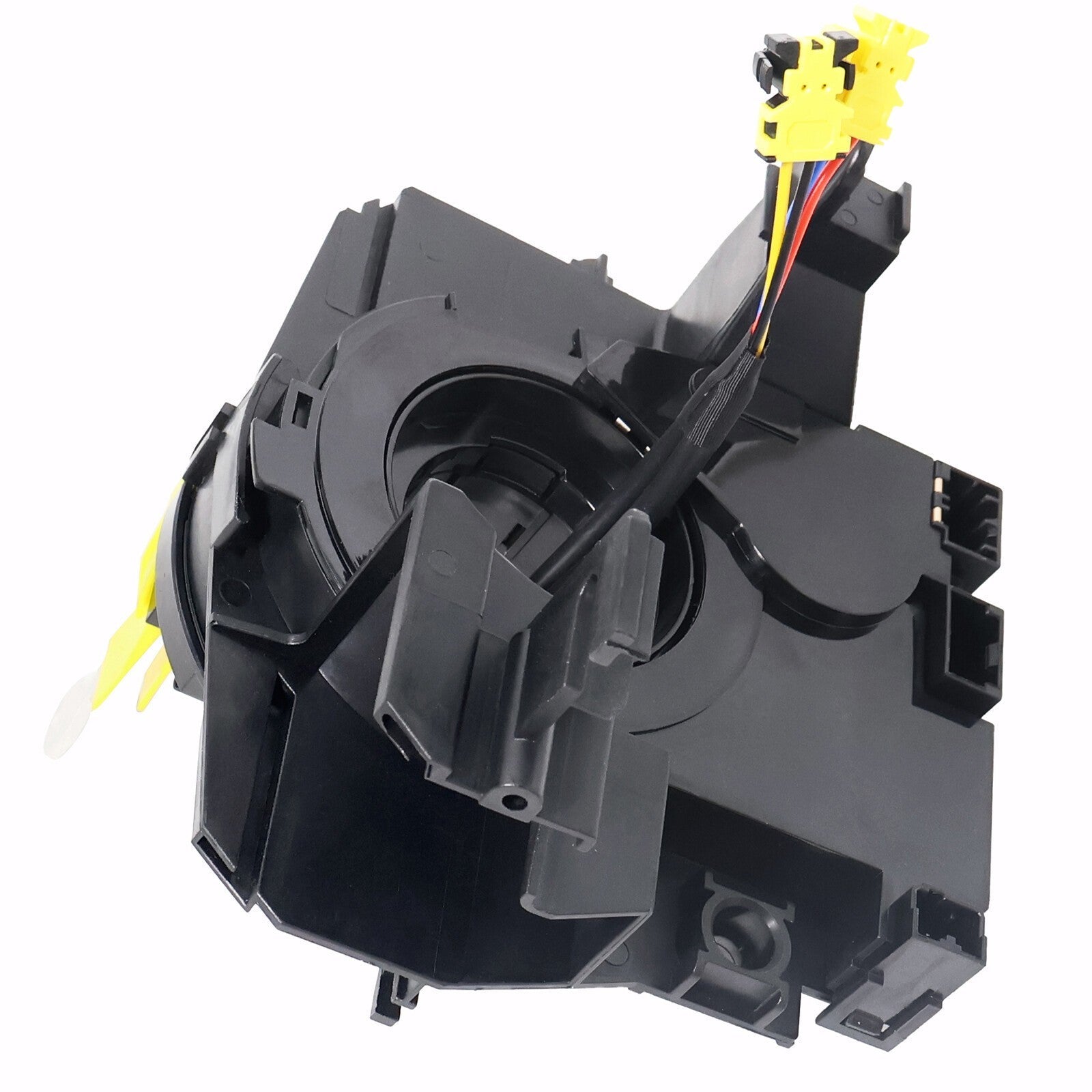

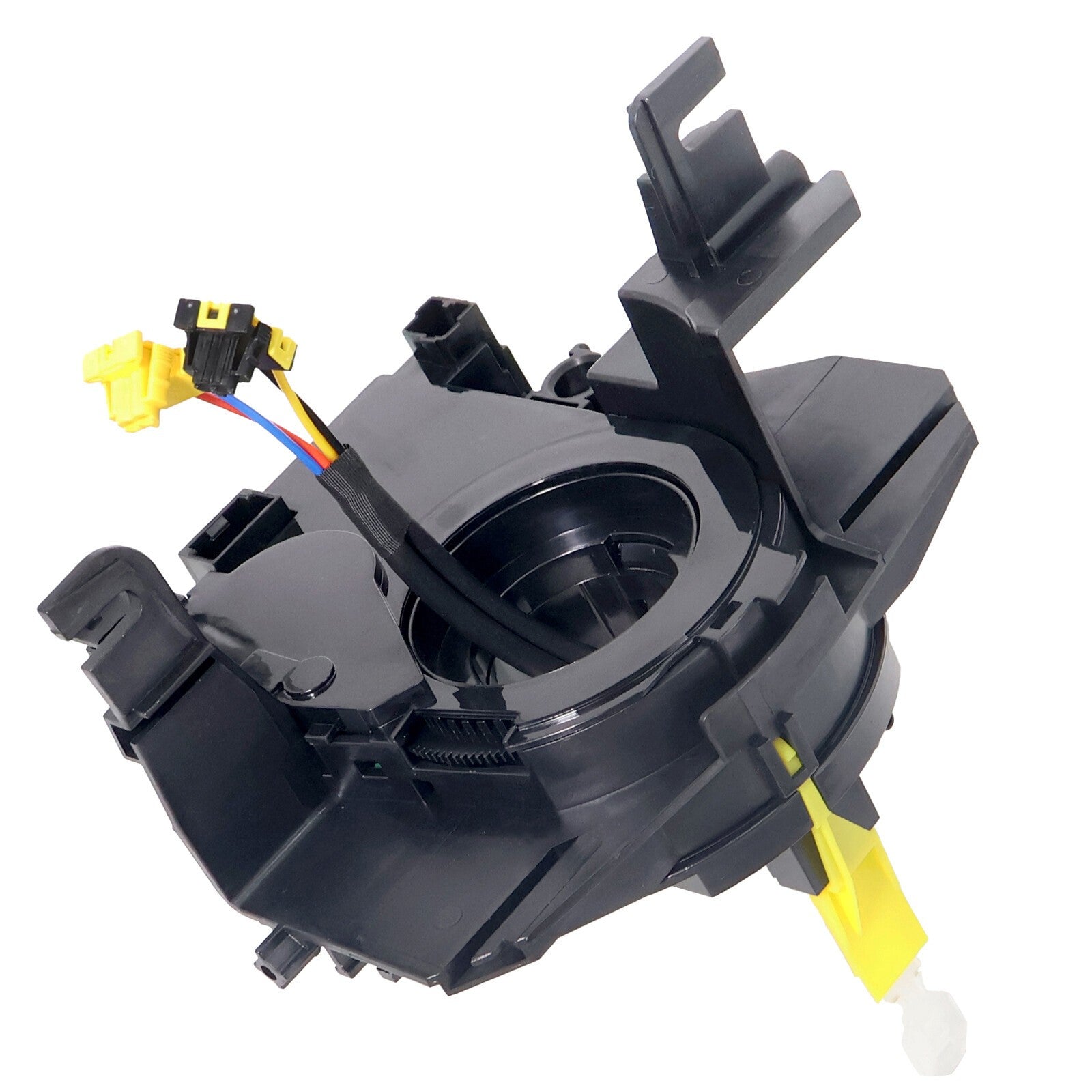

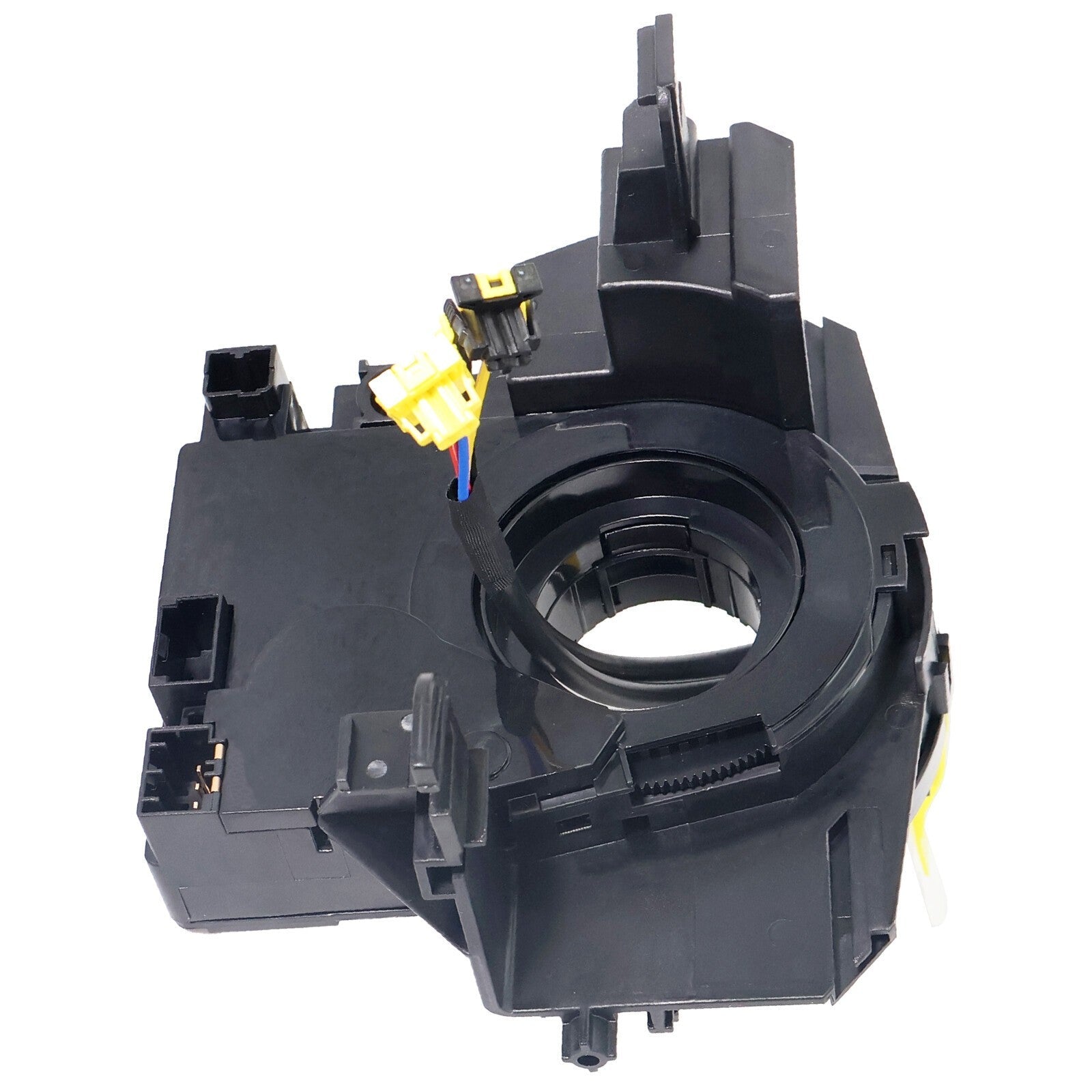

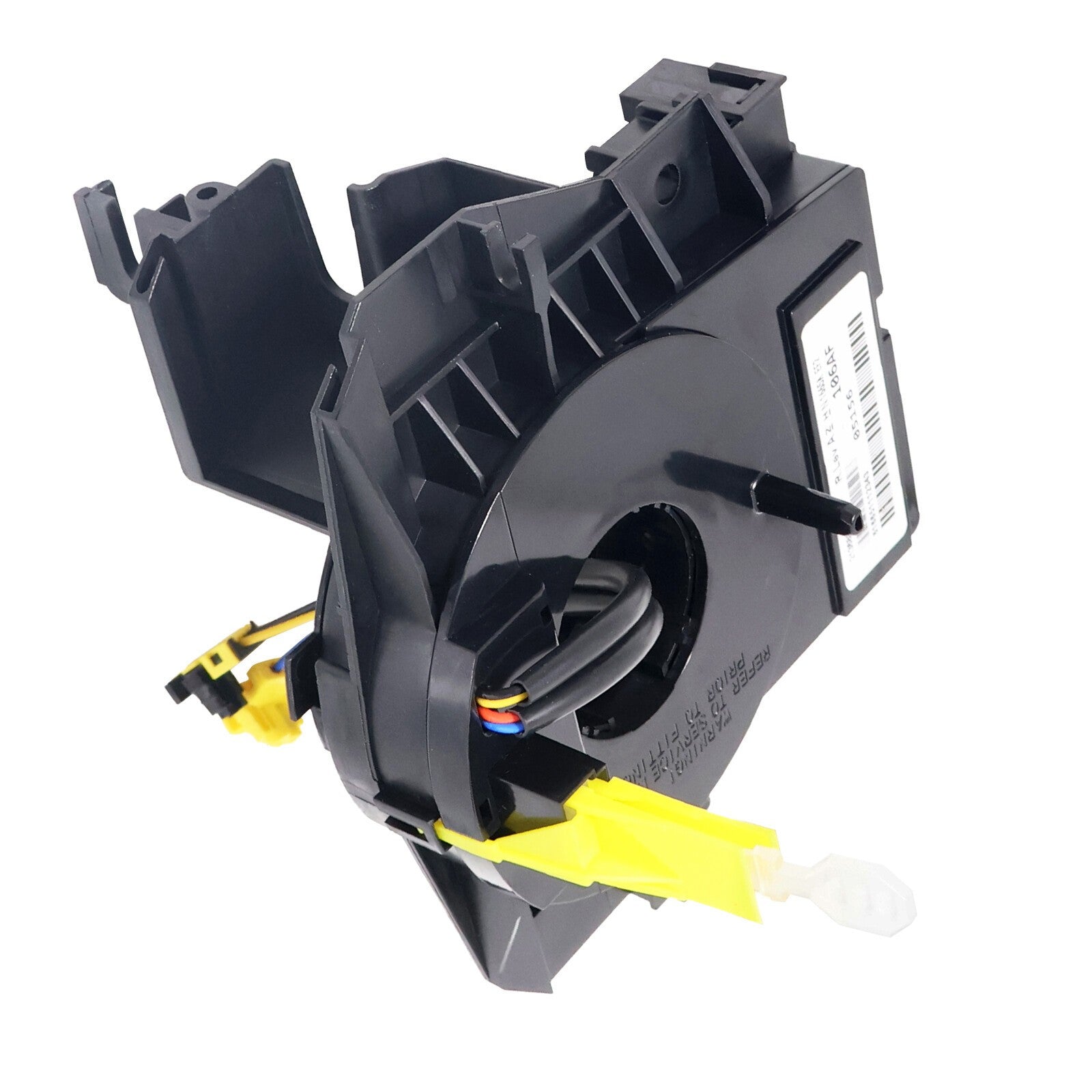

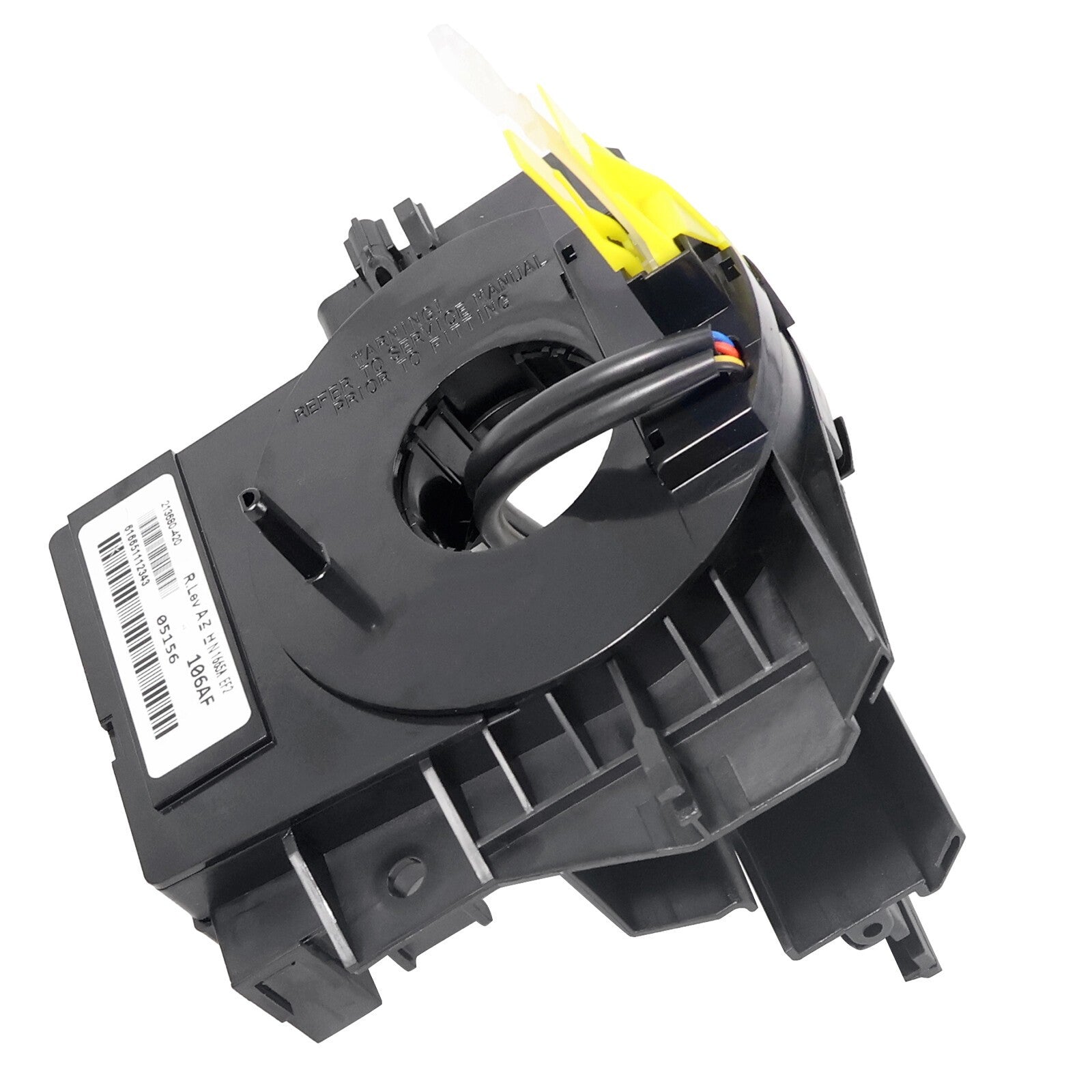

Jeep Dodge Clockspring Steering Angle Sensor 5156106AG with Cover
$126.99
In Stock
$126.99
Sale price
$126.99
Regular price
This clockspring assembly with steering-angle sensor and cover replaces 5156106AG, 5156106AF, and 5156106AE on compatible Jeep and Dodge steering columns.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2007-2018 Jeep Wrangler JK when the steering column specifies 5156106AG family
- 2008-2010 Jeep Grand Cherokee with matching column electronics
- 2008-2012 Jeep Liberty with matching clockspring
- 2007-2011 Dodge Nitro
- 2007-2014 Dodge Avenger with matching part number
- 2009-2010 Dodge Journey with matching part number
- 2014-2018 Mopar applications only where the parts catalog specifies 5156106AG
Product Overview
An airbag warning, dead horn, failed steering-wheel buttons, or traction-control light that changes as the wheel turns can point to a broken clockspring ribbon. Scan restraint and stability modules before service; the angle sensor and vehicle configuration may also require calibration.
The clockspring maintains electrical continuity while the wheel rotates, and the integrated sensor reports steering position. It must be centered before the steering shaft is connected—turning an uncentered unit to full lock can tear the ribbon immediately.
Key Features & Performance

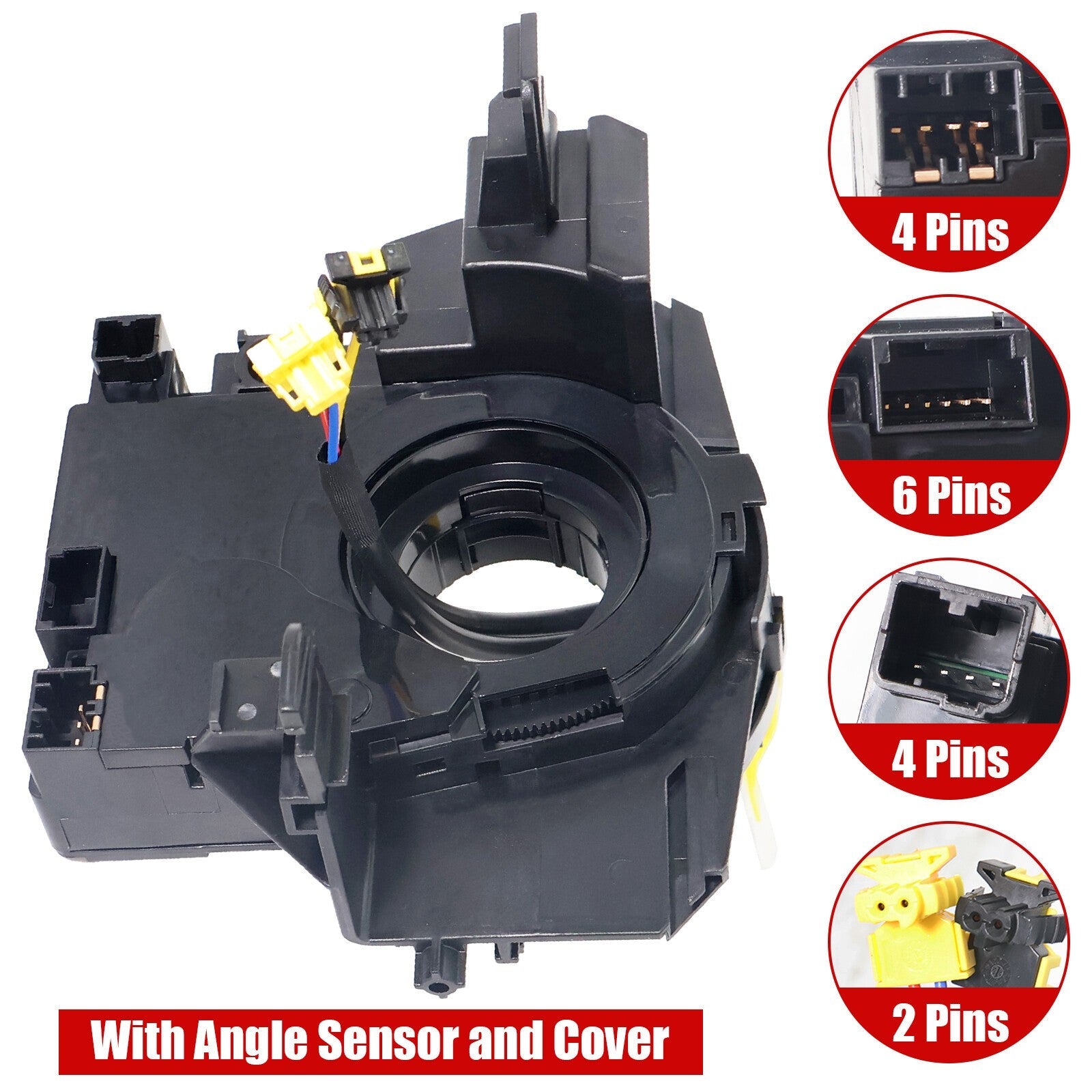

- Clockspring with steering-angle sensor and cover
- Crosses to 5156106AG and earlier suffixes
- Carries airbag, horn, and steering-wheel circuits
- Supports stability-control steering-angle input
- New aftermarket assembly

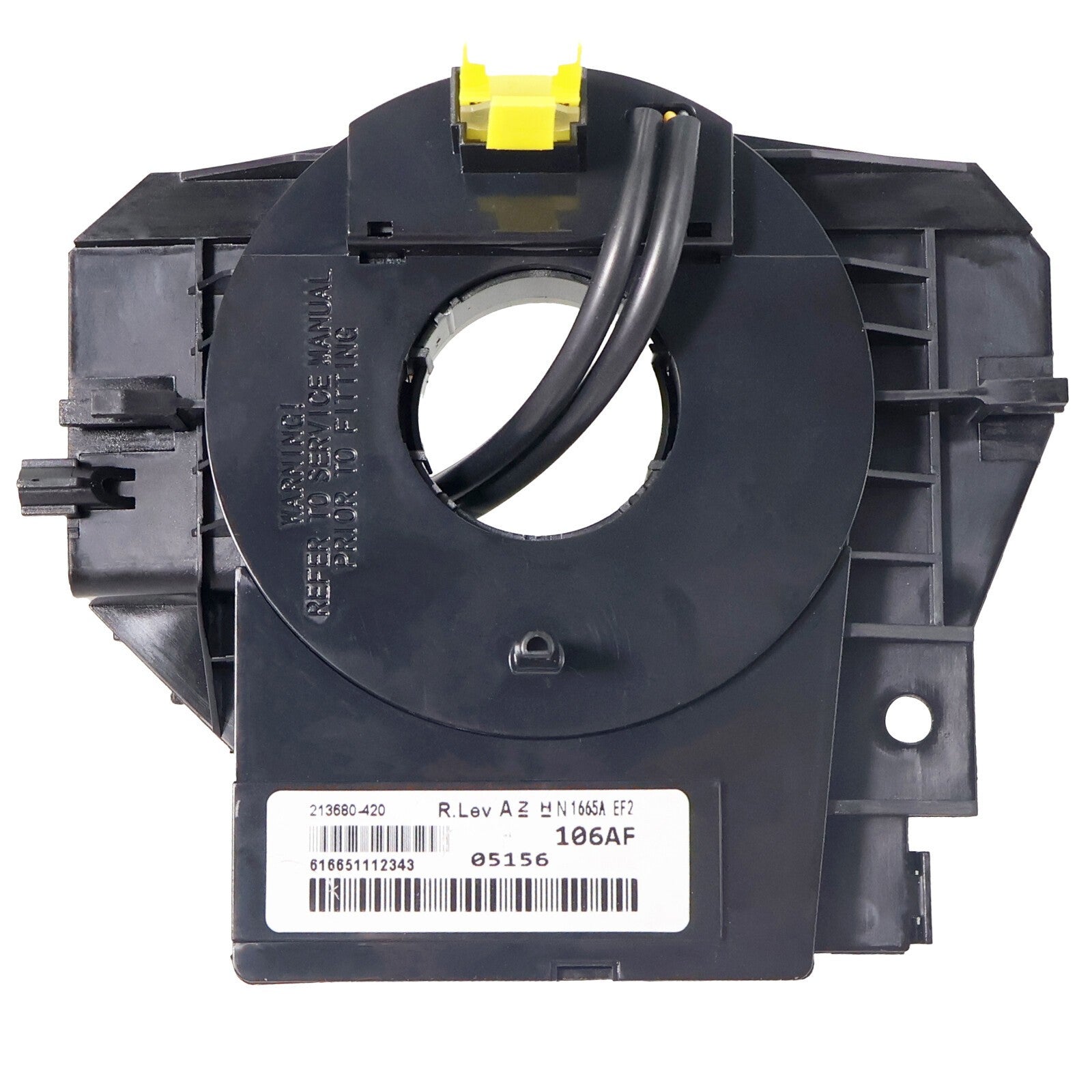

Replaces Part Numbers
- 5156106AG
- 5156106AF
- 5156106AE
- 05156106AG
Common Uses
- Repairing open steering-wheel electrical circuits
- Replacing a clockspring damaged after column or collision work
- Restoring steering-angle input after confirmed assembly failure
Technical Specifications
- Product Type: Steering Clockspring and Angle Sensor Assembly
- Primary Application: Selected Jeep and Dodge steering columns using 5156106AG
- Package Quantity: 1 assembly with cover
- Condition: New
- Replacement Type: Aftermarket
- Current Reference: 5156106AG
- Earlier References: 5156106AE; 5156106AF
- Included: Clockspring; angle sensor; cover
- Systems: SRS; horn; steering controls; stability control
- Condition: New aftermarket
Installation & Fitment
- Center the front wheels and steering shaft
- Disconnect the battery and wait the service-manual time before airbag work
- Keep the new clockspring locked at center until the wheel is installed
- Reassemble to torque, clear codes, and perform steering-angle calibration as required
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Can I rotate the clockspring before installing it? A: Only according to the centering instructions. Guessing the center can break the ribbon at full steering lock.
Q: Will the airbag light turn off by itself? A: Not always. Stored SRS faults may require diagnosis and clearing after the circuit is repaired.

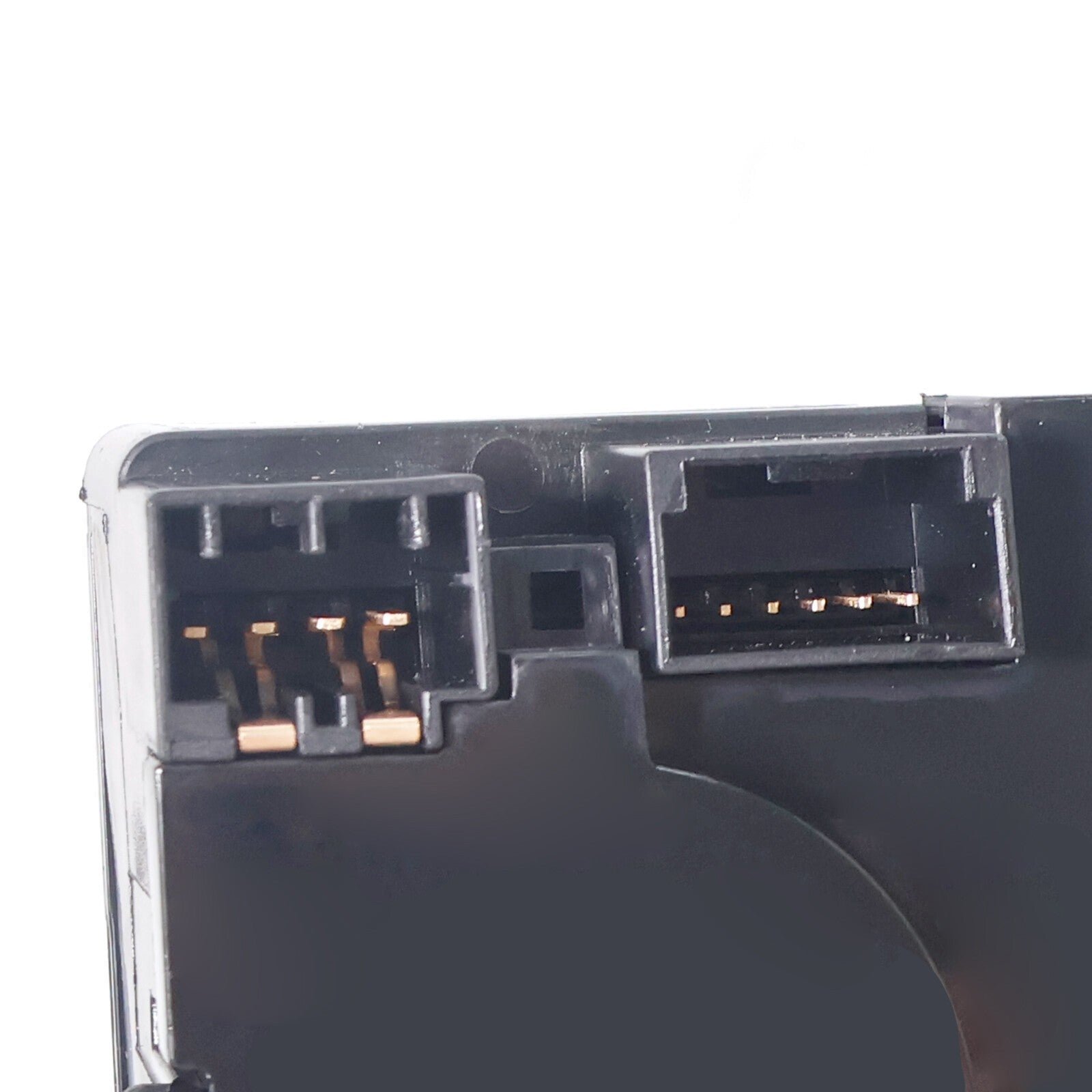

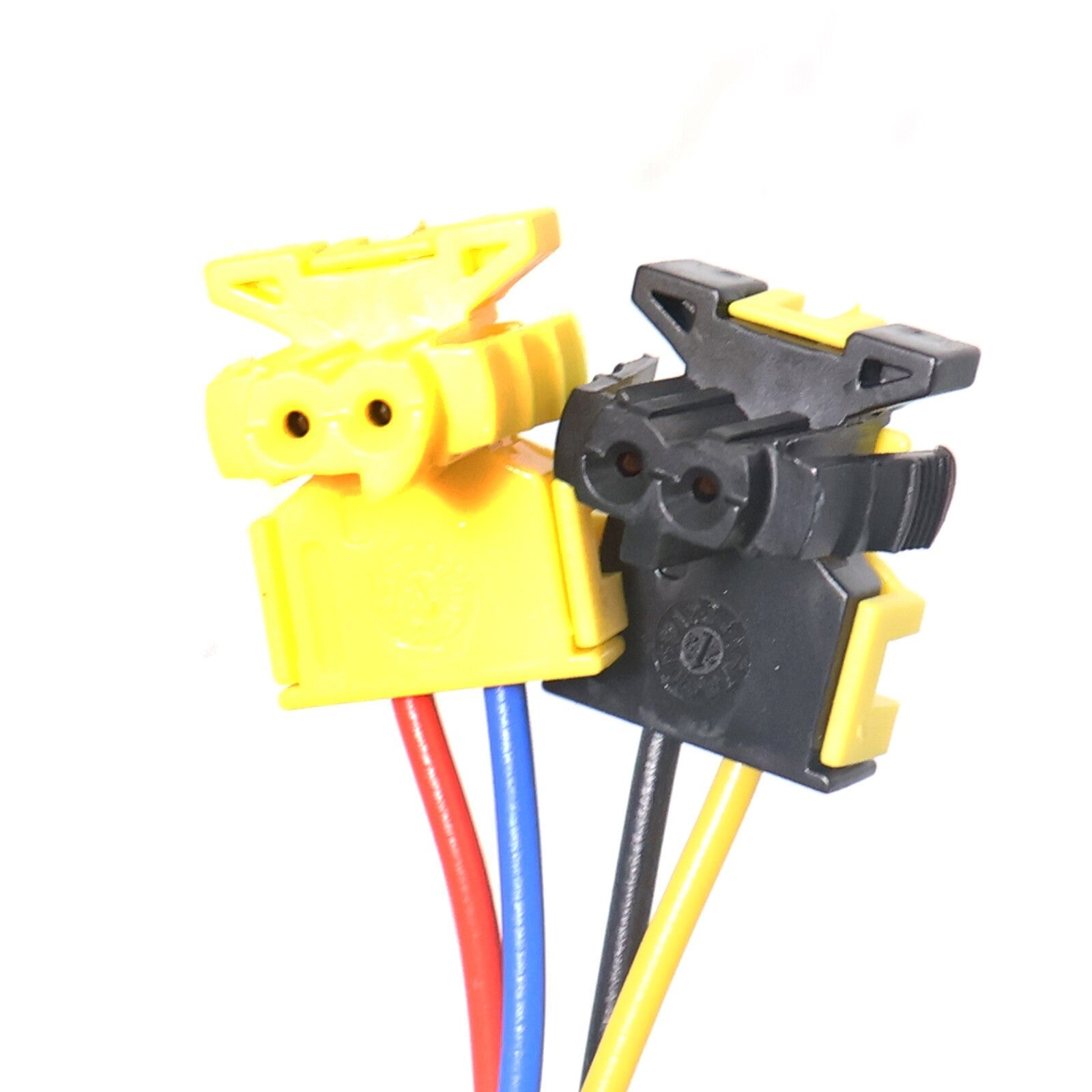

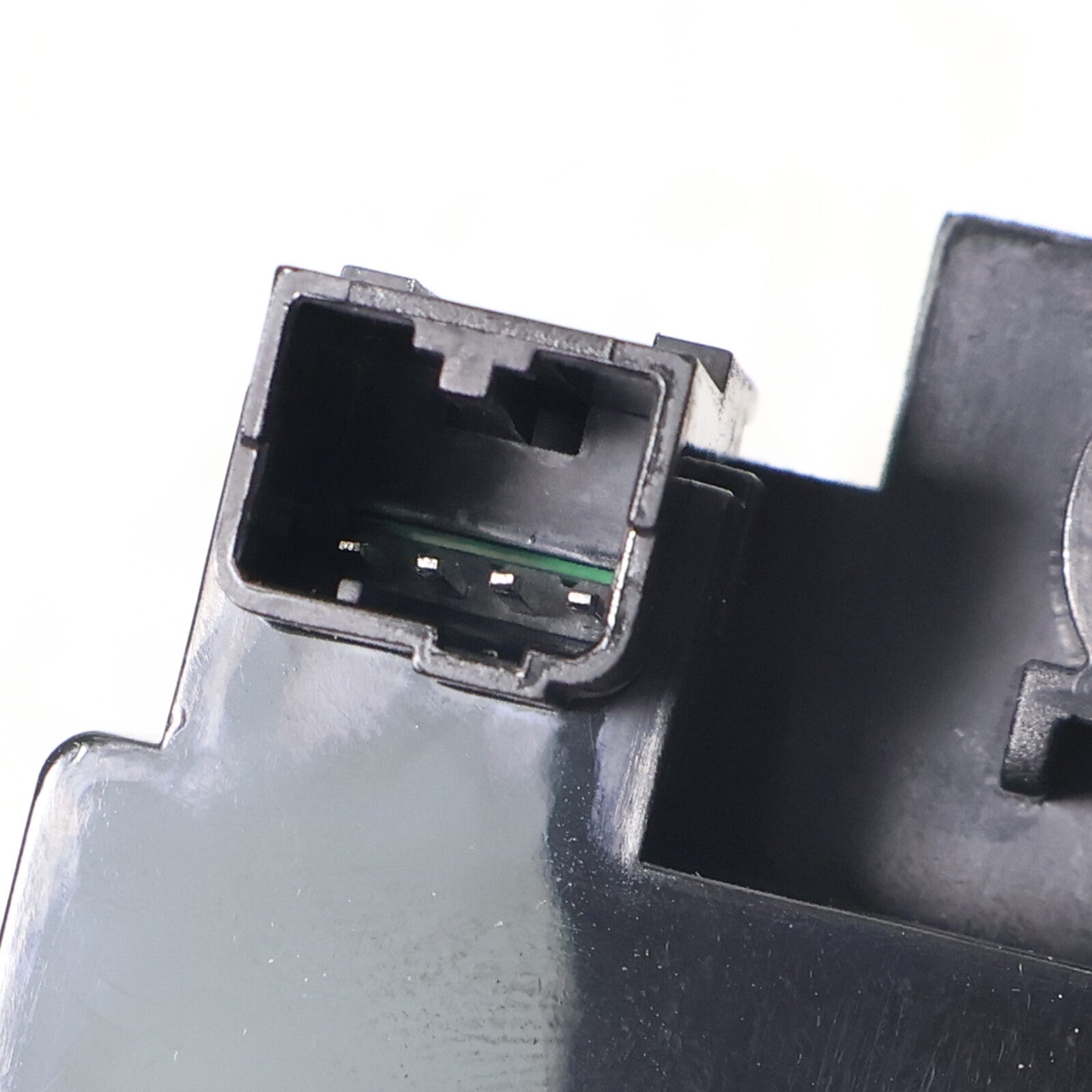

Q: How do I confirm this is the correct part? A: Match VIN, 5156106AG family, steering-wheel options, connector count and color, column module, clocking lock, cover, and calibration procedure.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
