GM 6.5L Turbo Diesel PMD FSD Aluminum Cooler Heat Sink Plate
$40.99
In Stock
$40.99
Sale price
$40.99
Regular price
This aluminum heat-sink plate cools a compatible PMD/FSD module used with the electronic injection pump on 1994-2002 GM 6.5L turbo-diesel trucks and SUVs.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1994-2000 Chevrolet C1500, C2500, and C3500 6.5L turbo diesel
- 1994-2000 GMC C/K 1500, 2500, and 3500 6.5L turbo diesel
- 1994-2002 Chevrolet / GMC Suburban 6.5L diesel
- 1995-2000 Chevrolet Tahoe and GMC Yukon 6.5L diesel where equipped
- Other 6.5L electronic-injection applications using a compatible Stanadyne PMD/FSD
Product Overview
A 6.5 diesel that stalls hot and restarts after cooling is often associated with PMD failure, but power, grounds, extension harness, optical sensor, fuel supply, and pump codes must be checked. Moving a healthy module to a proper heat sink can reduce heat exposure; a plate cannot revive a failed module.

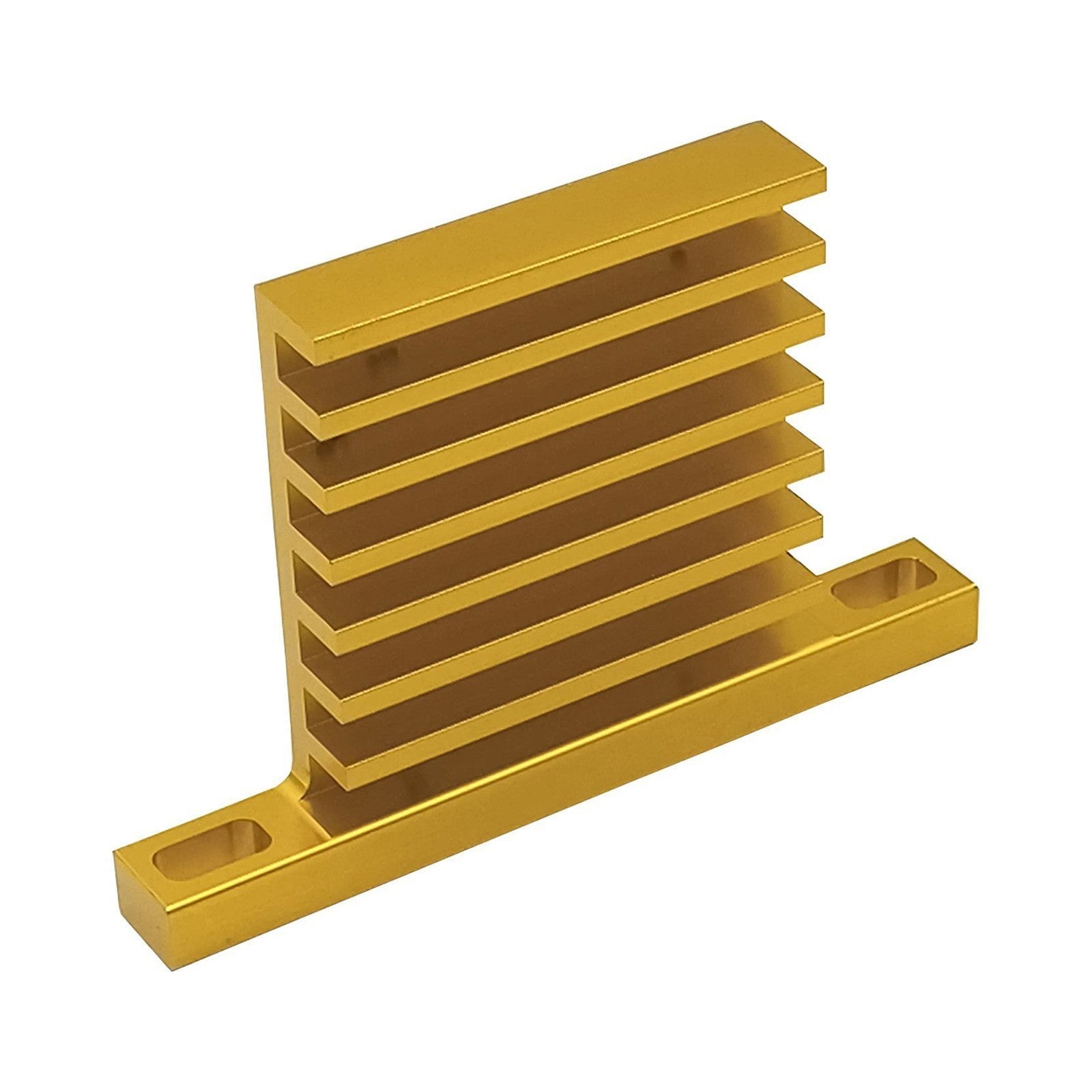

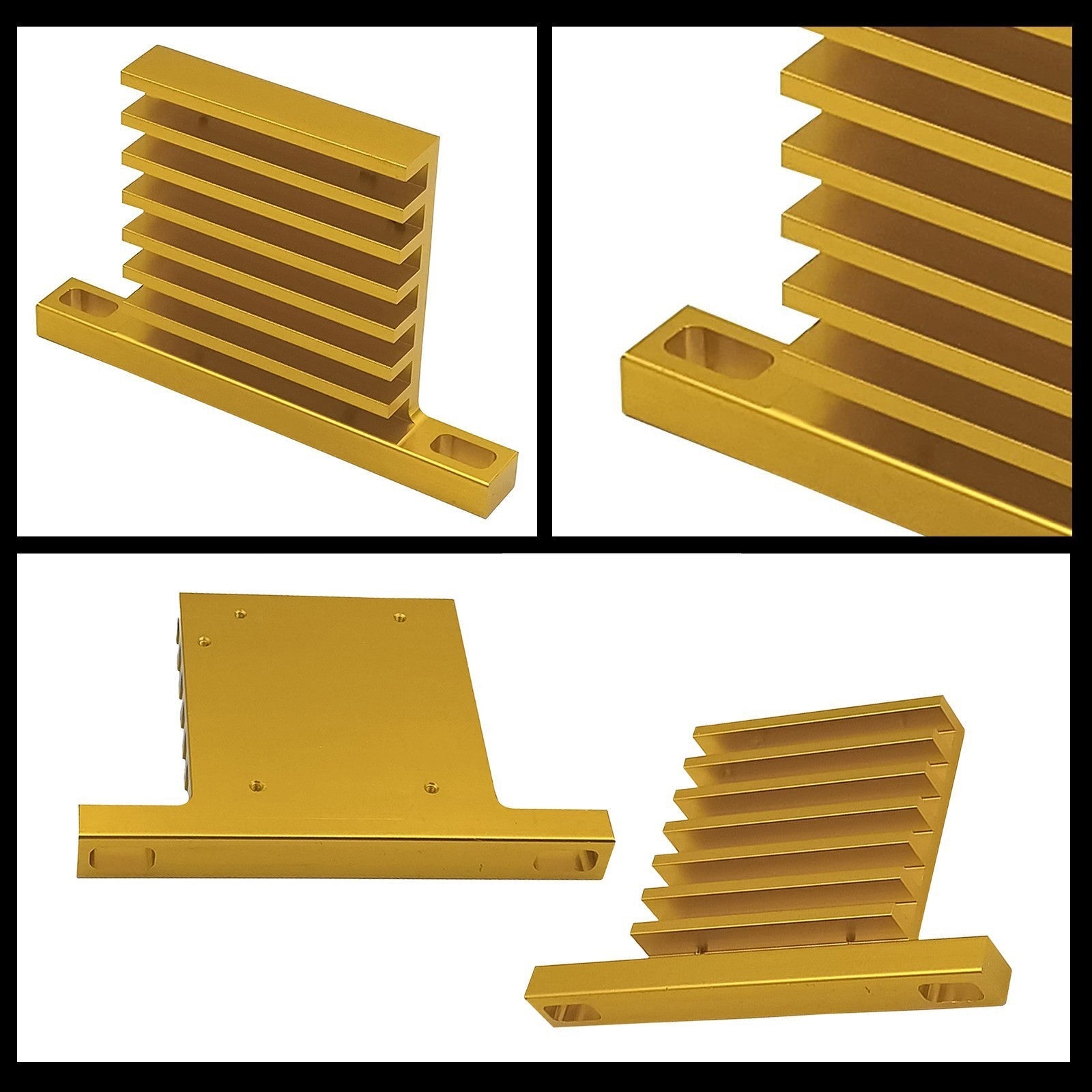

The finned aluminum plate provides a larger path for module heat to escape and is commonly used for remote-mount conversions away from the injection pump. PMD, extension harness, calibration resistor, thermal pad or compound, and mounting hardware are separate unless pictured.
Key Features & Performance
- Finned aluminum heat sink for PMD/FSD module
- Supports remote-mount cooling strategy
- For compatible GM 6.5L electronic diesel systems
- Adds thermal mass and airflow area
- New aftermarket cooler plate
Common Uses
- Remote-mounting the PMD away from injection-pump heat
- Replacing a damaged or undersized cooler plate
- Building a serviceable PMD relocation setup

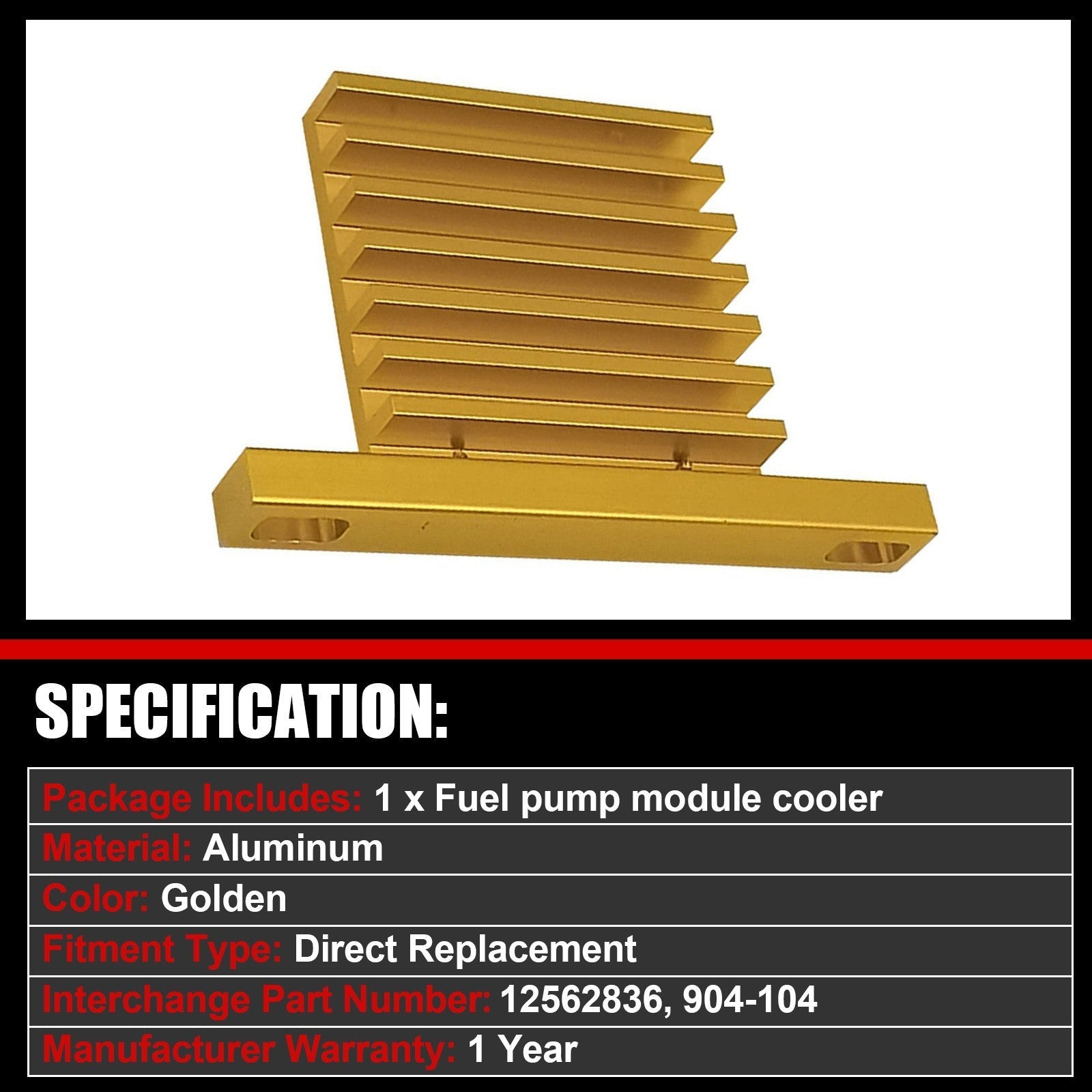

Technical Specifications
- Product Type: PMD / FSD Heat Sink
- Primary Application: GM 6.5L turbo-diesel electronic injection-pump modules
- Package Quantity: 1 cooler plate
- Condition: New
- Replacement Type: Aftermarket
- Material: Aluminum
- Function: Passive PMD/FSD heat dissipation
- Engine: GM 6.5L electronic turbo diesel
- Module Included: No, unless shown in package photos
- Condition: New aftermarket
Installation & Fitment
- Choose a cool location with real airflow and service access
- Keep the mating surfaces flat and clean
- Use the specified thermal pad or compound across the complete module base
- Ground and secure the assembly properly, route the harness away from heat, and install the correct calibration resistor
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Will the heat sink fix a truck that already has a dead PMD? A: No. It only manages heat for a working module; diagnose the PMD and fuel system first.
Q: Can the cooler stay on top of the injection pump? A: That defeats much of a remote-mount strategy because the plate remains in the hot engine valley. Choose a safe airflow location.
Q: How do I confirm this is the correct part? A: Match PMD/FSD mounting-hole pattern, module generation, harness connector, available mounting space, airflow, thermal-interface method, and package contents.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
keywords: 6.5 diesel PMD cooler, FSD heat sink plate, GM turbo diesel hot stall repair, Stanadyne PMD relocation, 6.5L injection pump module cooler
