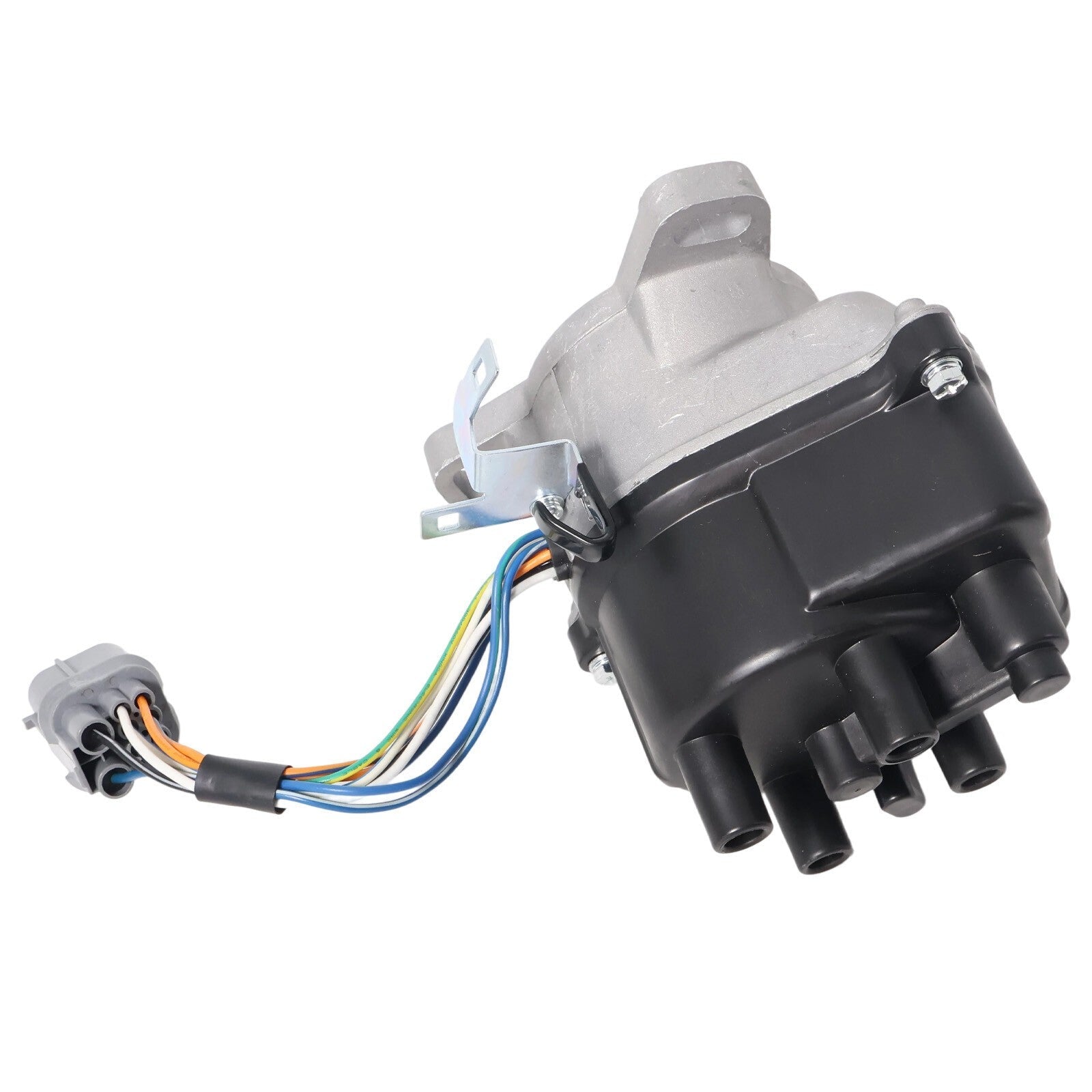

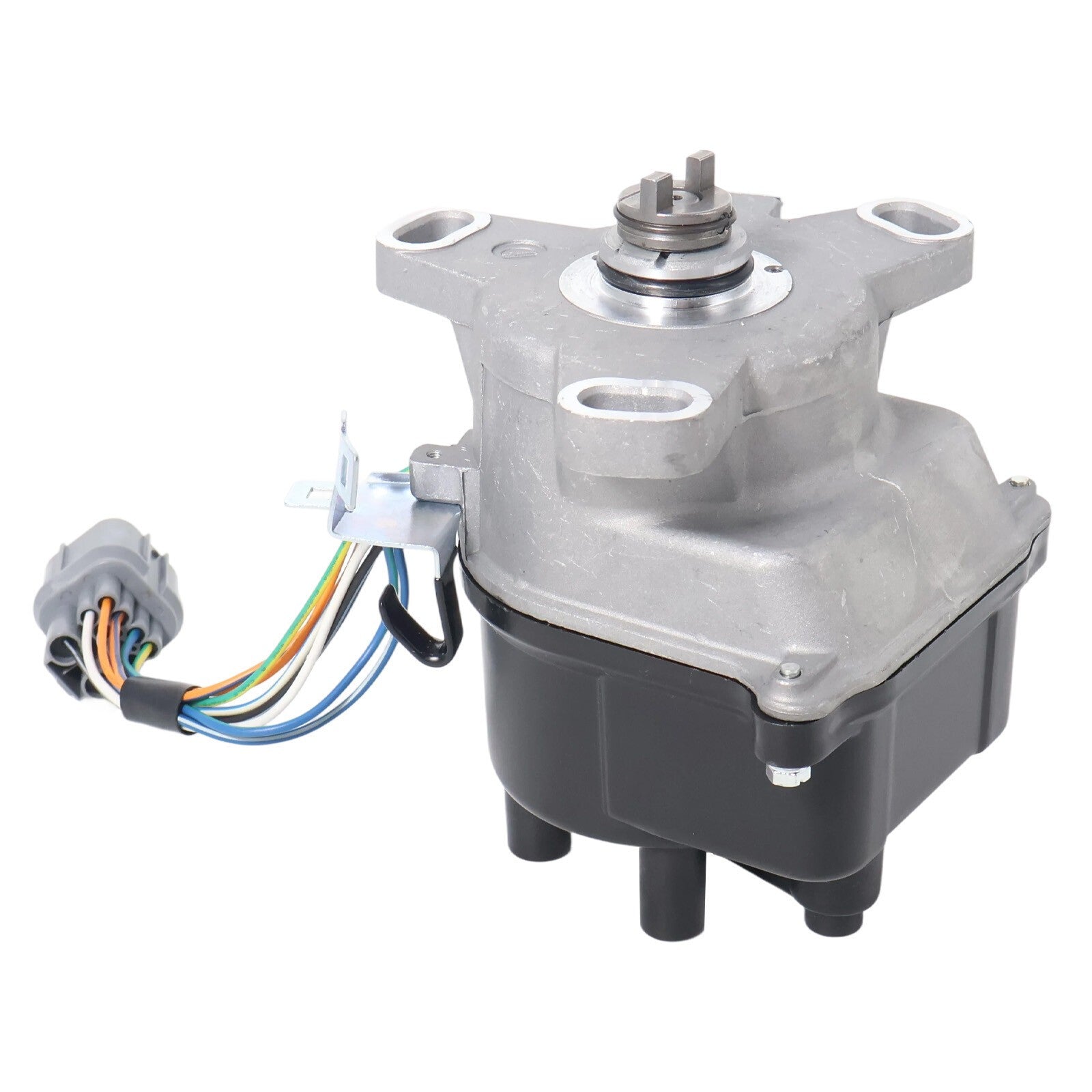

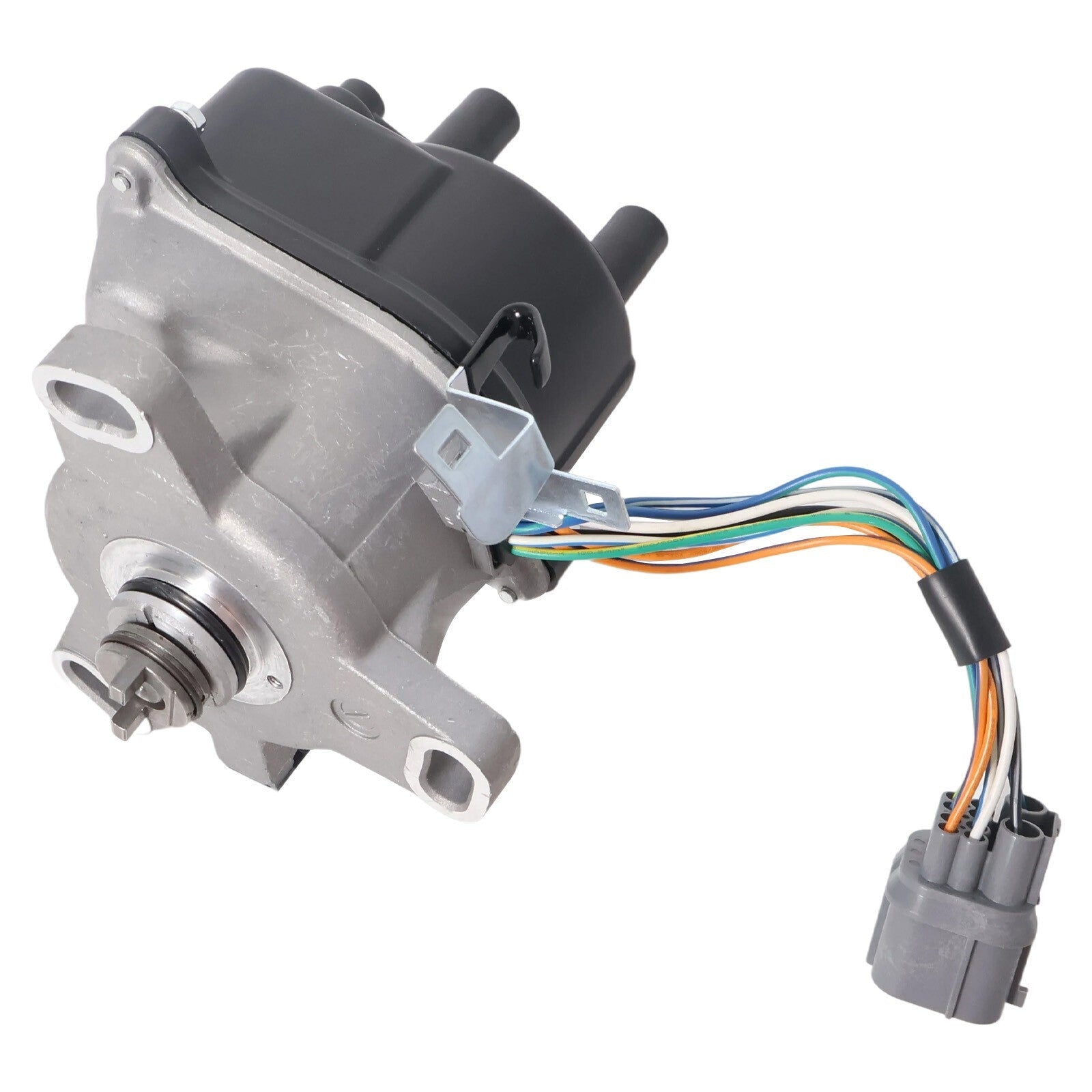

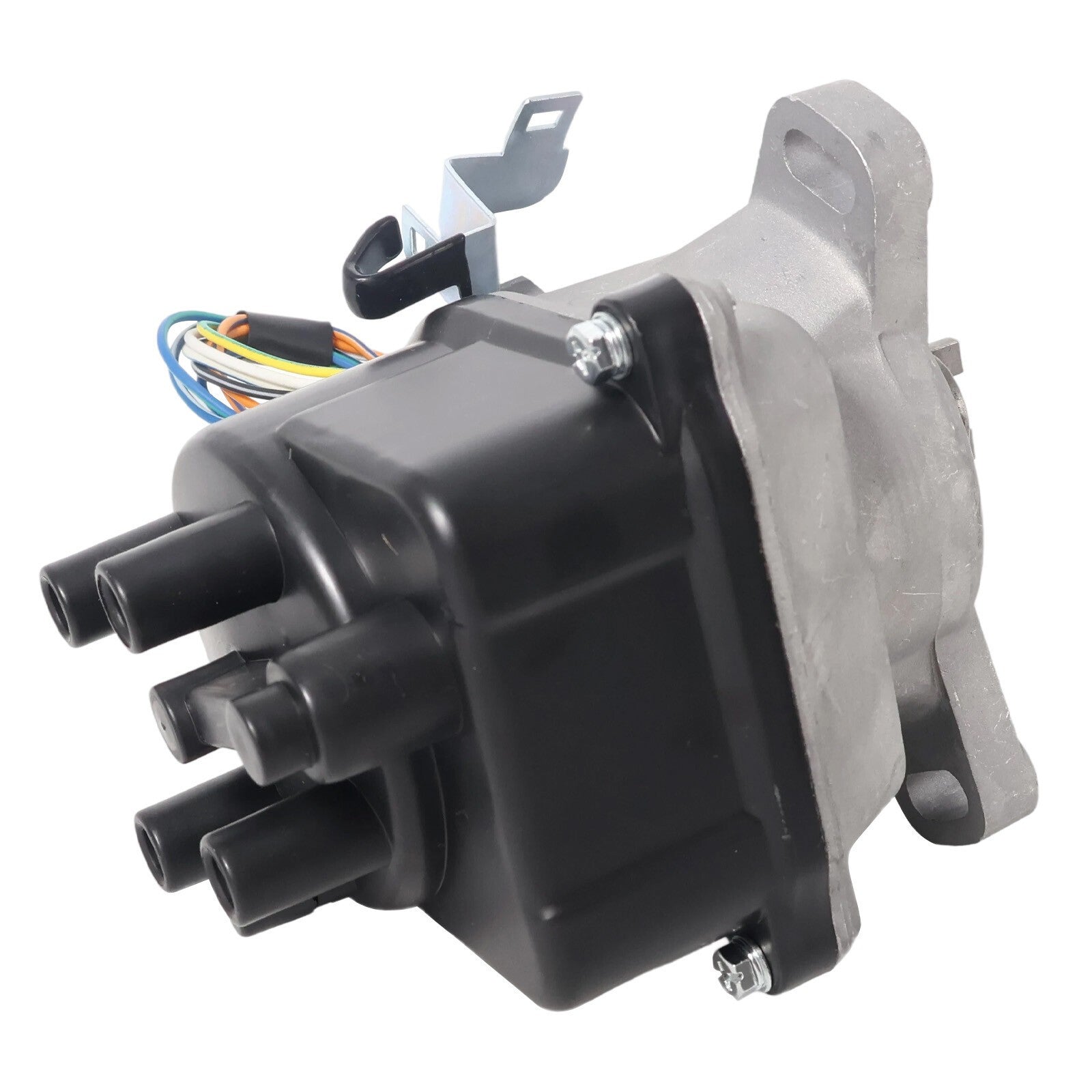

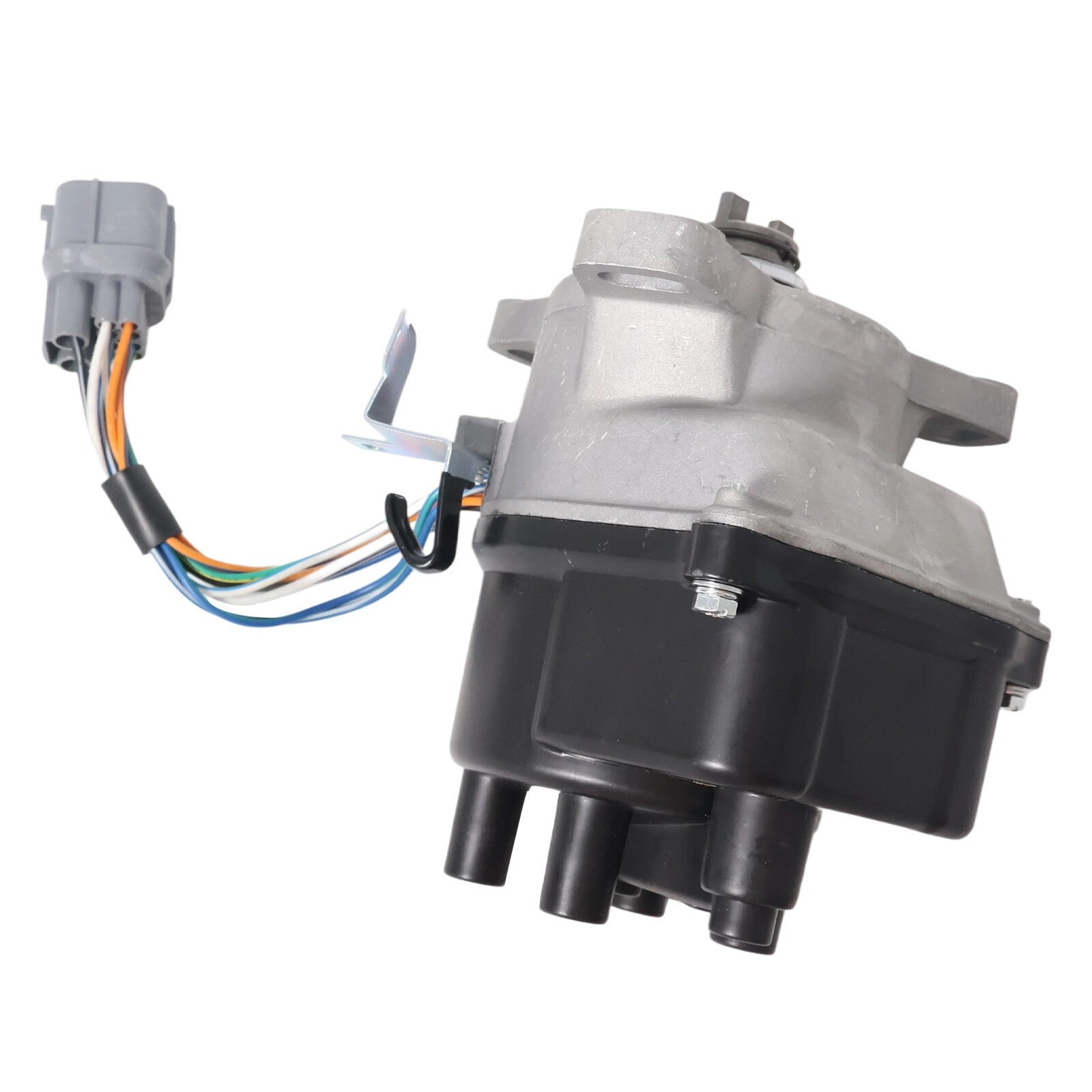

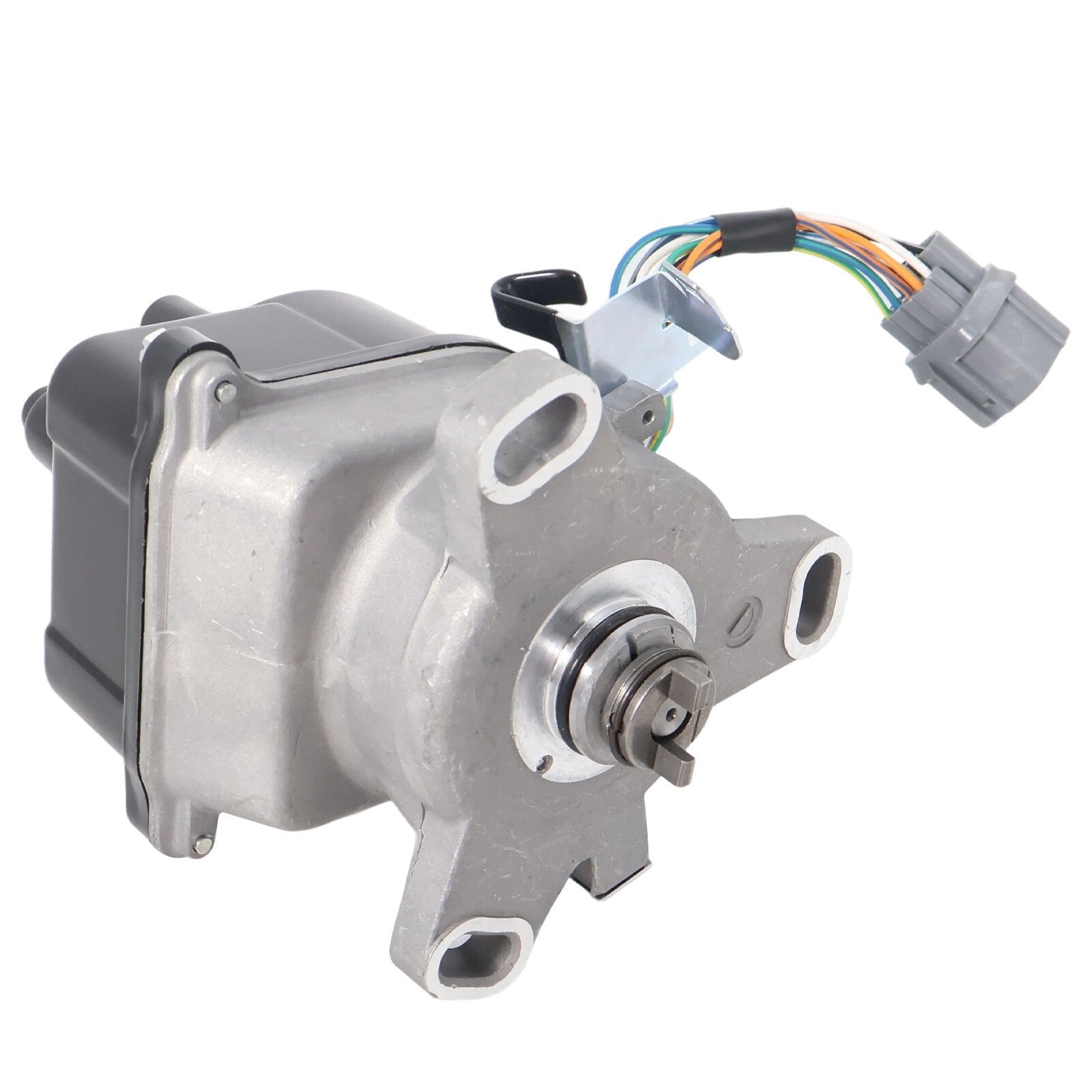

TD80 Ignition Distributor for 1996-1998 Honda Civic Del Sol Acura EL 1.6L
$162.99
In Stock
$162.99
Sale price
$162.99
Regular price
This TD80 ignition distributor fits compatible 1996-1998 Honda Civic, Honda Del Sol, and Acura 1.6EL applications with the matching 1.6L engine and connector layout.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1996-1998 Honda Civic 1.6L with distributor code TD80
- 1996-1997 Honda Del Sol 1.6L with matching TD80 connectors
- 1997-1998 Acura 1.6EL with matching TD80 distributor
- Other D-series applications only when engine code, distributor code, and connectors match
Product Overview
A crank-no-start with no spark, an intermittent stall when hot, or oil inside the distributor can lead to the complete assembly after the coil, igniter, power supply, grounds, and timing signals are tested. Connector style and distributor code are critical on these Hondas.
The distributor turns with the camshaft and contains the position sensing and ignition hardware used by the engine computer. Compare TD80 marking, mounting ears, shaft drive, cap orientation, plug count, wire colors, and engine code before installation.
Key Features & Performance
- Complete TD80-style distributor assembly
- For selected 1.6L Honda / Acura applications
- Restores spark and engine-position signals after confirmed failure
- Prevents reuse of a worn shaft or oil-contaminated housing
- New aftermarket distributor
Replaces Part Numbers
- TD80
- TD-80
Common Uses
- Repairing a verified no-spark condition
- Replacing a distributor that fails when hot
- Correcting shaft play, internal oil leakage, or damaged position sensors
Technical Specifications
- Product Type: Ignition Distributor Assembly
- Primary Application: Selected Honda and Acura 1.6L engines using TD80 distributor
- Package Quantity: 1 distributor
- Condition: New
- Replacement Type: Aftermarket
- Distributor Code: TD80 / TD-80
- Engine Family: Selected Honda D-series 1.6L
- Drive: Camshaft driven
- System: Electronic ignition and engine-position sensing
- Condition: New aftermarket
Installation & Fitment
- Disconnect the battery and mark the housing and rotor position
- Bring the engine to the service-manual timing position
- Do not rotate the engine with the distributor removed unless timing is re-established
- Install a new seal, set base timing as specified, and scan for position-sensor codes
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Can a failed igniter cause no spark even if the distributor shaft turns? A: Yes. Test power, ground, coil, igniter, and internal sensor signals before replacing the complete unit.
Q: Does the distributor need timing adjustment? A: Yes on applicable engines. Follow the under-hood label and service procedure for base ignition timing.

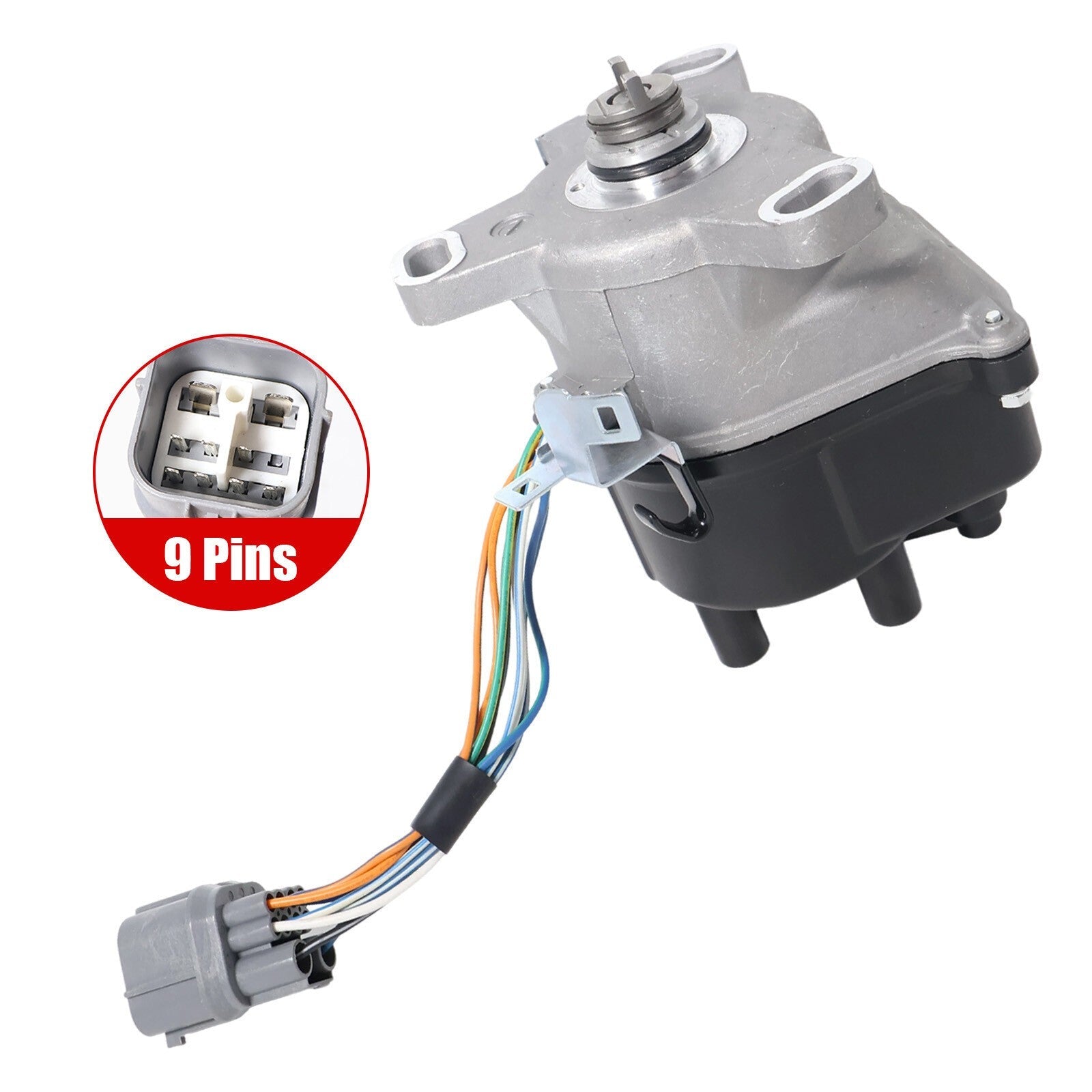

Q: How do I confirm this is the correct part? A: Match TD80, engine code, connector count and shape, mounting ears, shaft end, cap towers, rotor direction, and vehicle production date.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
keywords: TD80 Honda distributor, 1997 Civic no spark distributor, Del Sol 1.6 distributor replacement, Acura 1.6EL TD-80, Honda distributor hot stall
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
