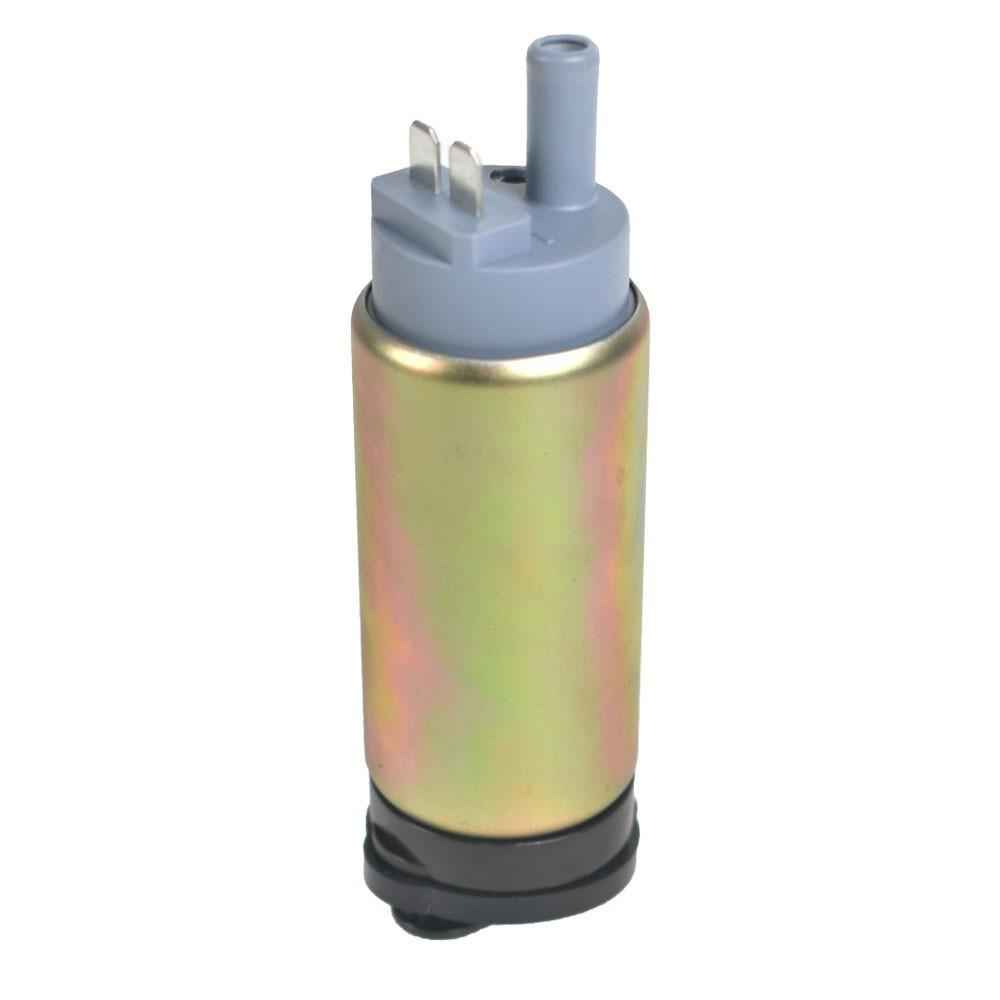

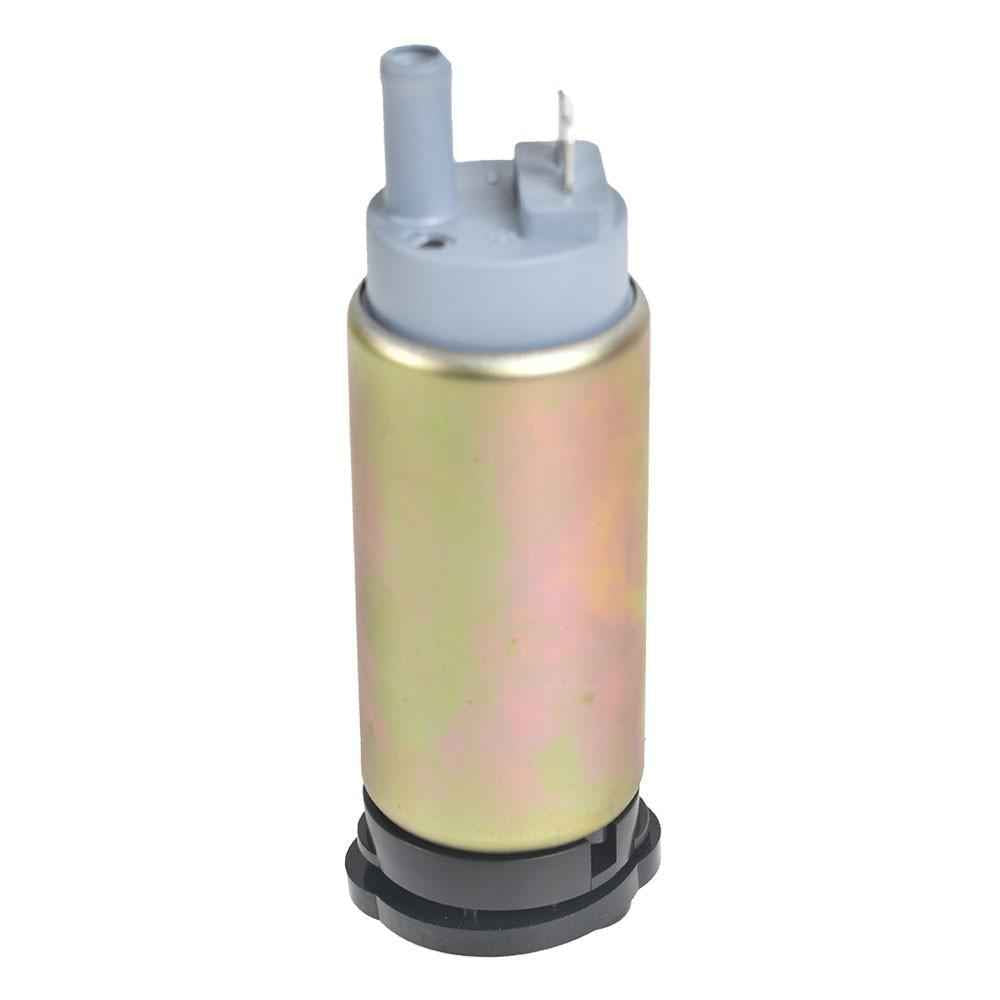

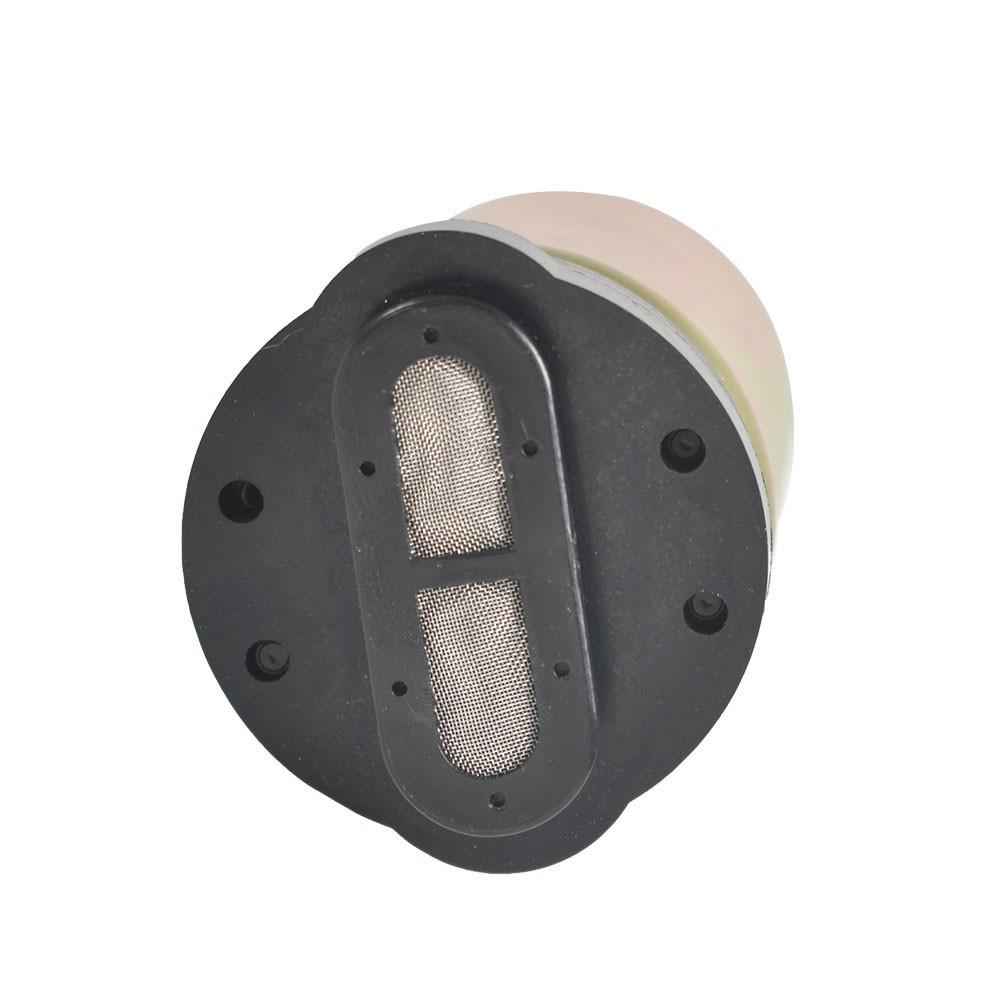

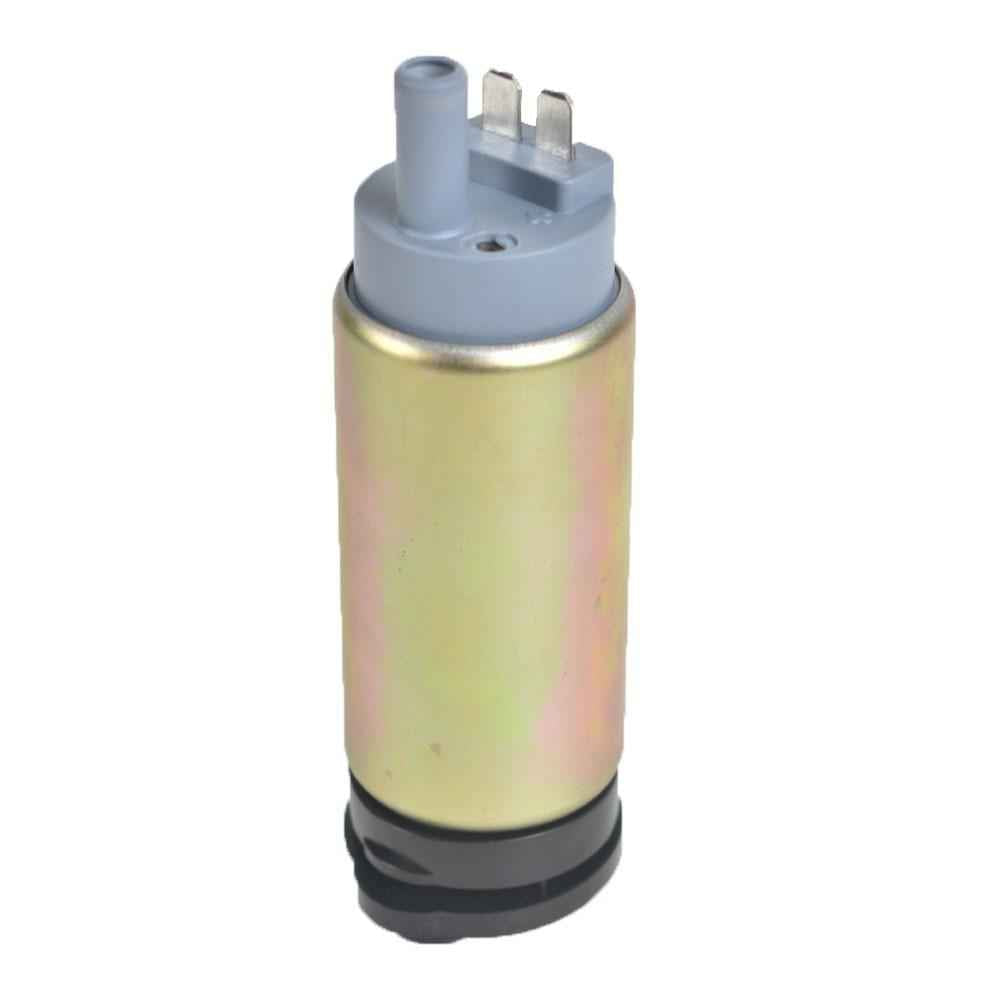

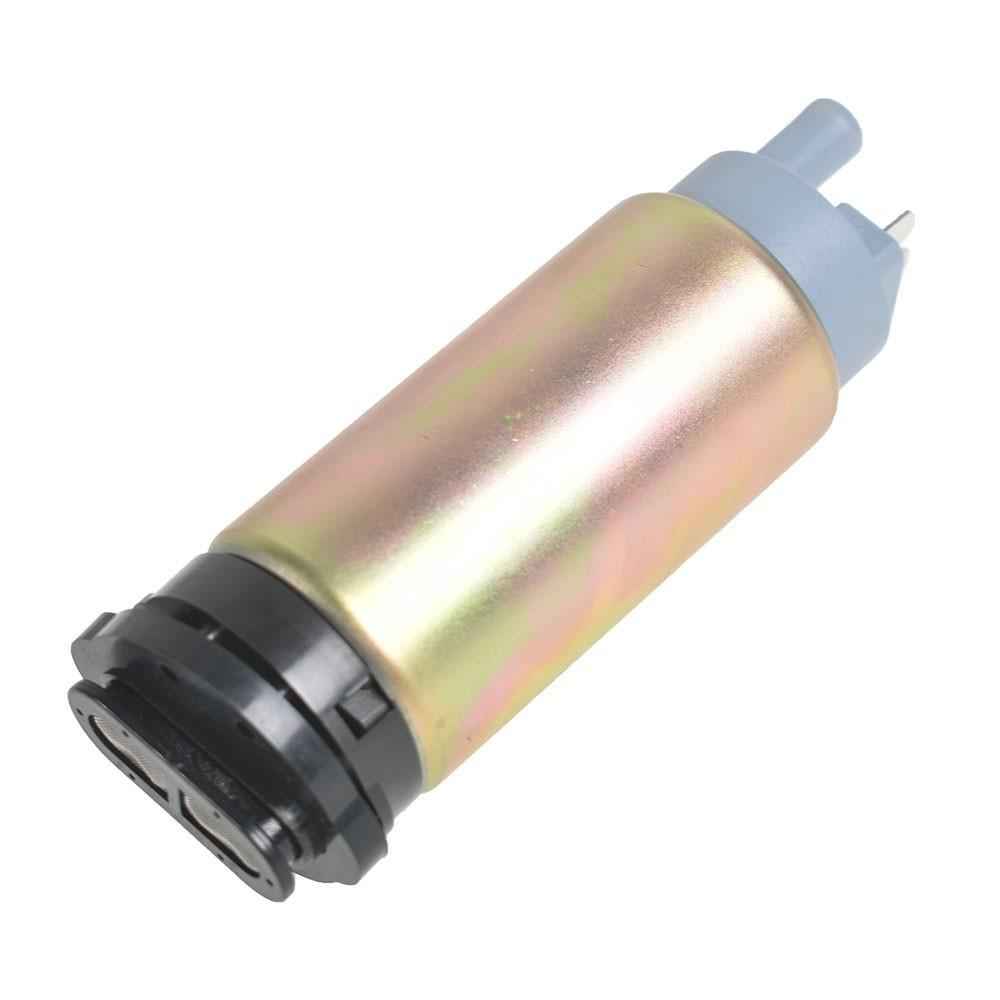

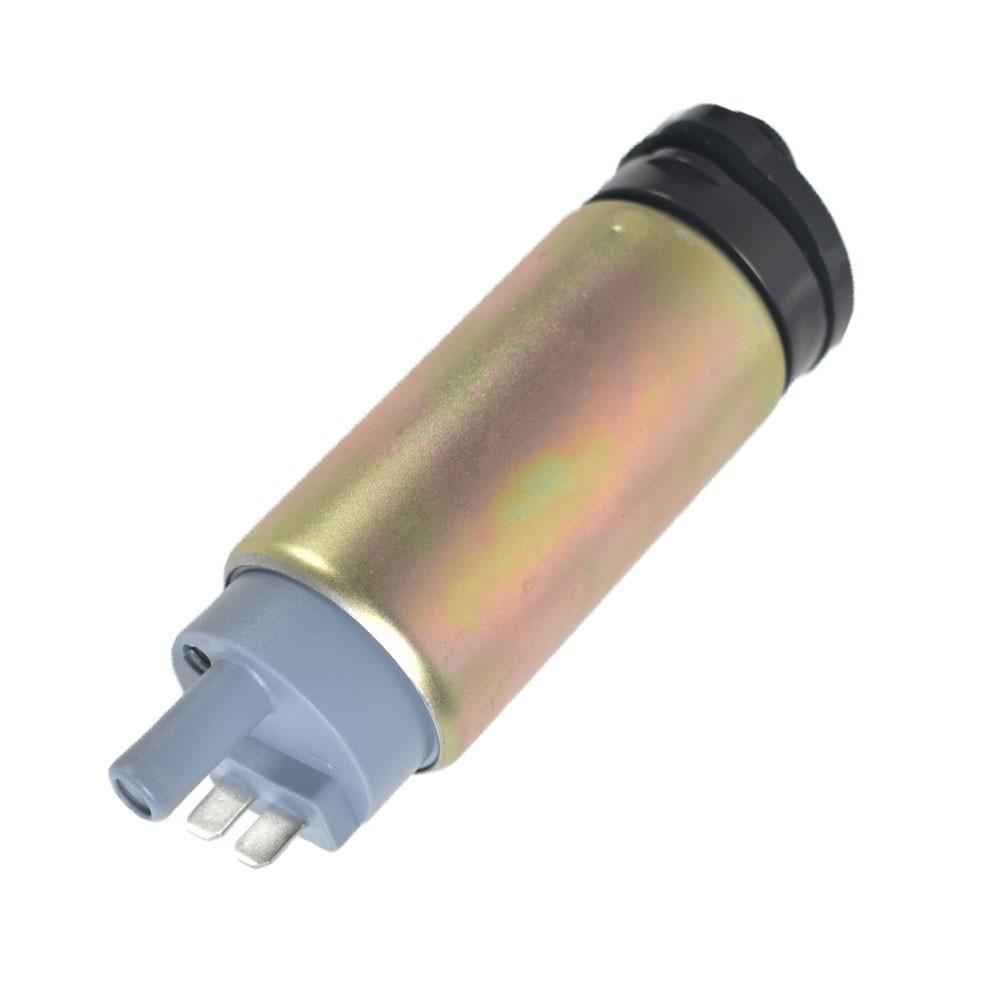

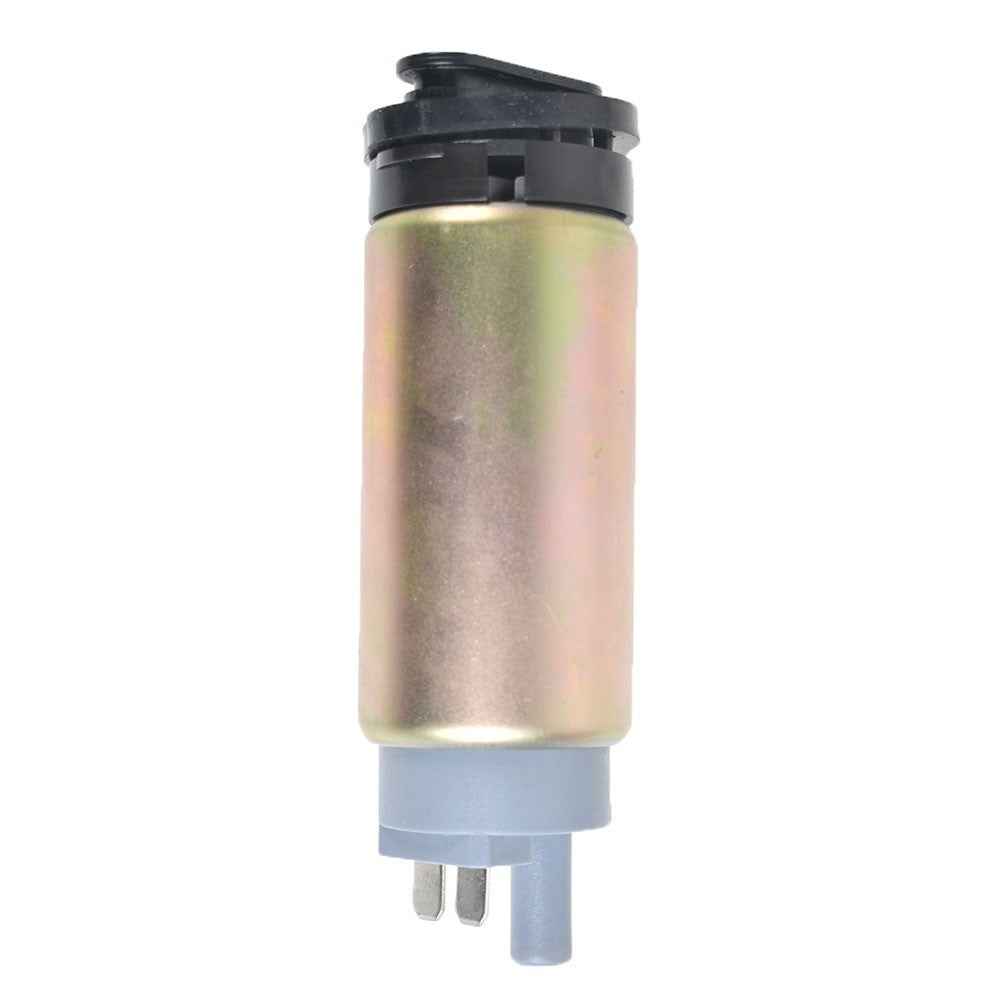

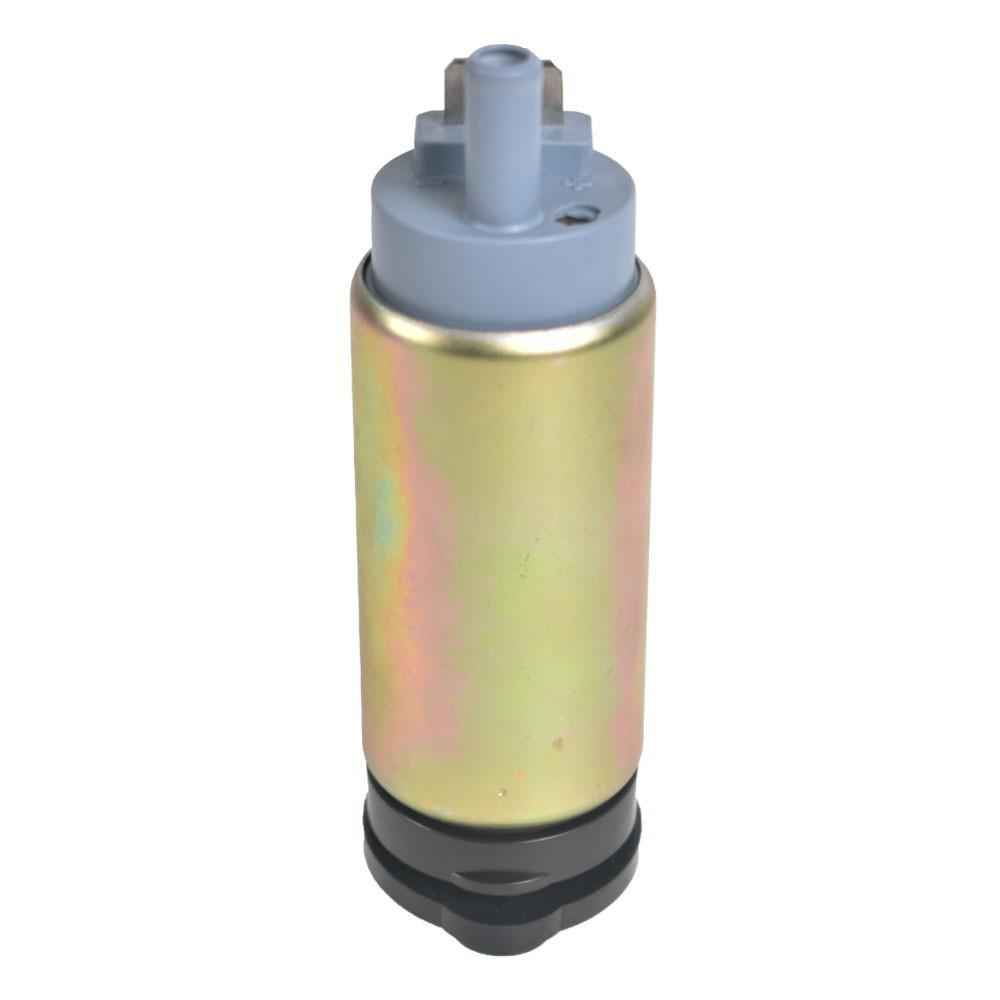

Mercury 4-Stroke Outboard Mechanical Fuel Pump 892267A51 — 20-60 HP
$32.99
In Stock
$32.99
Sale price
$32.99
Regular price
Aftermarket mechanical fuel pump for select Mercury and Mariner 20-60 HP four-stroke outboards using 892267A51; verify engine serial number before purchase.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Mercury/Mariner 20 HP four-stroke applications using 892267A51
- Mercury/Mariner 30 HP four-stroke applications using 892267A51
- Mercury/Mariner 35 HP four-stroke applications using 892267A51
- Mercury/Mariner 40 HP four-stroke applications using 892267A51
- Mercury/Mariner 45 HP four-stroke applications using 892267A51
- Mercury/Mariner 50 HP four-stroke applications using 892267A51
- Mercury/Mariner 60 HP four-stroke applications using 892267A51
Product Overview
A four-stroke outboard that starts on primer fuel but starves at speed, loses power under load, or leaks fuel from the pump area may have a failed diaphragm pump. This replacement restores low-pressure fuel transfer on compatible engines after the lines, tank vent, filter, and pulse source have been checked.
Marine fuel work demands care. Any fuel smell, cracked hose, or leaking fitting must be corrected before the engine is run.
Key Features & Performance
- Mechanical diaphragm-style fuel pump
- For select Mercury/Mariner four-stroke outboards
- Restores low-pressure fuel delivery
- Aftermarket replacement for serial-specific applications
Replaces Part Numbers
- 892267A51
- 16735-ZW5-003
- 898101T67
- 7206782
- 6990188
Common Uses
- Fuel starvation at higher throttle
- Hard starting after fuel-line checks
- Visible leakage from a failed pump diaphragm
- Replacing a pump that will not maintain fuel flow
Technical Specifications
- Product Type: Mechanical outboard fuel pump
- Engine Type: Four-stroke outboard
- Horsepower Range: Select 20-60 HP applications
- Replacement Type: Aftermarket
Installation & Fitment
- Disconnect the battery and eliminate ignition sources
- Verify hoses are marine-rated and free of cracks
- Match pulse, inlet, and outlet connections exactly
- Prime and inspect carefully for leaks before operation
Compatibility Notice
Horsepower and year are not enough. Mercury fitment is serial-number specific; match 892267A51, engine model, serial range, hose ports, mounting pattern, and pump shape.
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Frequently Asked Questions
Q: Can this pump cause power loss at wide-open throttle? A: Yes, if it cannot supply enough fuel, but tank venting, filters, hoses, and carburetors must also be checked.
Q: Does it fit every Mercury 40 HP? A: No. Verify the exact engine serial number and original pump reference.
Q: Is a fuel leak safe to test on the water? A: No. Repair leaks completely before running the engine.
Q: Why does the engine run after squeezing the primer bulb? A: That can point to a supply-pump or upstream restriction issue, but testing is still required.
Part Summary
keywords: Mercury 892267A51 fuel pump, 20 60 HP four stroke outboard pump, Mariner mechanical fuel pump, outboard fuel starvation repair, 16735-ZW5-003 replacement, aftermarket marine fuel pump
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
