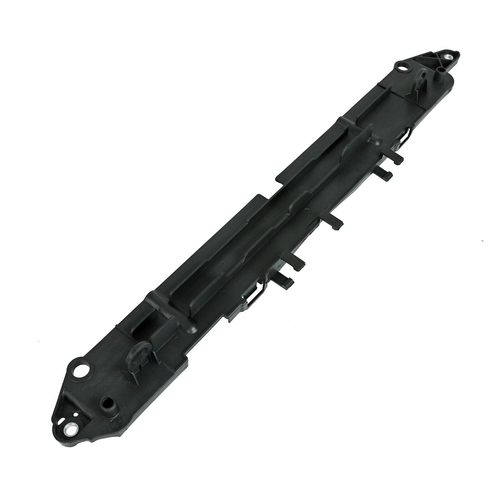

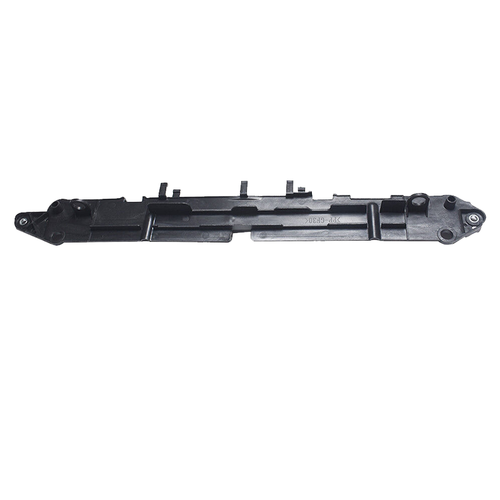

Radiator Cooling Fan Shroud Cover for 2009-2013 Toyota Corolla 1.8L
$82.09
In Stock
$82.09
Sale price
$82.09
Regular price
This is a brand new radiator cooling-fan shroud/cover for 2009-2013 Toyota Corolla models equipped with the 1.8L engine and matching fan assembly. It replaces damaged plastic around the fan and radiator opening so airflow is directed through the cooling stack correctly.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2009-2013 Toyota Corolla 1.8L 2ZR-FE - verify U.S.-built vs Japan-built shroud configuration
- Do not use for 2.4L Corolla XRS cooling-fan assemblies
Product Overview
A broken fan shroud is easy to dismiss as cosmetic, but missing sections let the cooling fan pull air from around the radiator instead of through it. Cracks can also allow the shroud to contact the fan blades, creating scraping noises or additional damage.

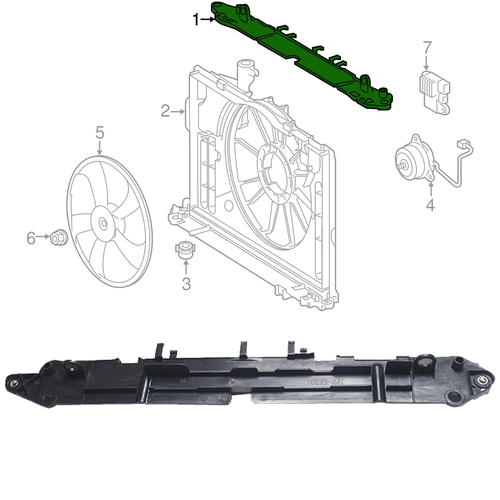

Toyota uses different cooling-fan pieces for the 1.8L and 2.4L engines, and even the 1.8L shroud can differ by U.S.-built versus Japan-built production. Common 1.8L references include 16711-0T040 for the U.S.-built main shroud and 16712-0T020 for the upper panel.
Key Features & Performance
- Cooling fan shroud/cover for 1.8L Corolla applications
- Helps channel fan airflow through the radiator and condenser
- Replacement for cracked, missing, or fan-contact damaged plastic
- Designed around the matching factory fan assembly
Replaces Part Numbers
- Toyota 16711-0T040 - common 1.8L U.S.-built fan shroud reference
- Toyota 16712-0T020 - common 1.8L U.S.-built upper fan panel reference
- Toyota 16711-22191 / 16712-22050 may apply to Japan-built 1.8L configurations
Common Uses
- Replacing a shroud cracked by fan contact or collision damage
- Restoring missing plastic after radiator/condenser service
- Correcting airflow leakage around a damaged fan housing
Technical Specifications
- Product Type: Cooling fan shroud / cover
- Engine: 1.8L 2ZR-FE
- Placement: Radiator / condenser fan area
- Material: Molded plastic
- Replacement Type: Aftermarket
Installation & Fitment
- Confirm engine size and build origin before ordering
- Check fan blades and motor mounts for play before installing the new shroud
- Maintain even clearance between the fan blade and shroud all the way around
Compatibility Notice
The 1.8L and 2.4L Corolla cooling assemblies are not interchangeable. U.S.-built and Japan-built 1.8L cars can also use different shroud numbers.
Frequently Asked Questions
Q: Can a broken fan shroud contribute to overheating? A: It can reduce fan efficiency at low vehicle speed because air can bypass the radiator instead of being pulled through it.
Q: How do I know whether my Corolla is U.S.- or Japan-built? A: Check the VIN/build information and compare the original shroud part number and mounting pattern.
Part Summary
keywords: 2009 Corolla fan shroud, 2013 Toyota Corolla 1.8 cooling fan cover, 16711-0T040, 16712-0T020, 2ZR-FE radiator fan shroud, Corolla condenser fan housing
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
