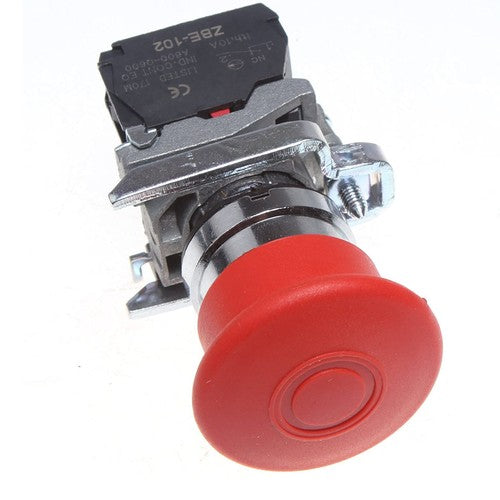

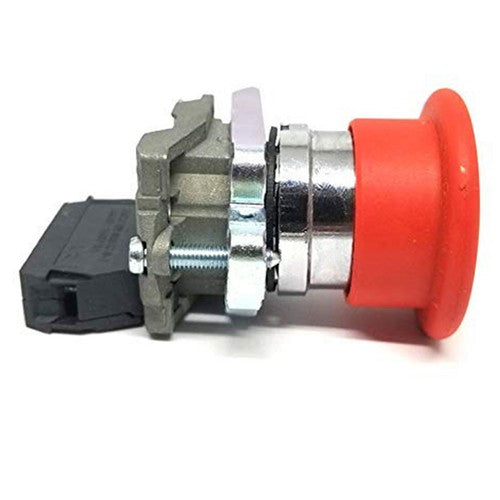

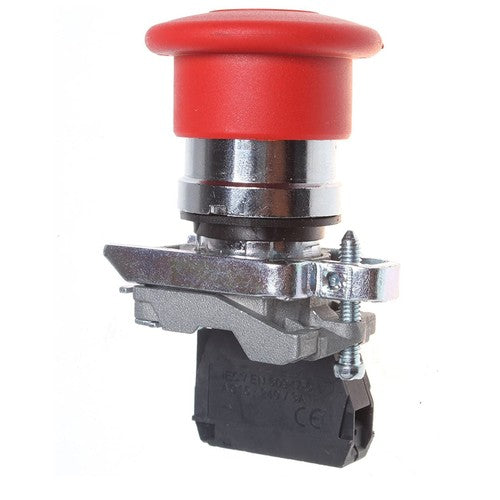

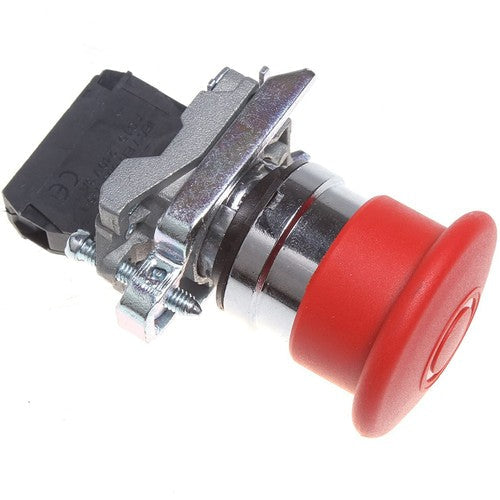

XB4BT42 22mm Push-Pull Emergency Stop Switch for JLG Controls – Red 40mm, 1NC
$24.79
In Stock
$24.79
Sale price
$24.79
Regular price
This XB4BT42-style emergency switching-off pushbutton uses a red 40mm mushroom head, 22mm panel mount and latching pull-to-reset action.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Brand / Family | Compatible Applications |
|---|---|
| JLG / industrial controls | Control panels wired for an XB4BT42-style 22mm emergency-stop device |
Product Overview
The control is used where an operator needs a positive emergency-stop input. Research for the XB4BT42 configuration identifies a normally-closed contact, so matching the contact arrangement and panel geometry is important when replacing a switch in JLG control boxes.
The original Schneider Harmony XB4BT42 specification is discontinued, so replacement listings may supply an equivalent-format device rather than a Schneider-branded part.
Key Features & Performance
- Machine-control input: Provides the electrical state change used by the machine's start, safety or emergency-control circuit.
- Exact configuration matters: Contact arrangement, connector/terminals, actuator style and mounting must match the original switch.
- Functional testing required: After replacement, verify that the associated control or safety circuit changes state correctly.
- Product-specific note: The original Schneider Harmony XB4BT42 specification is discontinued, so replacement listings may supply an equivalent-format device rather than a Schneider-branded part.
Technical Specifications
- Mounting diameter: 22 mm
- Operator: Red 40 mm mushroom head
- Reset: Pull to reset / latching
- Contact: 1 NC
Replaces / Reference Part Numbers
XB4BT42, XB4-BT42
Common Replacement Reasons
- Intermittent or open electrical contacts
- Damaged actuator/key mechanism
- Safety/start circuit diagnosis identifies the switch as the failed input
Frequently Asked Questions
How do I confirm this is the correct part?
Confirm panel-hole size, contact arrangement, terminal style and machine schematic before replacing an emergency-stop device.
Is this an OEM part?
Unless the listing is explicitly identified as genuine/OEM in the product data, treat it as a replacement component. Use the verified reference numbers, equipment application and physical configuration above to match your original part.
What should I check before installation?
E-stop circuits are safety-critical; function and contact state should be tested after installation.
Fitment note: Equipment manufacturers may use different components within the same model family based on engine, serial number or production date. Confirm the original part number and machine/engine details before ordering.
