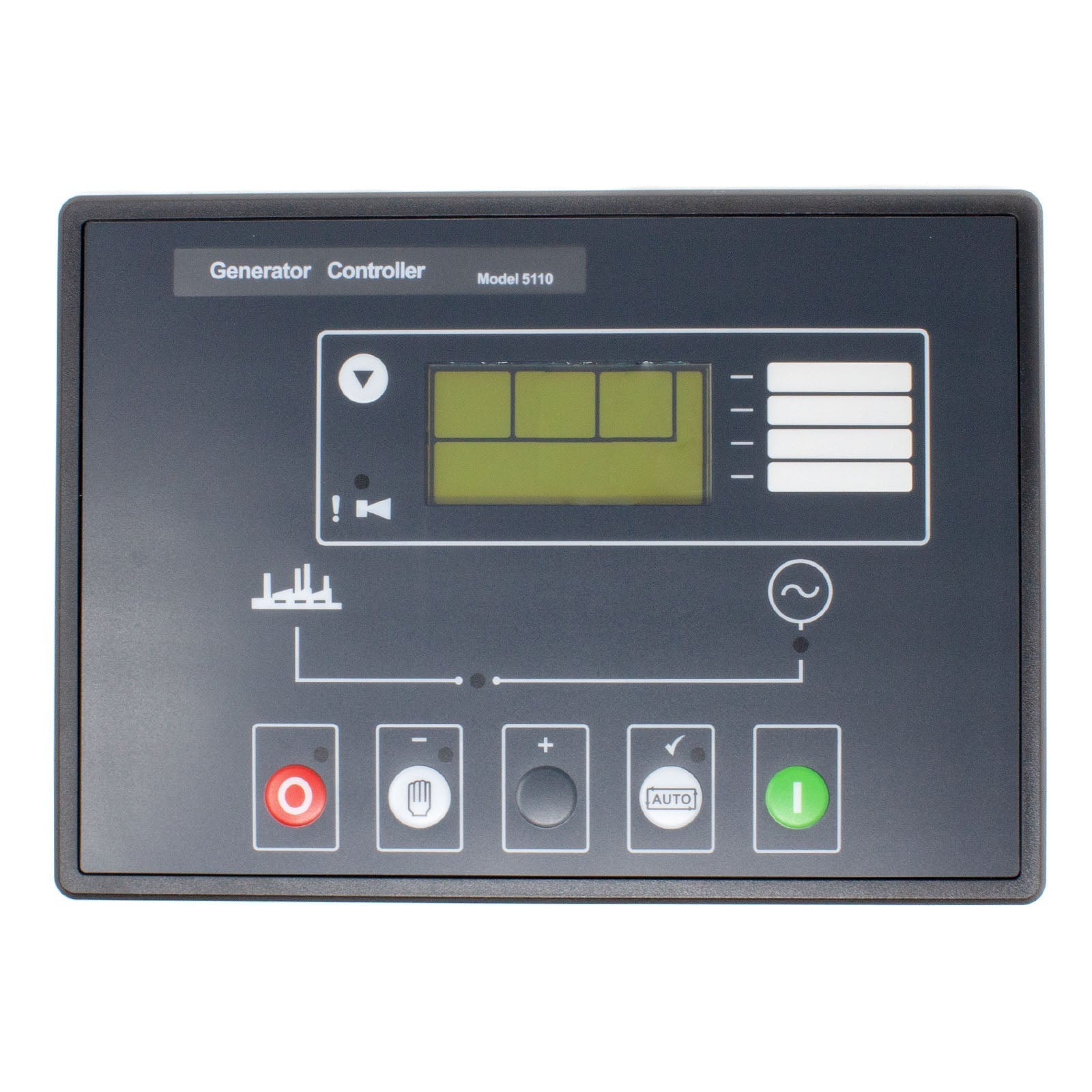

DSE5110, Control Module

Brand New Aftermarket Control Module

The DSE5110 is an Automatic Start Control Module designed to automatically start and stop diesel and gas generating sets that include non electronic engines. The module also provides excellent engine monitoring and protection features.
The module has the ability to monitor under speed, over speed, charge failure, emergency stop, low oil pressure, high engine temperature, fail to start, fail to stop and loss of the speed sensing signal. The module displays fault conditions on the LCD display and via the LED indicators on the front.

Feature(s)

• Automatic start
• Automatic load transfer
• Configurable inputs
• Configurable outputs
• Configurable alarms & timers
• Digital inputs
• Analogue inputs
• Back-lit character LCD display
• Engine protection
• Front panel mounting
• Icon based fault diagnostics
• PC configurable
• Front panel programming
• Remote monitoring
• LCD alarm indication
• LED alarm indication

Specification(s)

• Brand Name: Northline Parts
• Part Number: DSE5110
• Quantity: 1
• DC SUPPLY: 8V to 35V continuous
• CRANKING DROPOUTS: Able to survive 0V for 50mS, providing the supply was at least 10V before dropout and supply recovers to 5V
• START RELAY OUTPUT: 16A DC supply at supply voltage
• FUEL RELAY OUTPUT: 16A DC at supply voltage
• AUXILIARY RELAY OUTPUTS: 5A DC at supply voltage
• CHARGE FAIL/EXCITATION RANGE: 0V to 35V
• MAXIMUM OPERATING CURRENT: 320mA at 12V, 215mA at 24V
• MAXIMUM STANDBY CURRENT: 175mA at 12V, 95mA at 24V
• ALTERNATOR INPUT RANGE: 15V (L-N) to 333V AC (L-N) absolute maximum
• ALTERNATOR INPUT FREQUENCY: 50-60 Hz at rated engine speed (Minimum: 15V AC L-N)
• MAGNETIC PICK-UP VOLTAGE INPUT RANGE: +/- 0.5V to 70V Peak
• MAGNETIC INPUT FREQUENCY: 10,000 Hz (max) at rated engine speed

Parts can vary depending on the serial number of the machine.

Frequently Asked Questions

Is this an OEM part?
No, this is a premium aftermarket replacement part designed to meet or exceed the performance specifications of the original equipment.

How do I confirm compatibility?
Please verify that your model is listed in the compatible models section and compare any available reference part numbers with your existing component before purchase.

Important: This is a premium aftermarket part and is not manufactured by the original equipment manufacturer (OEM). Brand names and model numbers are used for reference purposes only. Compatibility may vary depending on the machine's serial number. Please verify fitment before purchase.
