Product Overview

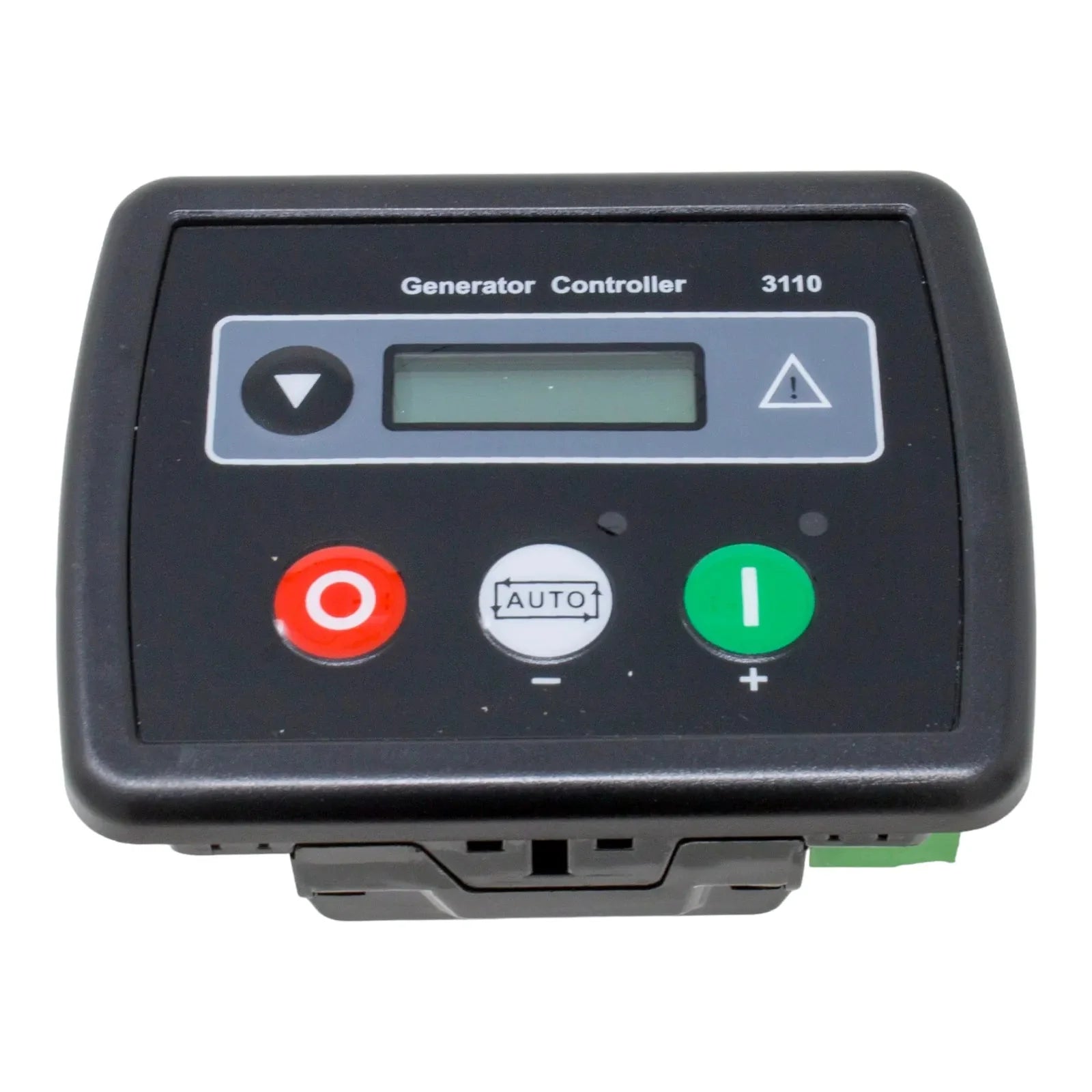

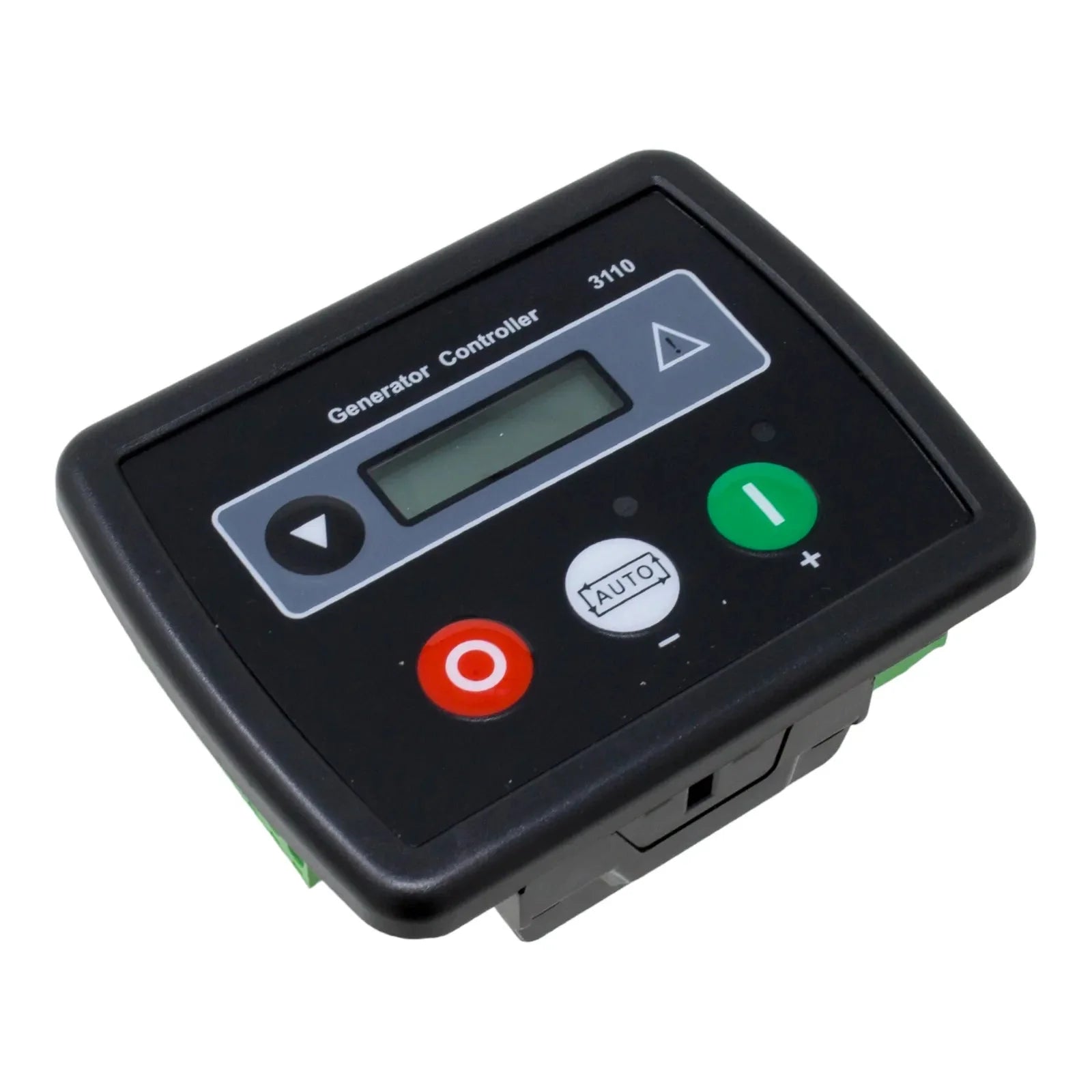

Brand New Aftermarket DSE3110 Manual & Auto Start Control Module
The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.
The DSE3110 Generator Controller is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.
The DSE3110 can be utilised as a manual or auto start module for single generating set applications and forms part of DSE's next generation of control modules. The module has been designed to work with electronic and non-electronic engines providing advanced engine monitoring and protection features.
The DSE3110 includes a back-lit LCD display which clearly shows the status of the engine at all times. The module monitors engine speed, frequency, voltage and run hours and also displays the warning and shutdown status of the engine.
Key Features:
- Versatile Operation: Suitable for manual and auto start applications
- Advanced Engine Monitoring: Works with electronic and non-electronic engines, providing protection features
- Back-Lit LCD Display: Monitor engine status, speed, frequency, voltage, and run hours
- Digital Inputs and Outputs: Six digital inputs and four outputs for customization
- User-Friendly Programming: Easily programmable via front panel or PC software
Specification(s):
- DC Supply:
- Continuous Voltage Rating: 8 V to 35 V Continuous
- Cranking Dropouts: Survives 0 V for 50 mS, provided the supply was at least 10 V before dropout and supply recovers to 5 V, eliminating the need for internal batteries
- Charge Fail/Excitation: 8 V to 35 V fixed power source (2.5 W)
- Nominal Standby Current: 23 mA at 12 V, 18 mA at 24 V
- Maximum Operating Current: 35 mA at 12 V, 30 mA at 24 V
- Outputs:
- Output A (Fuel): 2 A DC at supply voltage
- Output B (Start): 2 A DC at supply voltage
- Auxiliary Outputs C & D: 2 A DC at supply voltage
- Generator:
- Voltage Range: 15 V - 333 V AC (L-N)
- Frequency Range: 3.5 Hz to 75 Hz
- Magnetic Pick-Up:
- Voltage Range: +/- 0.5 V to 70 V
- Frequency Range: 10,000 Hz (max)
Frequently Asked Questions
Is this an OEM part?
No, this is a premium aftermarket replacement part designed to meet or exceed the performance specifications of the original equipment.
How do I confirm compatibility?
Please verify that your model is listed in the compatible models section and compare any available reference part numbers with your existing component before purchase.
Important: This is a premium aftermarket part and is not manufactured by the original equipment manufacturer (OEM). Brand names and model numbers are used for reference purposes only. Compatibility may vary depending on the machine's serial number. Please verify fitment before purchase.
