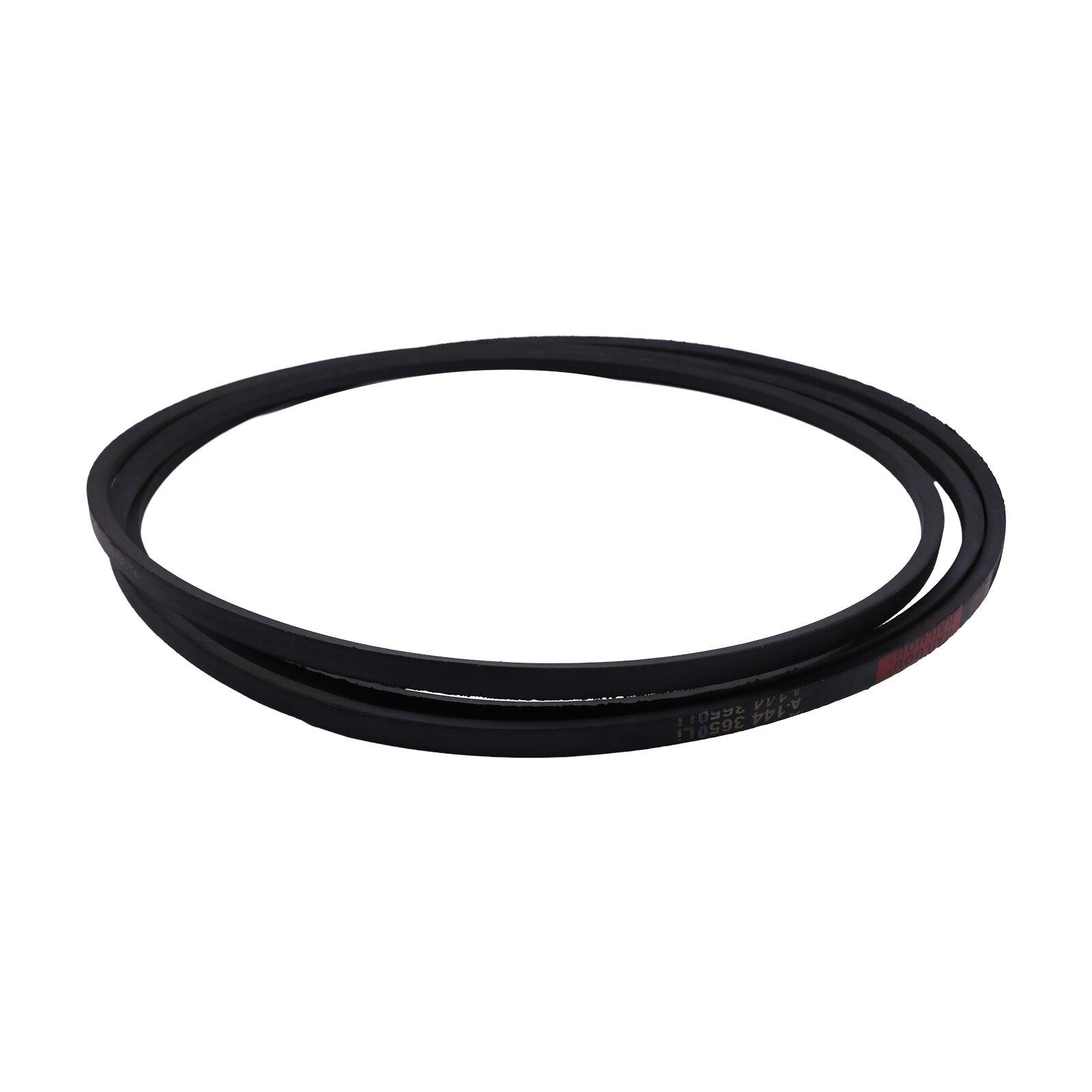

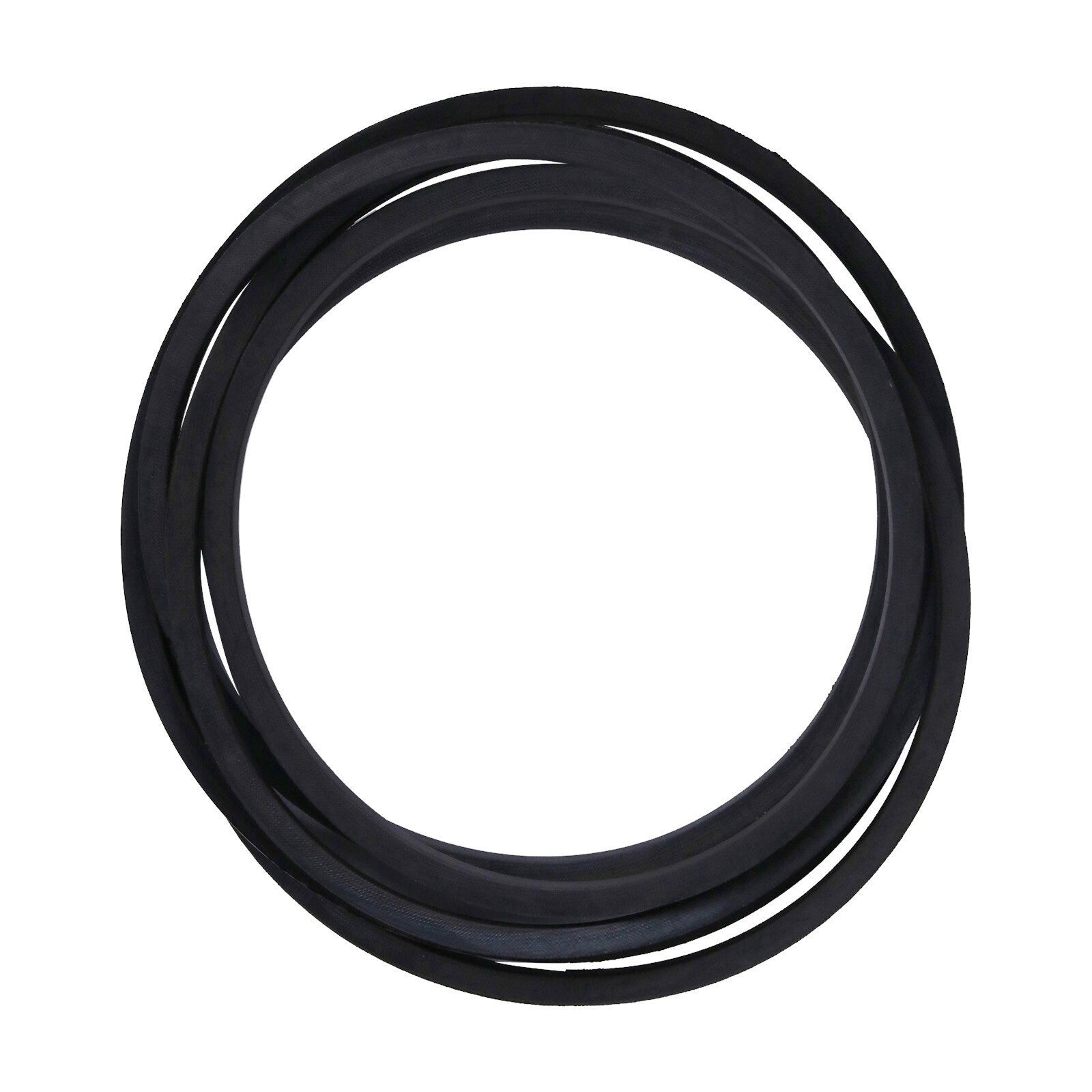

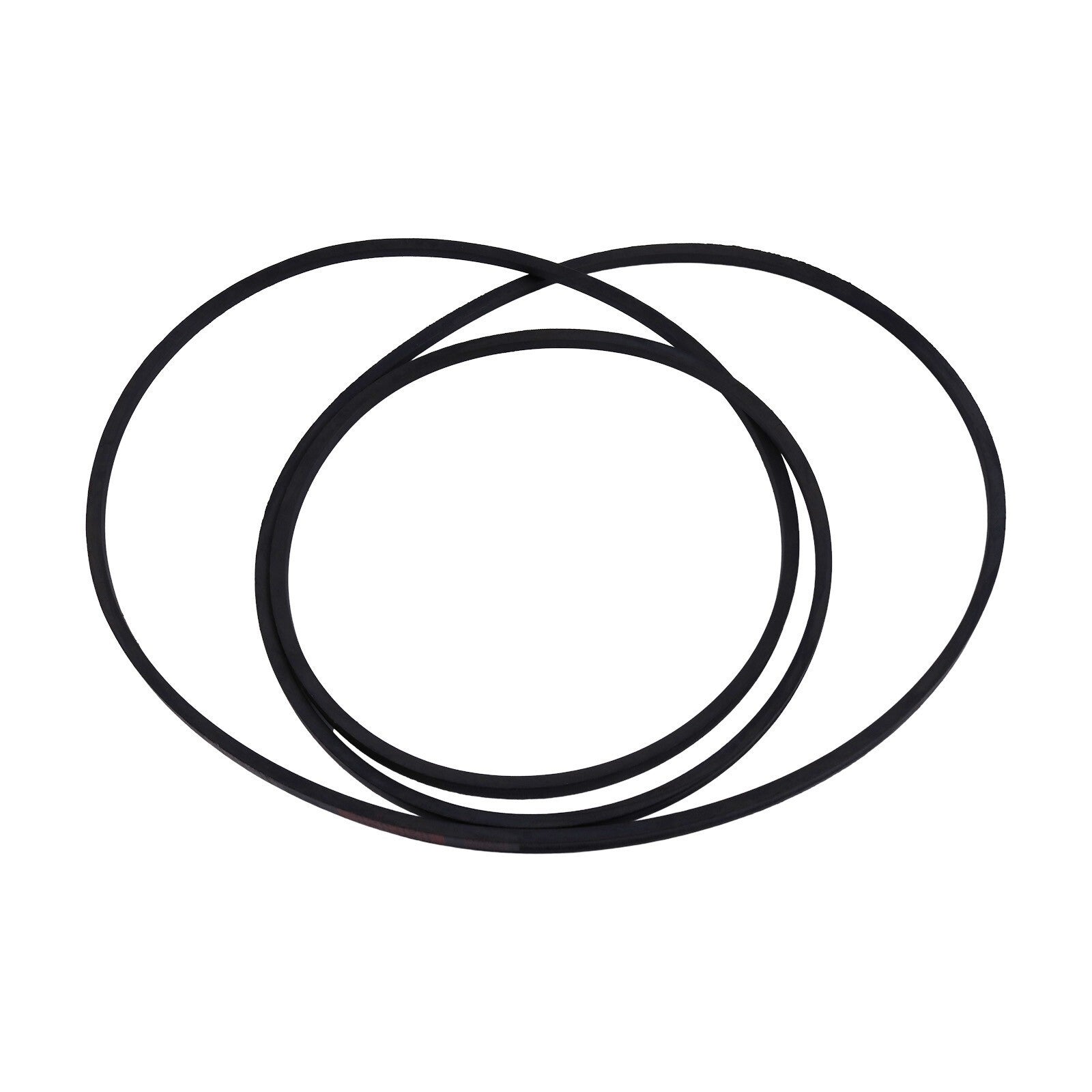

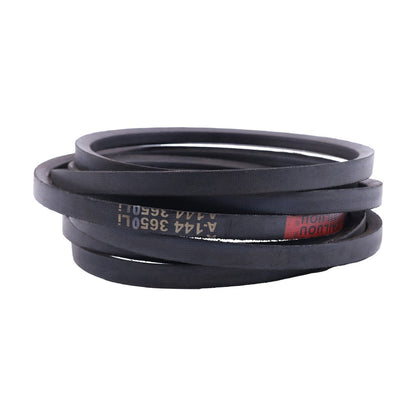

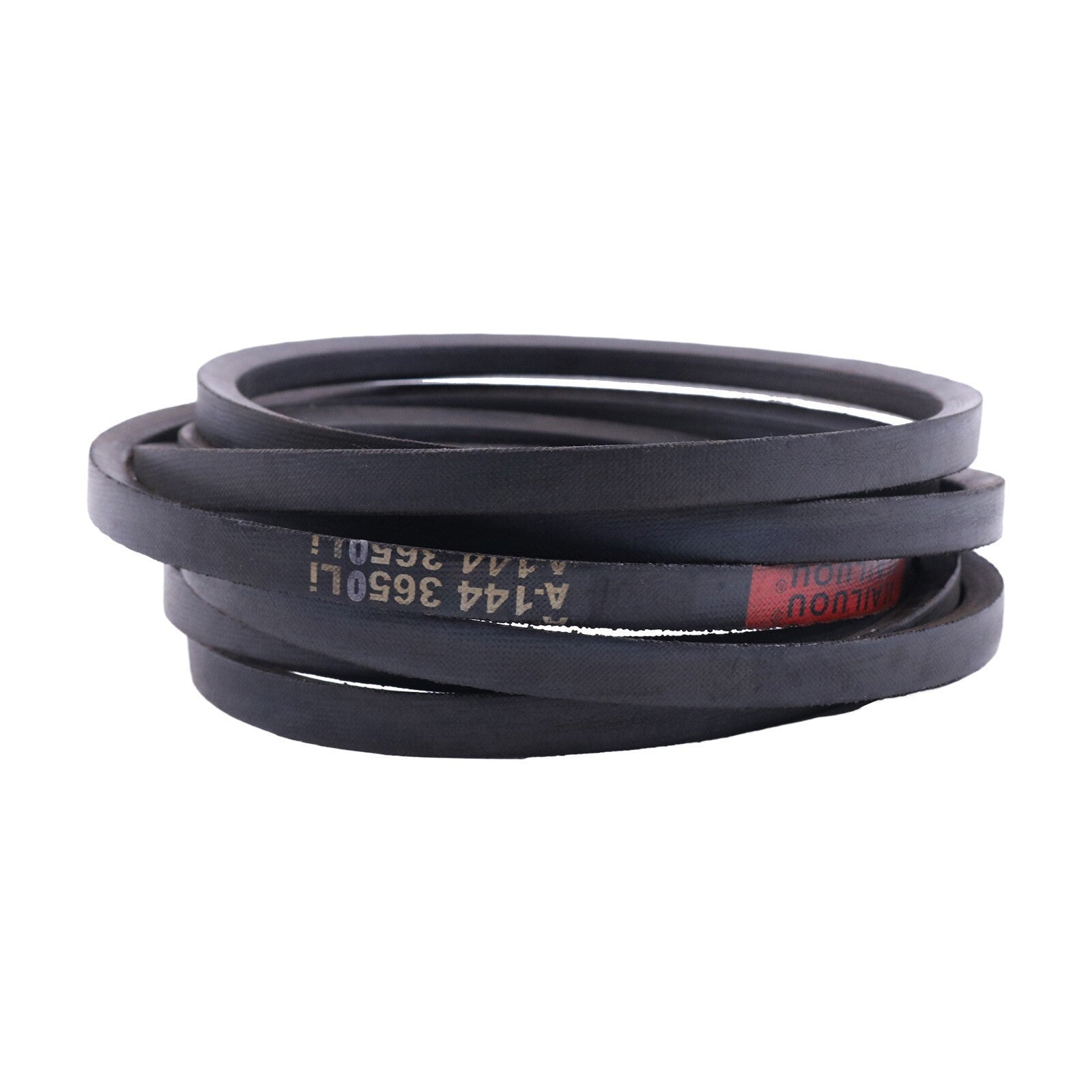

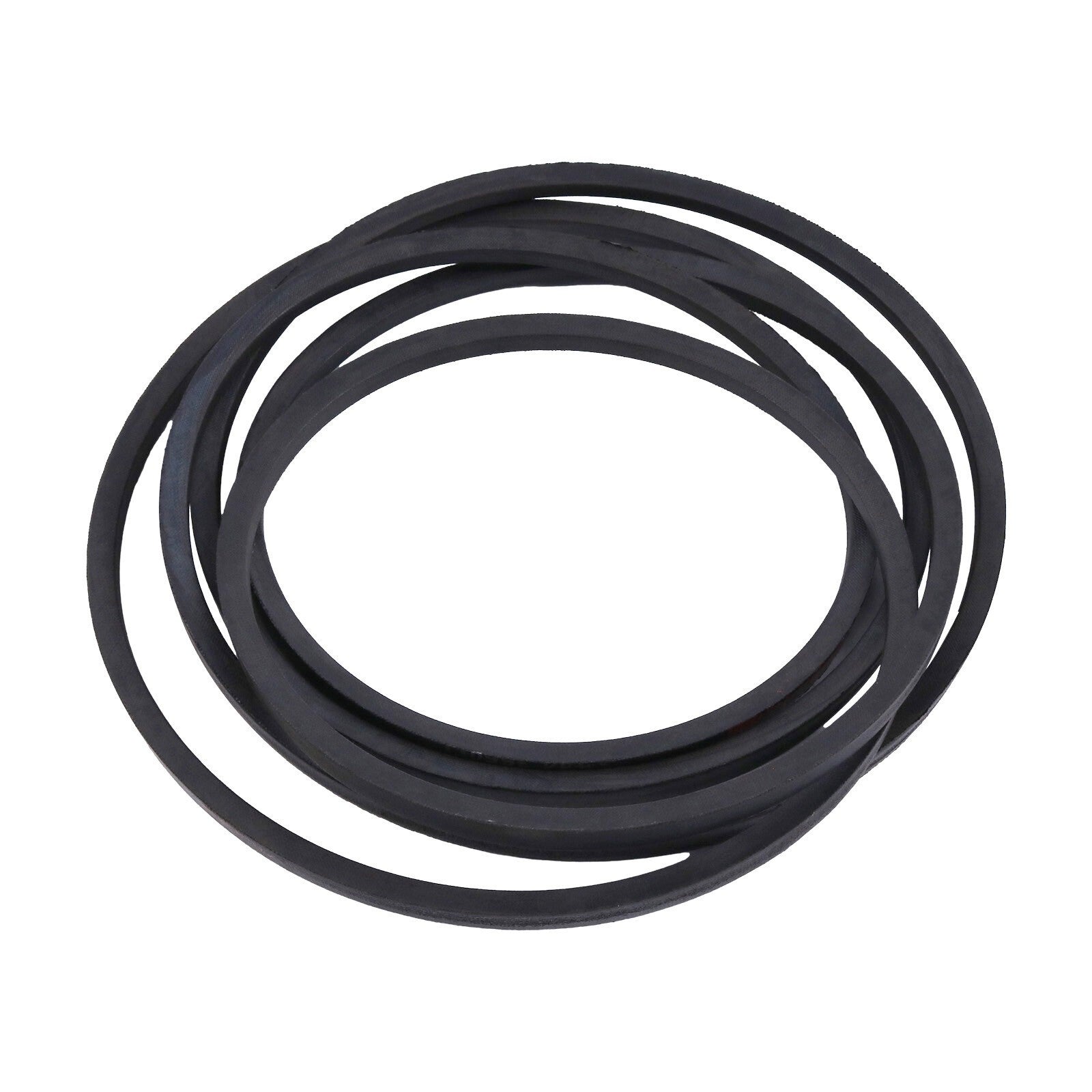

Ariens Gravely 07200839 52-Inch Deck Belt 1/2 x 143.6 Inches
$50.99
In Stock
$50.99
Sale price
$50.99
Regular price
This aramid-cord deck belt replaces 07200839 on compatible 52-inch Ariens Edge and selected Gravely zero-turn mowers and measures approximately 1/2 x 143.6 inches.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Ariens 915254 Edge 52, serial 000101-001999
- Ariens 915254 Edge 52, serial 002000 and later
- Ariens / Gravely 992297 Pro-Turn Mach One, serial 090000-091999
- Ariens / Gravely 992297 Pro-Turn Mach One, serial 092000-093999
- Ariens / Gravely 992297 Pro-Turn Mach One, serial 094000 and later
Product Overview
A glazed belt can still look intact while slipping badly enough to leave streaks or stop the blades in heavy grass. Cracks, shiny sidewalls, rubber dust, squeal, or repeated belt throwing also call for inspection of every pulley and tensioner.
This is the mower-deck PTO belt, not the hydrostatic drive belt. Routing and serial number matter: one wrong pass around an idler can make a correctly sized belt seem too short or destroy it during the first mow.
Key Features & Performance
- Approximately 1/2-inch width
- Approximately 143.6-inch outside length
- Aramid cord for mower-deck duty
- Replaces 07200839 / 7200839
- For selected 52-inch decks
Replaces Part Numbers
- 07200839
- 7200839
- M154601
Common Uses
- Replacing a belt with cracks, glazing, burns, or missing chunks
- Correcting deck slip after pulleys and spring tension are confirmed
- Servicing a belt that stretched or jumped off its guides
Technical Specifications
- Product Type: Mower Deck PTO Belt
- Primary Application: Selected 52-inch Ariens and Gravely zero-turn mowers
- Package Quantity: 1 belt
- Condition: New
- Replacement Type: Aftermarket
- Reference: 07200839
- Width: 1/2 inch
- Length: 143.6 inches
- Material: Aramid cord
- Deck Size: 52 inches
Installation & Fitment
- Photograph the belt route before removal
- Spin every spindle and idler by hand and check bearing play
- Inspect the tension spring, guides, and clutch pulley
- Route inside every keeper and test engagement at low throttle
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Why does a new belt keep coming off? A: Bent guides, worn bearings, a weak spring, pulley misalignment, or incorrect routing can throw it.
Q: Is this the traction-drive belt? A: No. It is listed as the PTO/deck belt for the compatible 52-inch cutting deck.
Q: How do I confirm this is the correct part? A: Match 07200839, mower model and serial number, 52-inch deck, belt routing, 1/2-inch width, and 143.6-inch length.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
keywords: Ariens 07200839 deck belt, Edge 52 mower belt, 1/2 x 143.6 belt, Gravely 52 inch PTO belt, 915254 replacement belt
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
