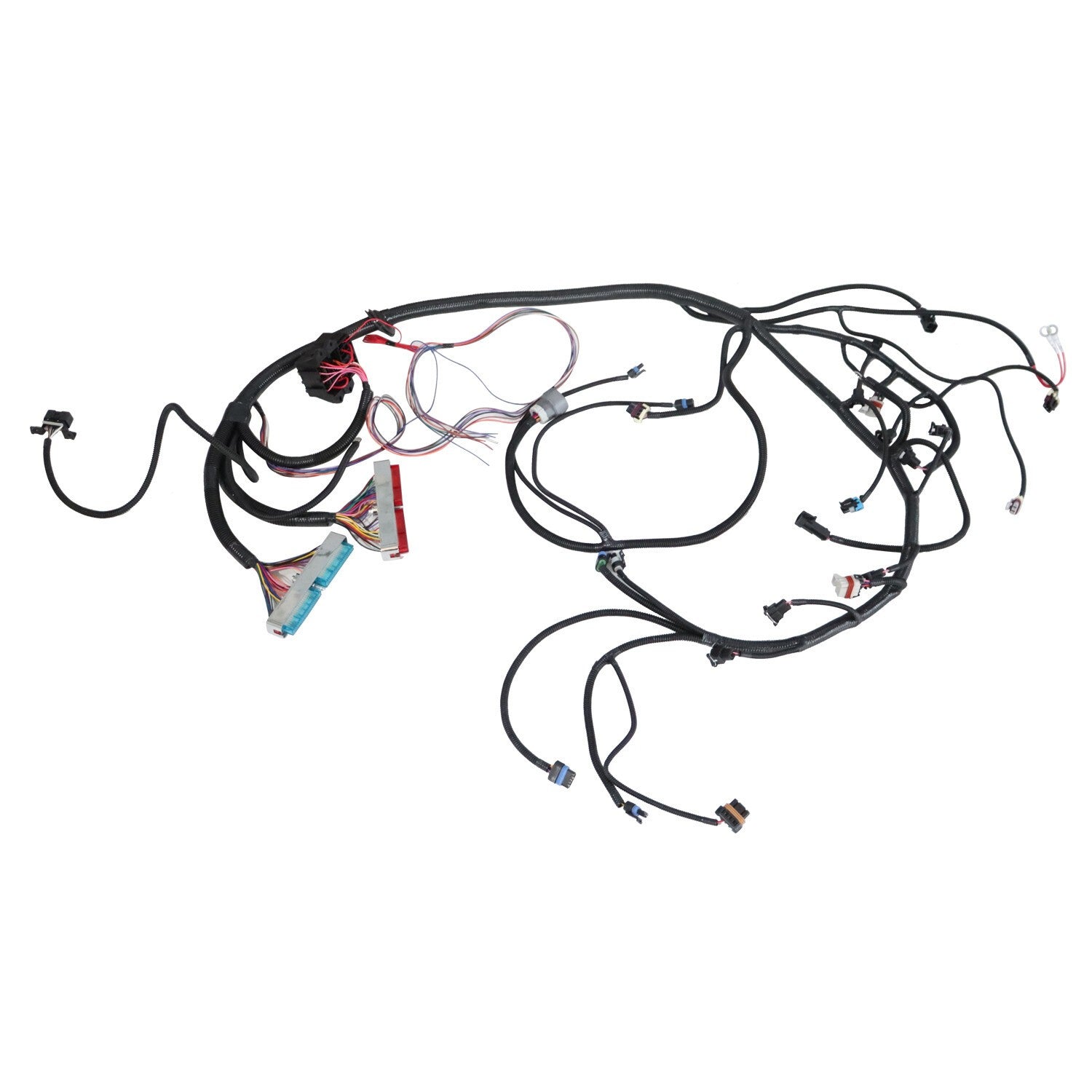

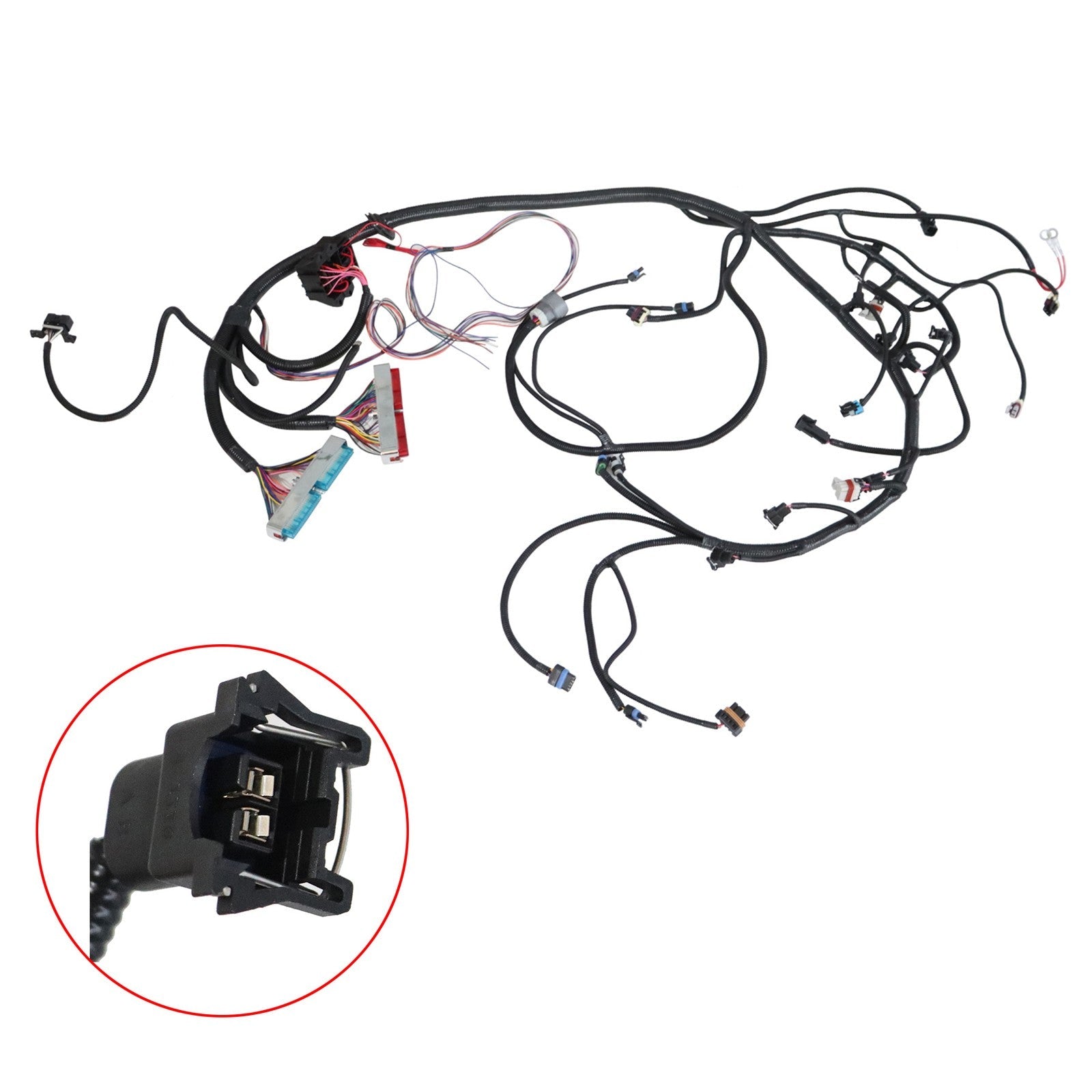

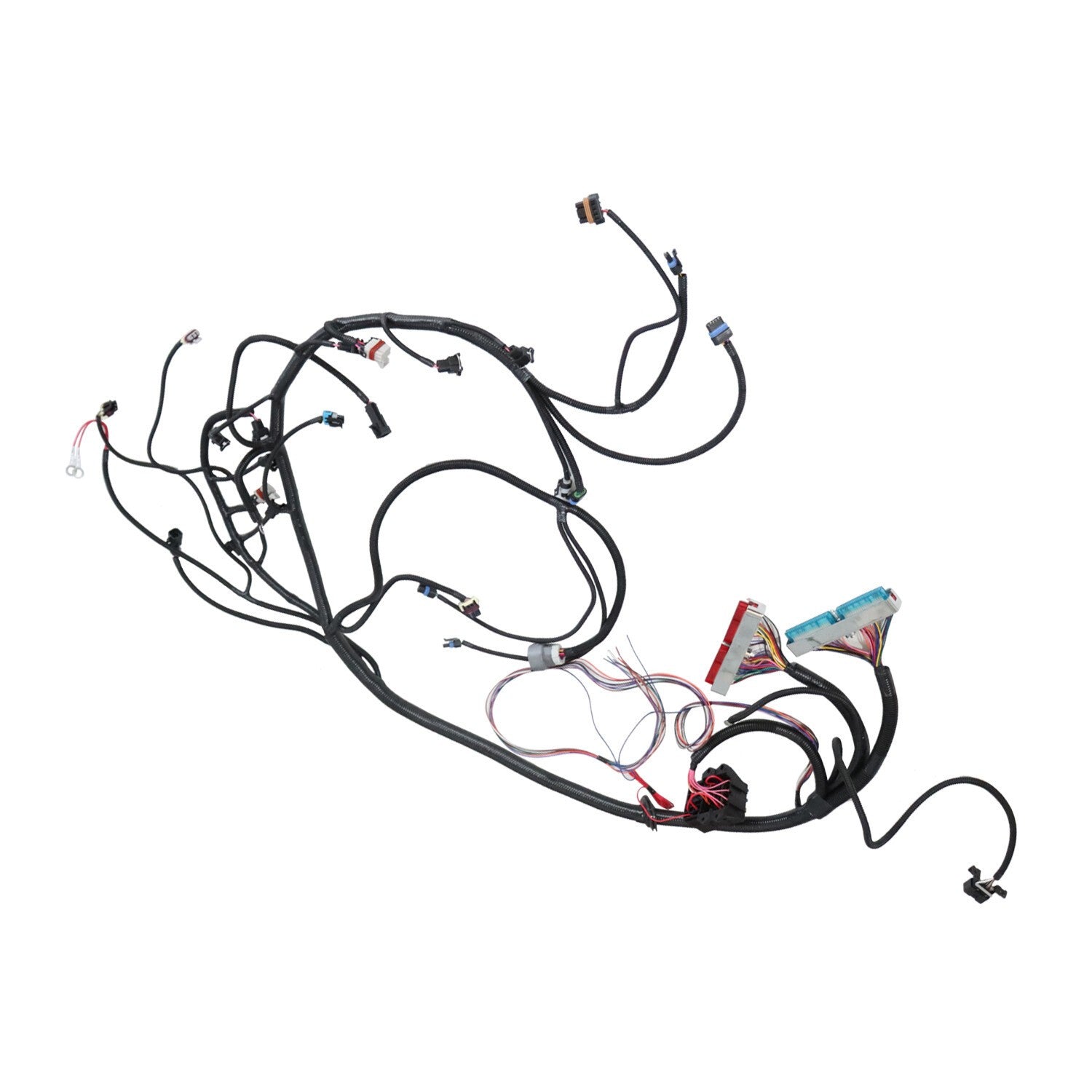

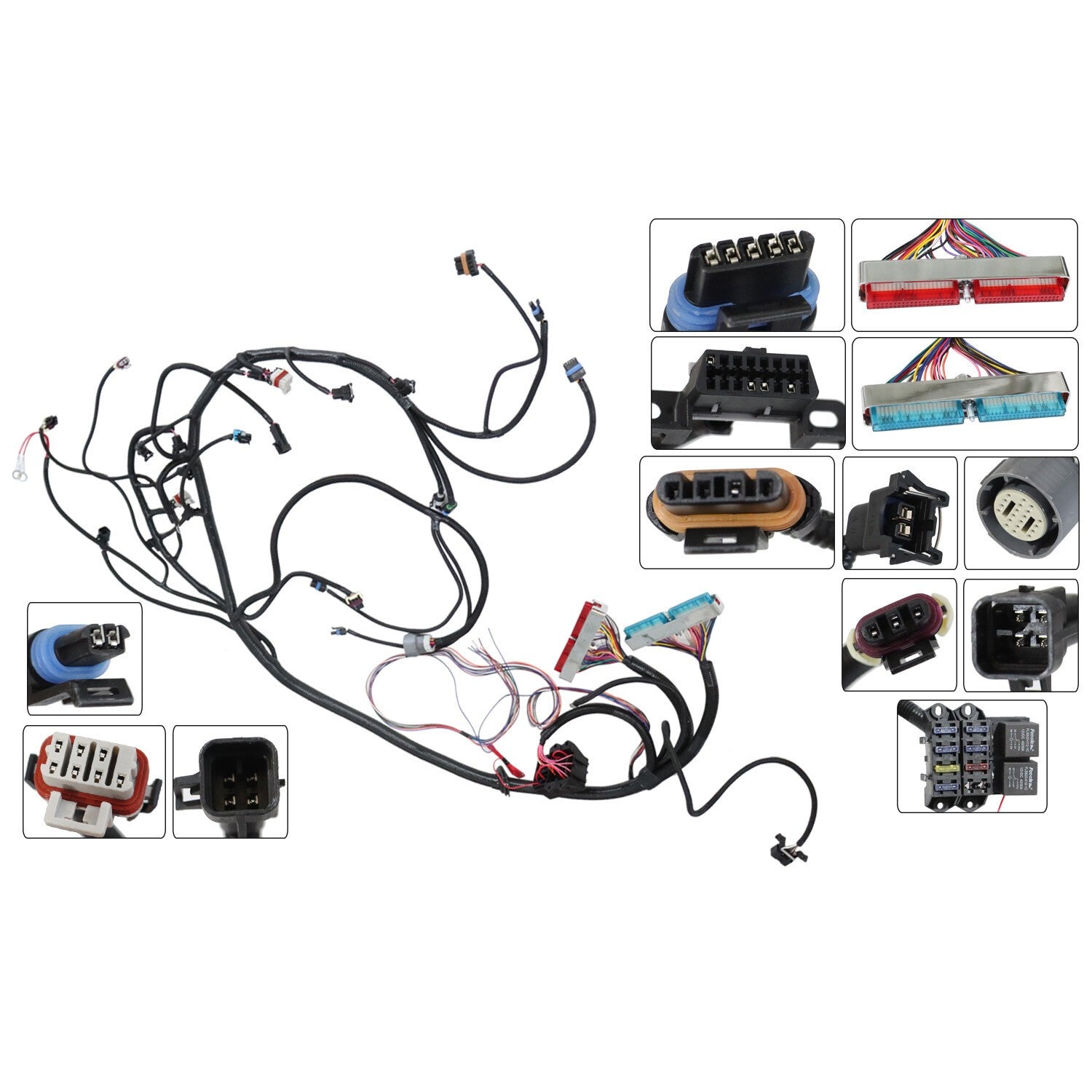

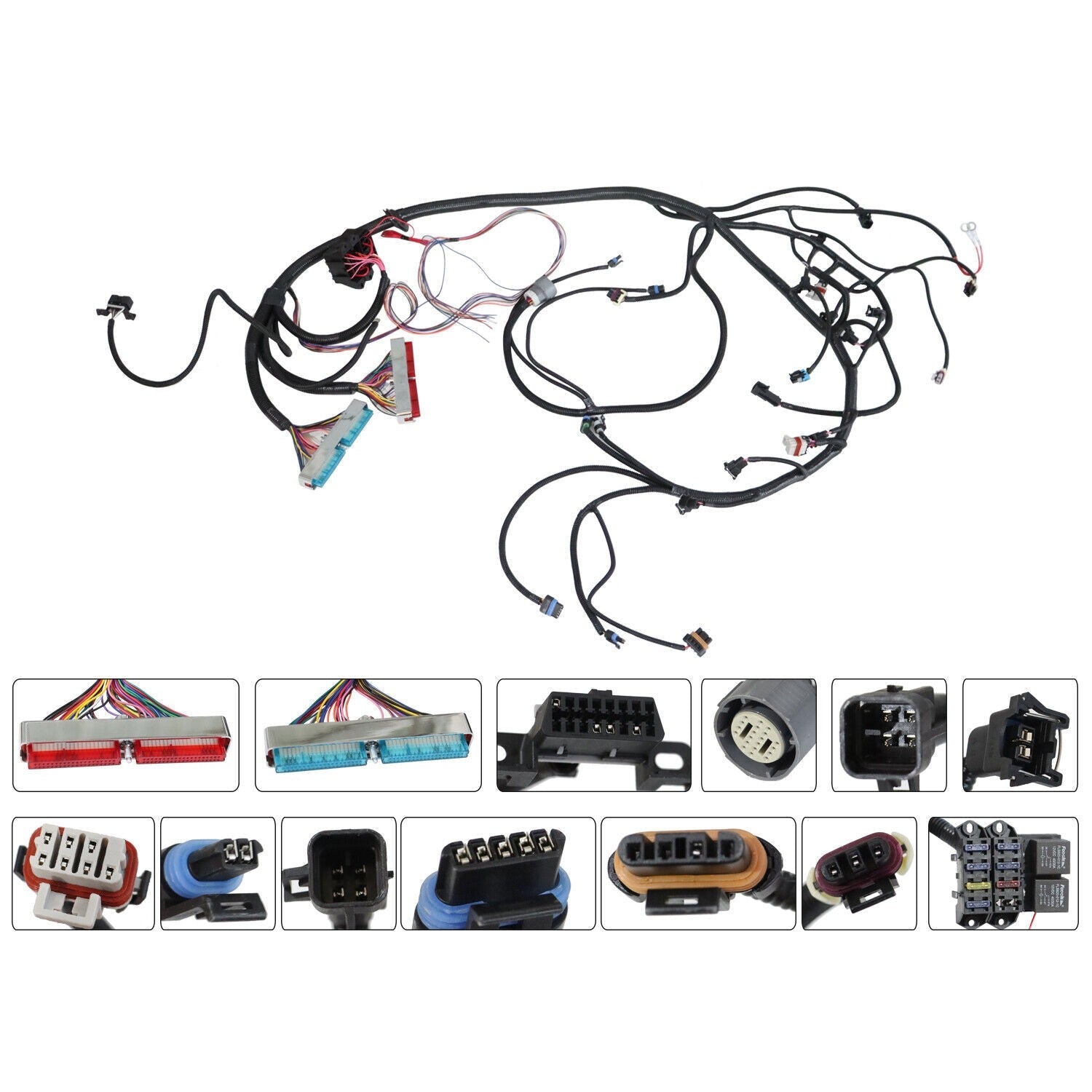

Standalone LS Swap Wiring Harness for 1997–2006 DBC 4.8L/5.3L/6.0L with 4L80E
$191.99
In Stock
$191.99
Sale price
$191.99
Regular price
New aftermarket standalone engine wiring harness for compatible 1997–2006 GM LS/Vortec 4.8L, 5.3L, and 6.0L drive-by-cable engines paired with a 4L80E automatic transmission.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1997–2004 Corvette LS1/LS6 DBC applications with compatible PCM and 4L80E conversion
- 1999–2006 GM truck 4.8L Vortec DBC engines
- 1999–2006 GM truck 5.3L Vortec DBC engines
- 1999–2006 GM truck 6.0L Vortec DBC engines
Product Overview

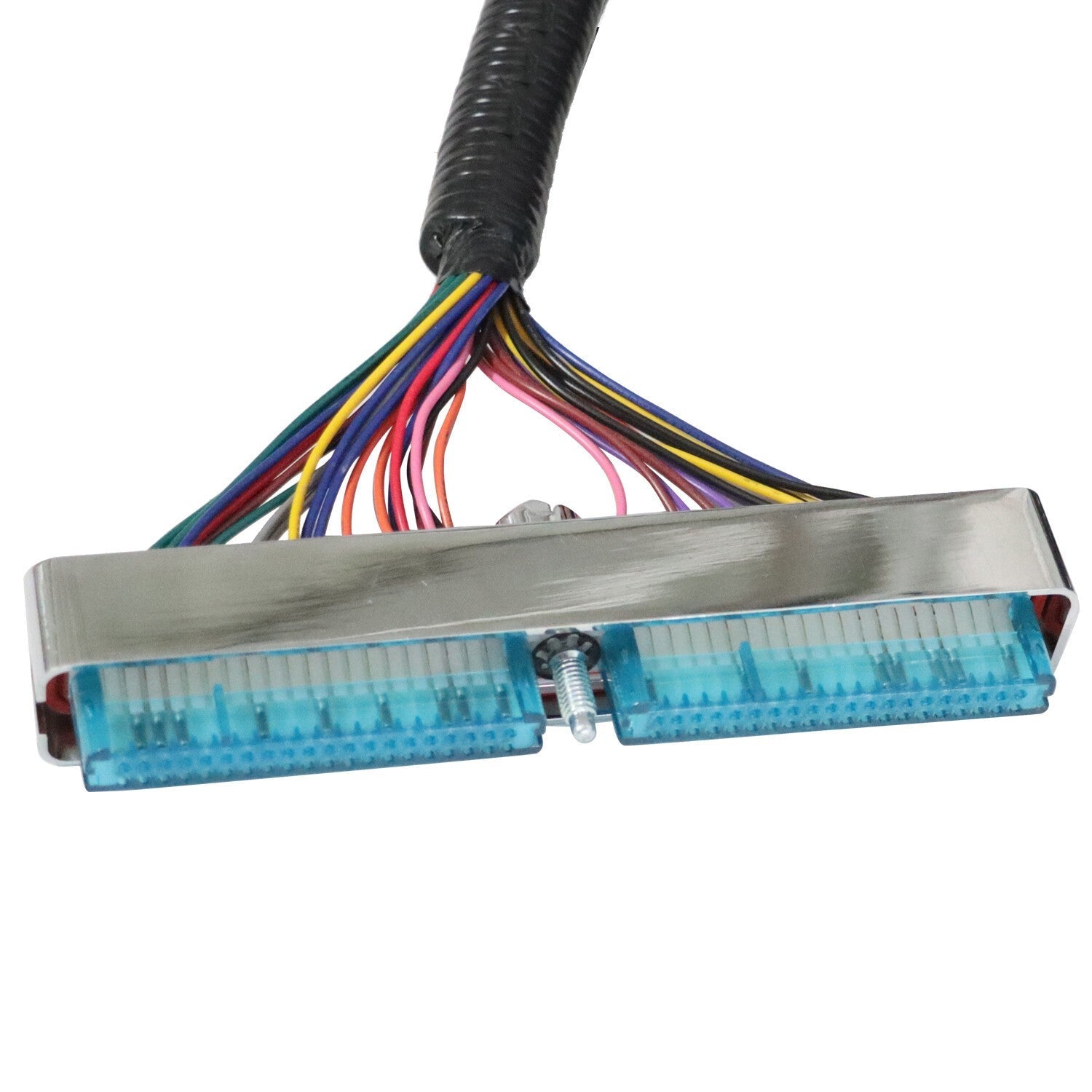

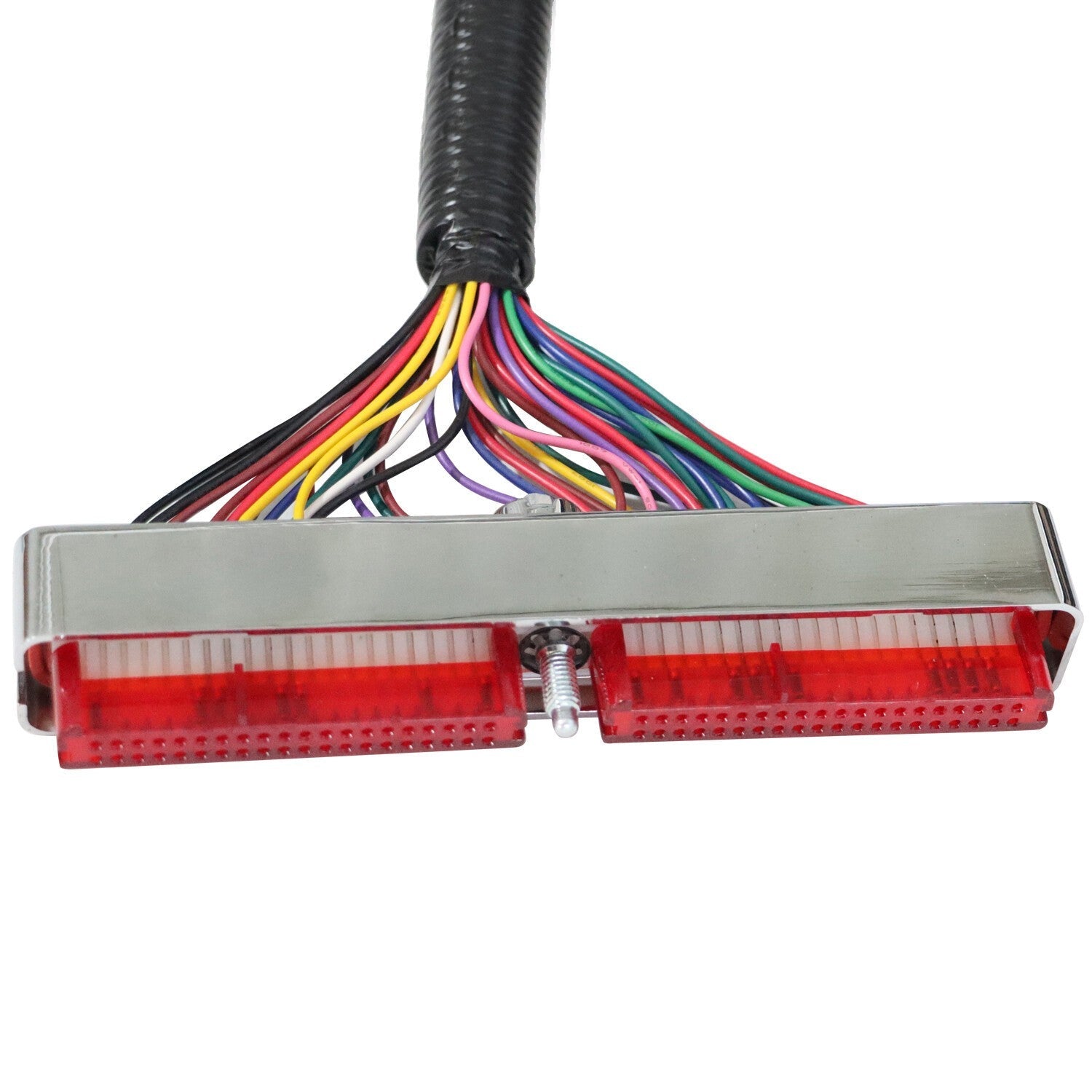

An LS swap needs a harness built around the actual throttle, injector, MAF, alternator, PCM, and transmission combination. This harness is intended for red/blue-style compatible DBC electronics and a 4L80E, giving the builder labeled engine connections and basic chassis interface leads.
It is not for drive-by-wire or a 4L60E without modification. Confirm PCM service number, injector plugs, 3-wire MAF, one-wire alternator, transmission connector, and emissions choices.
Key Features & Performance
- Standalone harness for drive-by-cable LS/Vortec swaps

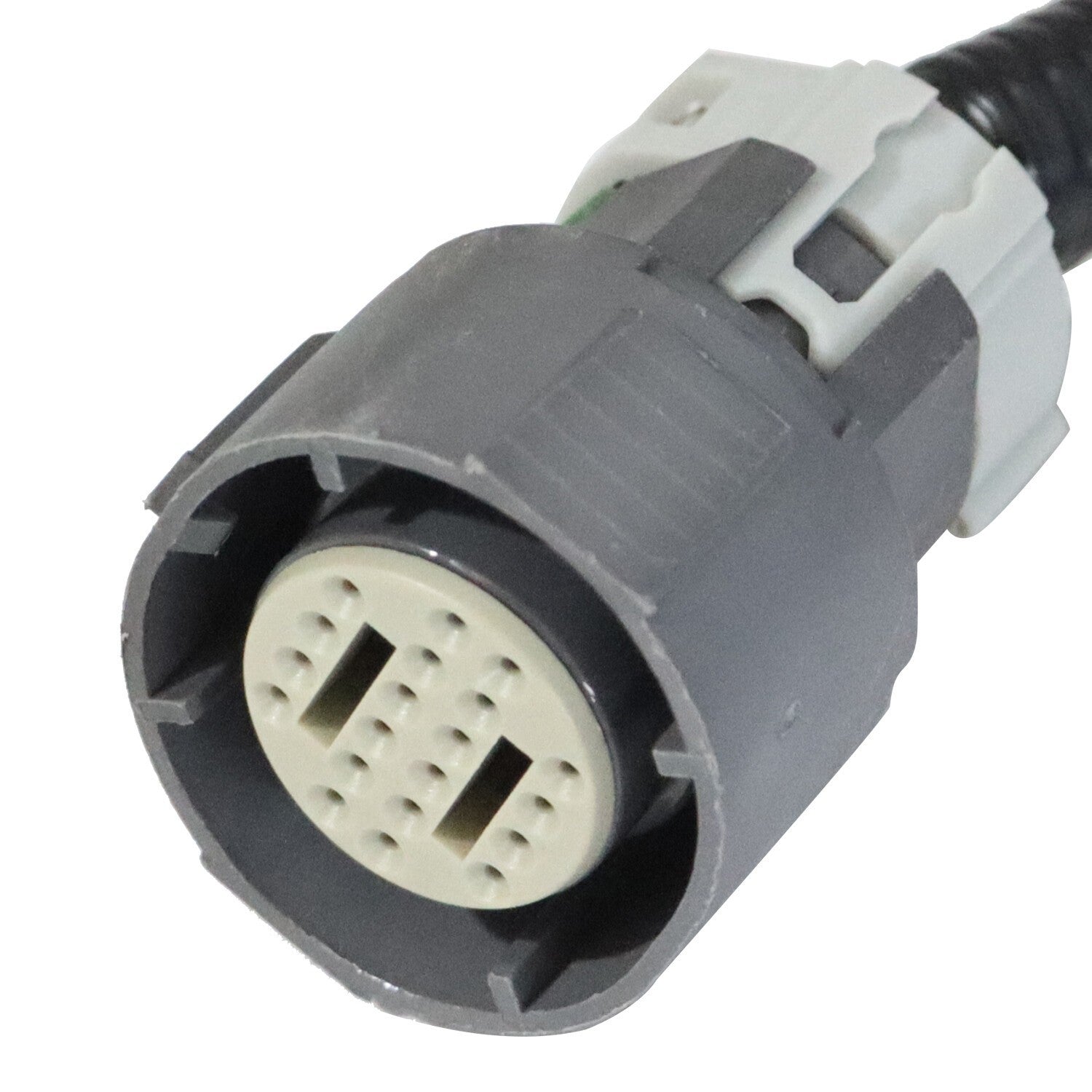

- Configured for compatible 4L80E transmission control

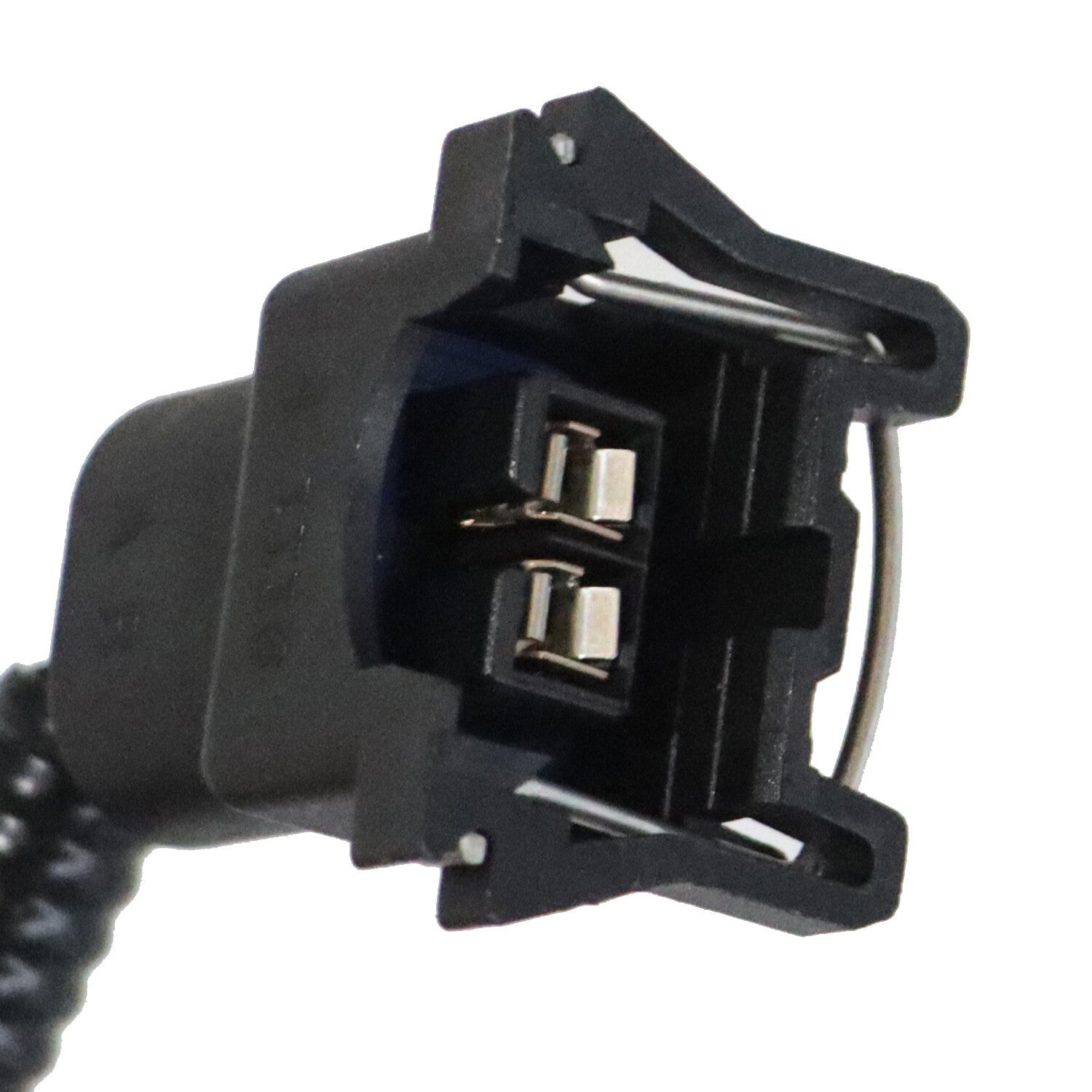

- EV1-style injector connection and common swap interface leads

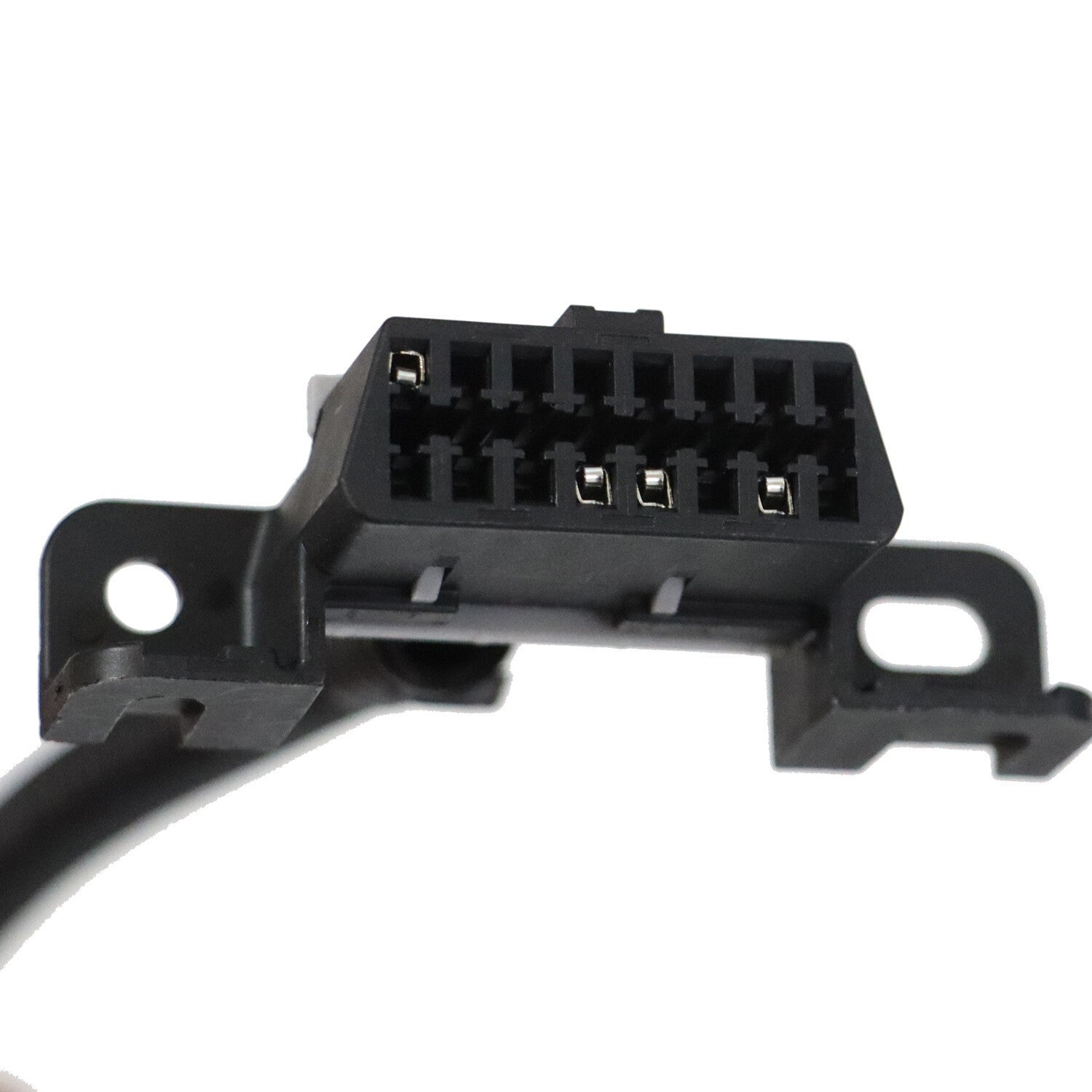

- Provides DLC, tachometer, speedometer, park/neutral, and warning-lamp circuits in matching kits
Common Uses
- Wiring a 4L80E-controlled LS swap
- Replacing a cut or incomplete donor harness
- Moving the PCM into a custom vehicle
Technical Specifications
- Product Type: Standalone engine/transmission wiring harness
- Throttle: Drive by cable
- Transmission: 4L80E
- Engine Family: Compatible GM LS/Vortec
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Lay out every branch on the engine before applying power
- Verify PCM pinout and tune compatibility

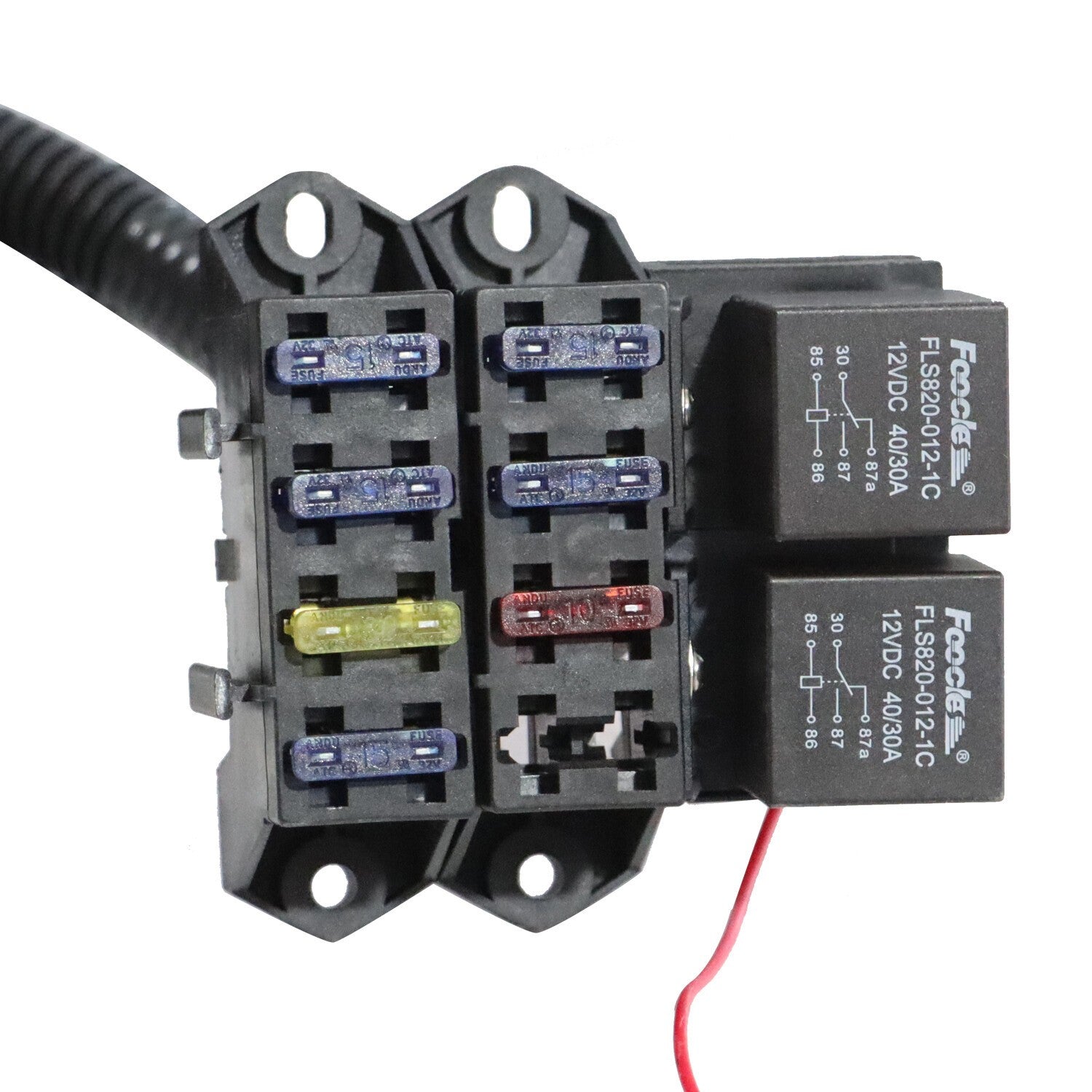

- Fuse battery and ignition feeds correctly and use clean engine/chassis grounds
- Keep harness branches away from headers and rotating parts; professional swap wiring is recommended
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Year range alone is not enough. DBW/DBC, injector style, MAF, alternator, crank/cam pattern, PCM, oxygen sensors, and transmission must all agree.
Frequently Asked Questions
Q: Will this work with a drive-by-wire throttle body? A: No. It is designed for compatible drive-by-cable setups.
Q: Is it for a 4L60E? A: No. The listed transmission is the 4L80E.
Q: Does the PCM come with the harness? A: Do not assume so; the listing identifies the harness, and a compatible programmed PCM is normally separate.
Q: Why does the PCM need tuning? A: Swap equipment, security, emissions, gearing, tire size, and transmission settings must match the finished vehicle.
Part Summary
keywords: 4L80E LS swap harness, 1997 2006 DBC standalone wiring, 5.3 Vortec swap harness, 6.0 LS 4L80E wiring, drive by cable LS harness
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
