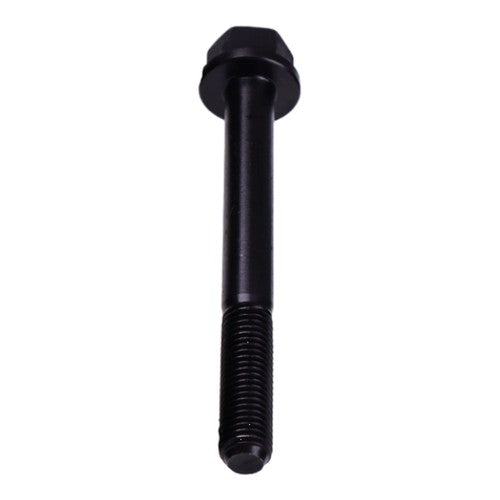

Cylinder Head Bolt 119515-01200 for Yanmar 2TNV70 3TNV70 3YM20
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
This cylinder-head fastener replaces Yanmar 119515-01200 on compatible small diesel engines and is used to clamp the cylinder head to the block at the specified torque sequence.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Application | Fitment Notes |
|---|---|
| Yanmar 2TNV70 engine applications | Use only with the matching original part/configuration. |
| Yanmar 3TNV70 engine applications | Use only with the matching original part/configuration. |
| Yanmar 3YM20 applications where 119515-01200 is specified | Use only with the matching original part/configuration. |
Product Overview
For buyers repairing compatible Yanmar 2TNV70, 3TNV70 and 3YM20 engine applications using cylinder-head bolt 119515-01200, this cylinder head bolt gives you a focused replacement option without adding unsupported claims about applications outside the listed fitment. Provides the specified head-fastener position during cylinder-head service.
Fitment matters on service parts like this one. Head-bolt quantity, length and location can differ within an engine. Confirm 119515-01200 in the engine parts diagram and follow the Yanmar service procedure for torque/reuse guidance.
Key Features & Performance
- Designed for compatible Yanmar 2TNV70, 3TNV70 and 3YM20 engine applications using cylinder-head bolt 119515-01200.
- Provides the specified head-fastener position during cylinder-head service.
- Cross-reference number(s): 119515-01200.
- Part Type: Cylinder head bolt.
Technical Specifications
- Part Type: Cylinder head bolt
- Reference Number: 119515-01200
OE / Reference Numbers
- 119515-01200
Common Reasons for Replacement
- Cylinder head is being removed for gasket or valve service
- Existing bolt is damaged, corroded or out of specification
- A missing or incorrect fastener needs to be replaced with the proper reference
Frequently Asked Questions
How do I confirm fitment?
Head-bolt quantity, length and location can differ within an engine. Confirm 119515-01200 in the engine parts diagram and follow the Yanmar service procedure for torque/reuse guidance.
When should the cylinder head bolt be replaced?
Replacement makes sense when diagnosis confirms the original component is worn, damaged or electrically/mechanically failed and the rest of the related system checks out.
Is this an OEM part?
This listing is for a replacement part. Brand names and OE/reference numbers are used to identify fitment unless the listing specifically states that the item is genuine OEM.
