Briggs Carburetor 699831 694941 499158 for 28-Series Engines
$58.99
In Stock
$58.99
Sale price
$58.99
Regular price

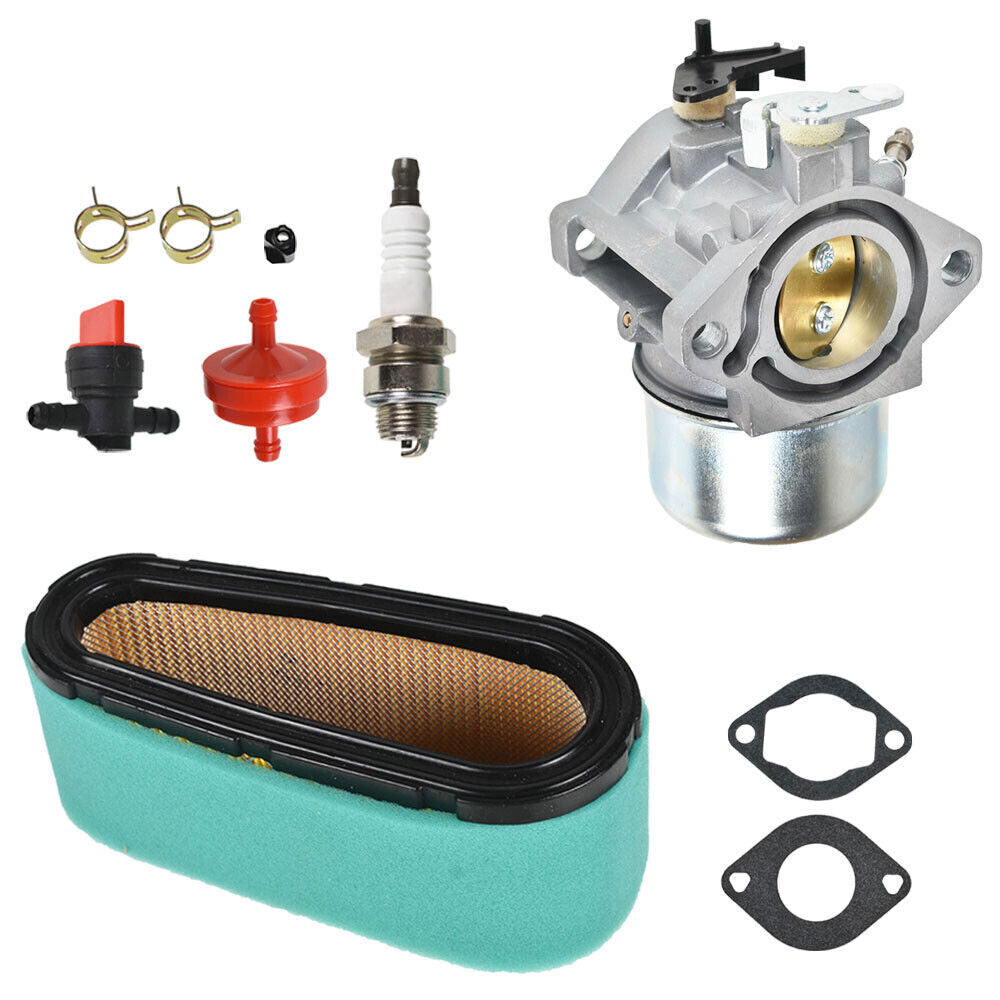

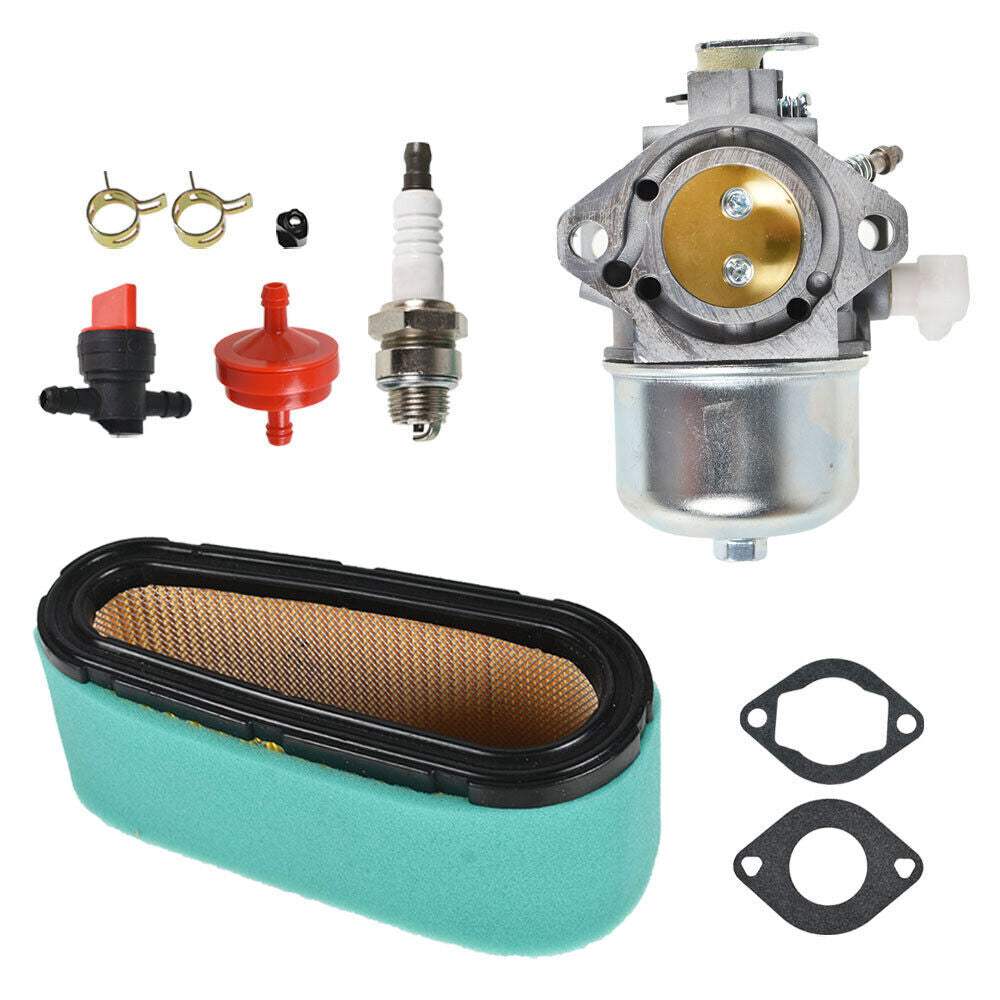

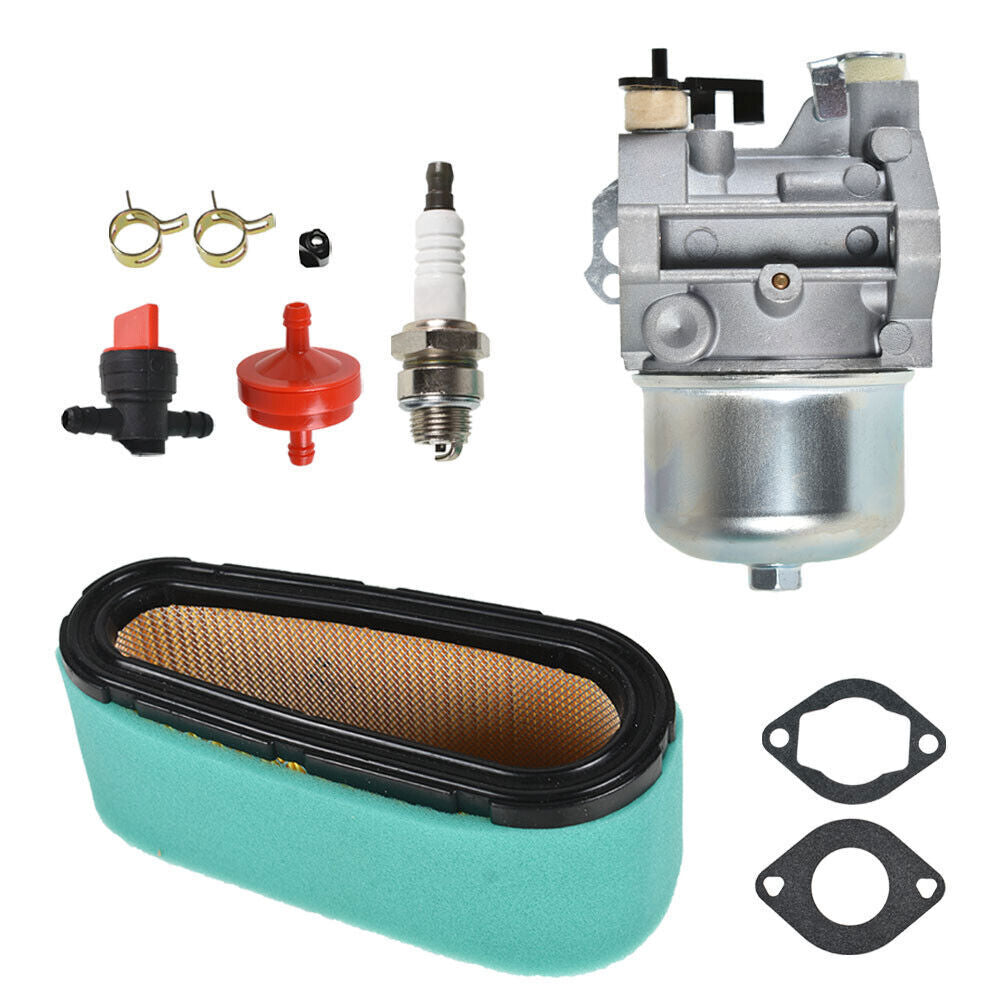

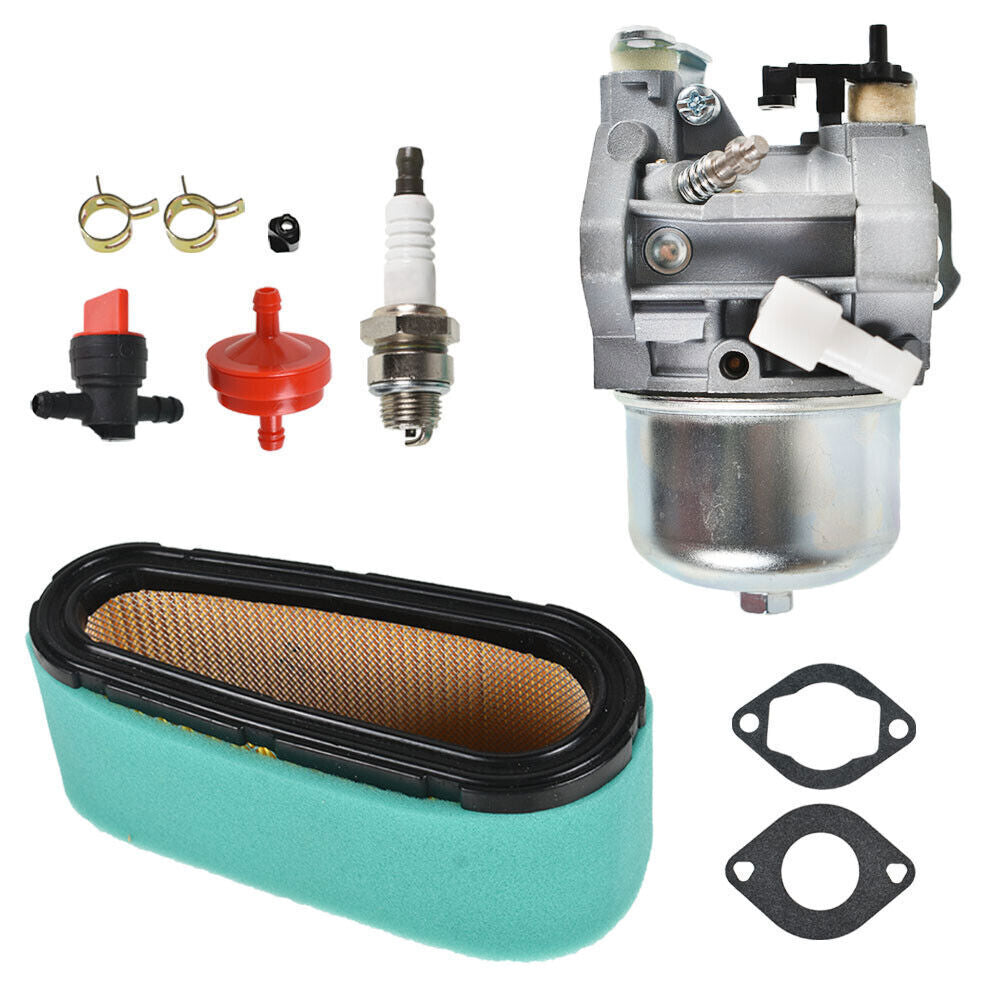

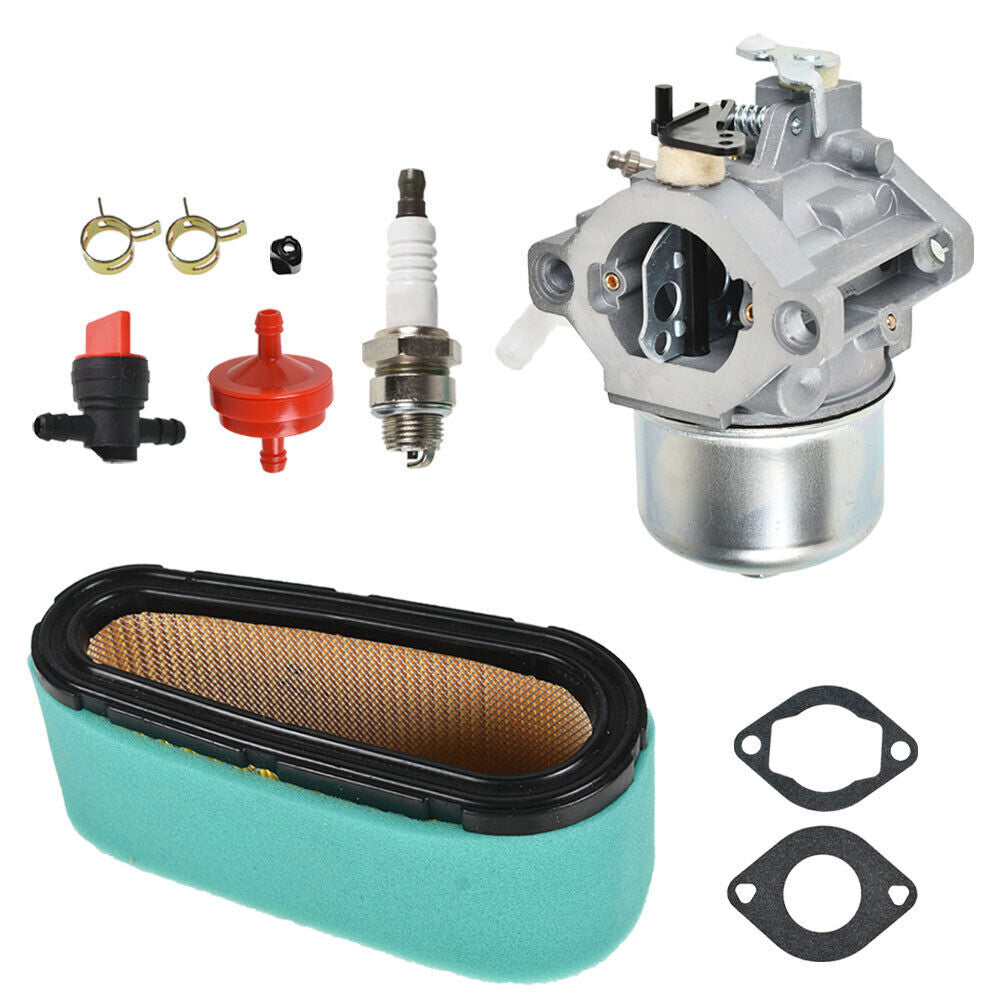

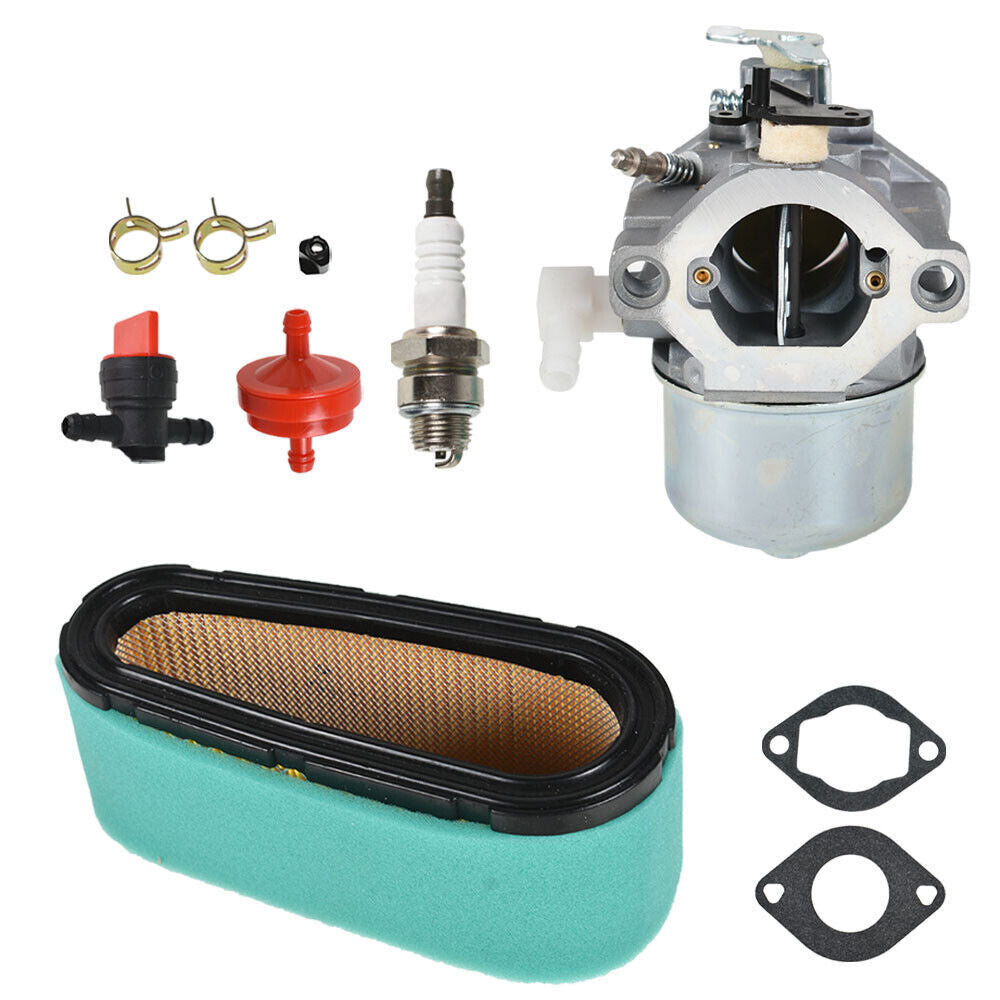

This aftermarket carburetor kit replaces Briggs & Stratton 699831, 694941, and 499158 on compatible 28-series single-cylinder engine models.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Briggs & Stratton 283702 / 283707
- Briggs & Stratton 284702 / 284707 / 284777
- Briggs & Stratton 286702 / 286707
- Briggs & Stratton 289702 / 289707
- Briggs & Stratton 28D702 / 28D707 / 28M706 / 28M707 / 28R707 / 28T707 / 28V707
Product Overview
A single-cylinder rider engine that will not idle without choke, surges at governed speed, or drips fuel into the intake may have varnish, a worn needle, or a warped carburetor body. Governor springs, tank venting, ignition, valve clearance, and intake sealing still need to be checked.
This kit covers a wide group of 28-series engines, but the final type and code determine the correct jet and linkage. Match the complete engine stamp, choke style, fuel inlet, mounting flange, and all three service numbers.
Key Features & Performance
- Carburetor for compatible Briggs 28-series engines
- Cross-references 699831, 694941, and 499158
- Supports consistent fuel metering in riding mower applications
- Replacement option after corrosion or casting damage
Replaces Part Numbers
- 699831
- 694941
- 499158
Common Uses
- Replacing a carburetor clogged by old gasoline
- Repairing fuel leakage at the float bowl
- Correcting surging after governor and air-leak checks
Technical Specifications
- Product Type: Single-cylinder engine carburetor kit
- Engine Family: Briggs 28 Series
- Condition: New aftermarket replacement
Installation & Fitment
- Read the model, type, and code stamped on the engine
- Photograph throttle, choke, and governor spring locations
- Flush the tank and inspect the fuel shutoff and filter
- Compare the bowl, linkage, inlet, and mounting pattern
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Will 14.5 HP on the hood confirm fit? A: No. Equipment decals are not precise enough; use the engine model-type-code.
Q: Can a bad intake gasket cause surging? A: Yes. Unmetered air can make a good carburetor run lean.
Q: Which part numbers are replaced? A: This kit cross-references 699831, 694941, and 499158.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Briggs 699831 carburetor, 286707 engine carb kit, 284777 mower carburetor, 499158 replacement carb, Briggs 28 series fuel repair
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
