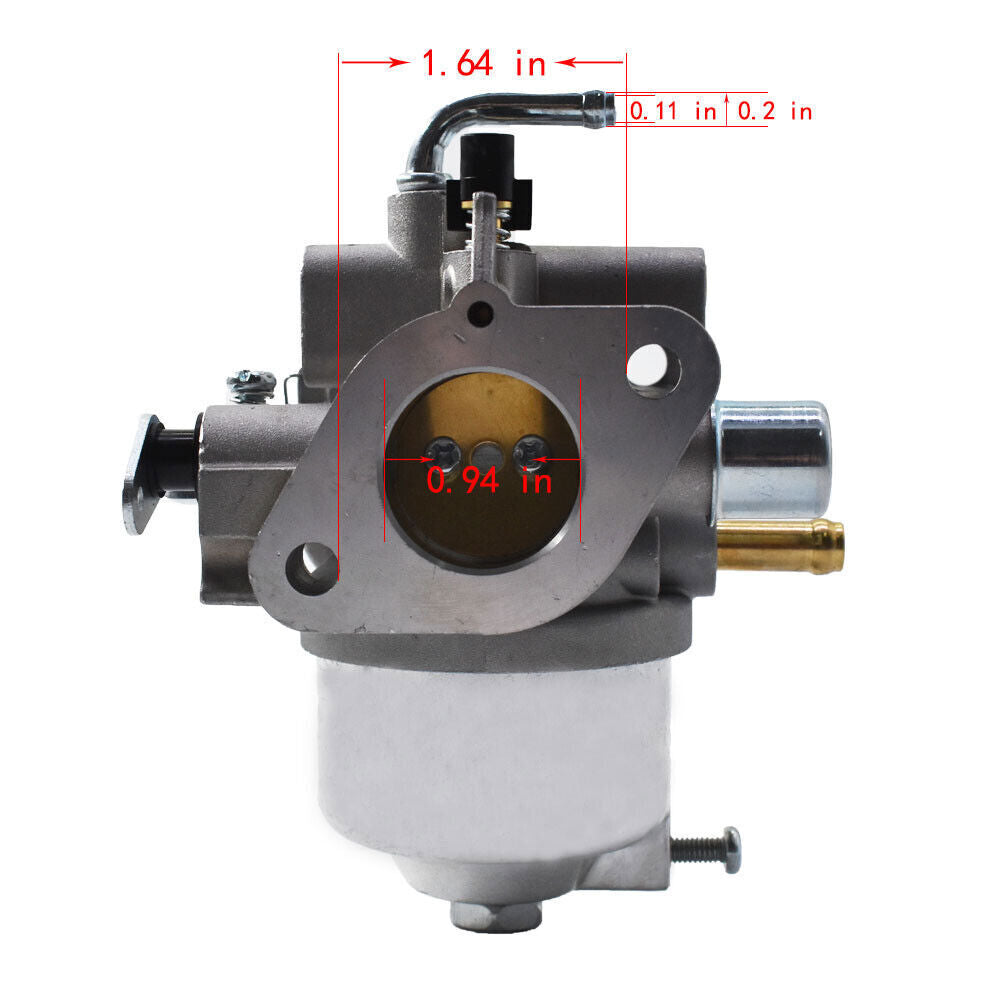

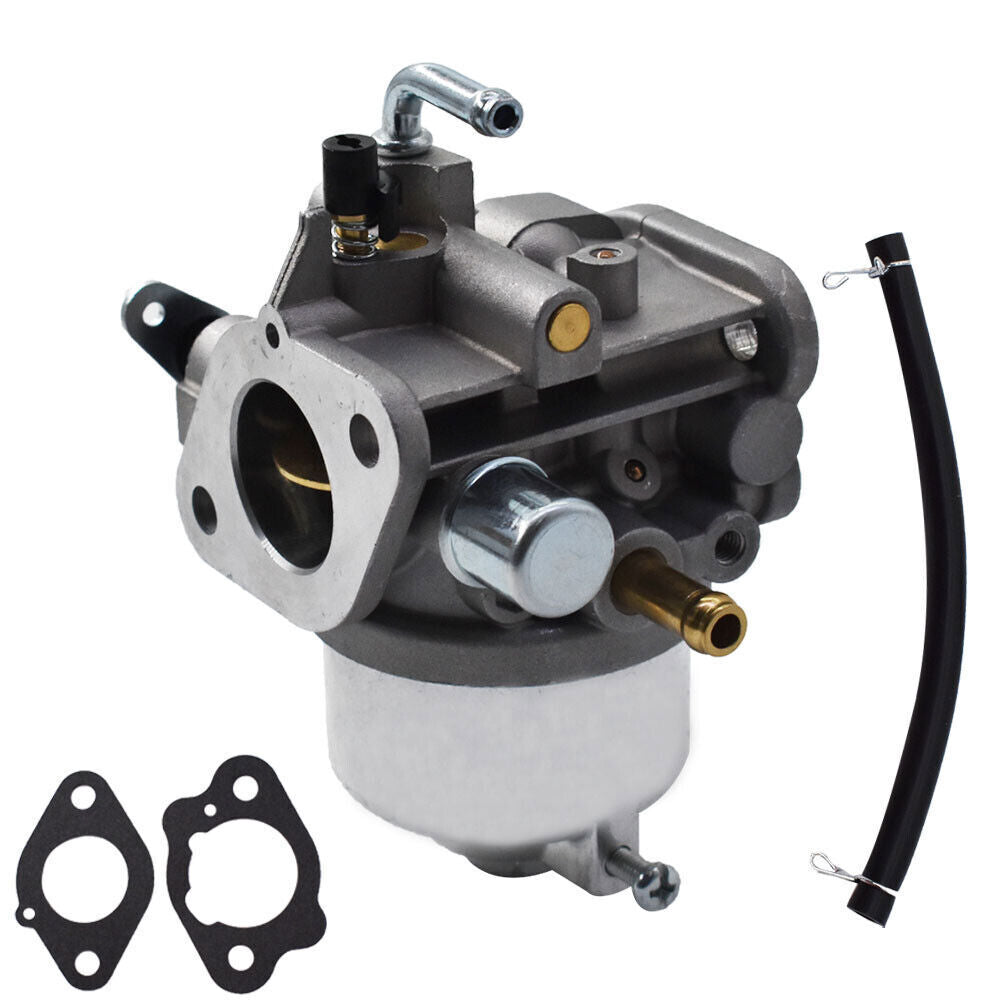

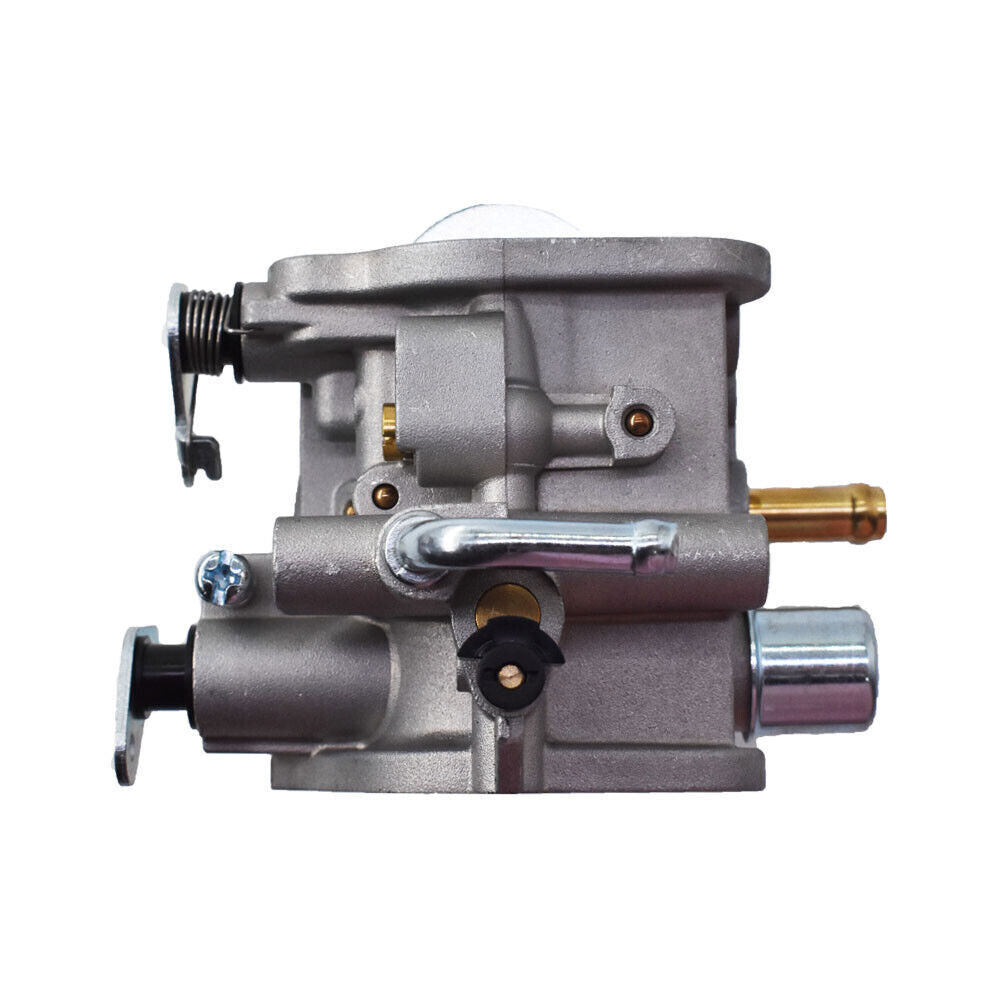

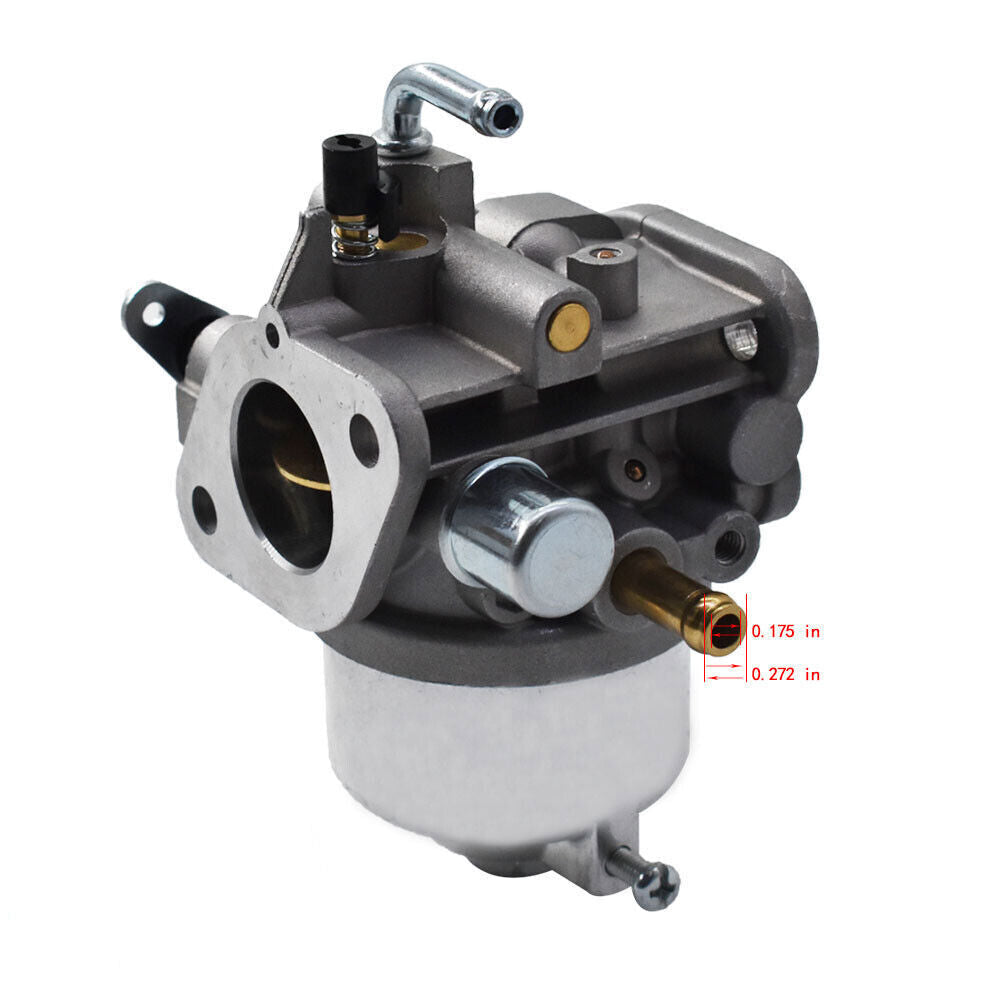

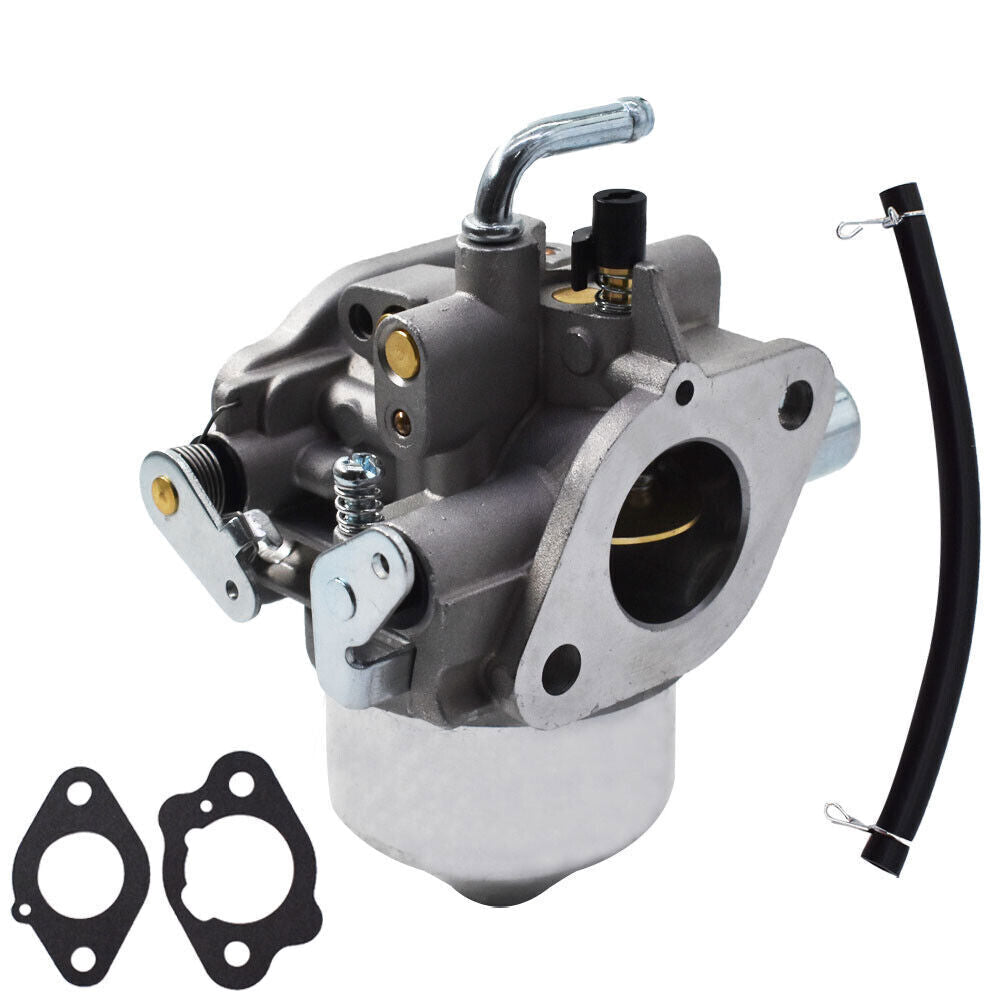

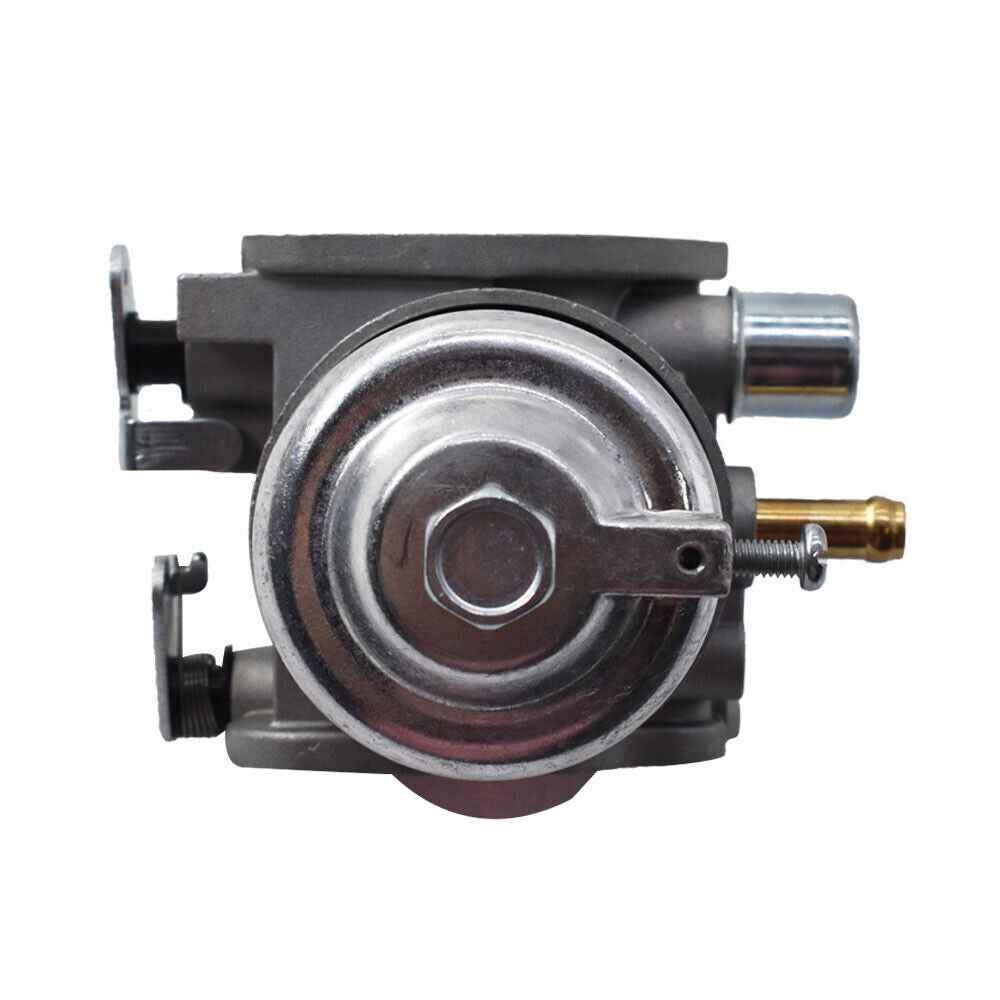

Kawasaki FH451V FH500V Carburetor 15003-7036 15003-2641
$27.99
In Stock
$27.99
Sale price
$27.99
Regular price
This aftermarket carburetor replaces Kawasaki 15003-2641, 15003-7033, 15003-7035, and 15003-7036 on the listed FH451V and FH500V engine specifications.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Kawasaki FH451V-AS04
- Kawasaki FH451V-AS09
- Kawasaki FH451V-AS11
- Kawasaki FH451V-AS13
- Kawasaki FH451V-AS19
- Kawasaki FH451V-BS04
- Kawasaki FH500V-AS38
Product Overview
If a commercial mower starts cold but surges, starves when the blades engage, or drips fuel after shutdown, the carburetor may be restricted or the inlet needle worn. A failing fuel pump, blocked cap vent, weak ignition coil, and intake leak can create very similar complaints.
This twin-cylinder carburetor is tied to exact Kawasaki specification suffixes. FH451V or FH500V by itself does not guarantee fit because Kawasaki changed jets, linkages, and solenoids. Match the engine suffix and all four replacement numbers before removal.
Key Features & Performance
- Carburetor assembly for compatible FH-series four-cycle engines
- Cross-references 15003-7036 and earlier numbers
- Direct-style flange and linkage for the listed engine specifications
- Replacement option after severe varnish or body wear
Replaces Part Numbers
- 15003-2641
- 15003-7033
- 15003-7035
- 15003-7036
Common Uses
- Repairing mower power loss when the deck is engaged
- Replacing a carburetor that floods after shutdown
- Correcting unstable governor response after other checks
Technical Specifications
- Product Type: Four-cycle V-twin carburetor
- Engine Families: Kawasaki FH451V / FH500V
- Condition: New aftermarket replacement
Installation & Fitment
- Verify the suffix after the engine model before ordering
- Inspect the pump, filter, cap vent, and intake seals
- Photograph throttle, choke, and governor link positions
- Confirm the fuel-shutoff solenoid connector and mounting geometry
Compatibility Notice
Northline Parts does its best to list all known compatible models. The correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Does this fit every FH500V engine? A: No. The confirmed application includes FH500V-AS38; other suffixes require separate verification.
Q: Can one dead ignition coil feel like a fuel problem? A: Yes. Confirm both cylinders have spark and compression.
Q: Which numbers does it replace? A: The listed cross-references are 15003-2641, 15003-7033, 15003-7035, and 15003-7036.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: Kawasaki 15003-7036 carburetor, FH451V mower carb replacement, FH500V-AS38 carburetor, 15003-2641 aftermarket carb, Kawasaki V-twin fuel repair
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
