Black Billet Fuel Cell Cap with 12-Hole Bung and 5.343-Inch Bolt Circle
$56.99
In Stock
$56.99
Sale price
$56.99
Regular price

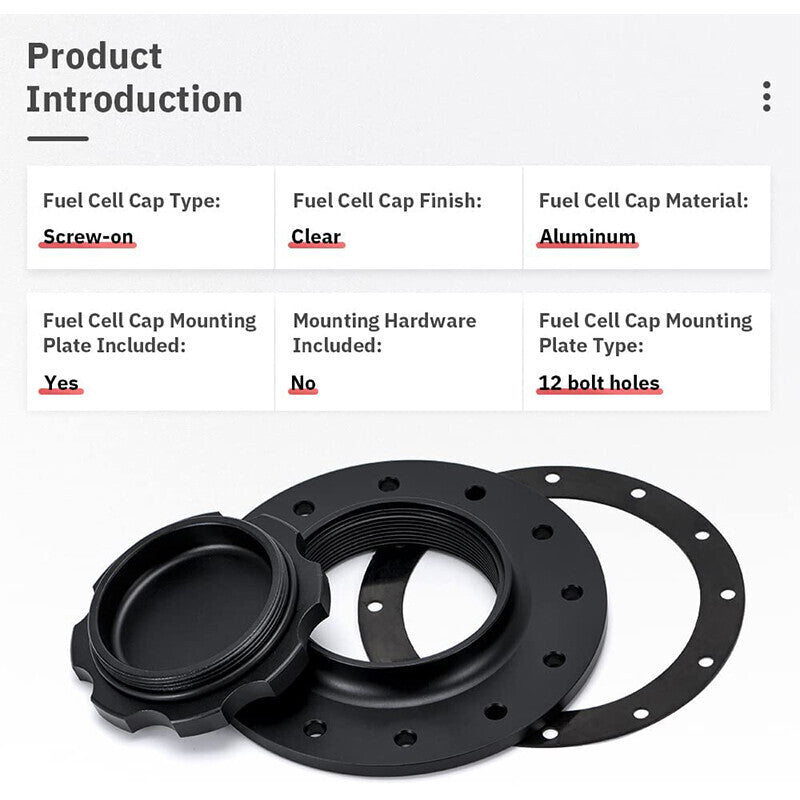

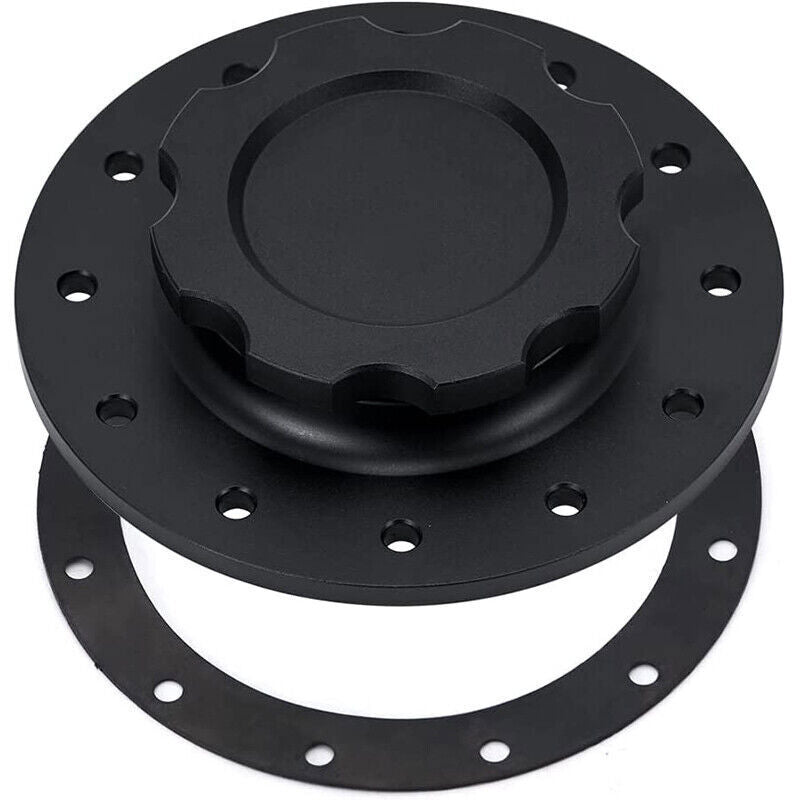

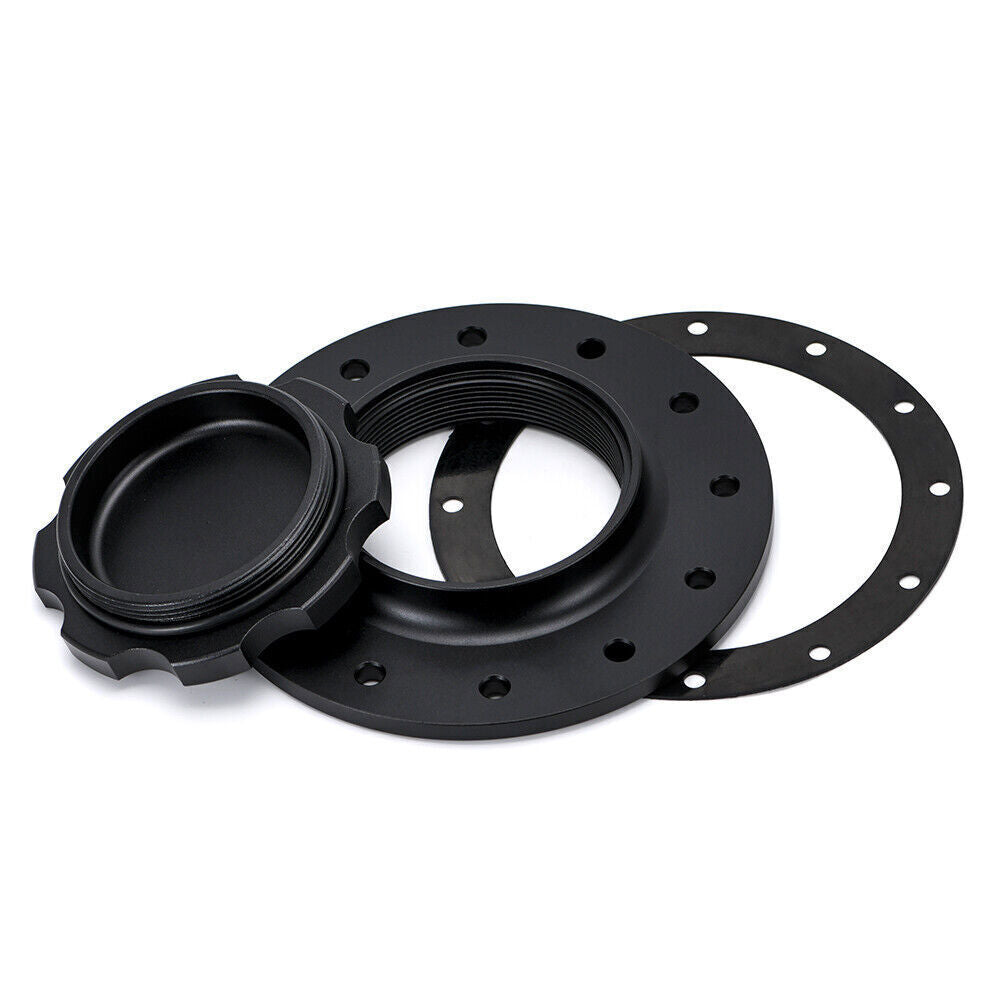

This black billet aluminum fuel cell filler cap includes a 12-hole flange, bung, and gasket for compatible 5.343-inch bolt-circle fuel cells.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Product Overview

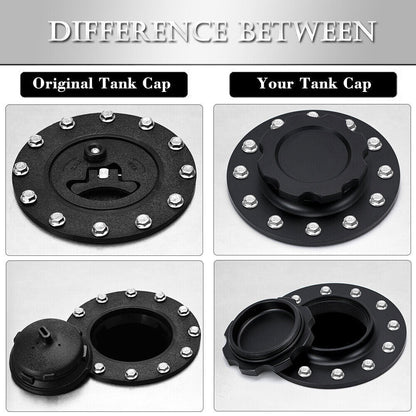

A cracked, leaking, or awkward fuel-cell cap can be replaced with a billet easy-fill assembly when the tank uses the same 12-hole pattern. The 5.343-inch bolt circle and opening must be measured before fuel ever goes near the new seal.

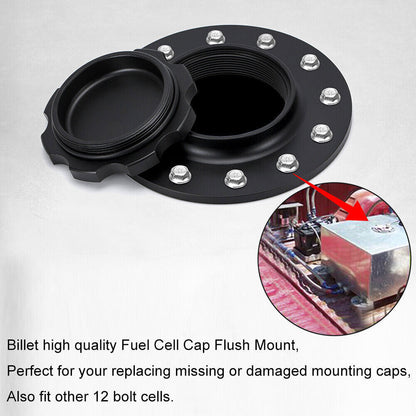

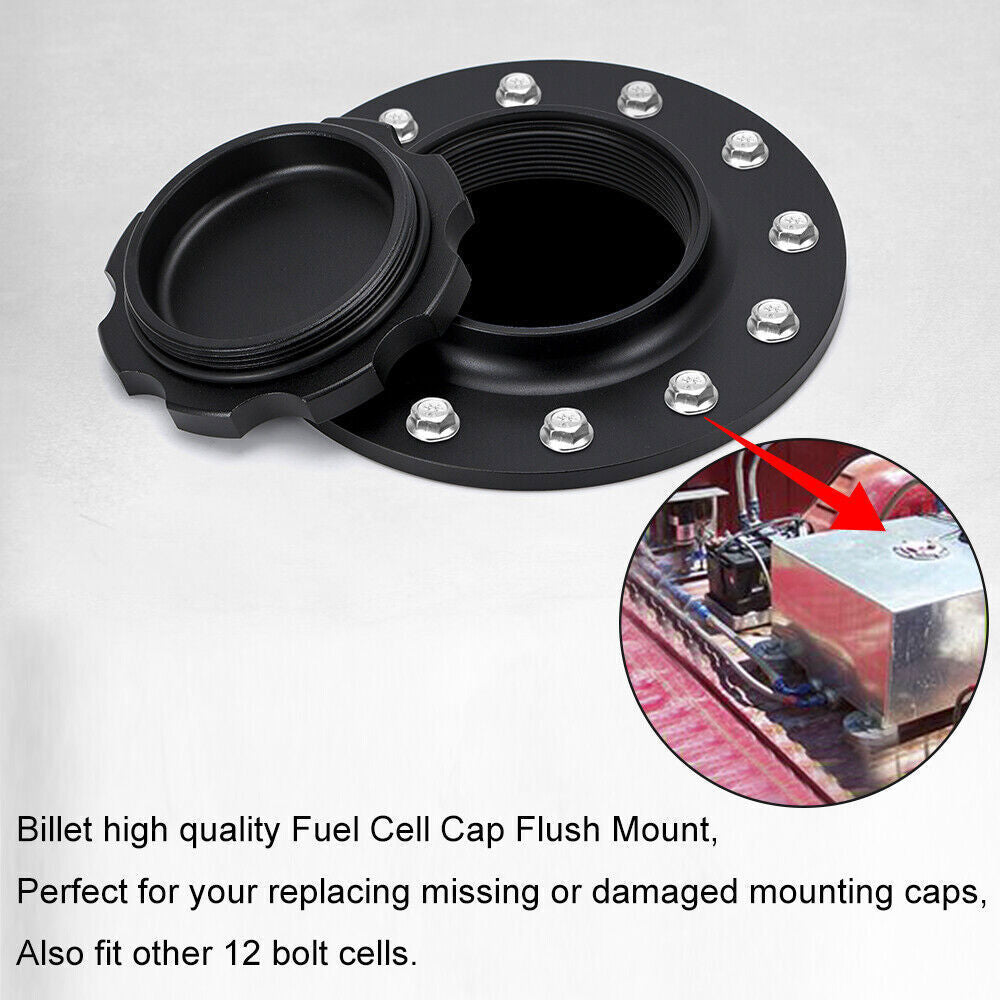

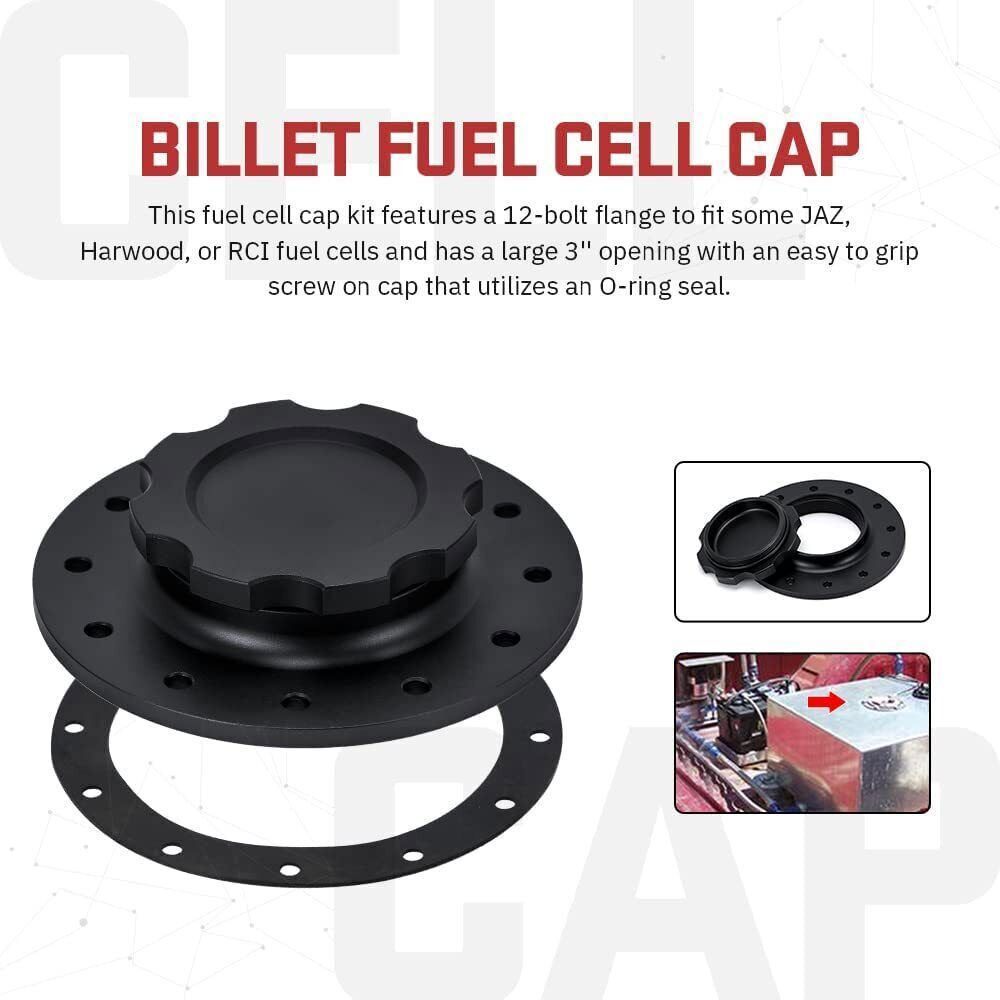

The bolt-on assembly upgrades the standard 12-hole opening with an O-ring-sealed easy-fill cap. Fuel compatibility and cell venting must be addressed separately.
Key Features & Performance
- Billet aluminum cap and flange
- 12-hole 5.343-inch bolt-circle pattern
- Gasketed O-ring-sealed filler design
Common Uses

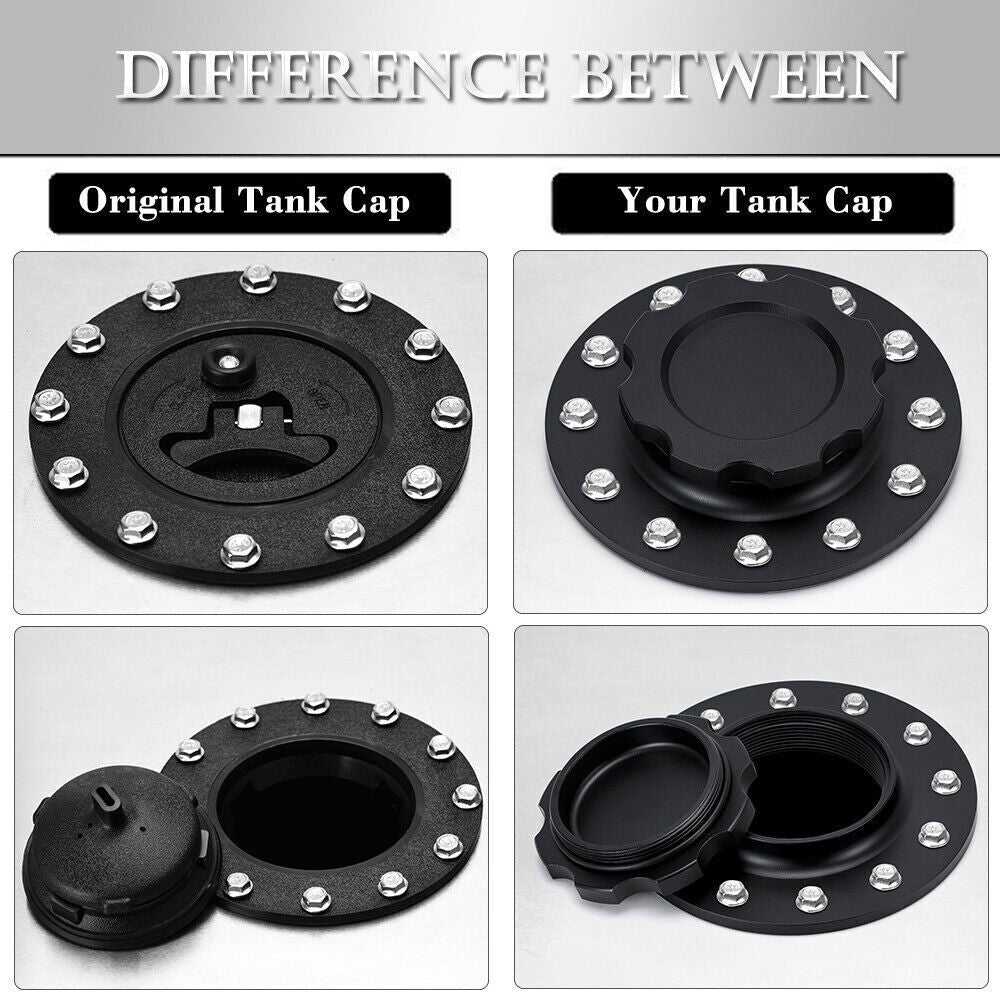

- Replacing a worn fuel-cell cap
- Building a custom race or off-road cell
- Adding an easy-grip filler opening
Technical Specifications
- Product Type: Fuel cell filler cap and bung
- Material: Billet aluminum
- Finish: Black

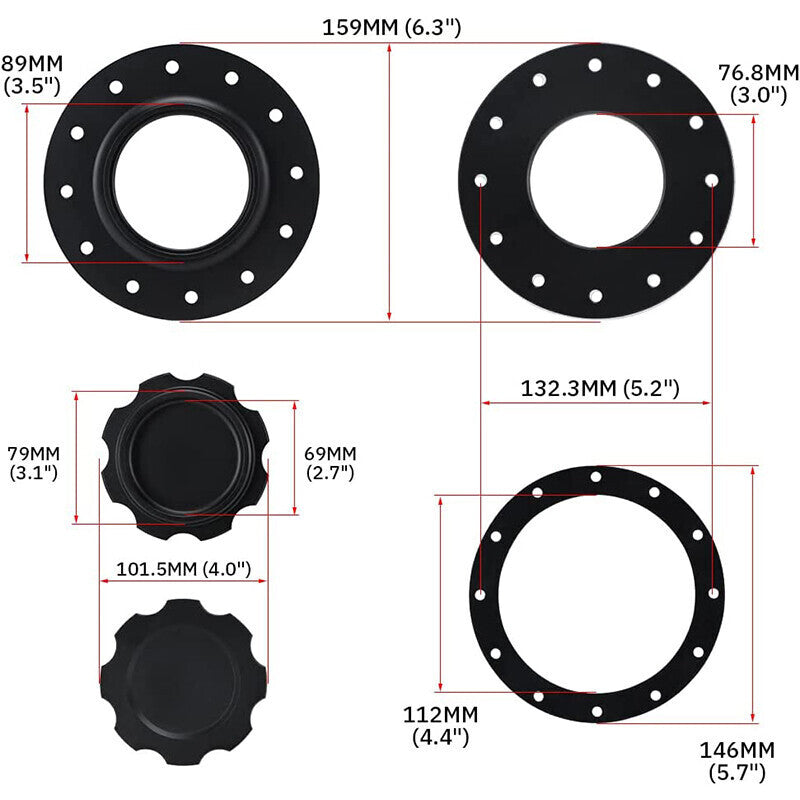

- Bolt Pattern: 12 holes on 5.343-inch circle
- Opening: Approximately 3 inches for this pattern
- Seal: Gasket and cap O-ring
Installation & Fitment
- Measure the cell before disassembly
- Drain and purge fuel safely
- Confirm seal material compatibility
- Tighten hardware in a crossing pattern
- Leak-test and verify the cell vent system
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Measure the bolt circle, opening, and flange height. Confirm gasket and O-ring compatibility with the fuel and provide a proper separate vent if the cap is non-vented.
Frequently Asked Questions
Q: Is the cap vented? A: Treat it as non-vented unless the supplied cap specifically shows otherwise.
Q: Will it replace a 6-bolt cap? A: No. Six- and twelve-bolt patterns differ.
Q: Can the old gasket be reused? A: Use the correct new compatible gasket when supplied.
Q: Why measure the bolt circle? A: Fastener centers must align; outside diameter alone does not prove fit.
