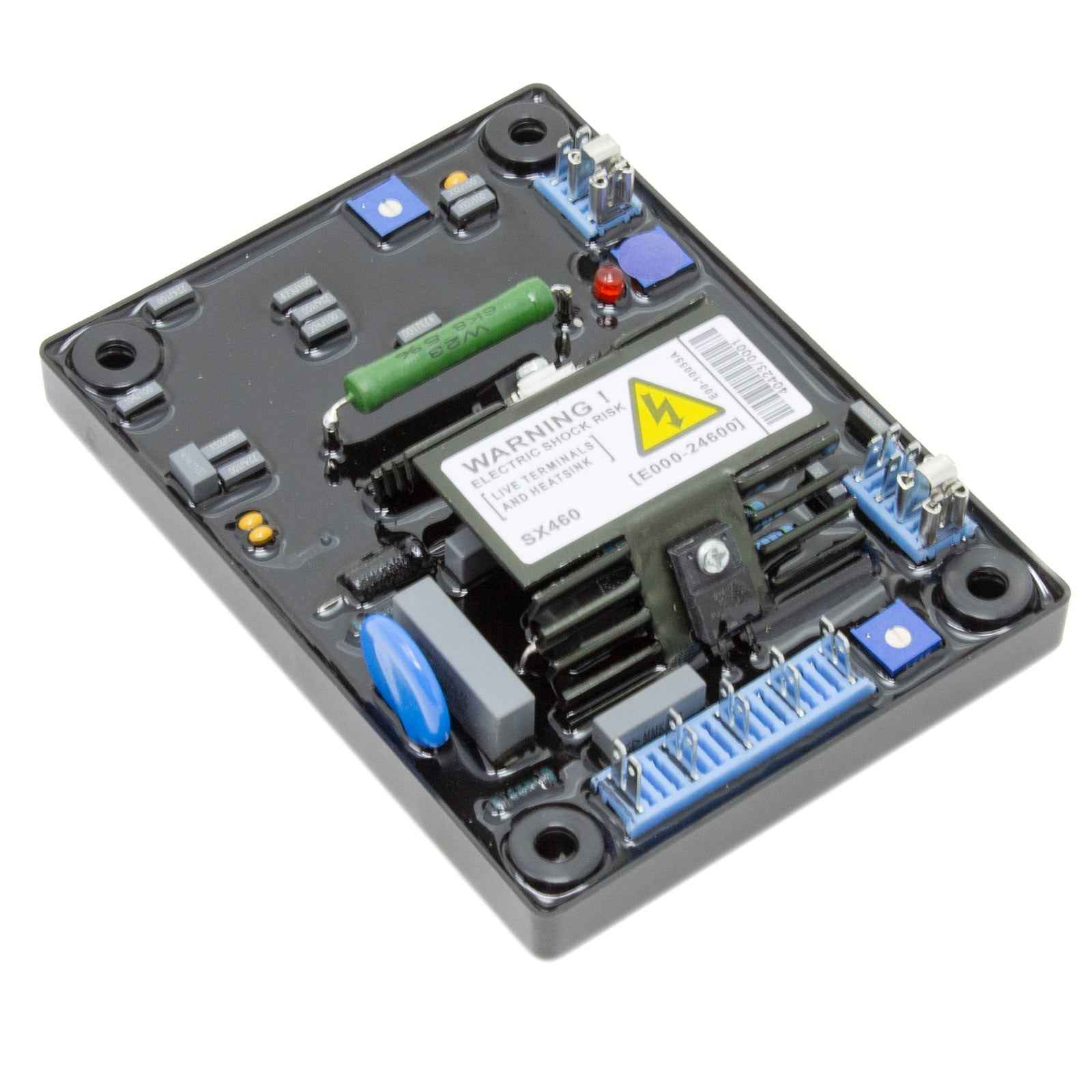

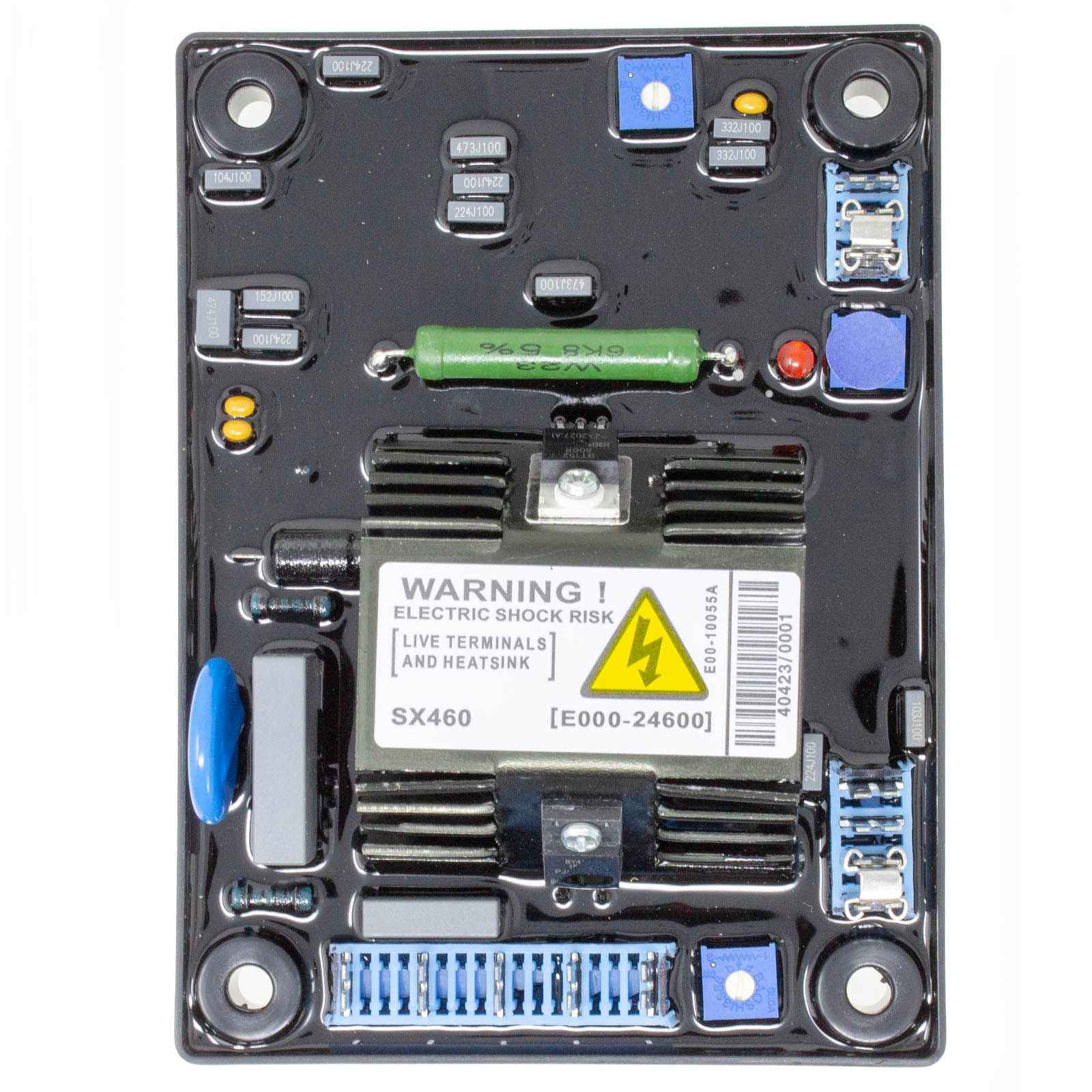

AVR SX460 Automatic Voltage Regulator

Brand New Aftermarket Automatic Voltage Regulator

SX460 is a half-wave phase-controlled thyristor-type Automatic Voltage Regulator(AVR) and forms part of the excitation system for a brushless generator. In addition to regulating the generator voltage, the AVR circuitry includes under-speed and sensing loss protection features. Excitation power is derived directly from the generator terminals.

Positive voltage build-up from residual levels is ensured by the use of efficient semiconductors in the power circuitry of the AVR.

The AVR is linked with the main stator windings and the exciter field windings to provide closed-loop control of the output voltage with load regulation of +/-1.0%. In addition to being powered from the main stator, the AVR also derives a sample voltage from the output windings for voltage control purposes. In response to this sample voltage, the AVR controls the power fed to the exciter field, and hence the main field, to maintain the machine output voltage within the specified limits, compensating for the load, speed, temperature, and power factor of the generator.

Specification(s)

• Brand Name: Northline Parts
• INPUT: Voltage: Jumper selectable 95-132V ac or 190-264V ac, Frequency: 50-60 Hz nominal, Phase: 1
• OUTPUT: Voltage: Max 90V dc at 207V ac input, Current: Continuous 4 A dc, Intermittent 6 A for 10 secs, Resistance: 15 ohms minimum
• Regulation: +/-1.0%
• Thermal Drift: 0.05% per deg. C change in AVR ambient
• AVR Response: 20 ms
• Filed Current to 90%: 80 ms
• Machine Volts to 97%: 300 ms
• External Voltage Adjustment: +/-10% with 1 k ohm 1-watt trimmer
• Set Point: 95% Hz
• Slope: 170% down to 30 Hz
• Unit Power Dissipation: 10 watts maximum
• Build-Up Voltage： 4 Volts @ AVR terminals
• Vibration: 20-100 Hz 50mm/sec 100Hz -2kHz 3.3g
• Operating Temperature: -40 to +70C
• Relative Humidity: 0-70C 95%
• Storage Temperature: -55 to +80C
• Quantity: 1

Note(s)

• With 4% engine governing.
• After 10 minutes.
• Applies to Mod status F onwards. Generator de-rate may apply. Check with the factory.
• Factor set,semi-sealed, jumper selectable.
• Non-condensing.

Frequently Asked Questions

Is this an OEM part?
No, this is a premium aftermarket replacement part designed to meet or exceed the performance specifications of the original equipment.

How do I confirm compatibility?
Please verify that your model is listed in the compatible models section and compare any available reference part numbers with your existing component before purchase.

Important: This is a premium aftermarket part and is not manufactured by the original equipment manufacturer (OEM). Brand names and model numbers are used for reference purposes only. Compatibility may vary depending on the machine's serial number. Please verify fitment before purchase.
