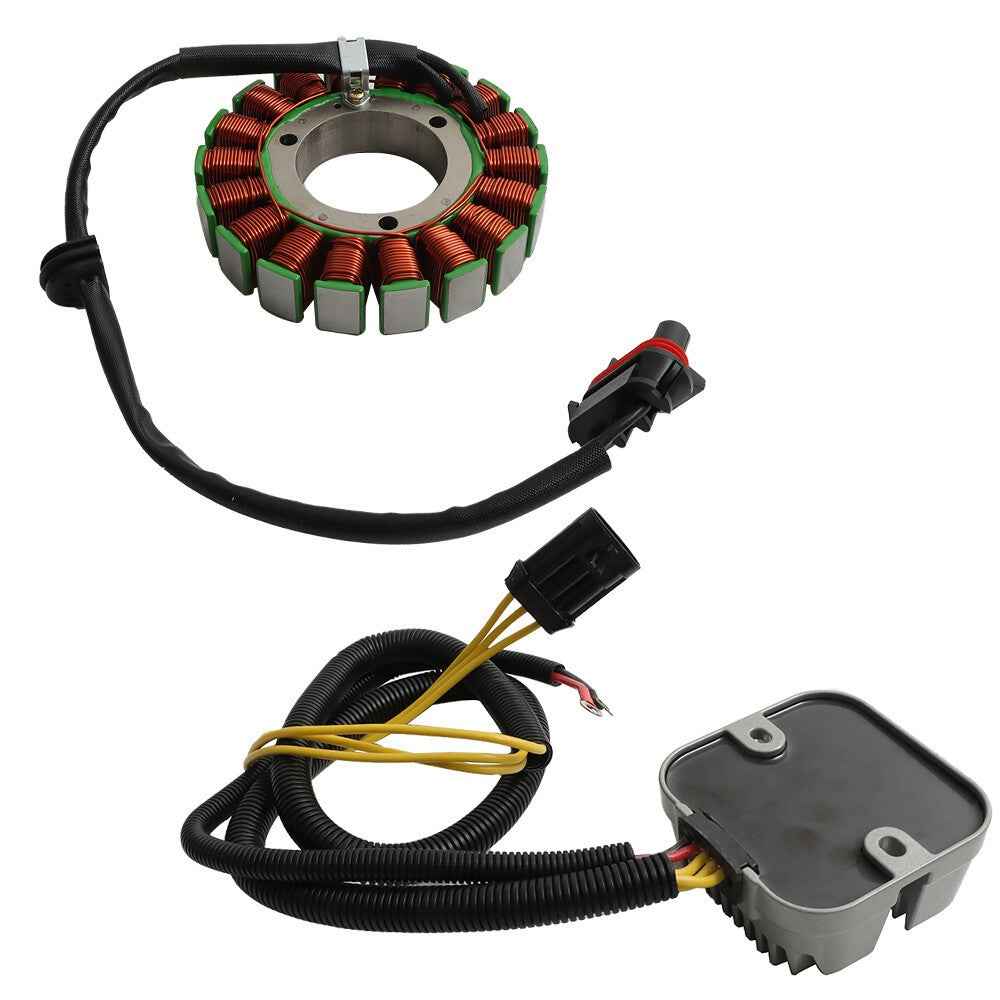

Polaris Sportsman 570 Stator & MOSFET Regulator Kit 2014-2020
$205.99
In Stock
$205.99
Sale price
$205.99
Regular price
Aftermarket charging-system kit with generator stator and MOSFET regulator/rectifier for compatible 2014-2020 Polaris Sportsman 570 models; verify stator thickness and production date.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Polaris Sportsman 570 — 2014-2020 compatible applications with 19 mm stator and matching connectors
Product Overview
A Sportsman that repeatedly drains the battery, loses charging voltage when hot, or overcharges may have problems in both the stator and regulator. This paired kit is useful when testing confirms charging-system failure or when heat damage makes replacing both components sensible.
The verified stator design applies to engines built after the specified production change and uses a 19 mm stator. Measure and match the original before installation.
Key Features & Performance

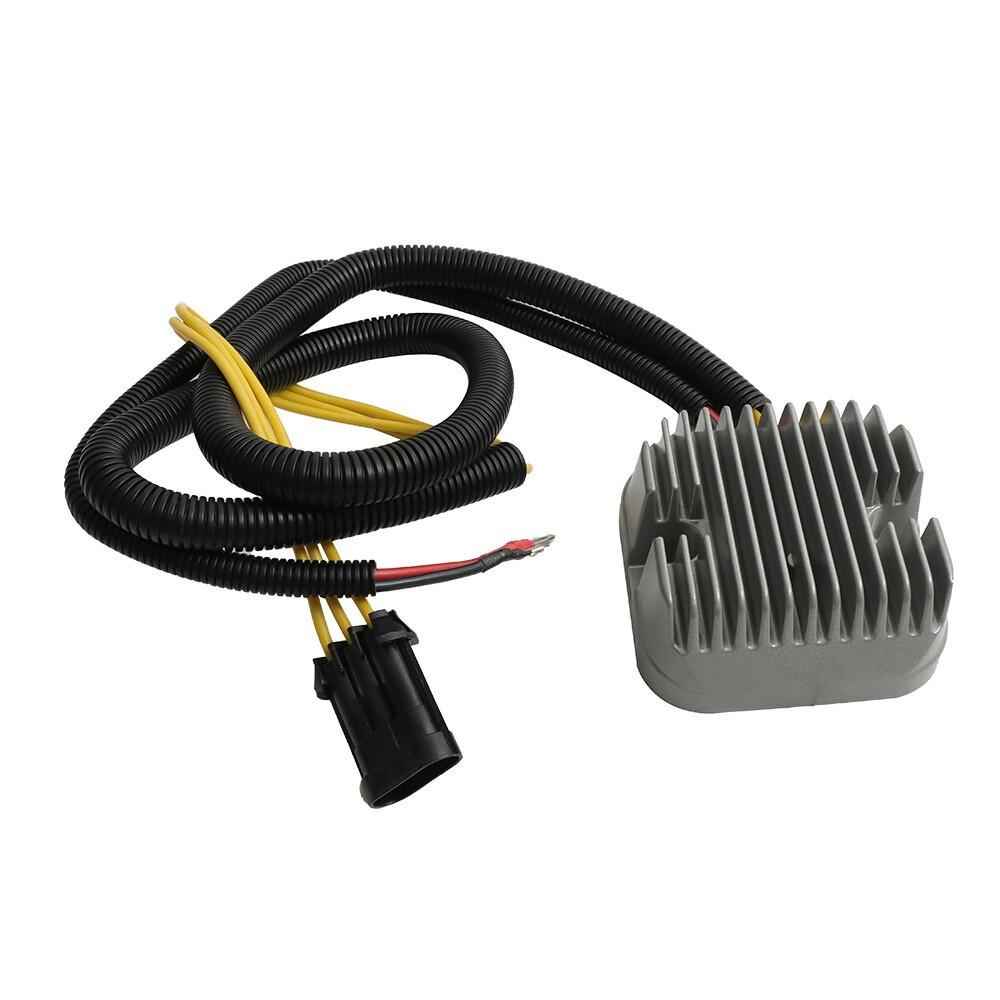

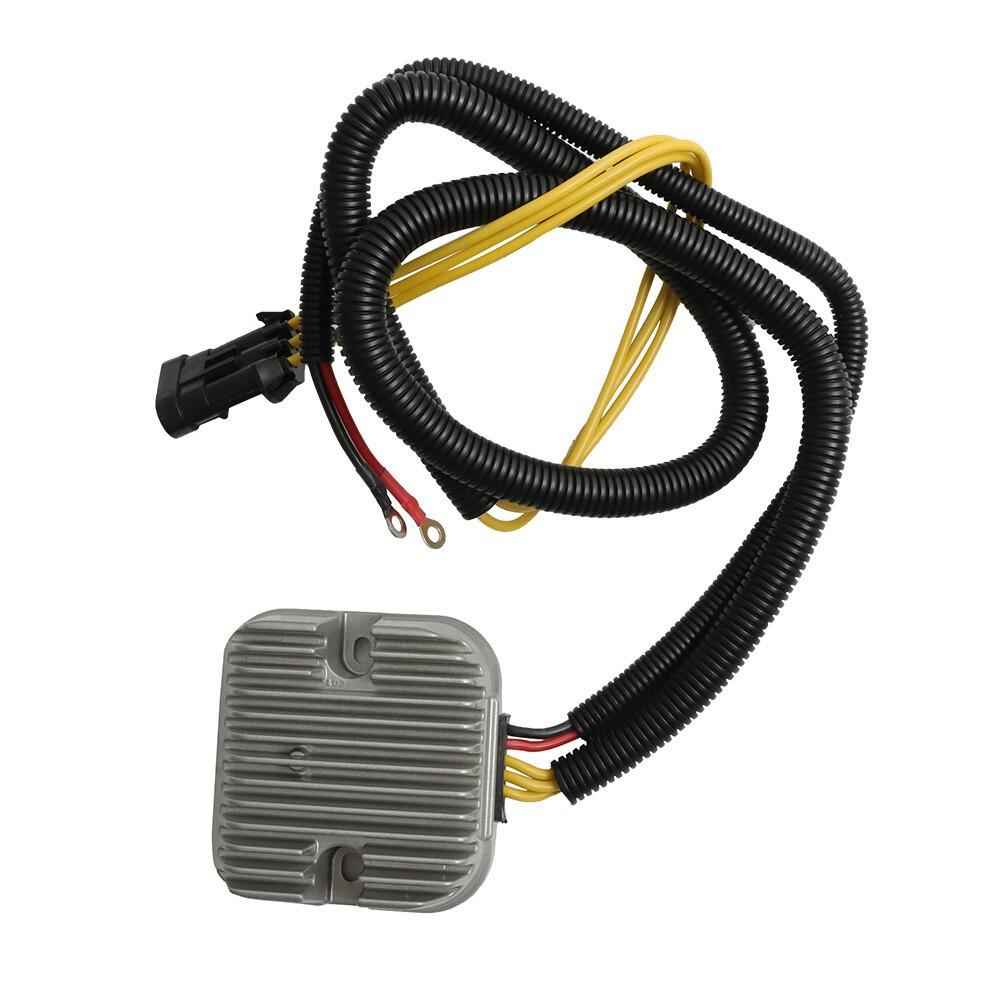

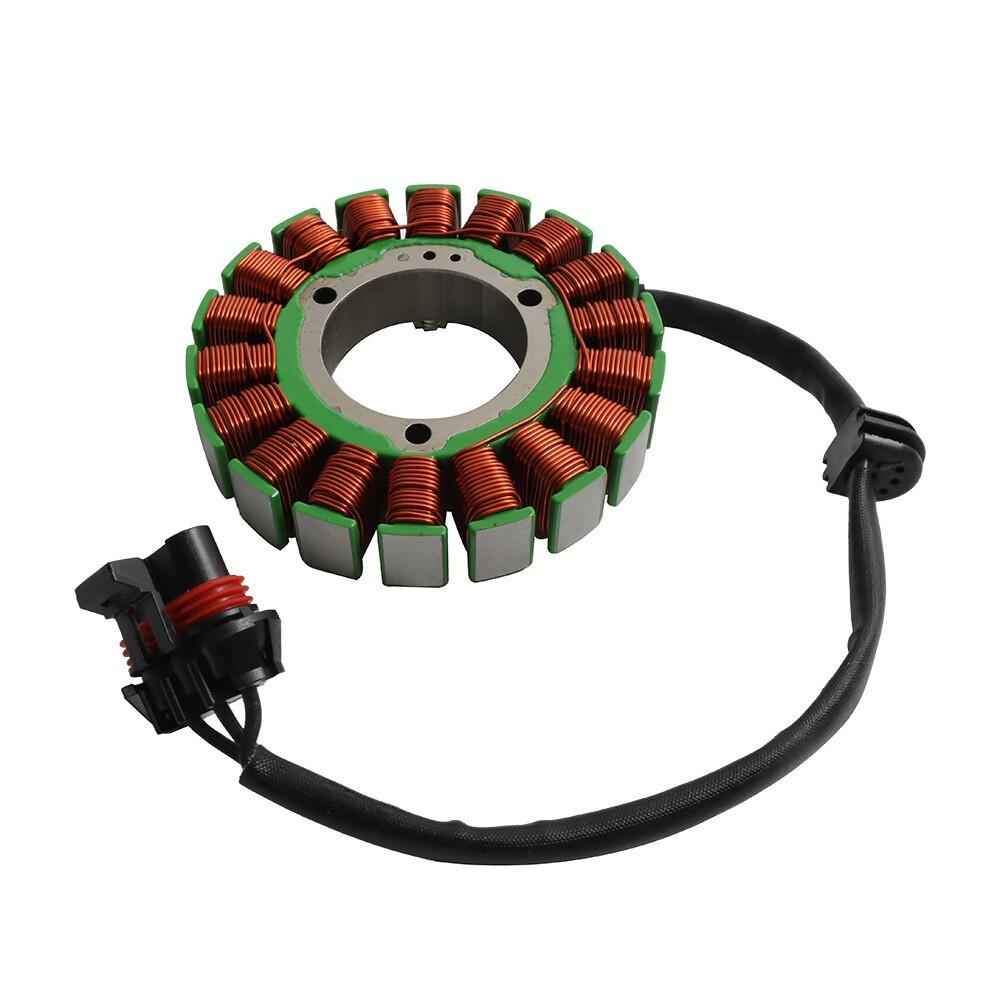

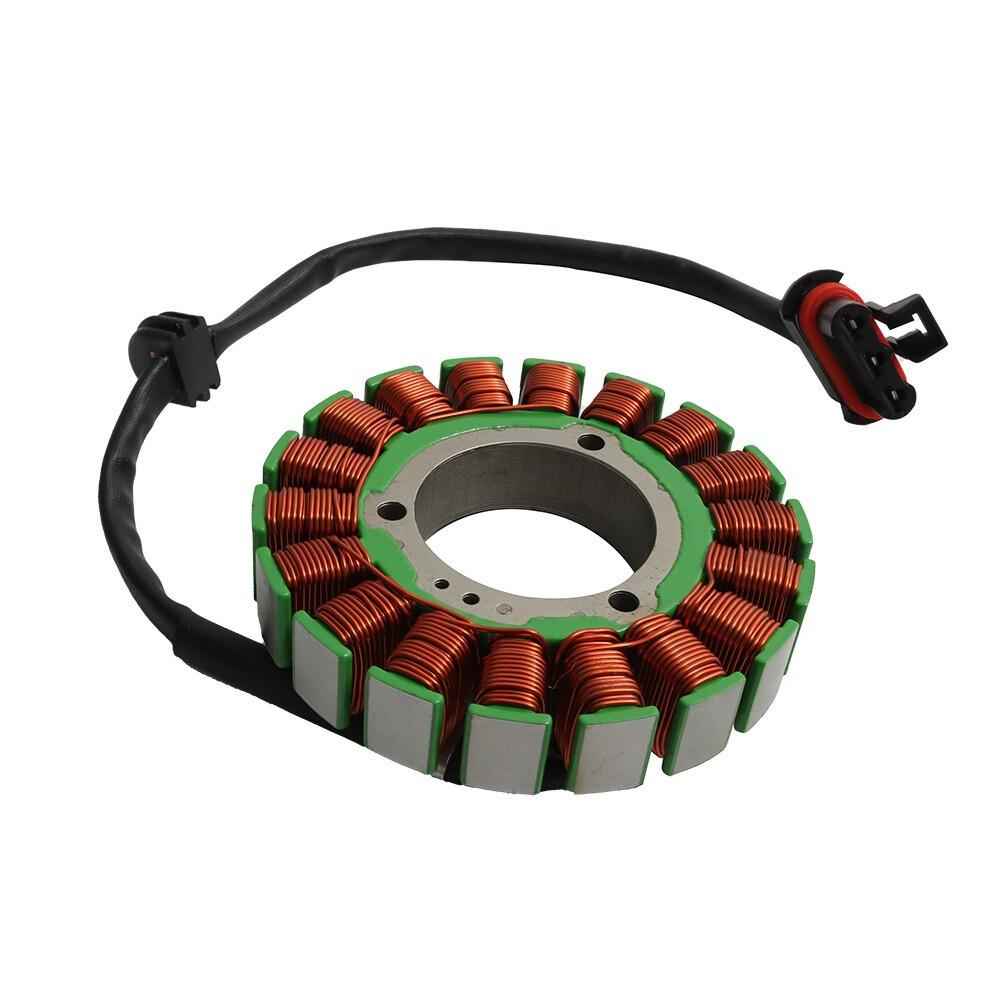

- Generator stator and MOSFET regulator/rectifier
- Paired charging-system repair
- MOSFET-style voltage control
- Aftermarket kit for compatible Sportsman 570 applications
Replaces Part Numbers
- 4012678
- 4013013
- 4014839
- 4014543
- 4015230
- 4014405
- 4015231
- 106009-R00
- RMS900-106009
Common Uses
- Battery repeatedly goes dead while riding
- Low or unstable charging voltage
- Overcharging or regulator heat damage
- Stator output failure confirmed by AC testing
Technical Specifications
- Product Type: Stator and MOSFET regulator kit
- Stator Thickness: 19 mm application
- System: ATV charging system
- Replacement Type: Aftermarket
Installation & Fitment
- Load-test the battery and inspect grounds first
- Measure stator AC output and resistance before replacement

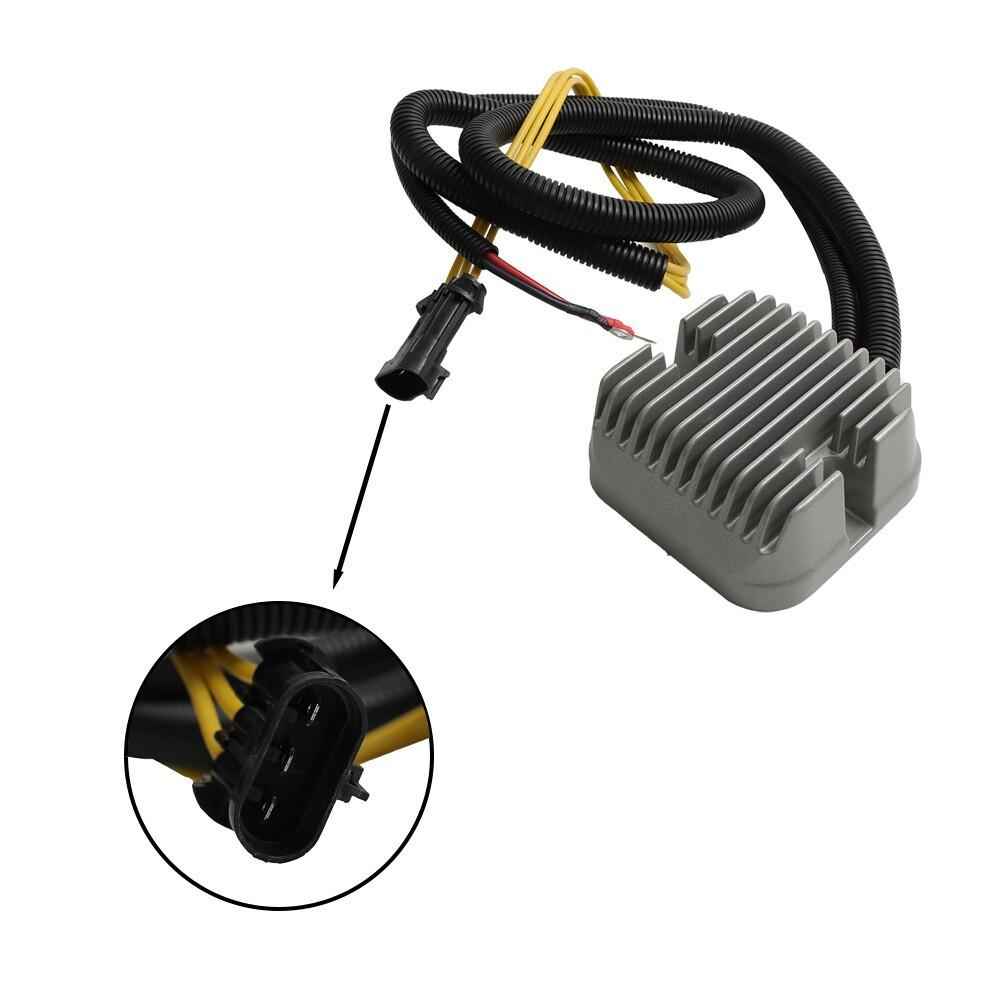

- Compare stator thickness and every connector
- Check regulated voltage and connector temperature afterward
Compatibility Notice
Fits only compatible 2014-2020 Sportsman 570 charging systems. Match build date, 19 mm stator, flywheel system, connectors, wire lengths, mounting points, and original numbers.
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Frequently Asked Questions
Q: Why replace the stator and regulator together? A: A failed or overheating component can stress the other, but both should be tested.
Q: Does the 19 mm measurement matter? A: Yes. The kit is tied to the matching stator design.
Q: Can a bad battery damage charging parts? A: A failed battery or poor connection can overload or confuse diagnosis.
Q: What voltage should I see? A: Use the Polaris service specification and test at the prescribed engine speed.
Part Summary
keywords: Polaris Sportsman 570 stator kit, MOSFET regulator Sportsman, 4014839 stator replacement, RMS900-106009 fit, ATV battery not charging, 2014 2020 Sportsman electrical kit
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
