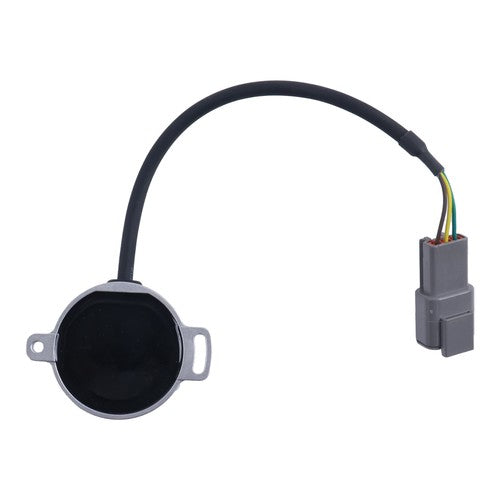

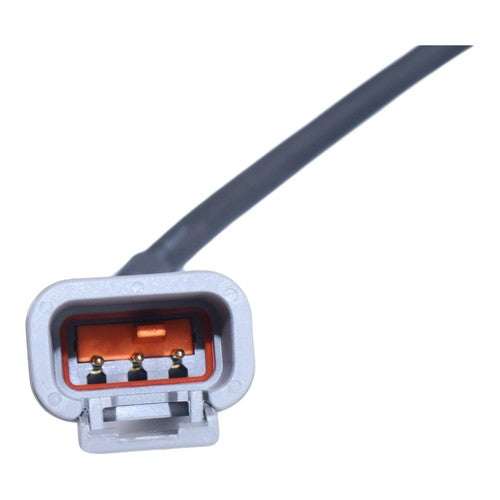

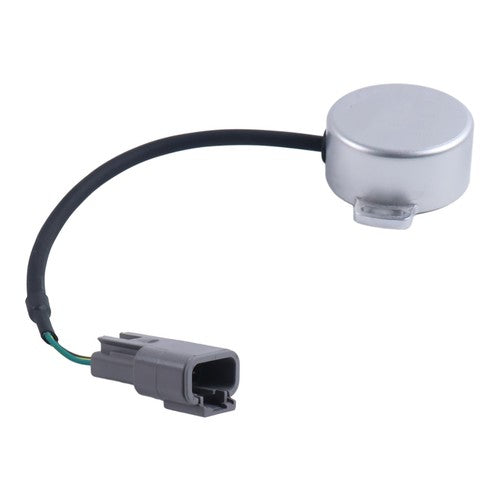

Boom Angle Sensor 1001147479 for JLG 340AJ 800S 860SJ
$809.79
In Stock
$809.79
Sale price
$809.79
Regular price
This boom angle sensor replaces part number #1001133329 with #1001147479 where the JLG parts catalog specifies the newer sensor. It reports boom position to the lift control system.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- JLG 340AJ (verify serial)
- JLG 800S (verify serial)
- JLG 860SJ (verify serial)
- JLG 1500SJ (cataloged with serial-specific angle sensor)
Product Overview
A faulty angle sensor can prevent normal lift functions or cause an angle-reading fault. Sensor replacement may require setup or recalibration, so inspect the mounting and harness before installation.
Boom angle fault, inconsistent position reading, damaged sensor housing. JLG parts manuals list different sensor versions by serial. Match the sensor number and follow required calibration procedure.
Key Features & Performance
- Boom angle/position sensor; serial-number-dependent applications
- Primary part identification: 1001147479, 1001133329
- Application: JLG 340AJ (verify serial); JLG 800S (verify serial); JLG 860SJ (verify serial) and other listed matching models
- Common service situations: boom angle fault, inconsistent position reading, damaged sensor housing
Replaces / Cross-References
- 1001147479
- 1001133329
What Is Included
Includes one boom angle sensor 1001147479.
Fitment Notes
JLG parts manuals list different sensor versions by serial. Match the sensor number and follow required calibration procedure.
Frequently Asked Questions
Is this a genuine OEM part?
No. This listing describes a replacement part unless the product is explicitly identified as genuine OEM. Brand and part numbers identify intended applications.
What should I check before ordering?
JLG parts manuals list different sensor versions by serial. Match the sensor number and follow required calibration procedure.
Will this part fix every related symptom?
Not necessarily. Several different faults can cause similar symptoms, so test the affected system and compare the original component first.
Part Summary
Keywords: Boom Angle Sensor 1001147479, JLG 340AJ (verify serial), JLG 800S (verify serial), JLG 860SJ (verify serial), JLG 1500SJ (cataloged with serial-specific angle sensor), 1001147479, 1001133329, heavy machinery parts & accessories.
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
