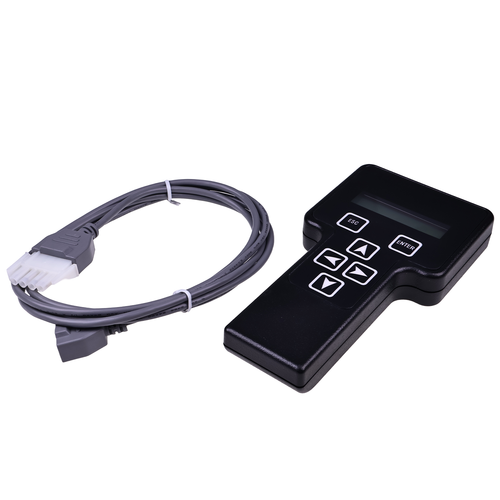

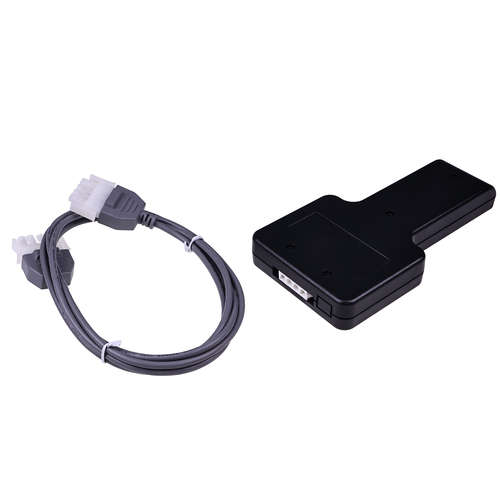

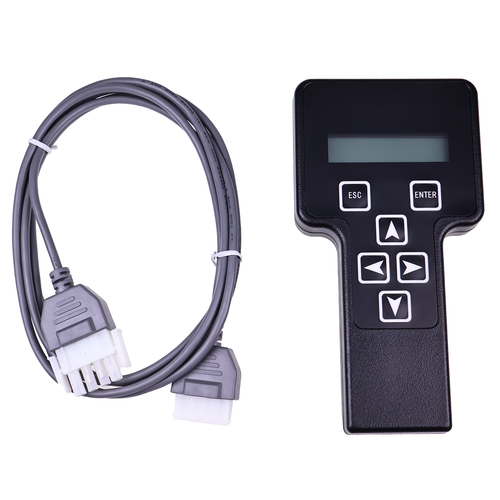

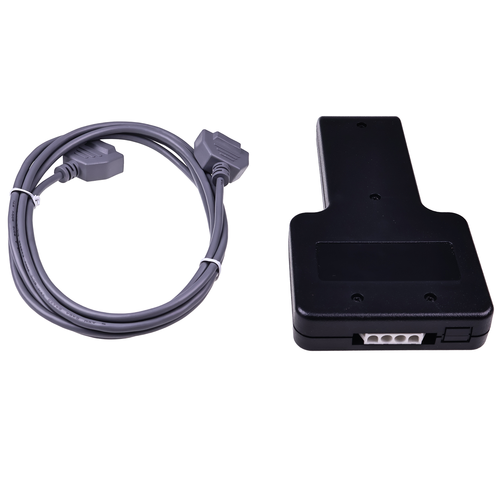

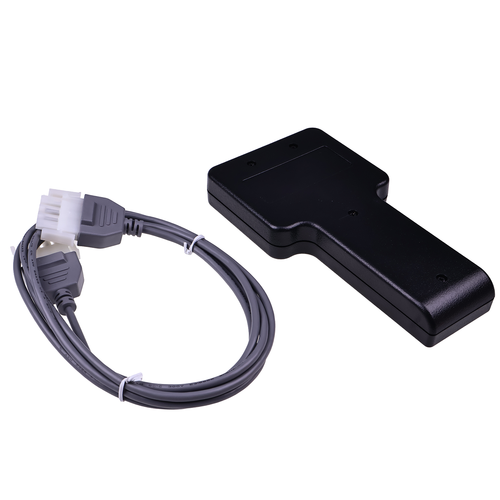

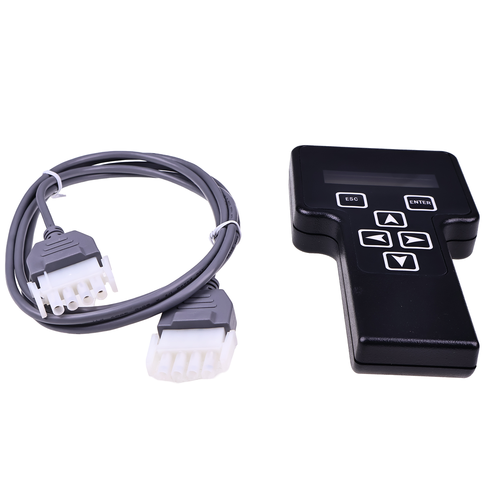

Analyzer Diagnostic Tool Kit 2901443 1001249695 1600244 for JLG
$429.09
Sale price
$429.09
Regular price
Available to Order
This Analyzer Diagnostic Tool Kit is a high-quality aftermarket replacement part compatible with JLG equipment and matches OEM Part# 2901443, 1001249695, 1600244.
Not sure which part fits your equipment?
Our Northline Parts team can help you find the right replacement. Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT | Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Product Overview
The JLG Analyzer Diagnostic Tool Kit is an essential service component used for troubleshooting, calibrating, and configuring JLG aerial work platforms. This handheld device interfaces directly with the machine control system to provide real-time data and fault code diagnostics, ensuring efficient maintenance and reduced downtime.
Key Features & Performance
- Diagnostic Accuracy: Provides precise access to machine fault codes and system status.
- System Calibration: Enables the adjustment of machine parameters and performance settings.
- Handheld Portability: Durable, compact design suitable for field service environments.
- Plug-and-Play: Connects directly to the diagnostic port for immediate communication with the machine.
Fitment & Compatibility
- Compatible Brand: JLG
- Compatible Equipment: Boom lifts, scissor lifts, and telehandlers equipped with JLG control systems.
Technical Specifications
- Part Number(s): 2901443, 1001249695, 1600244
- Interface: Digital Display with Navigational Keypad
- Connection: Standard JLG Diagnostic Port Connector
Frequently Asked Questions
Q: Does this tool require any additional software to function? A: No, this is a standalone handheld analyzer designed to communicate directly with the on-board control system of compatible JLG machines.
Q: Can this device clear fault codes? A: Yes, it allows technicians to view, diagnose, and clear stored fault codes once repairs are completed.
Compatibility may vary by serial number. Verify fitment before purchase.
