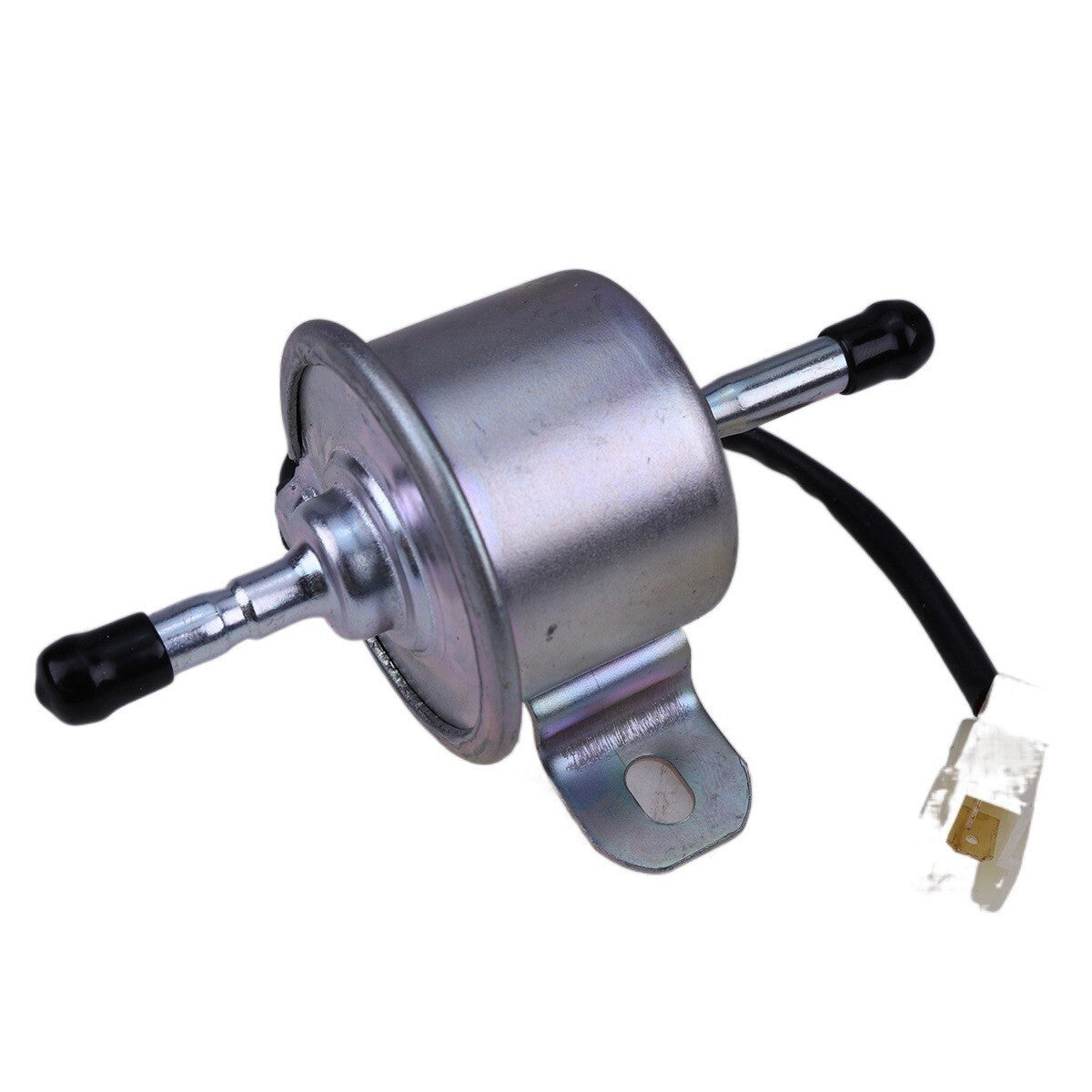

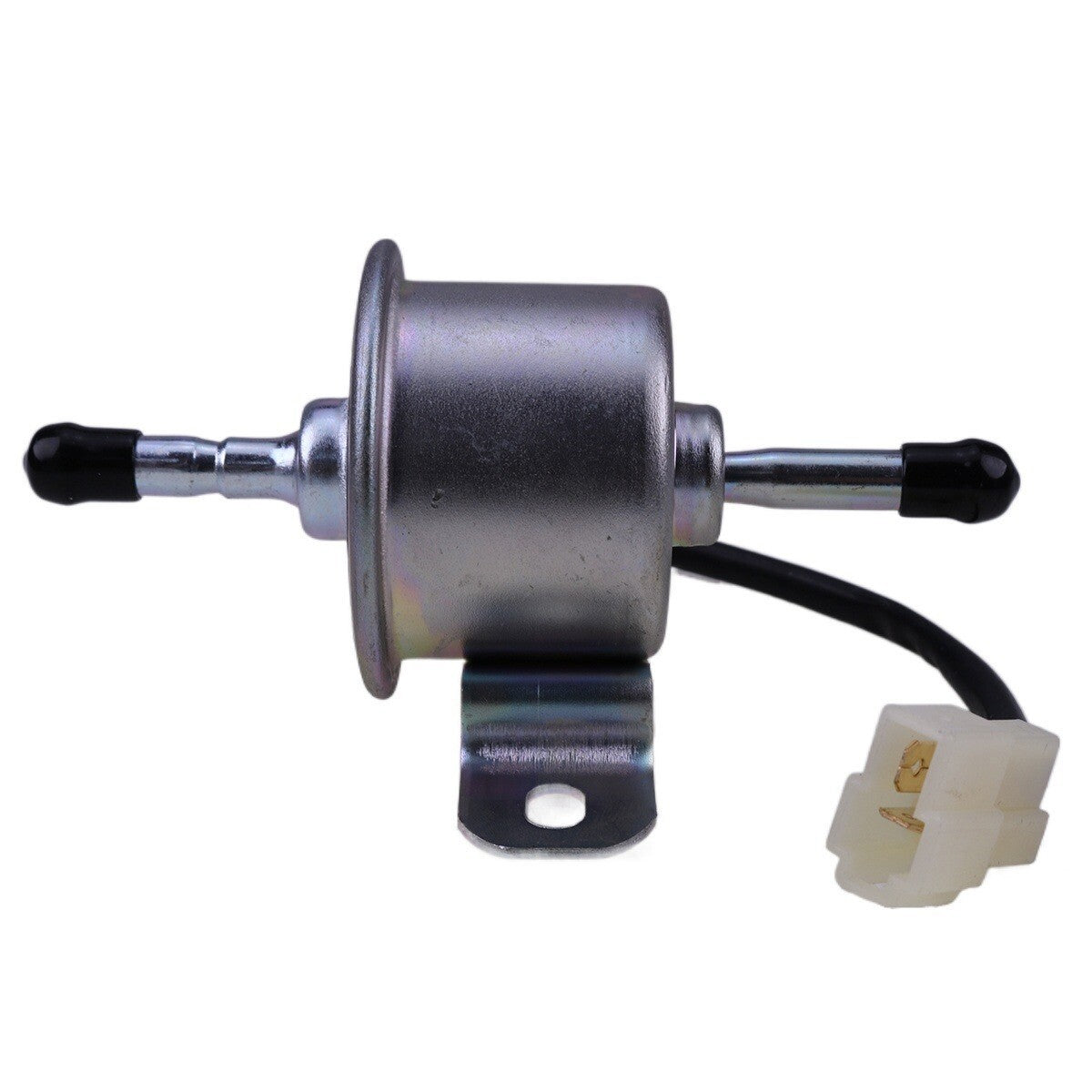

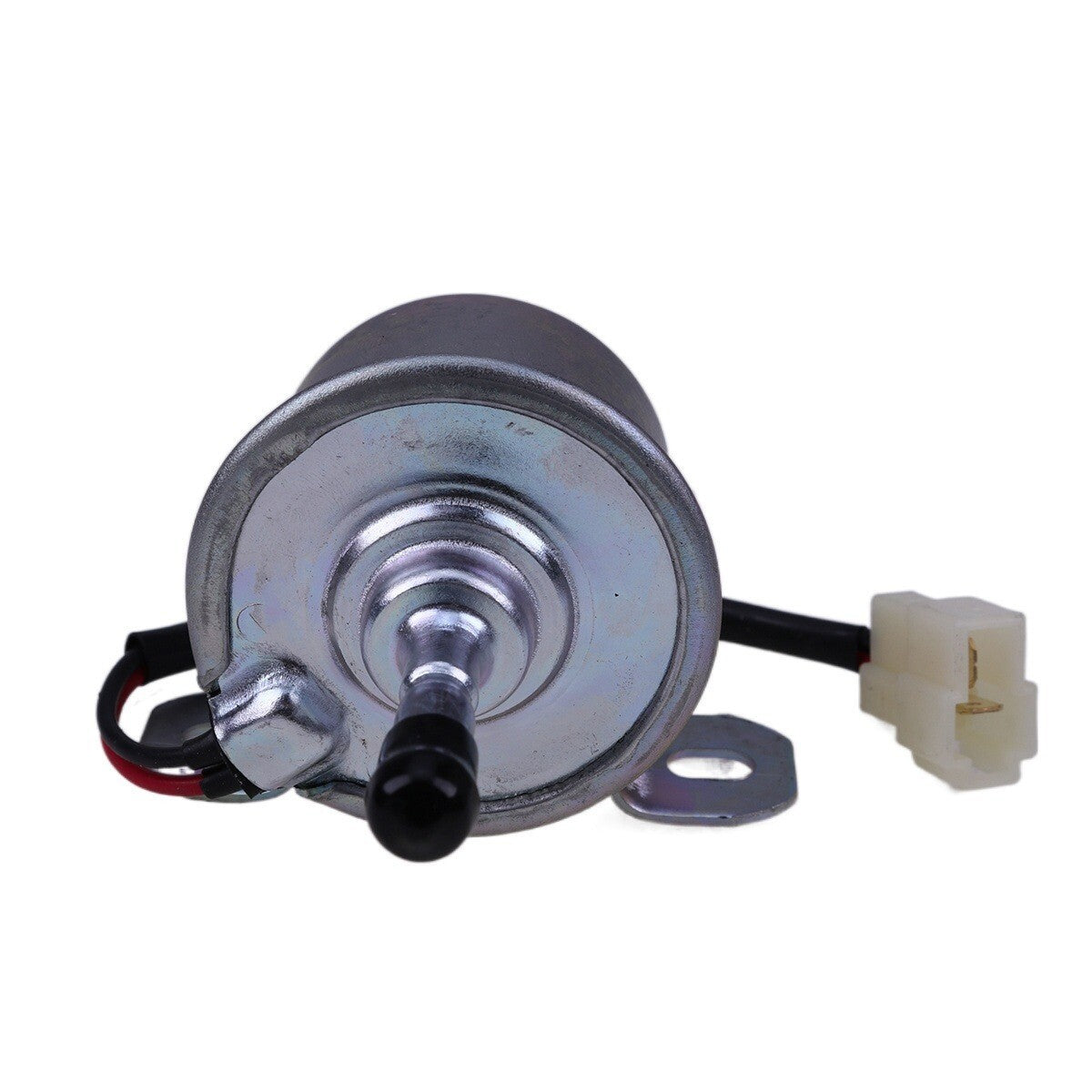

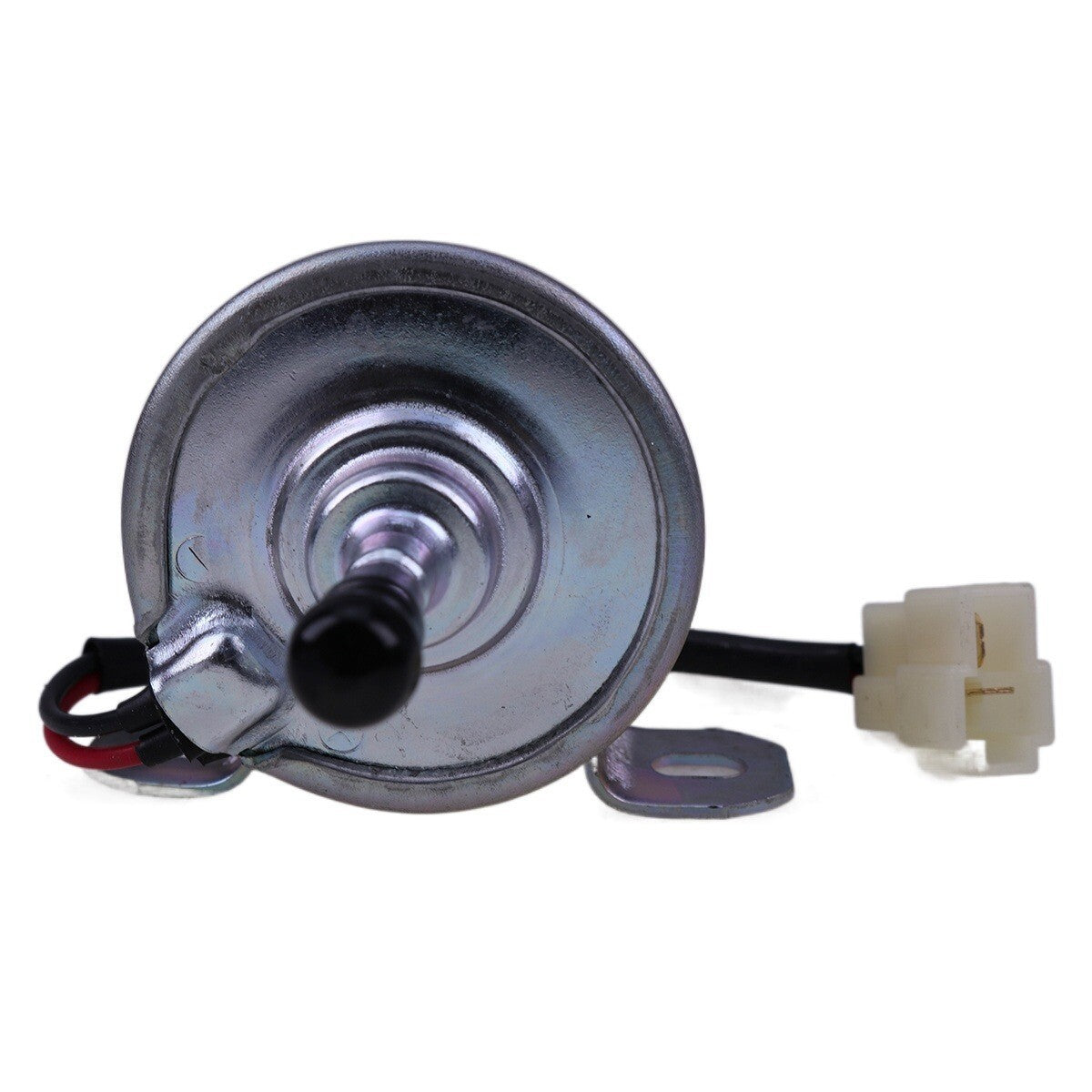

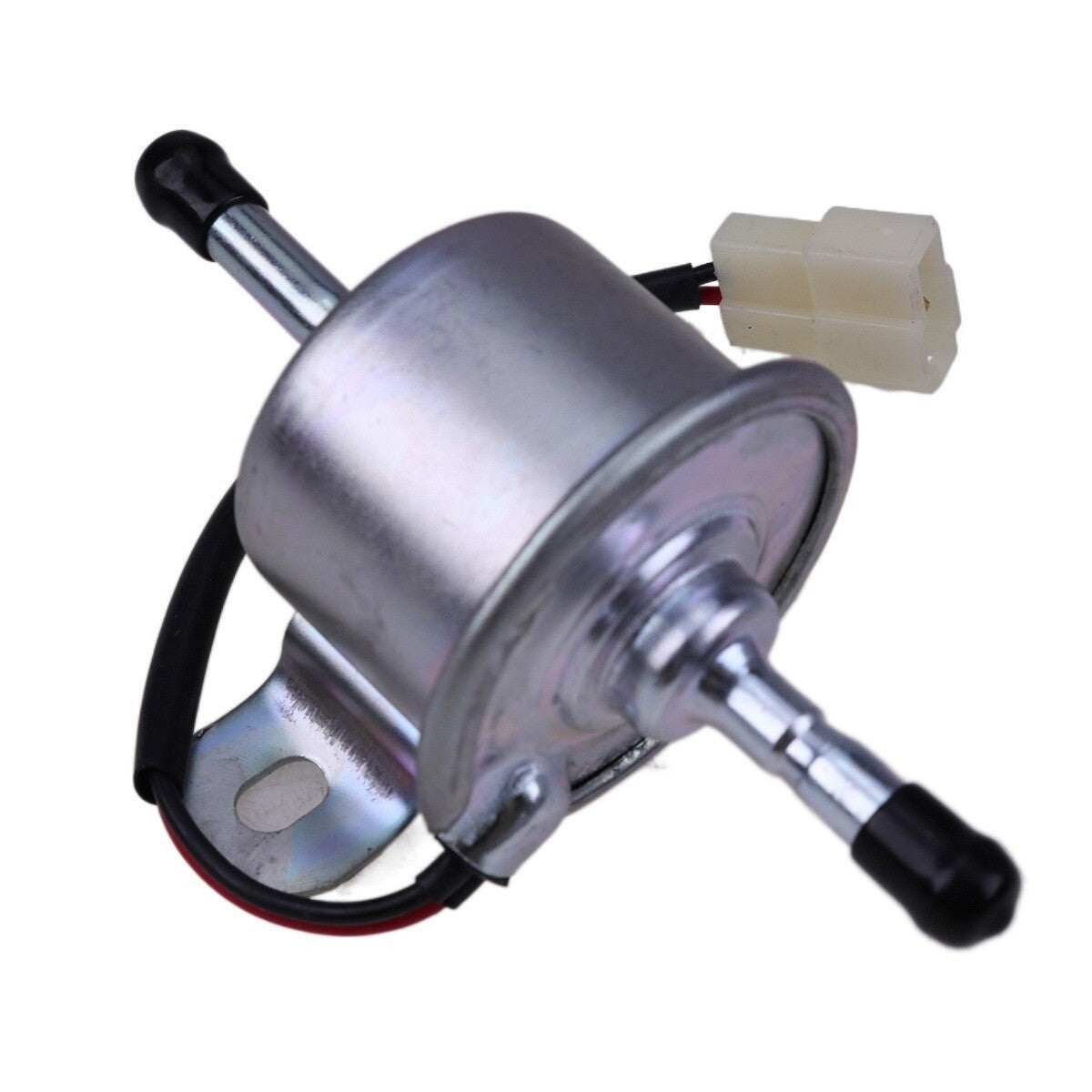

John Deere Fuel Transfer Pump AM876266 AM876207 for Compact Tractors
$39.99
In Stock
$39.99
Sale price
$39.99
Regular price
This mechanical fuel-transfer pump replaces John Deere AM876266 and AM876207 across compatible compact tractors, front mowers, greens mowers, Gators, and diesel utility equipment.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- John Deere tractors 430, 655, 755, 756, 790, 855, 856, 990, 1023E, 1025R, 1026R, 2020, 2025R, 2026R, 2027R, 2030, 2030A, 2032R, 2036R, 2038R, 2520, 2720, 3005, 3025D, 3025E, 3028EN, 3032E, 3033R, 3035D, 3036E, 3036EN, 3038E, 3038R, 3039R, 3041E, 3043D, 3045R, 3046R, 3120, 3203, 3320, 3520, 3720, 4005, 4044M, 4044R, 4049M, 4049R, 4052M, 4052R, 4066M, 4066R, 4075R, 4105, and 5050E
- John Deere 110 TLB
- John Deere front mowers 1435, 1445, 1505, 1515, 1545, 1550, 1565, 1570, 1575, 1580, 1585, 1600 Turbo Series II, 1600 Turbo Series III, F735, F915, F925, and F935
- John Deere turf equipment 2500B, 2500E, 2550 E-Cut, 2550 PrecisionCut, 2653B, 2700 E-Cut, 2700 PrecisionCut, 2750 E-Cut, 2750 PrecisionCut, 3225C, 3235C, 3245C, 6080A, 6500A, 6700A, 7200, 7200A, 7400, 7400A, 7500, 7500A, 7700, 7700A, 8000, 8000A, 8400, 8500, 8700, 8700A, 8800, 8800A, 8900A, and 9009A
- John Deere Z994R, Z997M, Z997R, Z998R, 997, and other listed diesel mowing equipment
- John Deere E18ZS and additional equipment only when the Deere parts catalog specifies AM876266
Product Overview
Long cranking after the machine sits, loss of power under load, or fuel that will not reach the injection pump can point to a weak transfer pump. A blocked filter, tank vent, pickup, air leak, contaminated fuel, or failed shutoff solenoid should be ruled out first.
AM876266 is used across a much wider Deere equipment range than the six compact tractors in the old title. The pump body, operating lever, flange, inlet and outlet orientation, fittings, and engine application must match; Deere notes that catalog model lists are general and serial-number verification remains important.
Key Features & Performance
- Engine-driven fuel transfer pump
- Supersedes AM876207 in compatible applications
- Used across tractors, mowers, Gators, and utility equipment
- Restores supply flow after confirmed pump failure
- New aftermarket pump
Replaces Part Numbers
- AM876266
- AM876207
Common Uses
- Repairing low fuel supply to a healthy injection system
- Replacing a pump that leaks fuel or engine oil at its body
- Restoring prime after tank, hose, and filter problems are corrected
Technical Specifications
- Product Type: Mechanical Fuel Transfer Pump
- Primary Application: John Deere diesel equipment using AM876266
- Package Quantity: 1 pump
- Condition: New
- Replacement Type: Aftermarket
- Current Reference: AM876266
- Previous Reference: AM876207
- Operation: Mechanically actuated fuel transfer
- Fuel: Diesel
- Condition: New aftermarket
Installation & Fitment
- Work on a cool engine and contain spilled diesel fuel
- Clean around the pump and mark the fuel lines
- Compare lever position and rotate the engine if needed to avoid forcing the pump
- Use a new sealing gasket, prime the system, and check for fuel and oil leaks
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Why does the compatible-model list include so many machines? A: Deere used AM876266 across several Yanmar-powered tractor, mower, turf, and utility platforms; the serial number and engine still decide fitment.
Q: Can an air leak imitate a bad transfer pump? A: Yes. Cracked suction hose, loose clamps, a bad filter seal, or a restricted tank vent can reduce fuel flow without a failed pump.
Q: How do I confirm this is the correct part? A: Use the equipment serial number and match AM876266 or AM876207, engine model, flange, operating lever, fittings, port direction, and gasket shape.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
