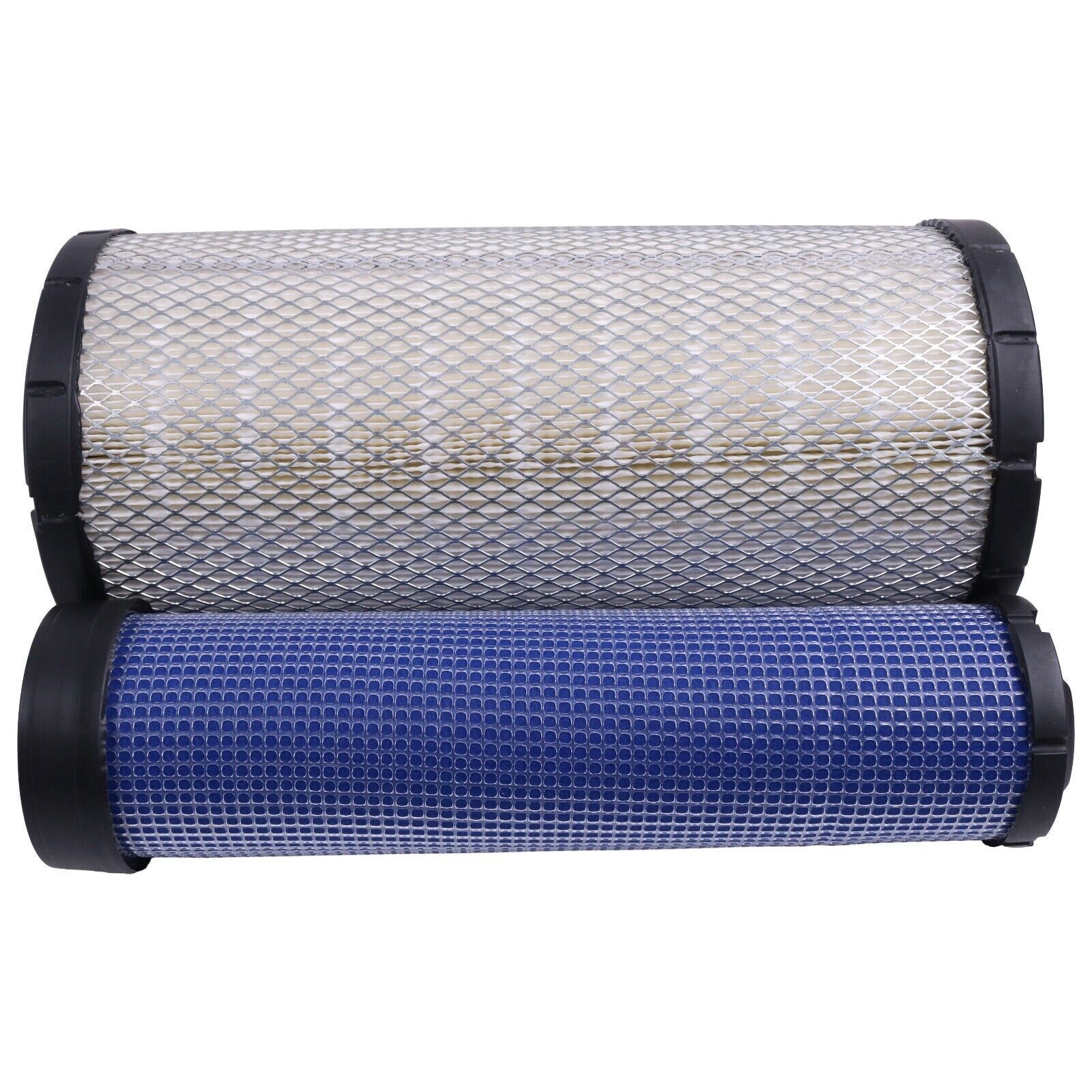

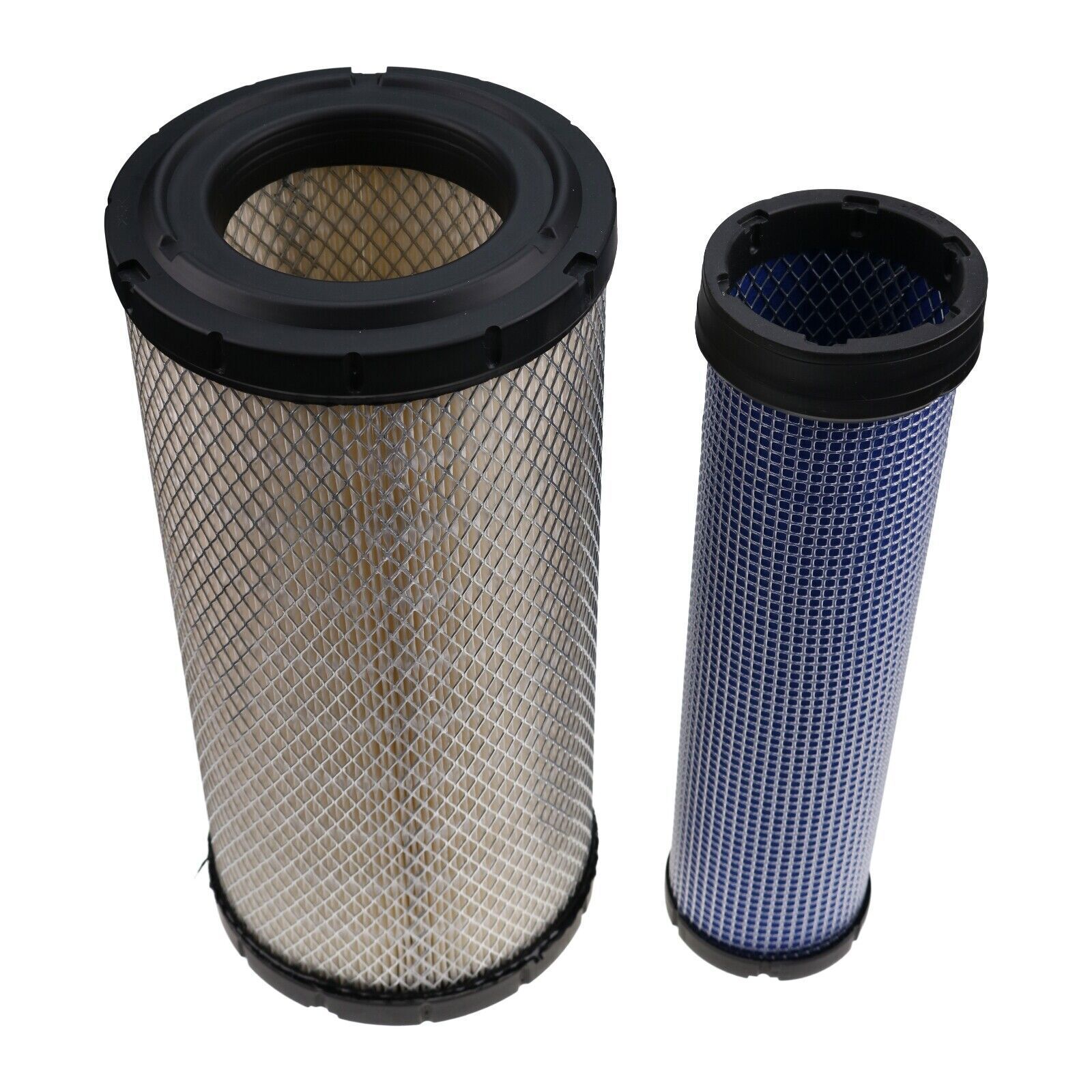

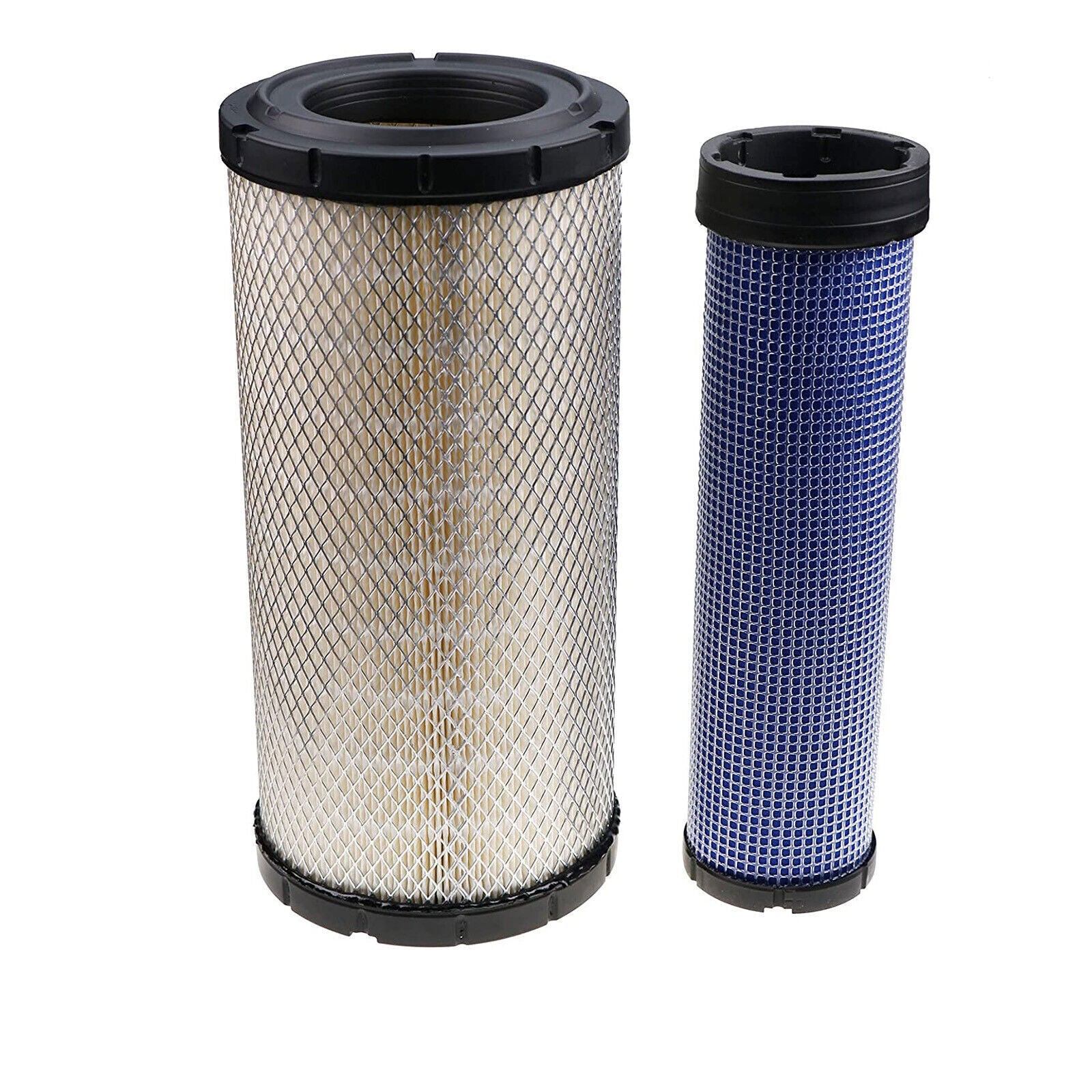

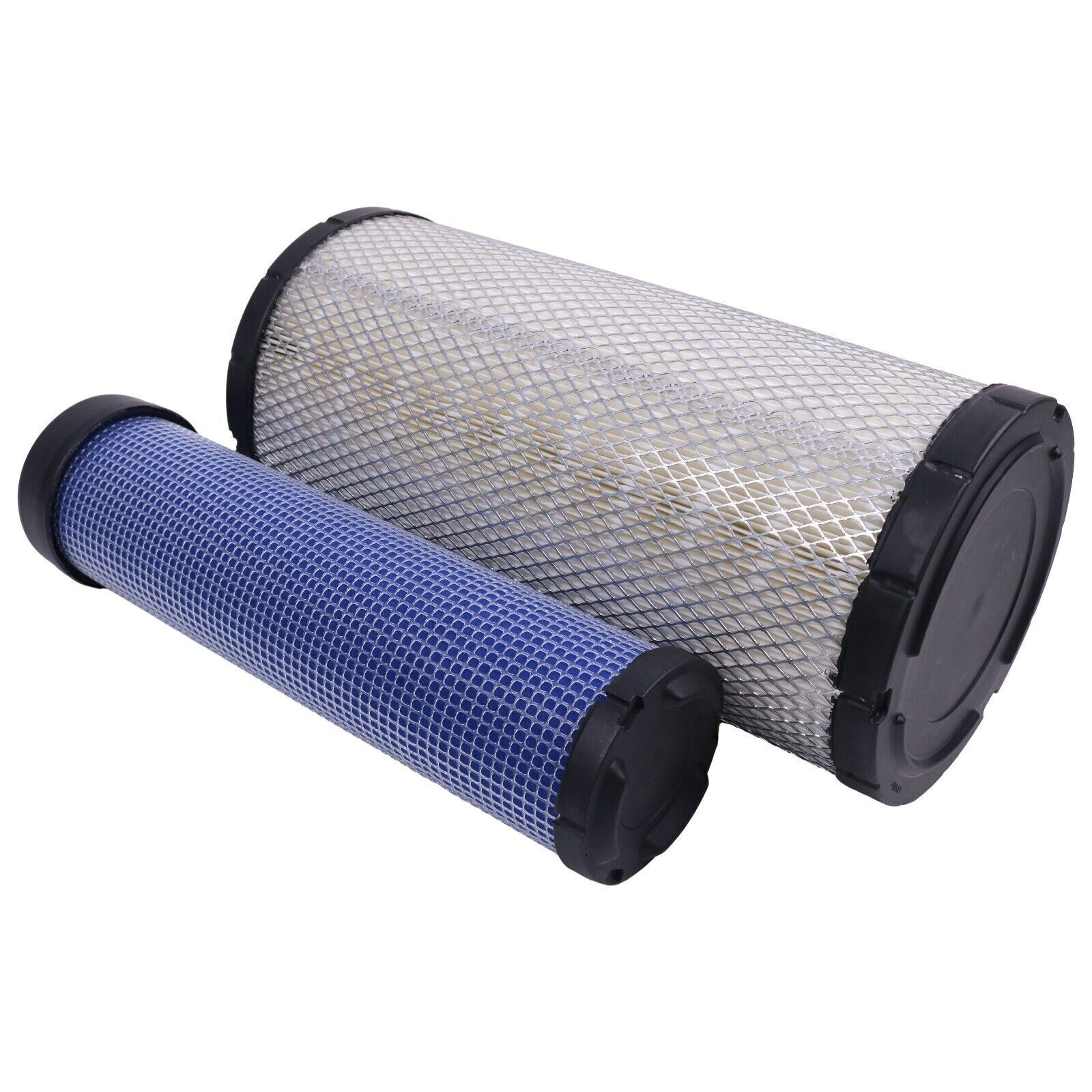

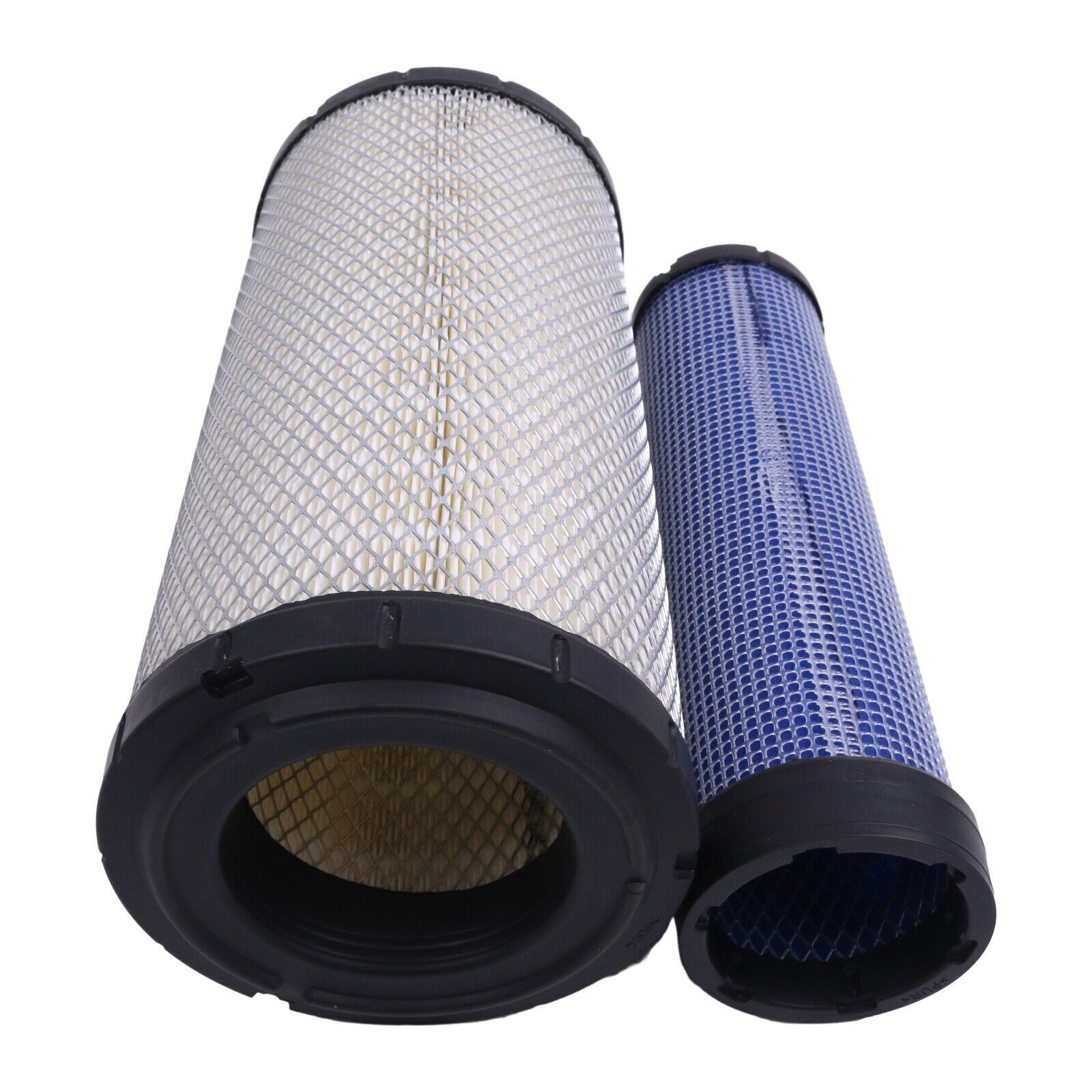

John Deere Inner Outer Air Filter Kit KV16429 AT171584
$56.99
In Stock
$56.99
Sale price
$56.99
Regular price
This new aftermarket inner and outer air-filter kit replaces John Deere KV16429 and AT171584, with common element crosses, for compatible tractors, loaders, skid steers, and backhoes using the same dual-element housing.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- John Deere 5076, 5082, 5090, 5093 and 5101
- John Deere 5225, 5325, 5425 and 5625 tractors
- John Deere 310, 315, 450, 485, 486, 488, 5103 and 5203 applications using both elements
- Ford New Holland C190, L865, LS180, LS190, LX865, LX885 and LX985 applications using the matching filter pair
- Select Case IH equipment only when both original element numbers and dimensions match
Product Overview
A restriction indicator, dusty outer element, black smoke, or reduced power under load may mean the air cleaner needs service. Dirt downstream of the inner element is a warning to stop and inspect the housing, seals, hose, and engine intake before fitting new filters.
The primary outer element captures normal dust while the inner safety element adds protection if the outer filter is damaged or disturbed. The inner element should generally be replaced rather than cleaned.
Match both filter references, outer and inner dimensions, end-cap shape, sealing surfaces, housing, machine model, and serial range. Some listed machines have serial-number breaks or alternate housings.
Key Features & Performance
- Two-piece primary and safety air-filter set
- Dual-element intake protection for compatible housings
- Multiple cross-reference numbers for element comparison
- Dry-filter design suited to dusty agricultural and construction work
Replaces Part Numbers
- KV16429
- AT171584
- AT171854
- AT171853
- P829333
- P828889
- 46562
- 46569
- 222421A1
- 222422A1
- 110-6326
- 110-6331
Common Uses
- Routine intake service after heavy dust exposure
- Replacing a torn, wet, or collapsed outer element
- Renewing a contaminated inner safety element
Technical Specifications
- Product Type: Inner and outer engine air-filter kit
- Filtration Style: Dry dual-element
- Primary References: KV16429 / AT171584
- Condition: New aftermarket service parts
Installation & Fitment
- Shut the engine off and clean around the housing
- Remove the outer element without knocking dirt into the intake
- Do not blast the inner element with compressed air
- Inspect the housing, dust valve, clamps, and intake hose
- Seat both elements fully and reset the restriction indicator if equipped
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Can a dirty air filter cause black smoke? A: Yes, but turbo, injector, fuel, and engine problems can also create smoke.
Q: Should I replace the inner filter every time? A: Follow the machine service schedule; replace it whenever contaminated or damaged rather than aggressively cleaning it.
Q: Will KV16429 alone confirm the complete kit? A: No. The inner element, housing, dimensions, model, and serial range must also match.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
Part Summary
keywords: John Deere KV16429 air filter kit, AT171584 inner outer filters, 5225 tractor air filter replacement, LS180 dual element air cleaner, John Deere dusty field service
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, specifications, and application before purchase.
