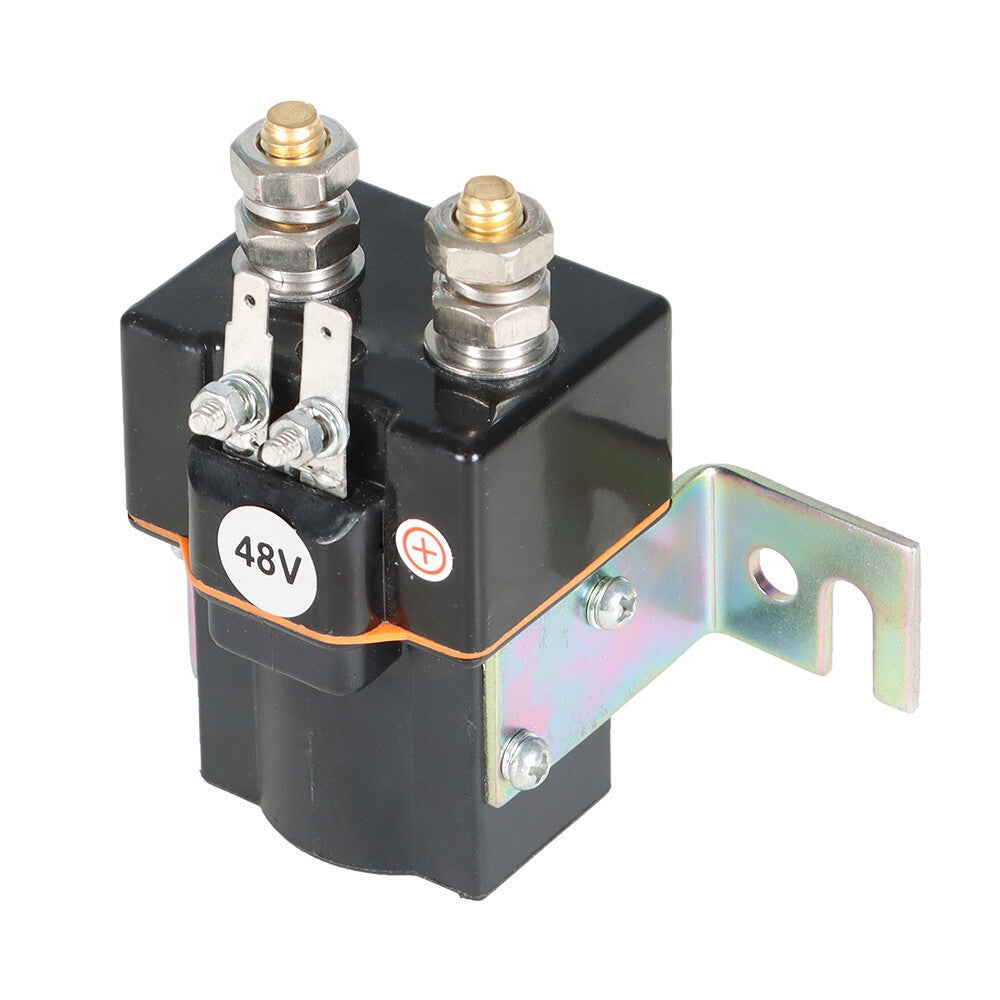

Club Car 48V Solenoid 101908701 102774701 for DS Precedent Carryall
$48.99
In Stock
$48.99
Sale price
$48.99
Regular price
48-volt contactor-solenoid replacing Club Car 101908701 and 102774701 on compatible DS, Precedent, and Carryall electric carts.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 1995-and-newer Club Car DS 48V electric carts using the matching solenoid
- 2004-and-newer Club Car Precedent 48V carts using the matching solenoid
- Compatible Club Car Carryall 48V electric utility carts
Product Overview
A cart that clicks without moving, moves intermittently, or shows excessive voltage drop across the large studs may have burnt solenoid contacts. Battery-pack condition, cables, key and pedal inputs, controller, motor, tow switch, and diode wiring must be checked first.
This contactor connects pack power to the drive system when its coil is energized. Match coil polarity, diode, two main studs, control terminals, bracket, controller system, and original numbers before connection.
Key Features & Performance
- 48V DC main contactor for matching Club Car electric systems
- Cross-references 101908701 and 102774701
- Polarity-protected coil design on the referenced layout
Replaces Part Numbers
- 101908701
- 102774701
- 240-22240
- SW80-1970
- SW80-1275P
Common Uses
- Replacing burnt high-current contacts
- Repairing intermittent drive after control-circuit diagnosis
- Correcting excessive voltage drop across a closed solenoid
Technical Specifications
- Product Type: 48V DC Contactor / Solenoid
- Main Current Rating: Approximately 150 A on the referenced design
- Condition: New aftermarket
Installation & Fitment
- Place the cart in Tow and disconnect the pack correctly
- Label every cable and confirm coil polarity and diode direction
- Torque studs without twisting them and test voltage drop under load
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Does a click prove the solenoid is good? A: No. The coil can pull in while burnt contacts fail to pass drive current.
Q: Can this be connected without regard to polarity? A: No. A suppression diode makes control-terminal polarity important.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Club Car 101908701 solenoid, 102774701 48V contactor, Precedent clicks no move, DS electric solenoid, Carryall power relay, golf cart voltage drop
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
