Caterpillar Backhoe Steering Tie Rods 128-4128 2-Pack for 416-430
$321.99
In Stock
$321.99
Sale price
$321.99
Regular price

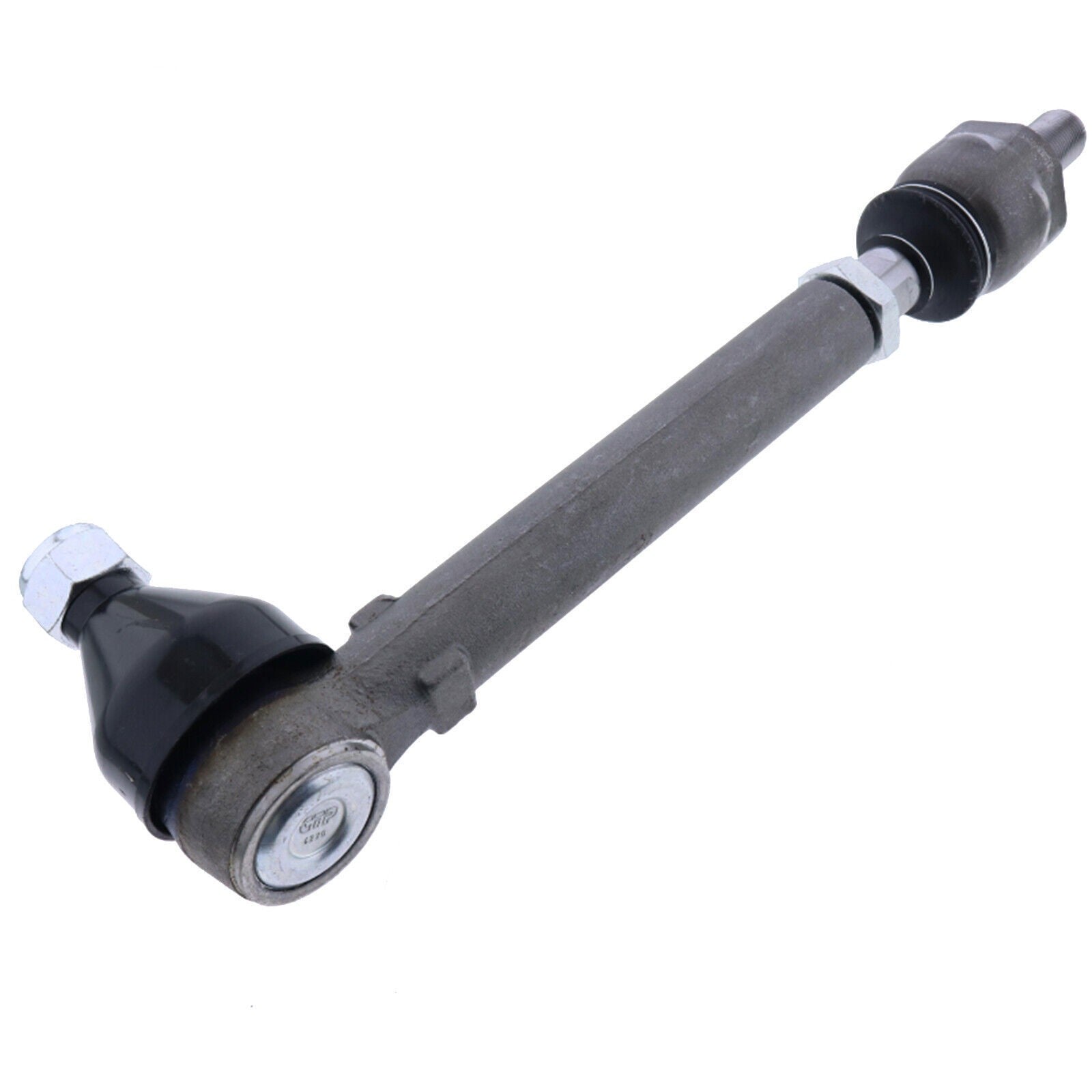

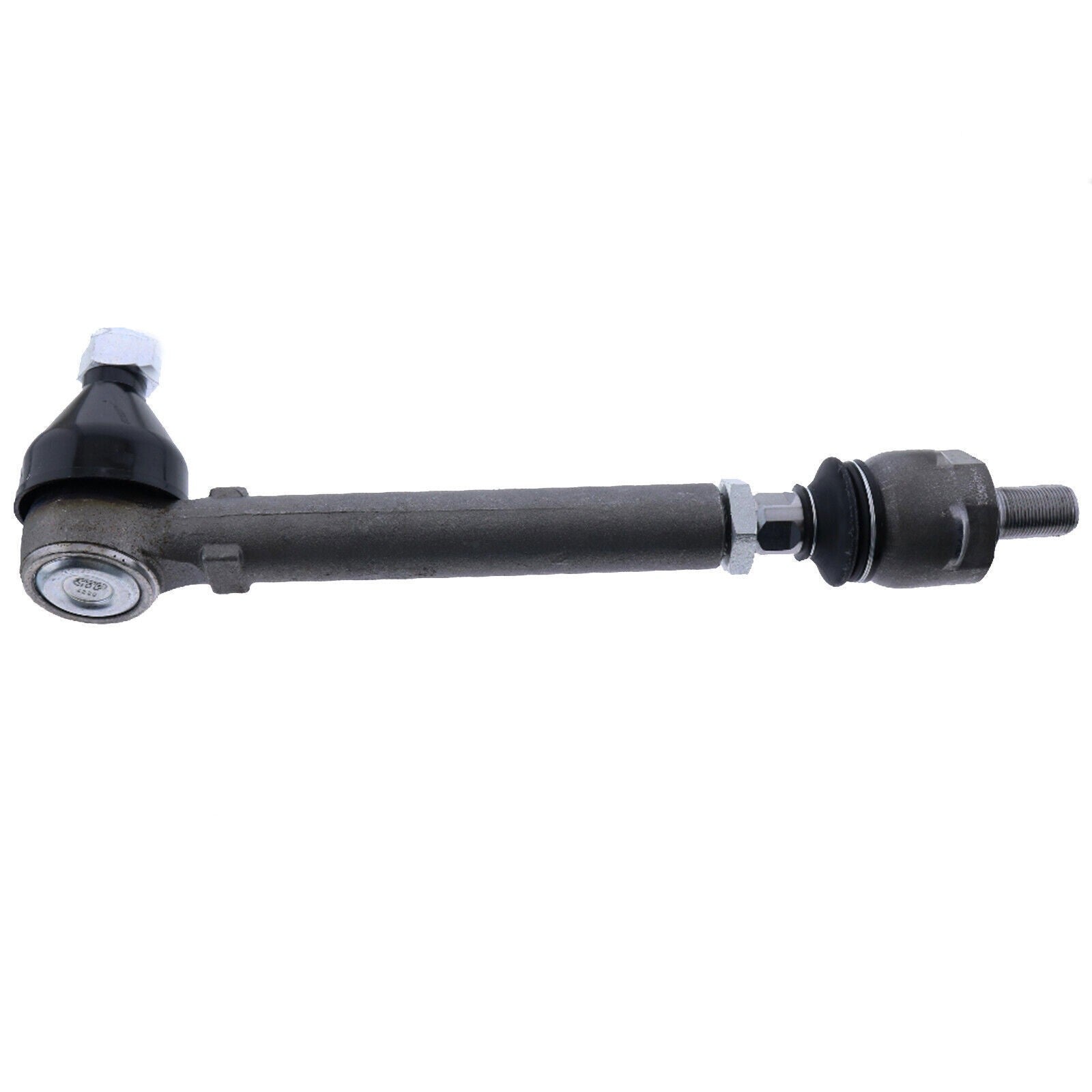

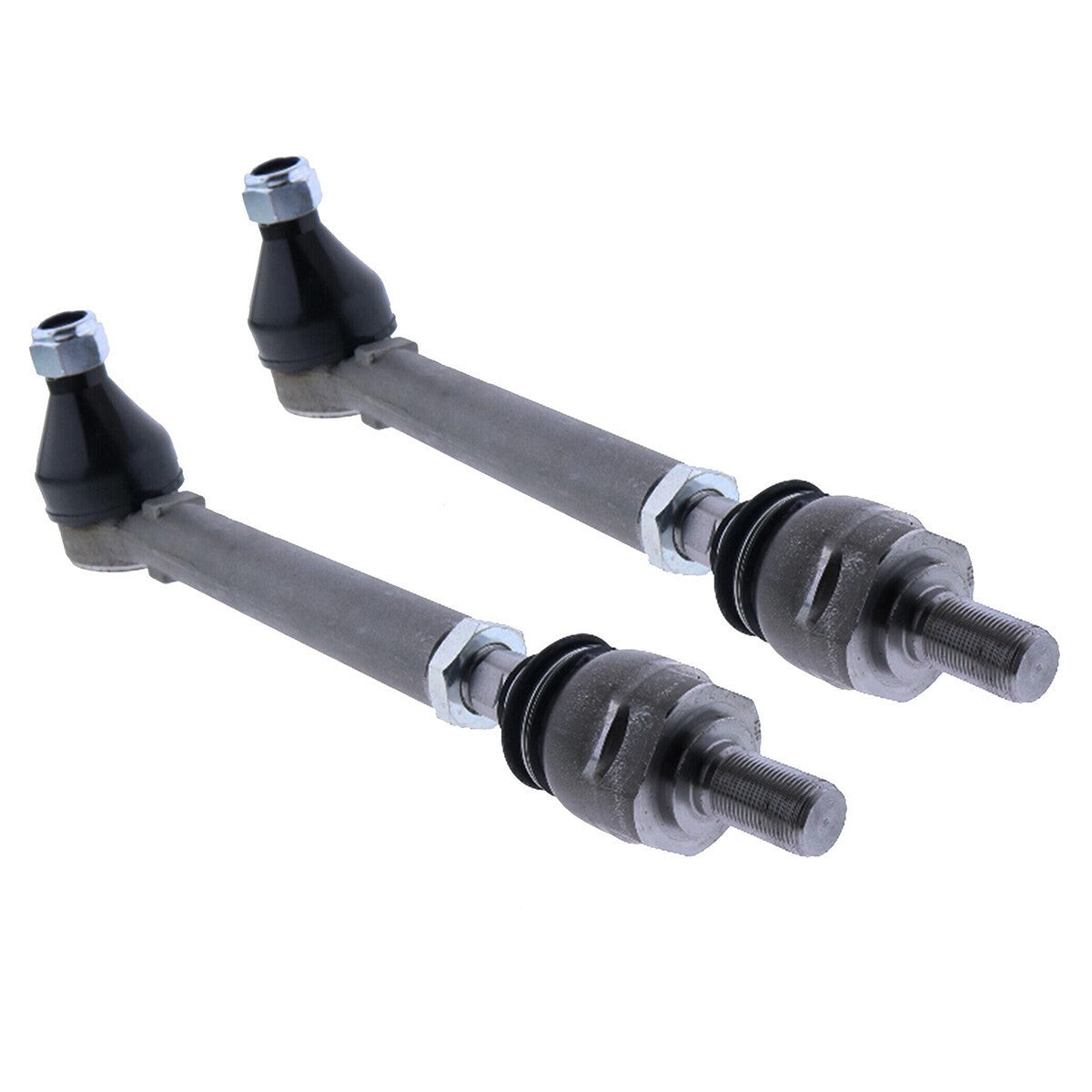

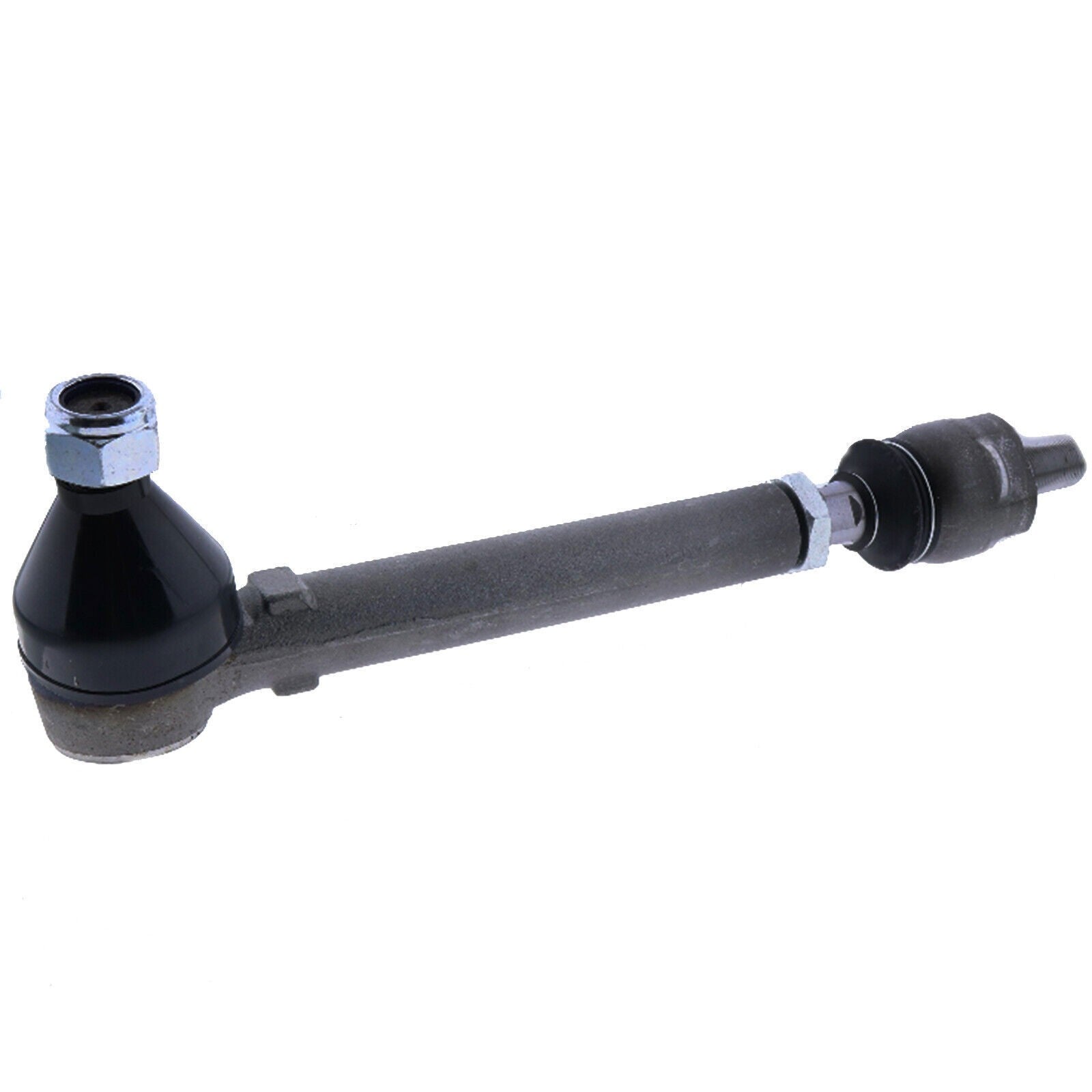

This two-piece steering tie-rod set replaces Caterpillar 128-4128 on compatible 416, 420, 424, 426, 428, 430, and 436 backhoe-loader families.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Caterpillar 416, 416B, 416C, and 416D
- Caterpillar 420D
- Caterpillar 424D
- Caterpillar 426, 426B, and 426C
- Caterpillar 428B and 428C
- Caterpillar 430D
- Caterpillar 436, 436B, and 436C
Product Overview
Loose steering, front-tire wander, clunking over rough ground, or uneven tread wear can come from worn tie-rod joints. Jack and support the axle safely, then check every joint, kingpin, wheel bearing, steering cylinder, and axle pivot before ordering.
Each tie rod transfers steering-cylinder movement to the wheel knuckle. The listed overall length is approximately 13.03 inches; compare thread direction, taper, stud size, grease provision, and length to the removed parts before installation.
Key Features & Performance
- Two tie rods per package
- Replaces Caterpillar 128-4128
- Approximately 13.03-inch overall length
- For selected Cat backhoe steering axles
- New aftermarket steering parts
Replaces Part Numbers
- 128-4128
- 1284128
Common Uses
- Replacing joints with measurable steering play
- Correcting looseness before performing an alignment
- Repairing bent or damaged tie rods after the axle and knuckles are inspected
Technical Specifications
- Product Type: Steering Tie Rod
- Primary Application: Caterpillar backhoe loaders using 128-4128
- Package Quantity: 2 tie rods
- Condition: New
- Replacement Type: Aftermarket
- Primary Reference: 128-4128
- Package Quantity: 2 tie rods
- Overall Length: Approximately 13.03 inches each
- System: Front steering linkage
- Condition: New aftermarket
Installation & Fitment
- Support the machine on rated stands and secure the boom and implements
- Measure toe and count exposed threads before disassembly
- Use the correct separator so the knuckle and boots are not damaged
- Torque and retain the studs correctly, grease if applicable, and set toe to specification
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Should both tie rods be replaced together? A: The set contains two. If one is worn, inspect both sides; replacing the pair can make final alignment and steering response more consistent.
Q: Will new tie rods fix every loose-steering complaint? A: No. Cylinder pins, kingpins, wheel bearings, axle pivots, and steering valves can also create play.
Q: How do I confirm this is the correct part? A: Match 128-4128, machine serial number, approximately 13.03-inch length, taper, stud diameter, thread size and direction, grease fitting, and axle arrangement.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
Part Summary
keywords: Cat 128-4128 tie rod, Caterpillar 416 steering repair, 420D backhoe tie rod set, Cat 428C front axle linkage, backhoe loose steering parts
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
