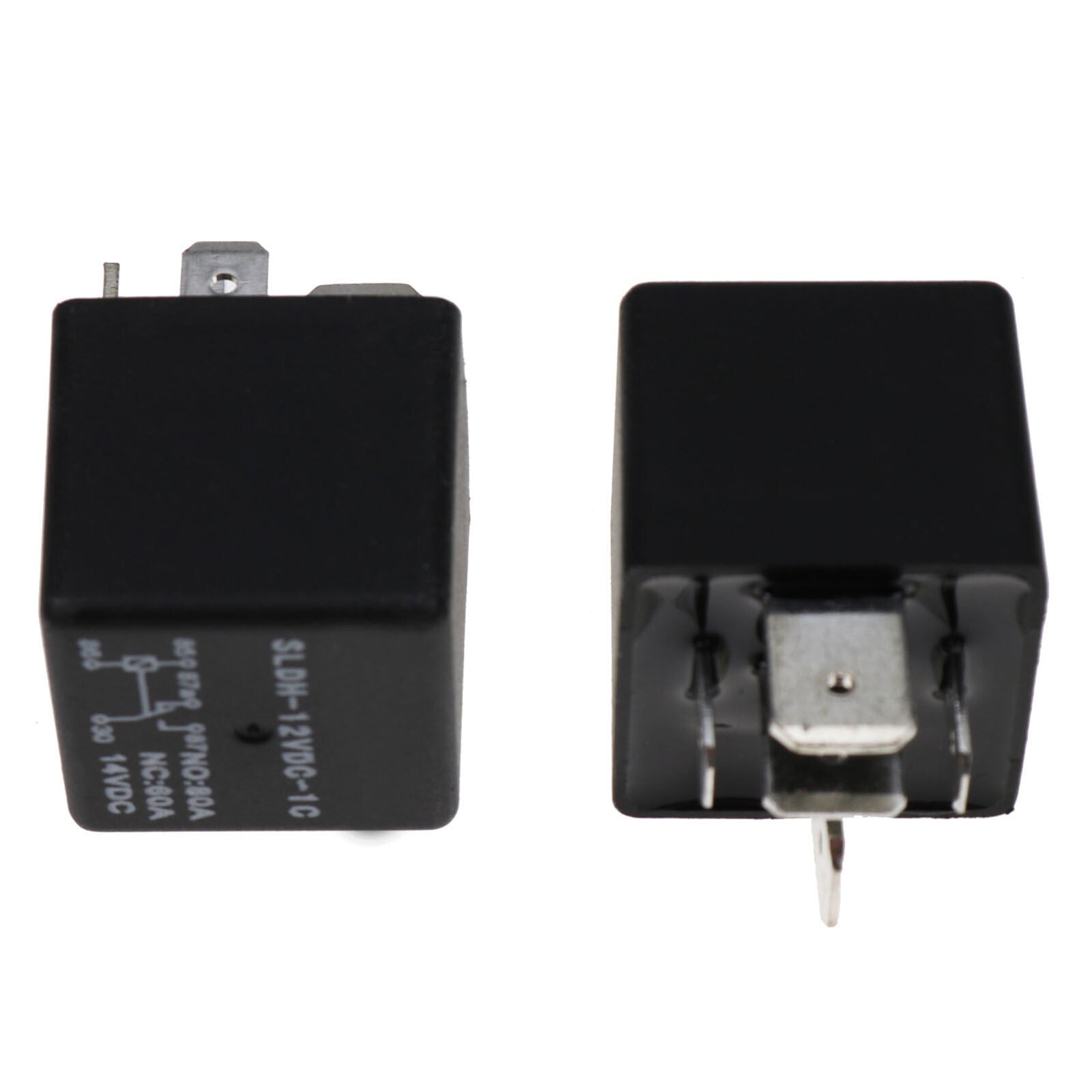

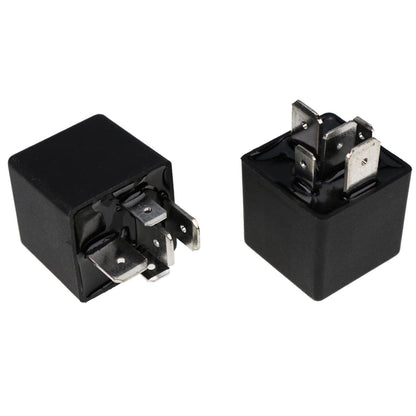

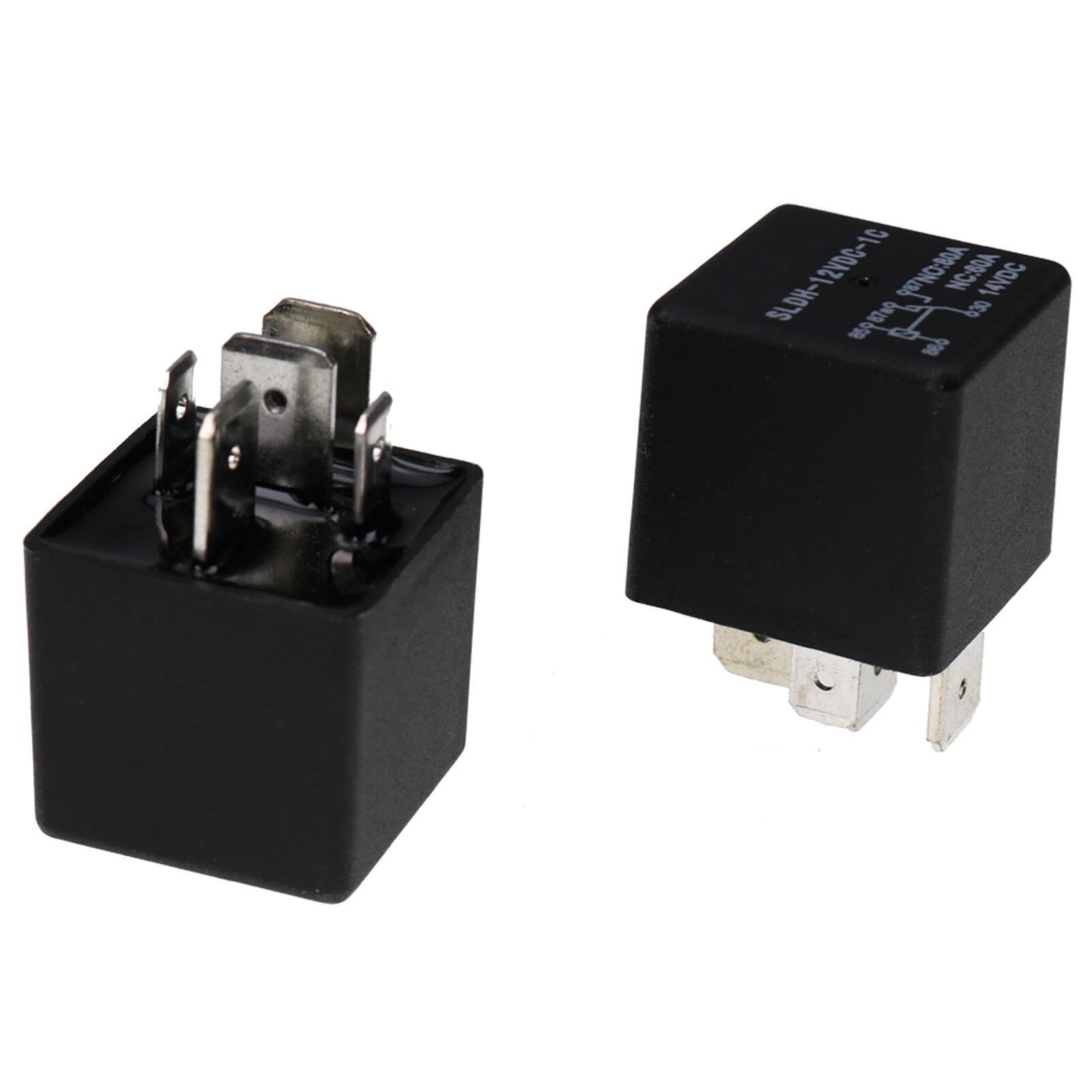

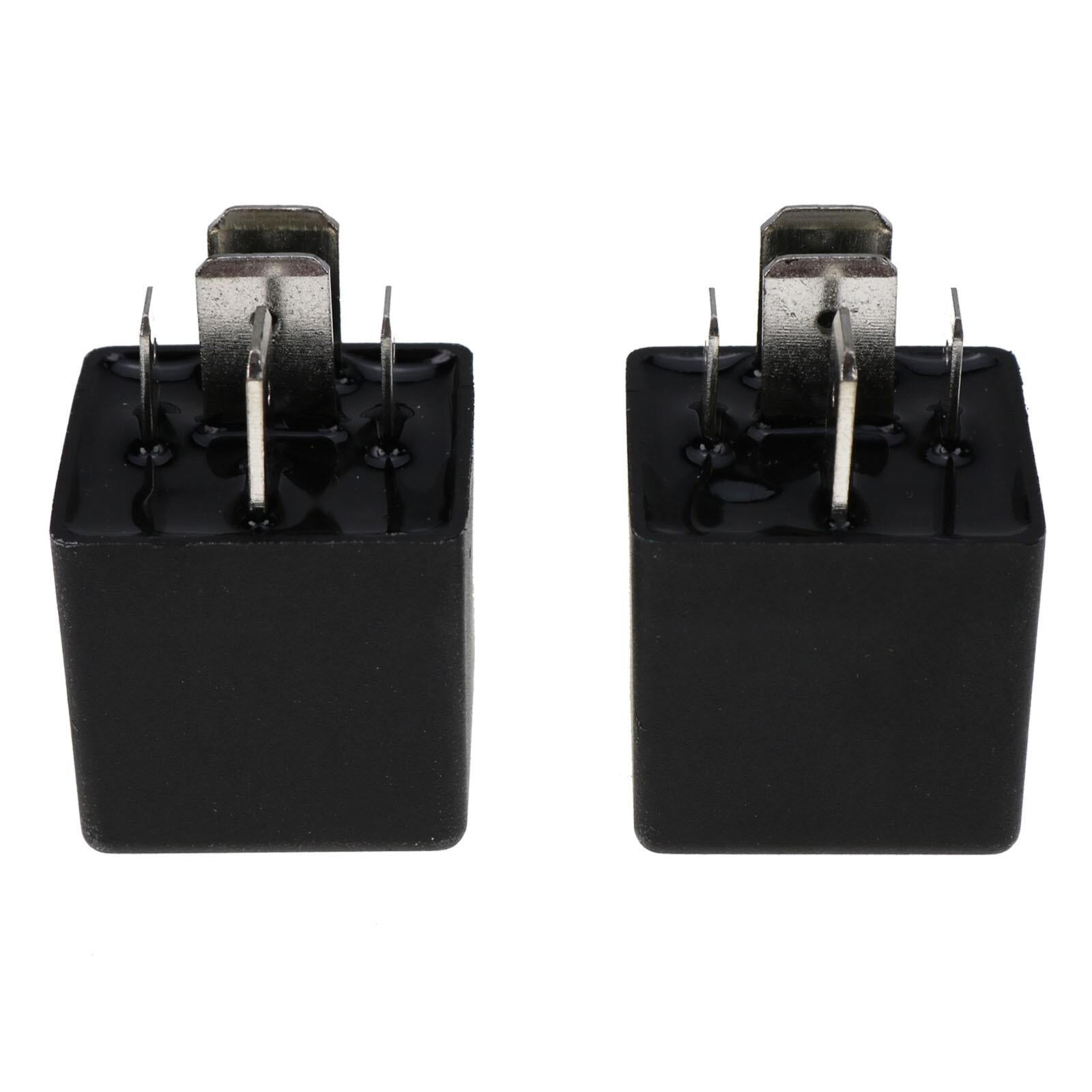

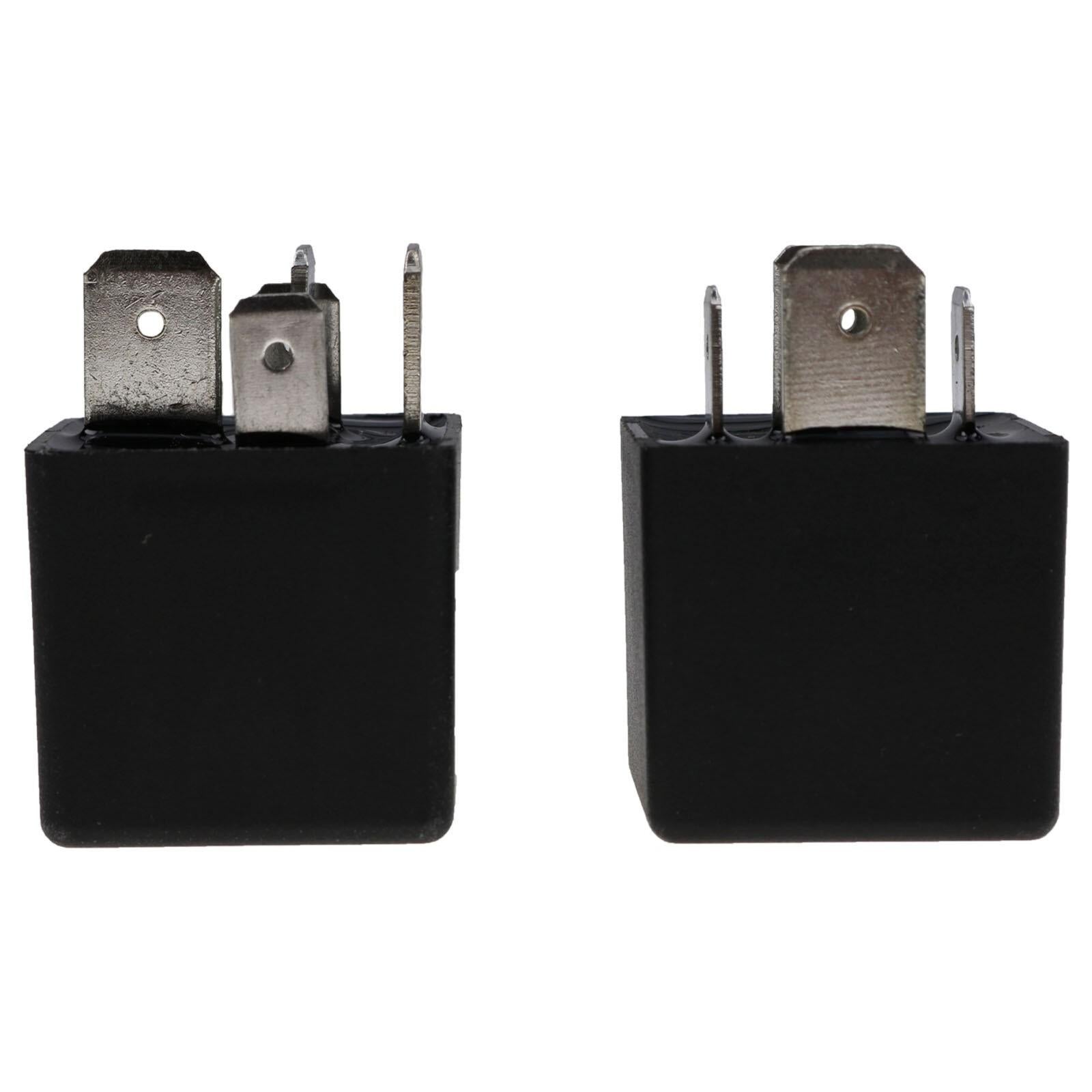

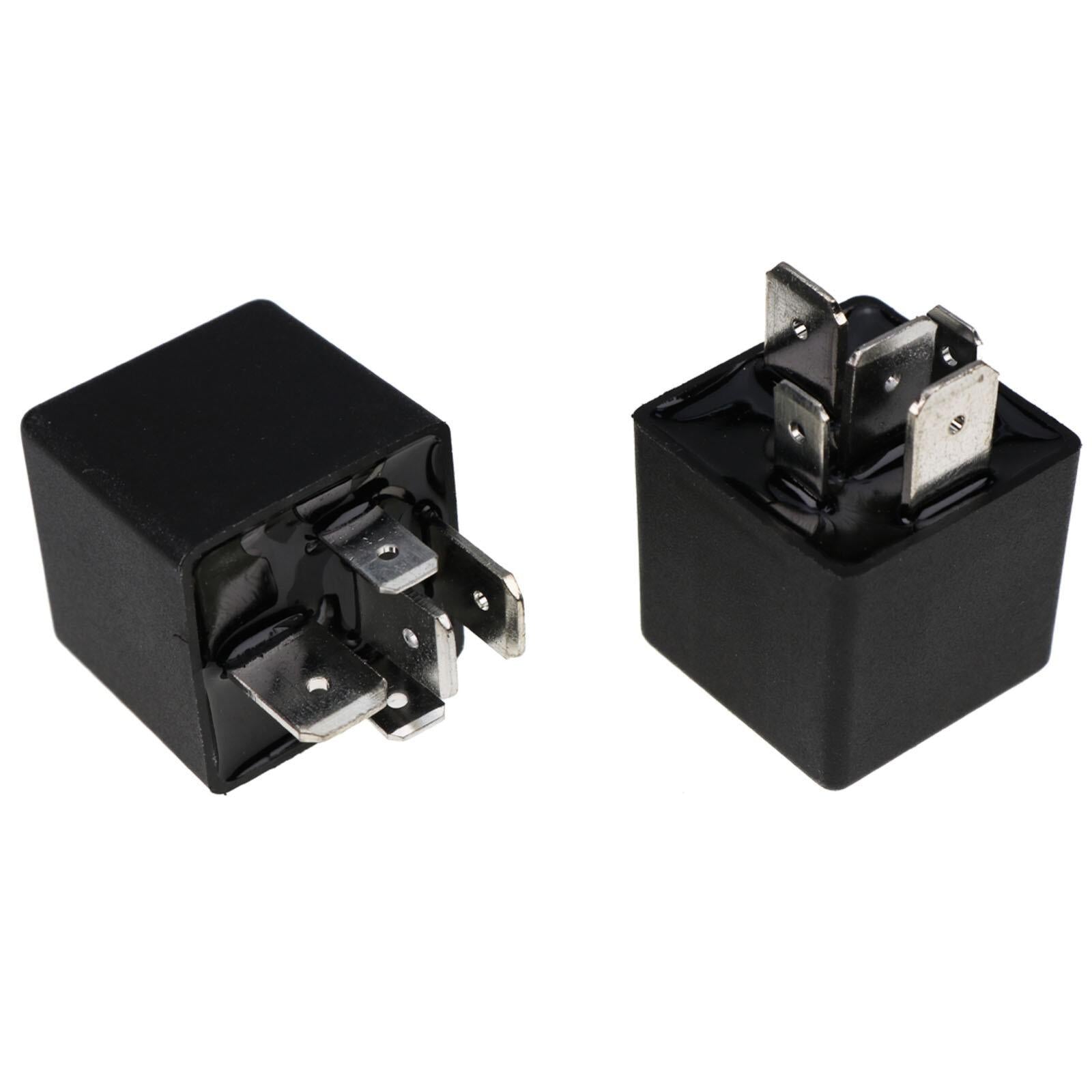

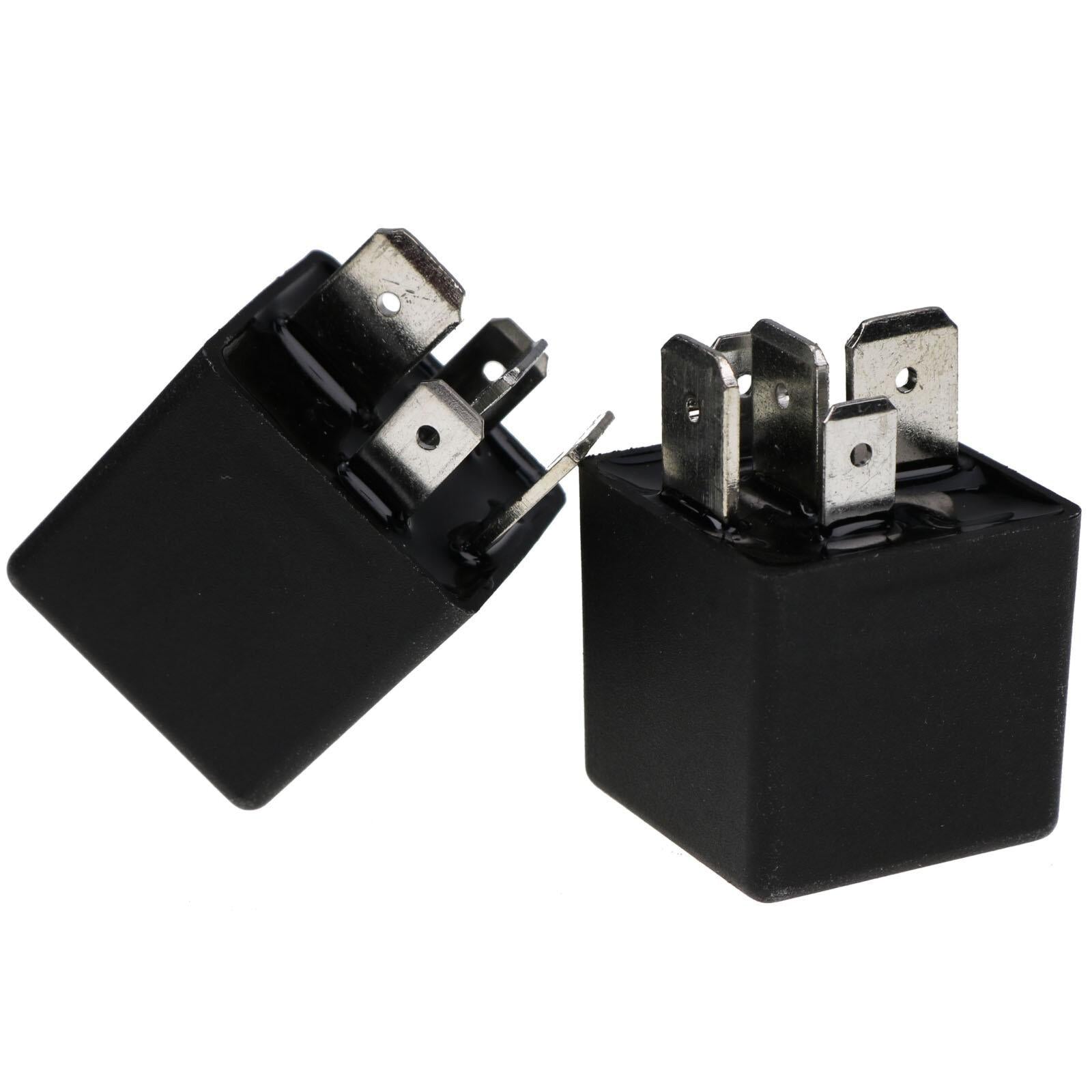

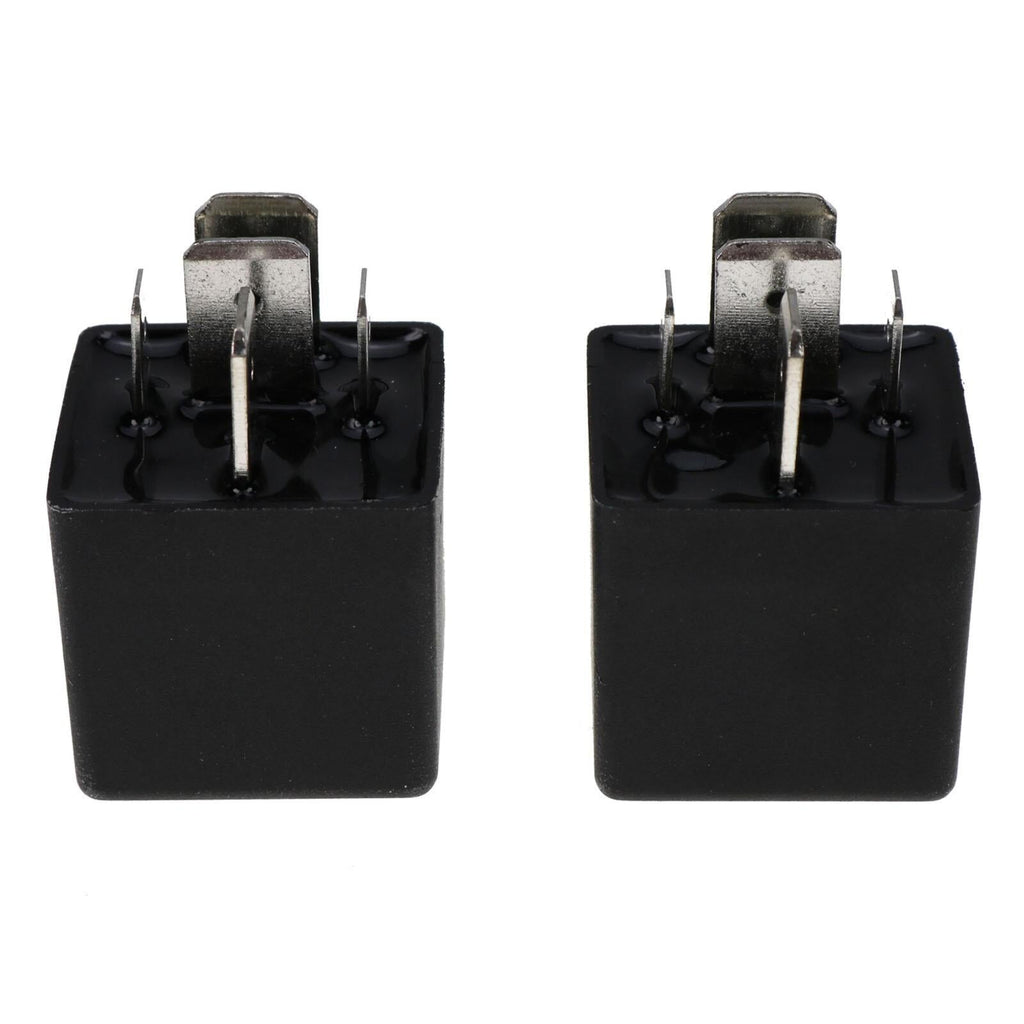

Songle SLDH-12VDC-1C High-Current Relay 80A NO 60A NC 2-Pack
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
This two-pack of Songle-style SLDH-12VDC-1C changeover relays uses a 12V coil with contacts rated up to 80A normally open and 60A normally closed at 14VDC.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Automotive and equipment circuits originally using SLDH-12VDC-1C
- Custom 12V control systems with the identical terminal footprint and load rating
- Not vehicle-specific; electrical specifications determine fit
Product Overview
Fans, pumps, lights, winches, and other high-current loads can stop working even when the control switch still sends voltage. If testing shows the relay coil or contacts have failed, matching the exact SLDH pinout is more important than matching the outer case alone.
Each relay provides common, normally open, and normally closed switching. Actual safe load depends on wiring size, socket condition, duty cycle, heat, and the device being controlled; never increase fuse size to compensate for a hot or damaged connector.
Key Features & Performance
- Two changeover power relays
- 12VDC coil
- 80A normally open contact rating at 14VDC
- 60A normally closed contact rating at 14VDC
- SLDH-12VDC-1C reference and footprint
Replaces Part Numbers
- SLDH-12VDC-1C
Common Uses
- Replacing a relay with burned or welded contacts
- Restoring a fan, pump, lamp, or accessory circuit after diagnosis
- Building a 12V high-current changeover circuit with proper protection
Technical Specifications
- Product Type: High-Current Automotive Relay
- Primary Application: 12V circuits using Songle SLDH-12VDC-1C pinout
- Package Quantity: 2 relays
- Condition: New
- Replacement Type: Aftermarket
- Quantity: 2 relays
- Coil: 12VDC
- Normally Open Rating: 80A at 14VDC
- Normally Closed Rating: 60A at 14VDC
- Contact Form: 1C / changeover
Installation & Fitment
- Disconnect battery power
- Compare every terminal location and function with the old relay
- Replace melted sockets and undersized wiring
- Use a correctly sized fuse and test voltage drop under full load
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, connector, dimensions, installed options, and previous repairs can affect fitment. Compare the original component and reference information before purchase.
Frequently Asked Questions
Q: Can this replace any five-pin automotive relay? A: No. Pin position, coil suppression, contact form, and current rating must all match.
Q: Why did the original relay melt? A: Loose terminals, excessive load, undersized wire, poor ventilation, or a failing motor can generate damaging heat.
Q: How do I confirm this is the correct part? A: Match SLDH-12VDC-1C, coil voltage, terminal diagram, footprint, contact form, current rating, and socket keying.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket item. Brand, model, and part numbers are used only to identify compatible applications.
