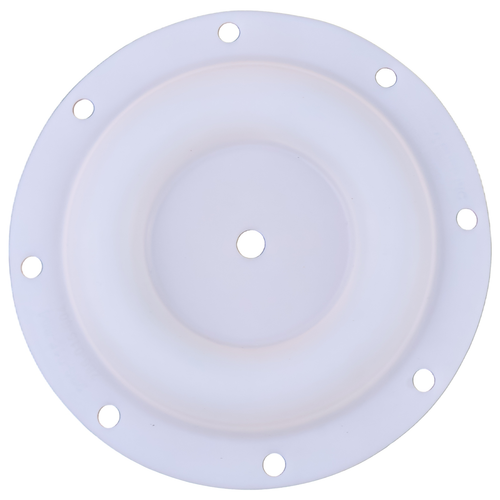

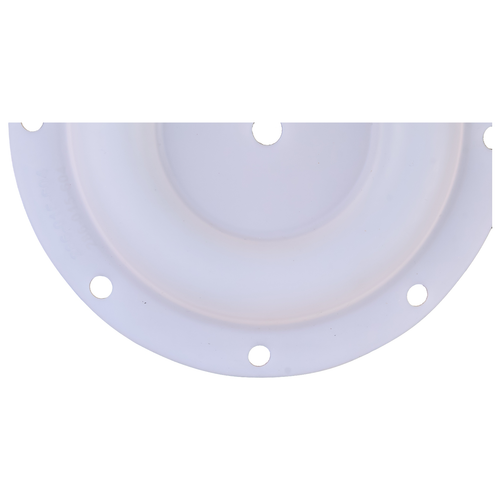

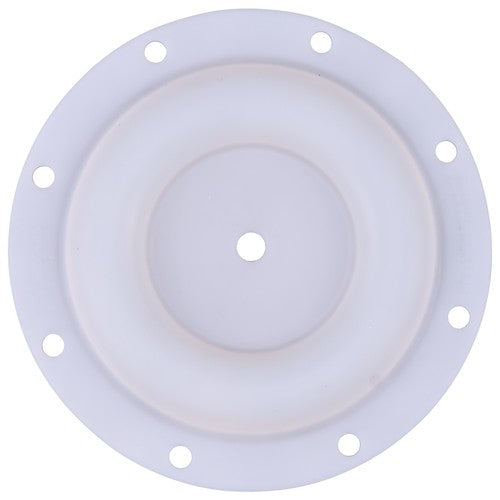

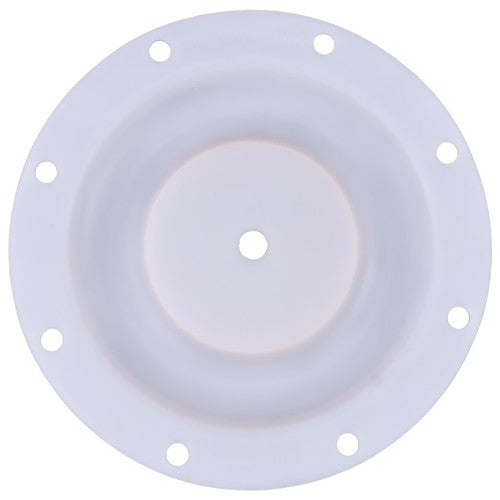

Sandpiper 286-015-604 Overlay Diaphragm for U1F S1F G1F SB1 ST1 ST2 AODD Pumps
$120.89
In Stock
$120.89
Sale price
$120.89
Regular price
This 286-015-604 component is an overlay diaphragm used in compatible Sandpiper air-operated double-diaphragm pumps.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
| Brand / Platform | Application |
|---|---|
| Sandpiper | U1F |
| Sandpiper | S1F, G1F, SB1/SB2 |
| Sandpiper | ET1, ST1, ST2, T1F - configuration dependent |
Product Overview
The diaphragm is a primary wear component separating the air and pumped-fluid sides of an AODD pump. Cracking, chemical attack, fatigue or deformation can reduce pumping performance or allow leakage. When servicing a diaphragm failure, inspect the companion diaphragm, plates, seals and air-valve condition.
Sandpiper's U1F repair documentation identifies 286-015-604 as an overlay diaphragm, typically used in pairs in the pump assembly. Cross-reference catalogs also list U1F, ET1, G1F, S1F, SB1/SB2 and ST1/ST2/T1F families depending on material configuration.
Key Features & Performance
- Overlay diaphragm for AODD pump service
- Sandpiper 286-015-604 reference
- Used as a matched wear component in diaphragm assemblies
- 1-inch pump-family application coverage
Technical Specifications
- Component type: overlay diaphragm
- AODD pump service part
- Quantity required by pump BOM should be confirmed
OE / Reference Numbers
- 286-015-604
Frequently Asked Questions
Is this an OEM part? This listing is for a replacement component. OE and manufacturer numbers are provided as fitment references and do not indicate original-manufacturer production unless the listing specifically states otherwise.
How do I verify fitment? Match the machine or engine model, the existing part number, and the mounting or connection details before ordering.
