Yamaha G22 G29 Drive Drive2 Kingpin and Steering Knuckle Bushing Kit
$46.99
In Stock
$46.99
Sale price
$46.99
Regular price
Kingpin, spindle, and steering-knuckle bushing repair kit for compatible 2003-and-newer Yamaha G22, G29 Drive, and Drive2 golf carts.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- 2003-and-newer Yamaha G22 golf carts with matching steering knuckles
- Yamaha G29 Drive golf carts with matching kingpin design
- Yamaha Drive2 golf carts with matching spindle and bushing layout
Product Overview
Front-wheel wobble, steering play, clunks over bumps, and tires that refuse to hold alignment can come from worn kingpin bushings. Tie-rod ends, wheel bearings, hubs, steering rack, spindles, shocks, and bent suspension parts should be checked at the same time so the front end is repaired as a system.
The kit restores the pivot surfaces that let each steering knuckle turn on its kingpin. Yamaha changed front suspension details across G22, G29, and Drive2 production, making pin diameter, bushing size, thrust hardware, and the removed-parts layout the final fitment test.
Key Features & Performance
- Renews worn steering-knuckle pivot points
- Supports tighter steering and more stable toe adjustment
- Includes kingpin and bushing hardware for the matching front-end design
- Cross-references common Yamaha steering parts used from 2003 forward
Replaces Part Numbers
- 2NL-23448-00-00
- 90381 series kingpin bushings as physically matched
Common Uses
- Removing side play at the steering knuckle
- Repairing clunks caused by worn kingpin bushings
- Refreshing both front pivots during steering service
- Preparing the cart for a proper toe and steering alignment
Technical Specifications
- Product Type: Kingpin and Steering Knuckle Bushing Kit
- Position: Front steering pivots
- Application Years: 2003 and newer matching layouts
- Condition: New aftermarket

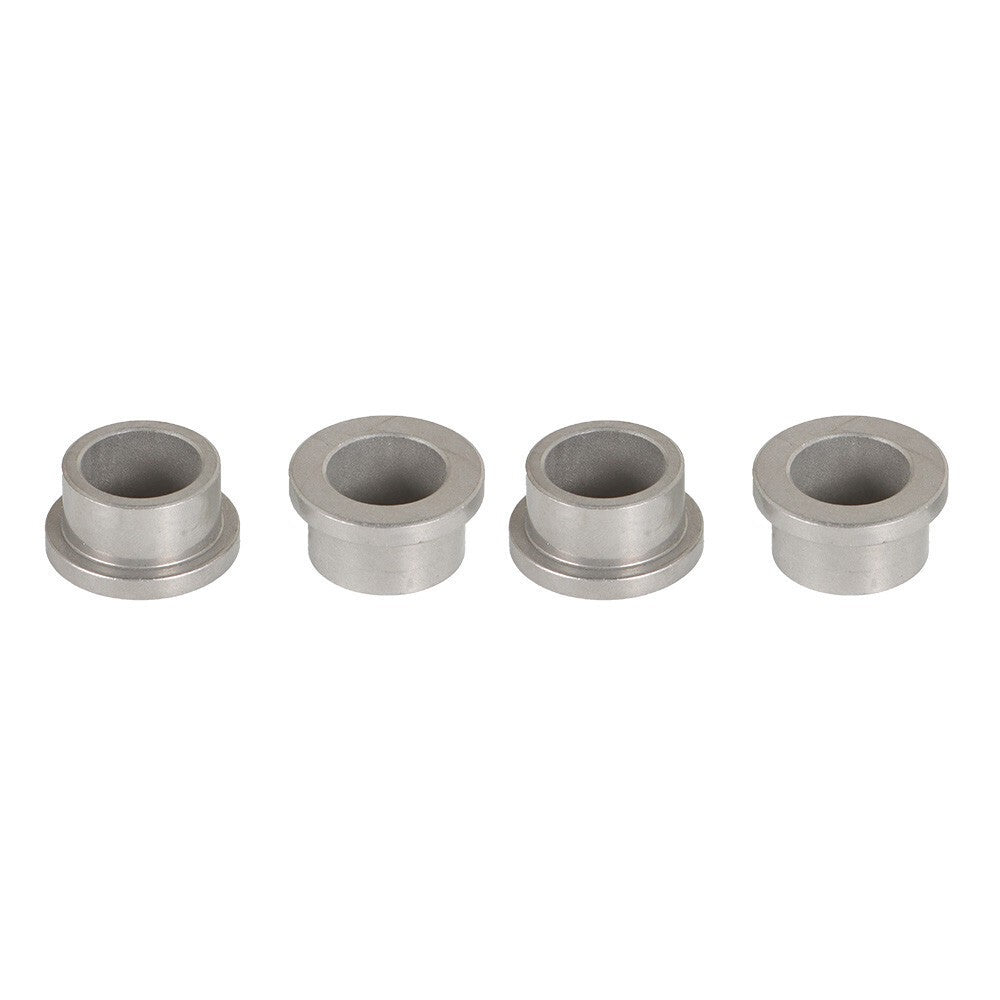

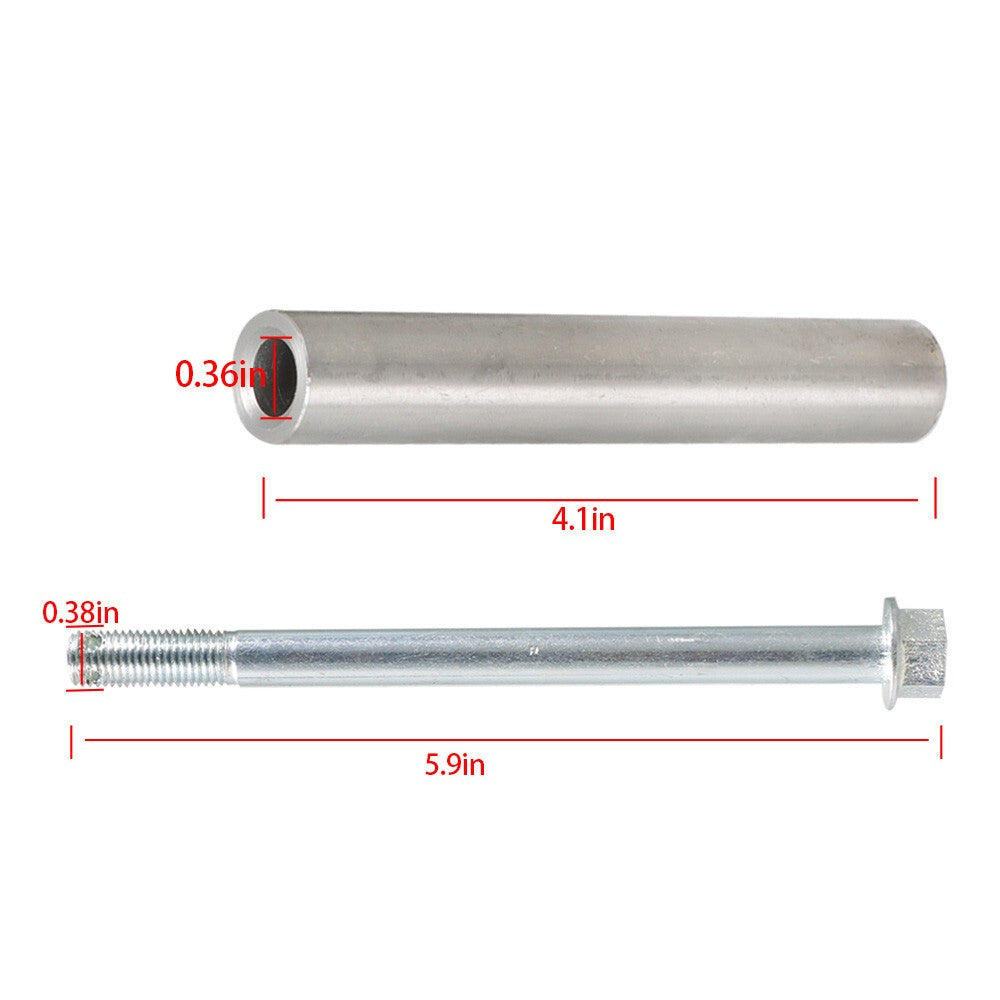

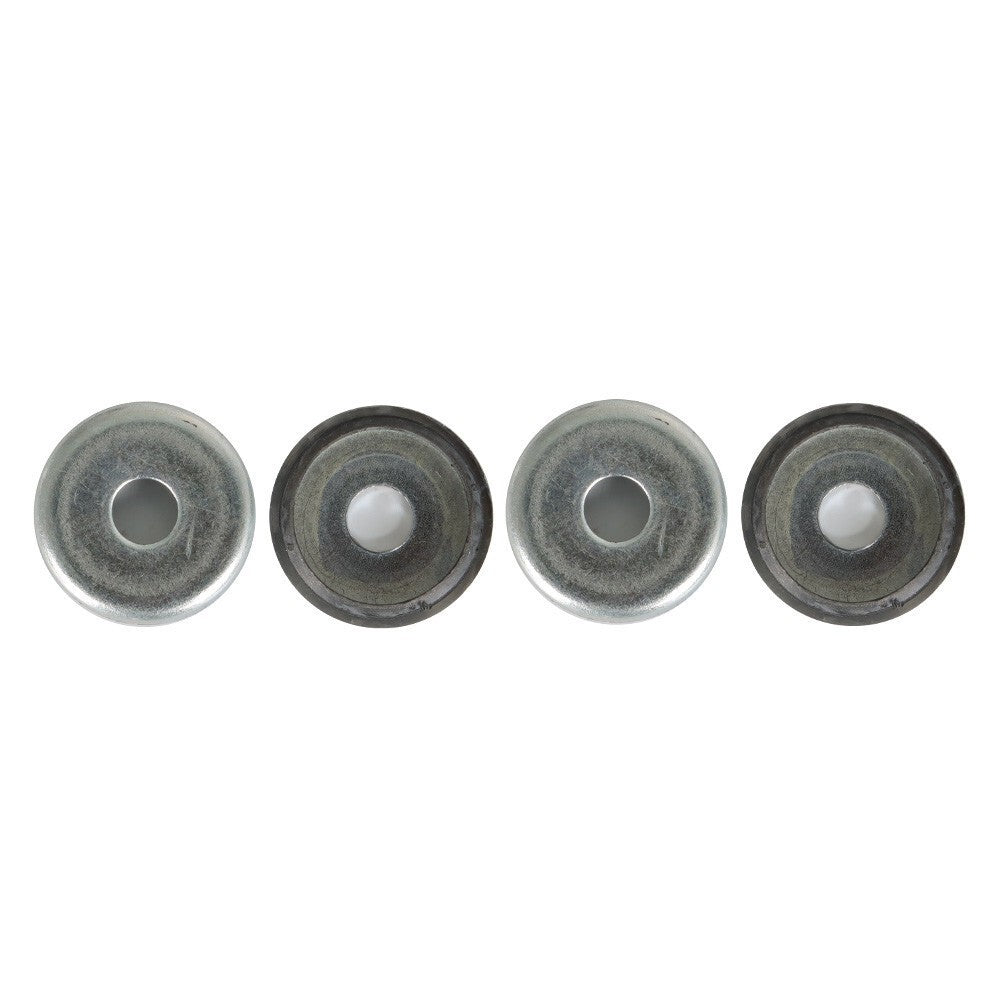

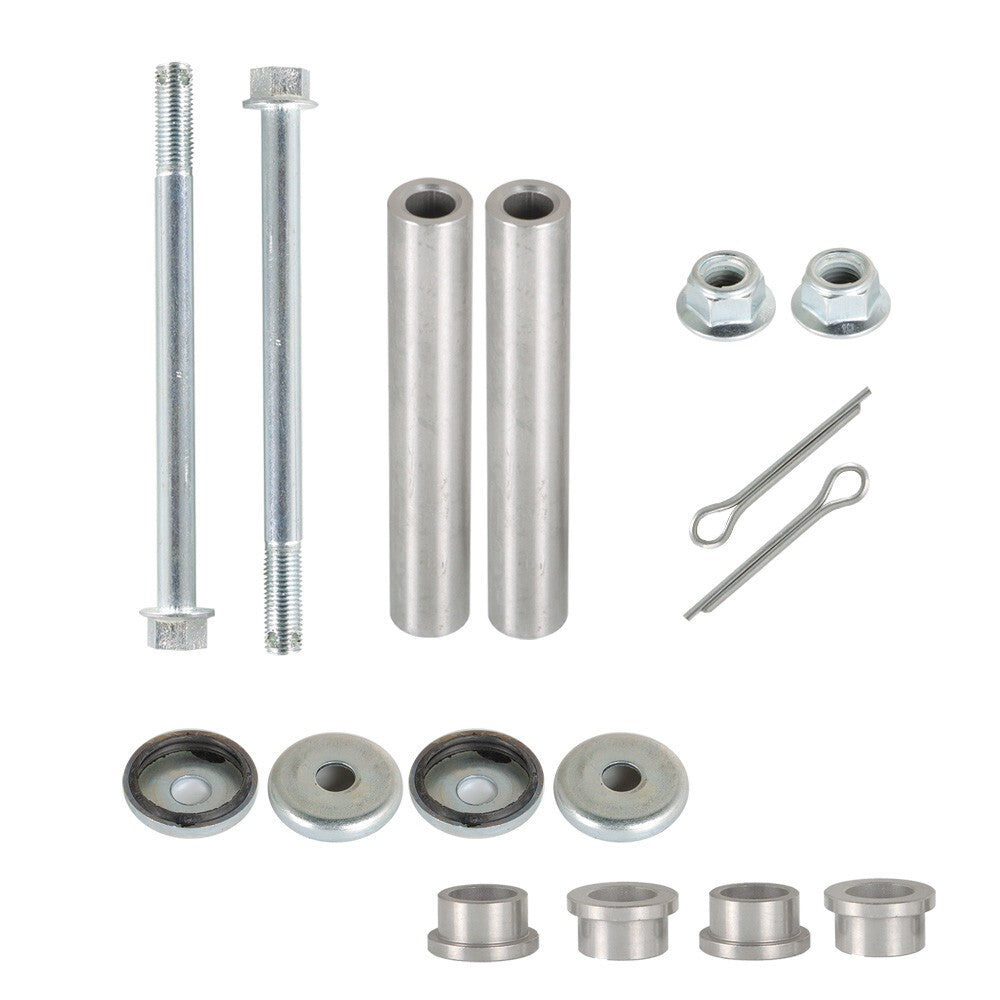

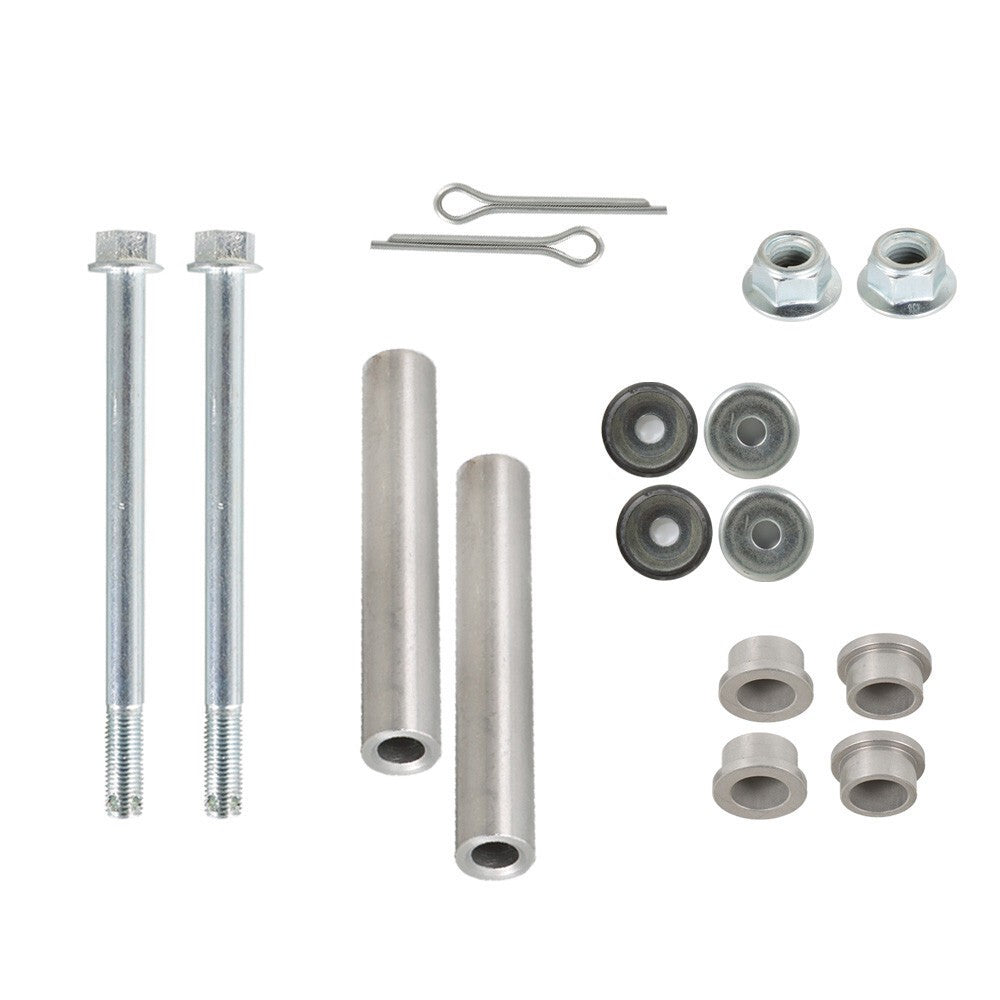

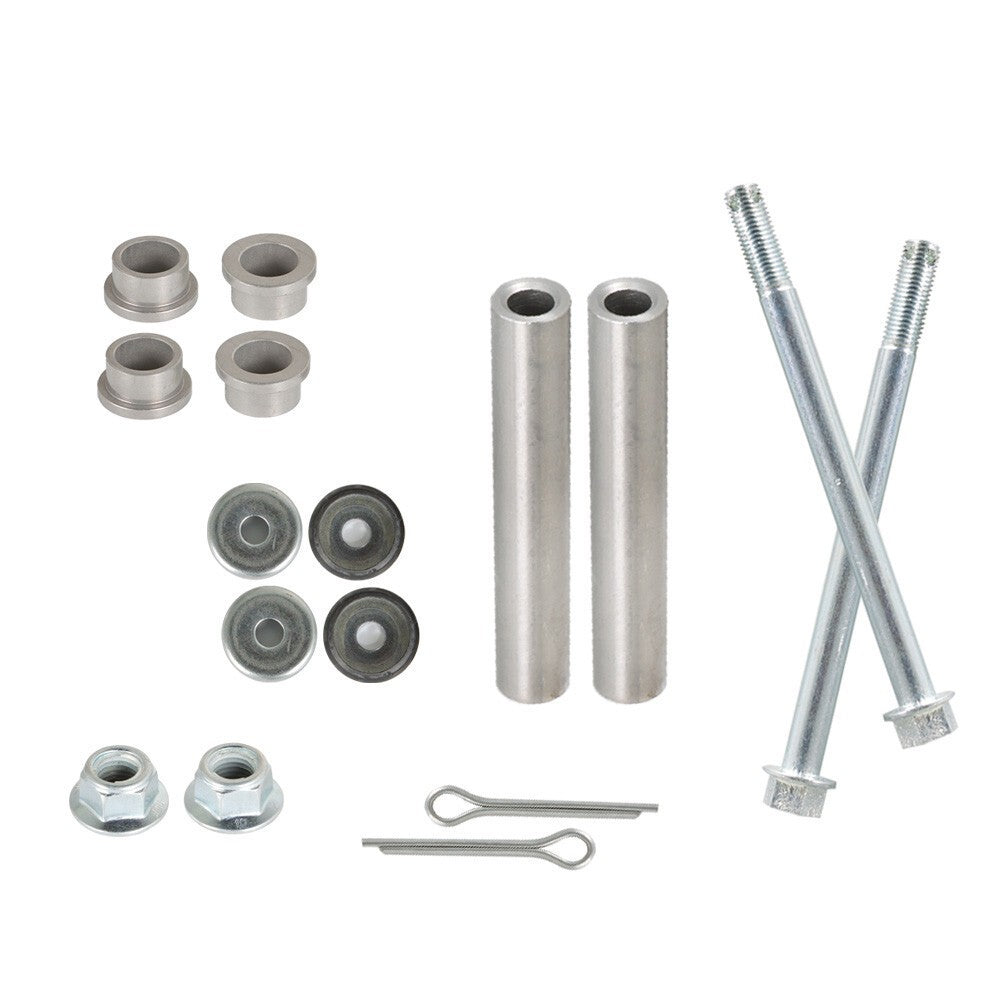

- Contents: Compare pictured pins, bushings, and hardware with the removed assembly
Installation & Fitment
- Raise and support the cart on rated stands and check every steering joint
- Compare pin diameter, bushing length, thrust washers, retaining hardware, and spindle bore
- Press bushings squarely and lubricate only where Yamaha specifies
- Torque fasteners, verify free steering movement, and set toe after installation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model, production date, serial number, electrical or fuel-system version, dimensions, installed options, and previous repairs can affect fitment. Compare the original part and application information before purchase.
Frequently Asked Questions
Q: Will this kit fix every loose steering complaint? A: No. Tie-rod ends, rack bushings, wheel bearings, hubs, and bent spindles can also create play.
Q: Why is alignment needed afterward? A: Removing steering knuckles and correcting pivot play can change toe readings; final adjustment protects handling and tire wear.
Q: How do I confirm fitment before ordering? A: Match the original reference number where available, then compare the removed part, dimensions, connections, mounting details, model, serial or production information, and package photos.
Q: Is this an original-equipment part? A: No. This is a new aftermarket part. Brand names and reference numbers are used only to identify compatible applications.
Part Summary
keywords: Yamaha G22 kingpin kit, G29 Drive steering bushings, Drive2 spindle repair, golf cart knuckle bushing kit, Yamaha front end wobble, 2NL-23448-00 kingpin
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
