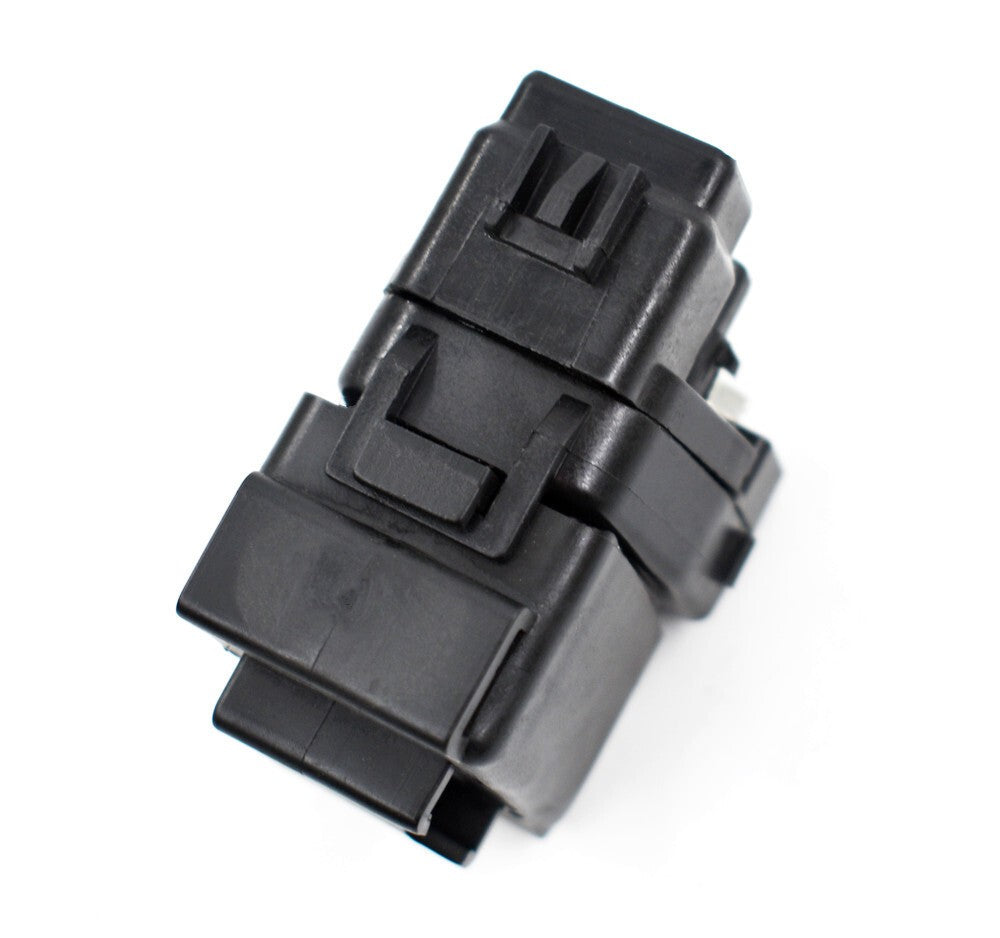

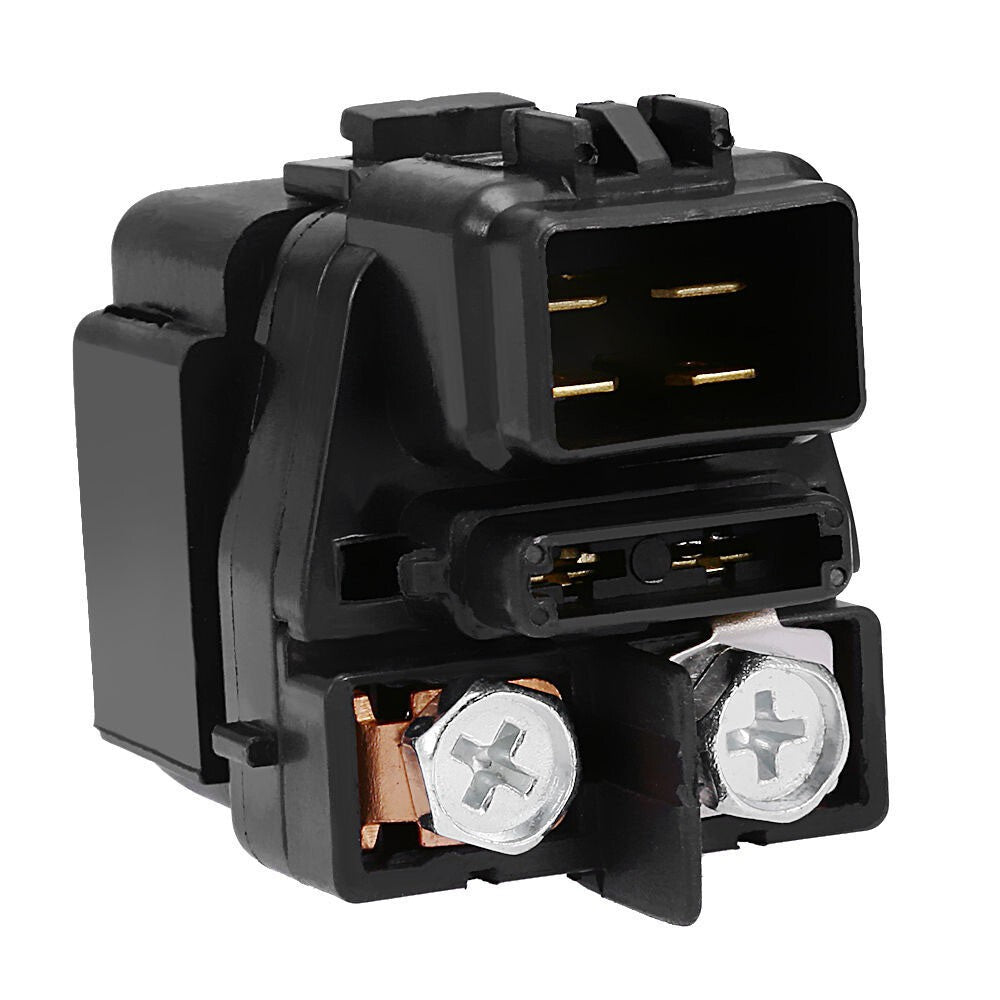

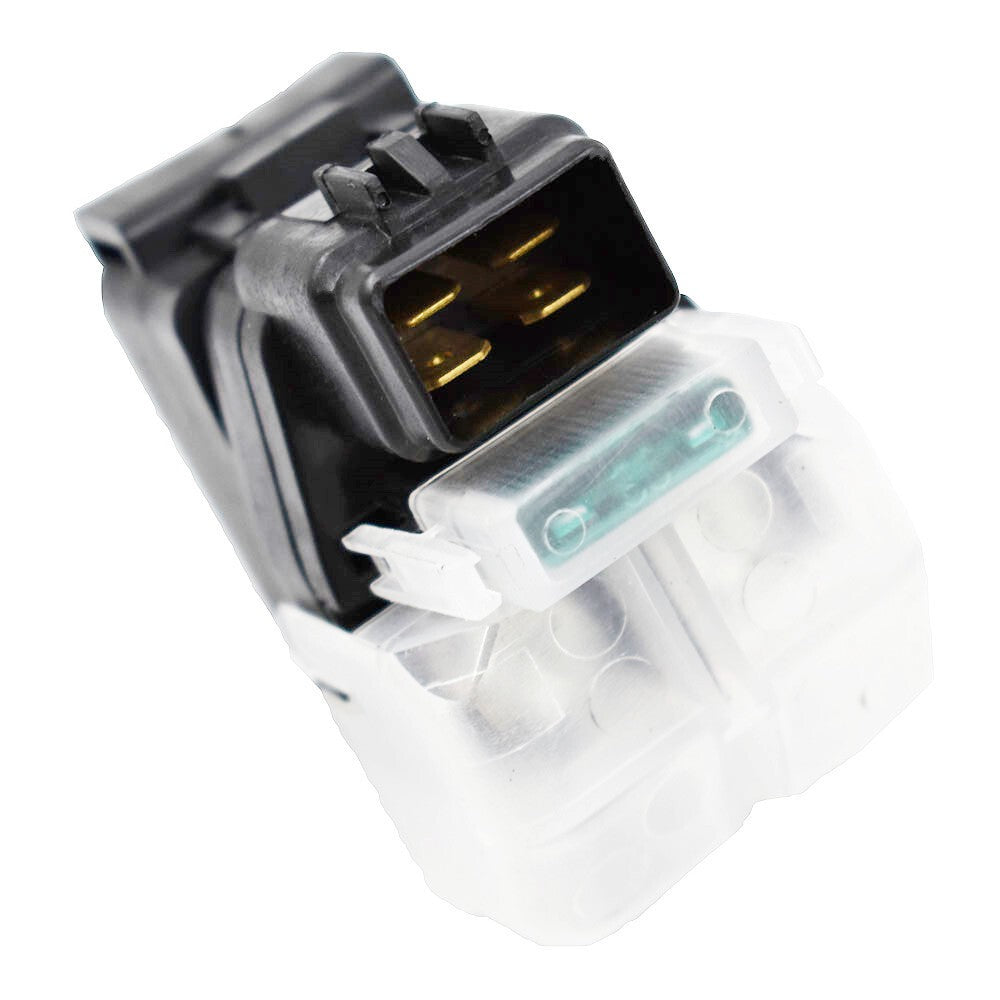

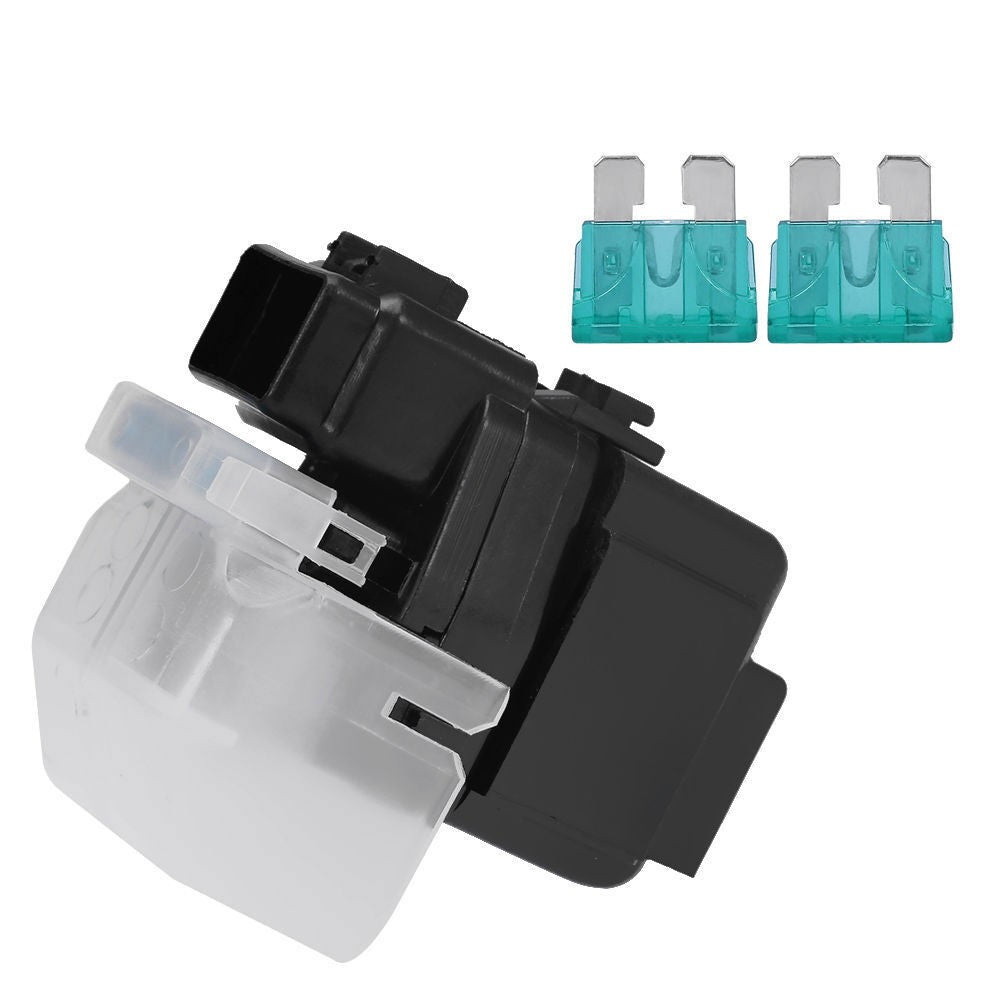

12V Starter Relay for Arctic Cat 375, 400, 454 & 500 ATVs - 1996-2005
$22.99
In Stock
$22.99
Sale price
$22.99
Regular price
This 12-volt starter solenoid relay fits select Arctic Cat 375, 400, 454, and 500 2x4/4x4 ATVs from 1996-2005.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Arctic Cat 375 2x4 / 4x4 (2002)
- Arctic Cat 400 2x4 / 4x4 (1998-2005)
- Arctic Cat 454 2x4 / 4x4 (1996-1998)
- Arctic Cat 500 2x4 / 4x4 (1998-2003)
- Suzuki QuadMaster LT-A500F (2000-2001)
- Suzuki QuadRunner LT-F500F (1998-2002)
Product Overview
When the start button produces a click but the engine does not crank, the relay may have burned contacts after battery strength, grounds, cables, safety switches, and starter current draw are checked. This relay carries battery current to the starter on the listed Arctic Cat applications.
The same style is also used on certain Suzuki 500 ATVs, but terminal position and the control connector must match. Reversing the battery and starter cables or overtightening the studs can damage the replacement.
Key Features & Performance
- 12V high-current starter relay
- Fits both 2x4 and 4x4 versions where listed
- Replacement for intermittent or heat-damaged contacts
- Compatible with select Arctic Cat and Suzuki 500 applications
- Compact bolt-on electrical repair
Common Uses
- Repairing a no-crank condition after voltage testing
- Replacing corroded high-current studs
- Correcting intermittent starter engagement
- Servicing a relay that overheats under starter load
Technical Specifications
- Product Type: Starter solenoid relay
- Voltage: 12 V
- Application: Select Arctic Cat and Suzuki ATVs
- Drive Types: 2x4 and 4x4 where listed
- Condition: New
- Replacement Type: Aftermarket
Installation & Fitment
- Disconnect the battery negative cable first
- Load-test the battery and perform voltage-drop checks on both starter cables
- Label the two large cables and the control-wire connector
- Compare stud size, spacing, fuse provision, and mounting bracket
- Reconnect the battery last and confirm repeated cold and hot cranking
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Match model, year, 2x4/4x4 application, control plug, stud positions, mounting bracket, and the original relay shape. Model year, production date, serial number, trim, engine, installed options, and previous repairs can affect fitment.
Frequently Asked Questions
Q: Can I bypass the relay to test it? A: High-current bypass testing can arc and cause injury or vehicle damage; use a meter and the service-manual test procedure instead.
Q: What if the relay chatters rapidly? A: Rapid chatter usually points to low battery voltage, poor cable connections, or a weak ground rather than the relay alone.
Q: What should I compare before ordering? A: Match model, year, 2x4/4x4 application, control plug, stud positions, mounting bracket, and the original relay shape.
Q: Is this supplied by the original equipment manufacturer? A: No. This is a new aftermarket part. Brand names and reference numbers identify fitment only.

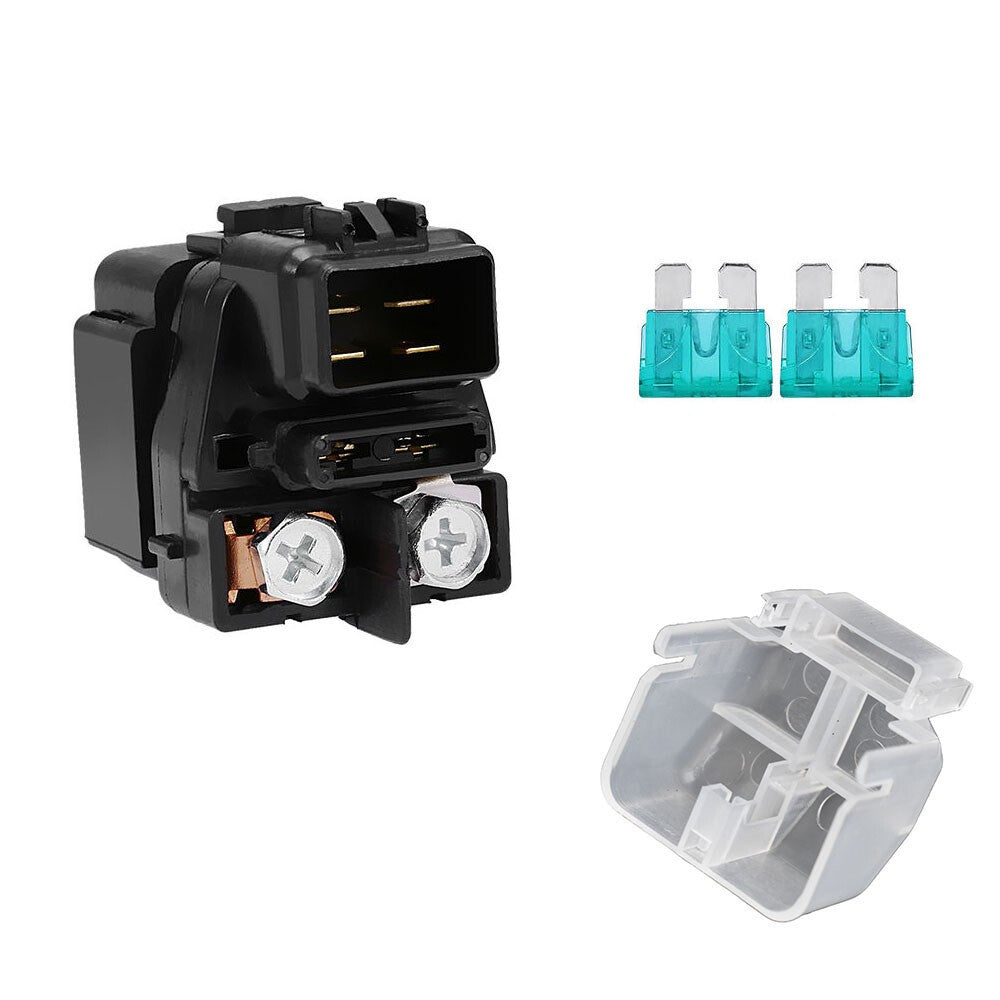

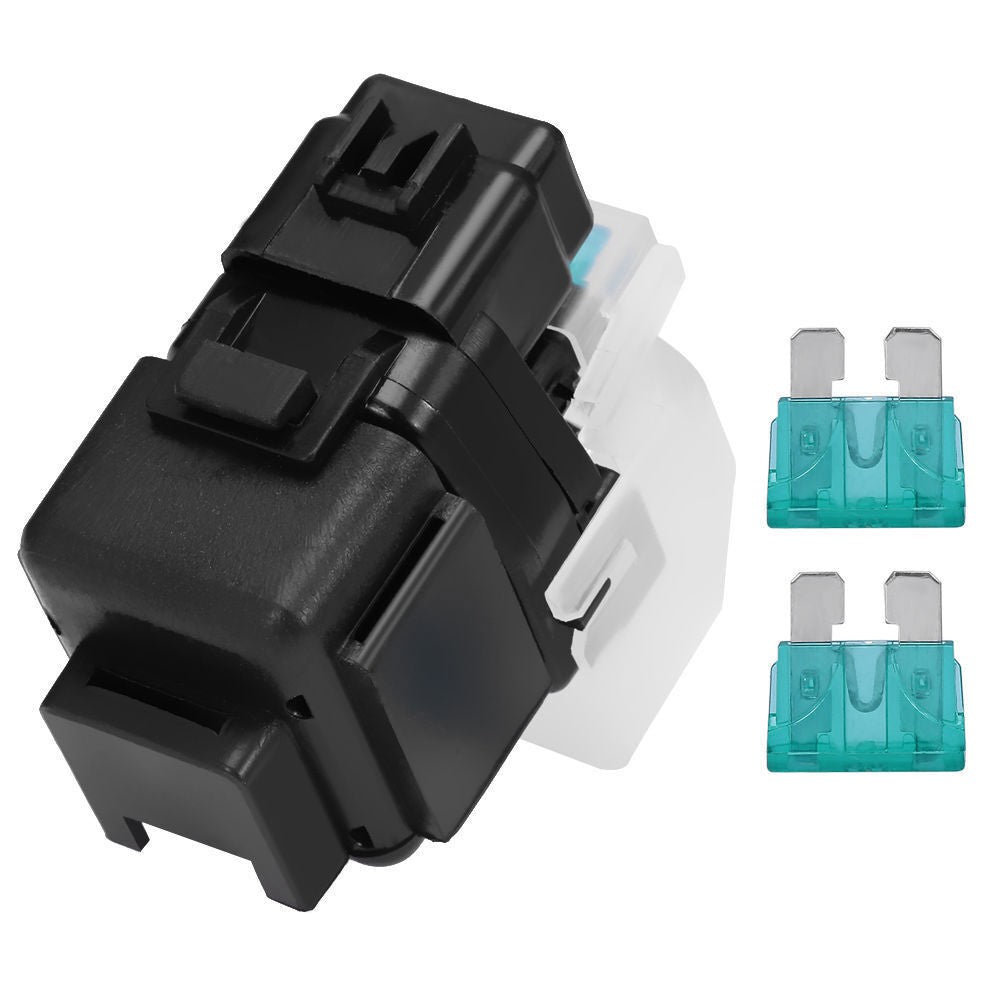

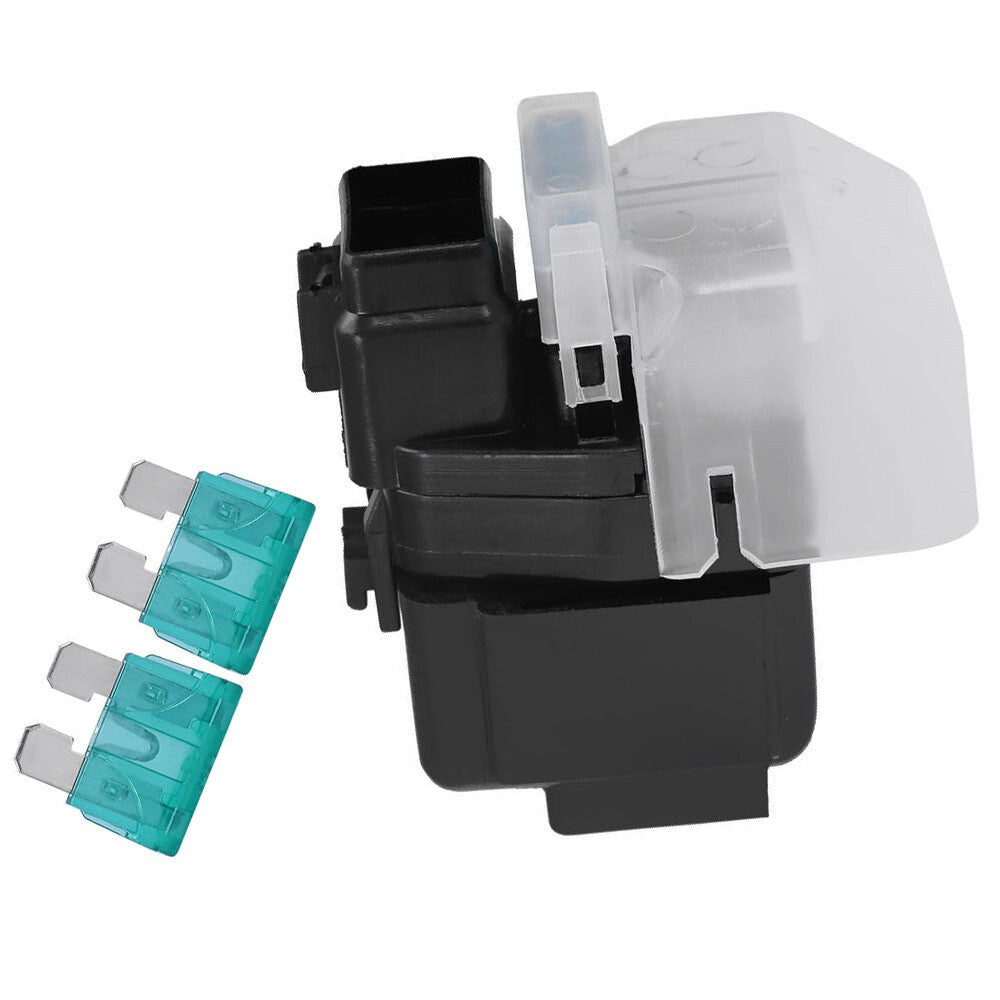

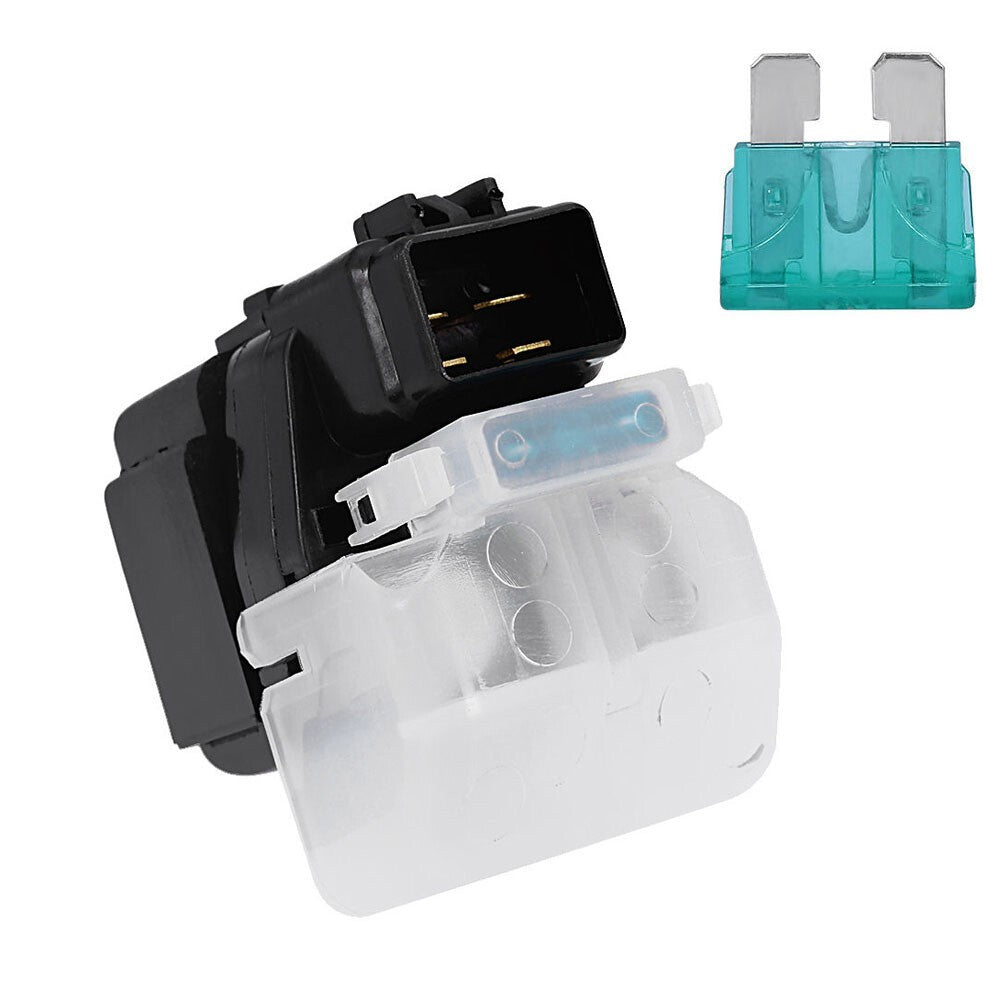

Package note: One 12V starter relay is included with terminal hardware only when pictured.
Part Summary
keywords: Arctic Cat 400 starter relay, Arctic Cat 375 no crank solenoid, 454 ATV starter relay, 12V Arctic Cat solenoid, Suzuki LTA500F starter relay, 1998-2005 ATV electrical repair
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
