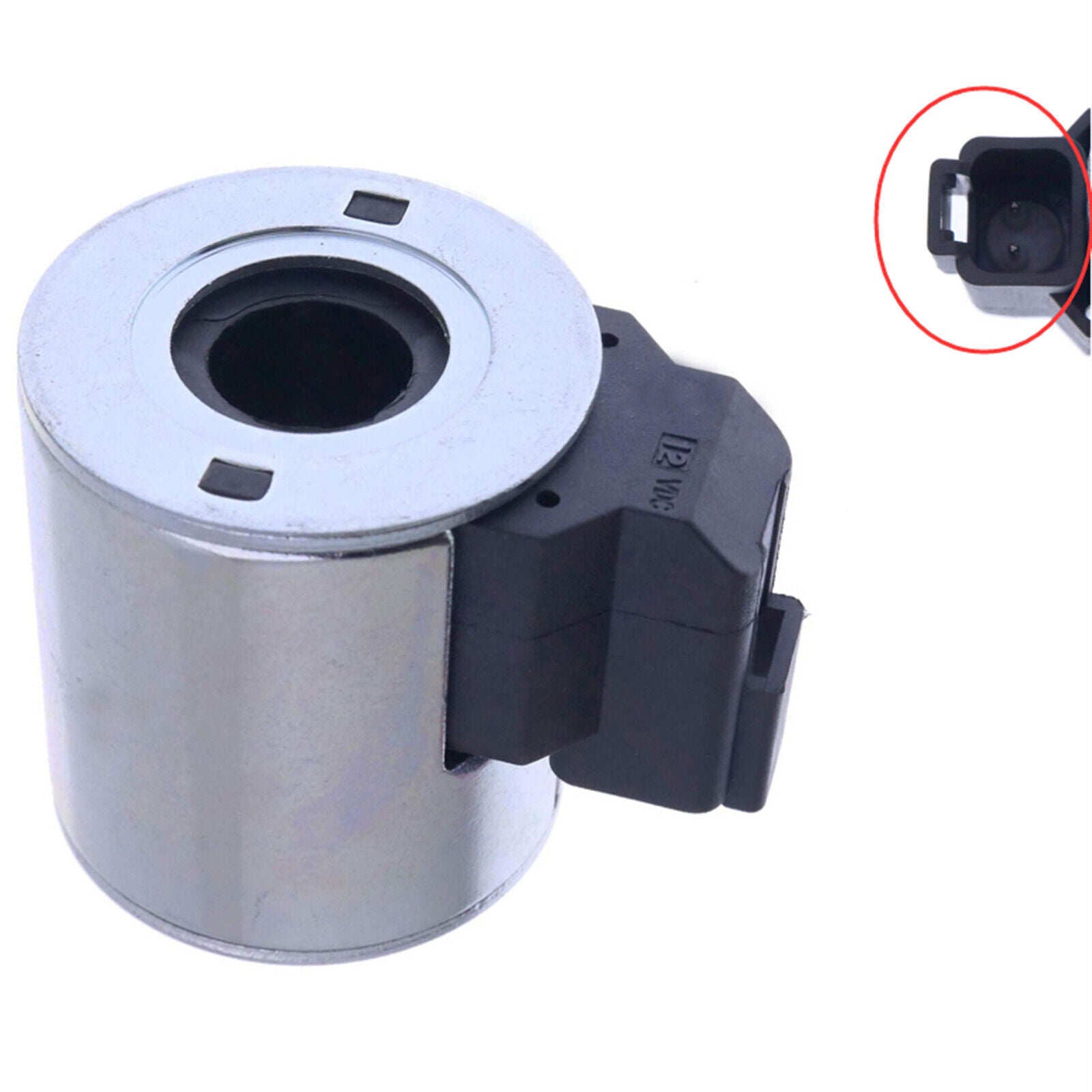

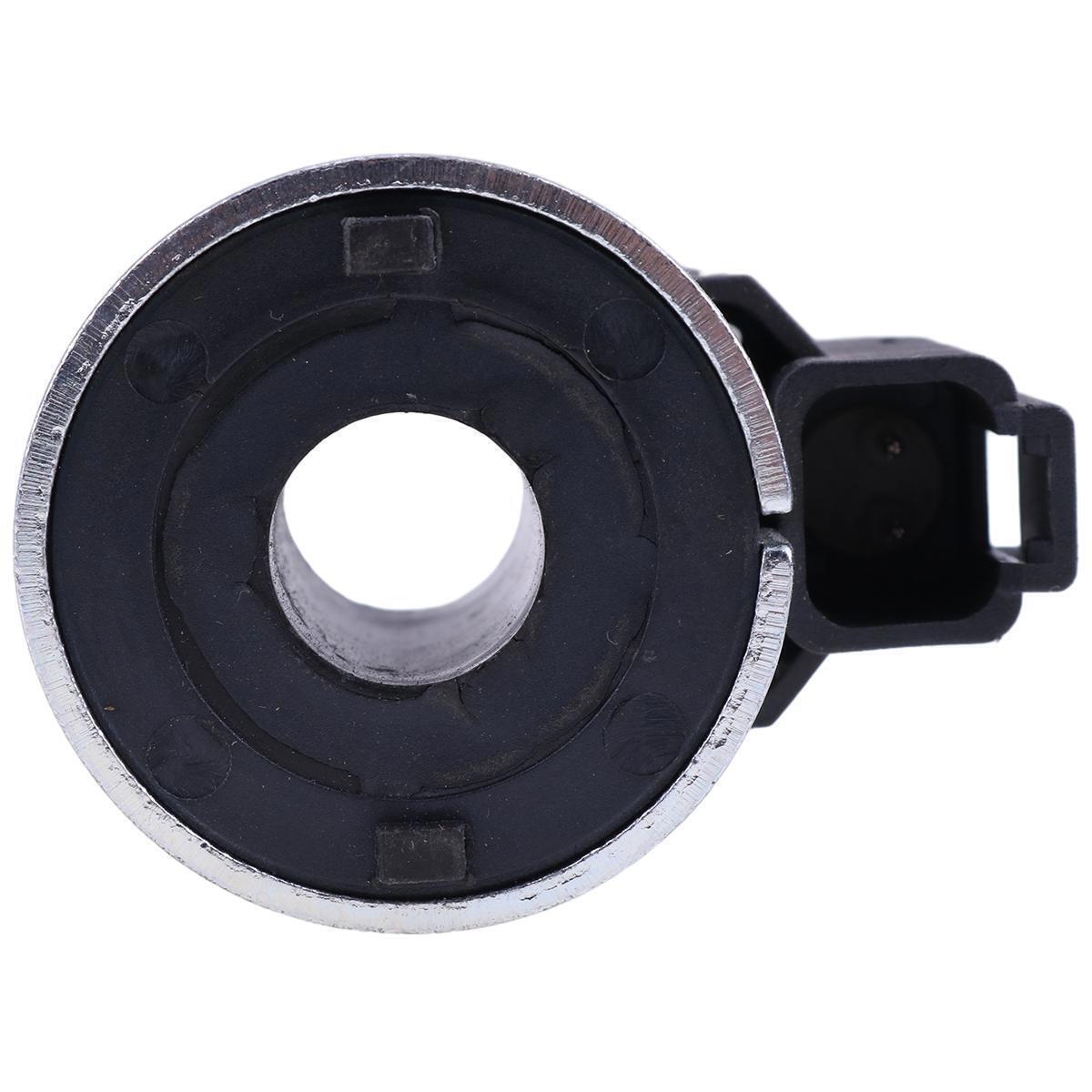

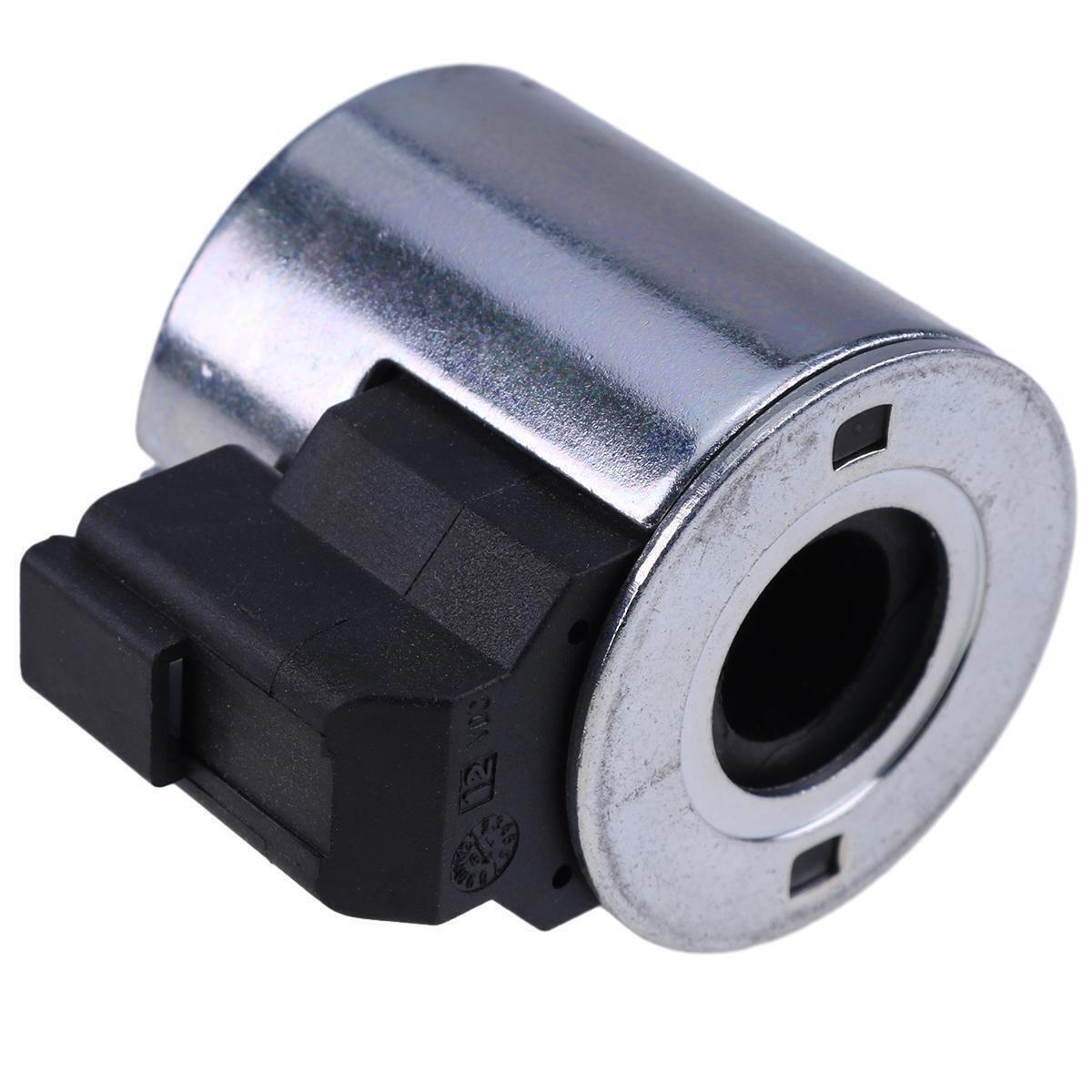

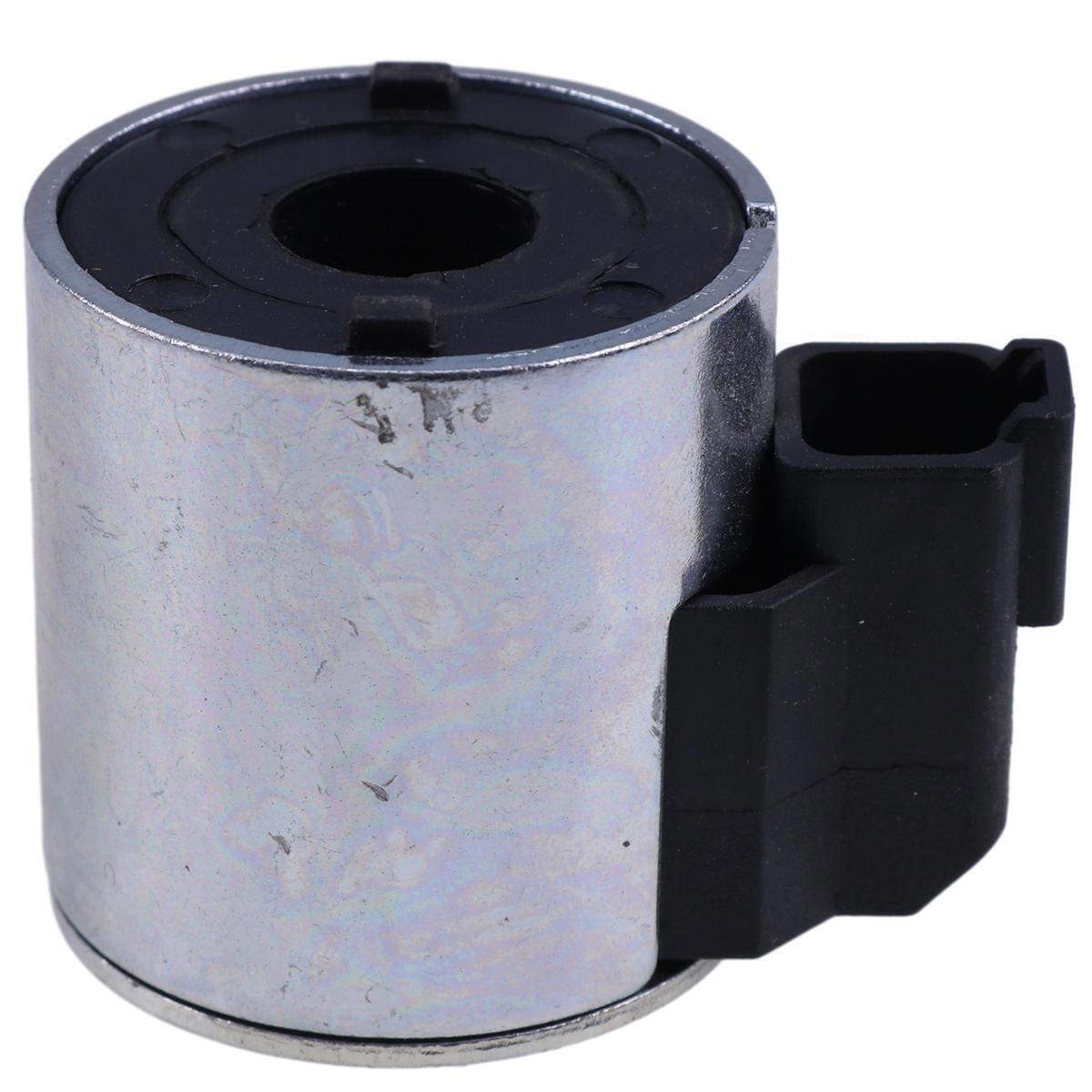

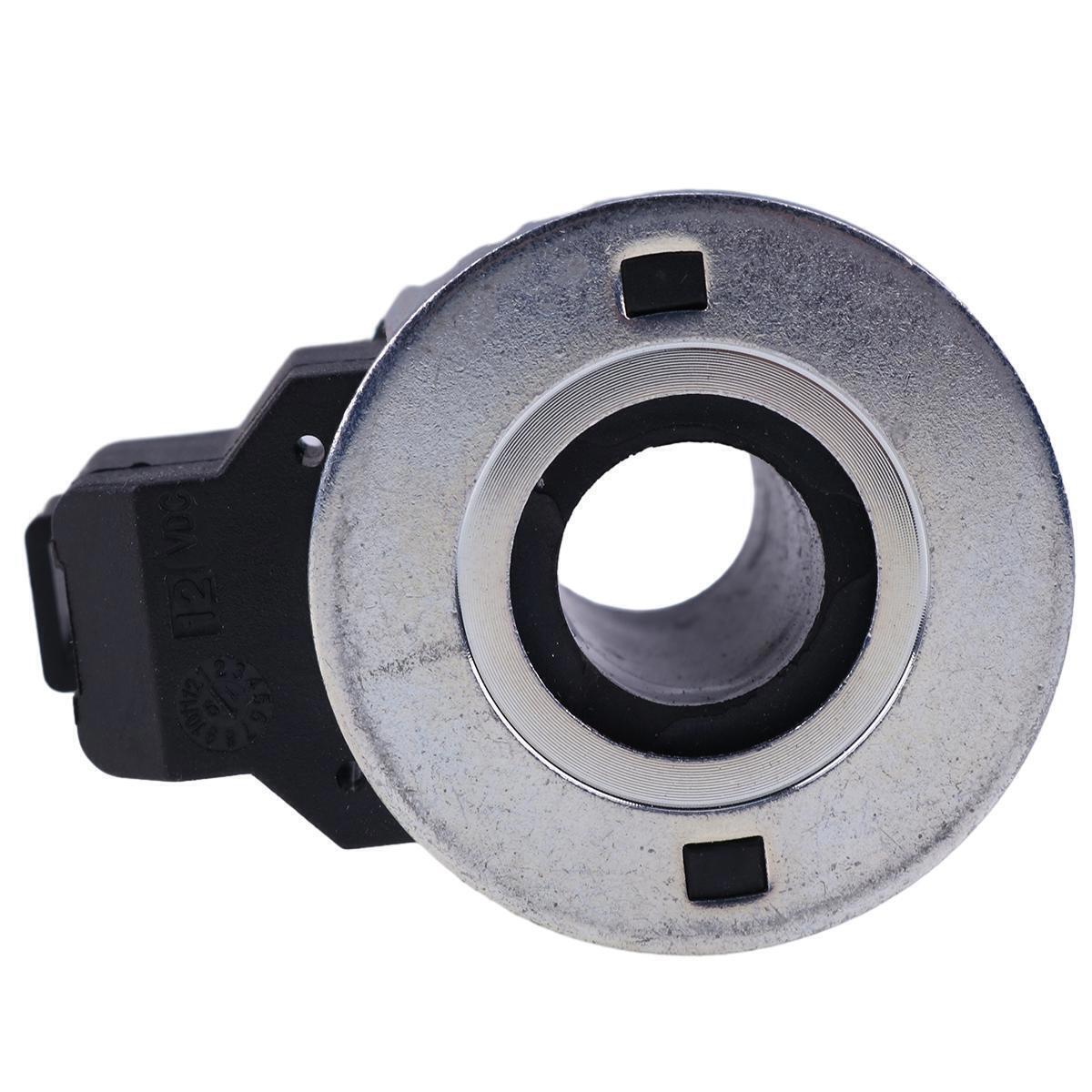

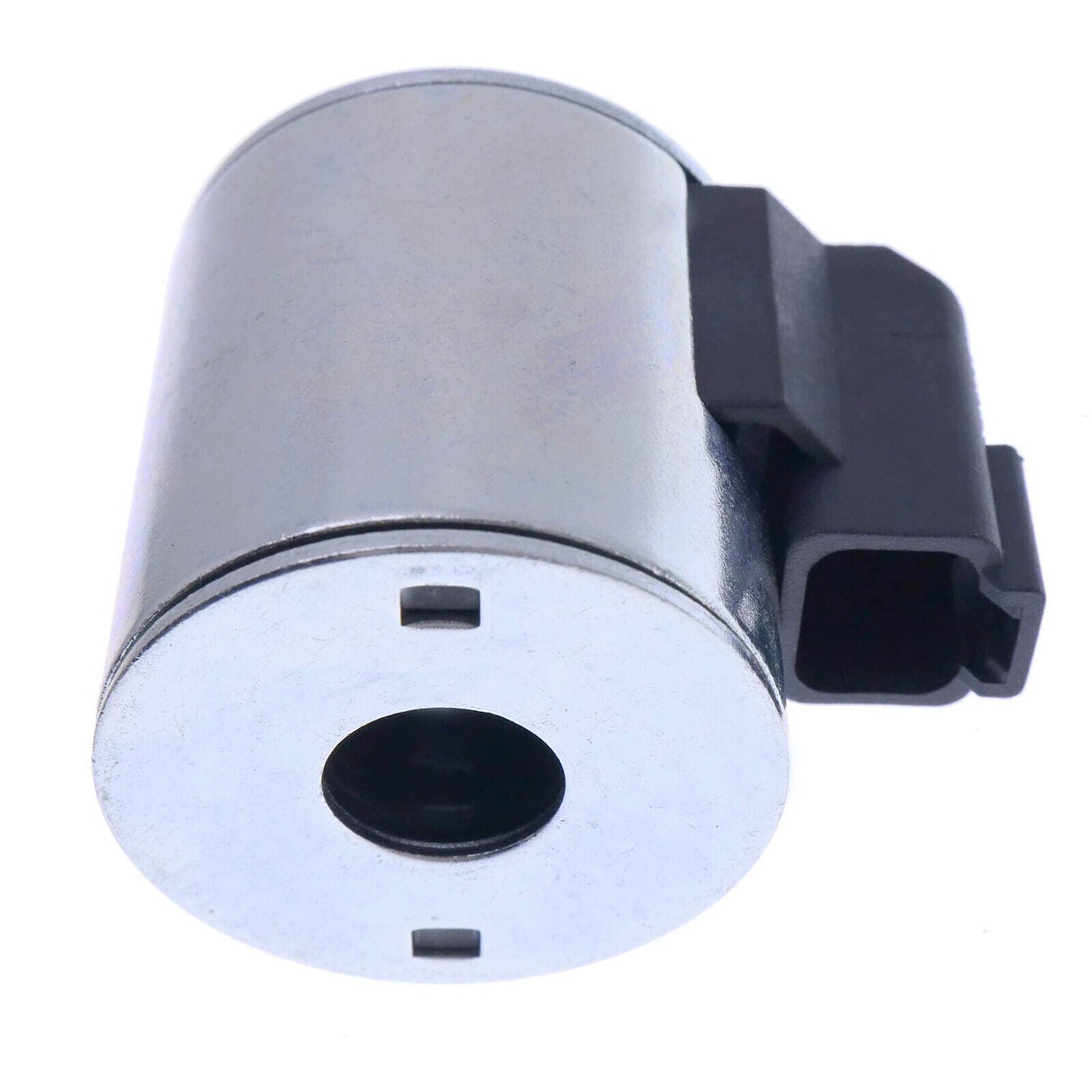

Auto Crane 12V Solenoid Valve Coil 460160002
$124.99
In Stock
$124.99
Sale price
$124.99
Regular price
This new aftermarket 12-volt DC solenoid valve coil replaces Auto Crane 460160002 for compatible 5005H, 6406H, and 8406H service cranes.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- Auto Crane 5005H service crane
- Auto Crane 6406H service crane
- Auto Crane 8406H service crane
Product Overview
A crane function that works in one direction but not the other, operates only when the coil is moved, or shows an open electrical circuit may have a failed coil. Remote commands, wiring, grounds, valve spool, hydraulic pressure, and safety interlocks must be tested first.
The coil creates a magnetic field that shifts the matching hydraulic cartridge or valve stem when energized. It is not the hydraulic valve itself and will not repair a stuck spool or leaking cartridge.
Match 460160002, 12 VDC, about 7.1 ohms / 1.7 amps / 20.5 watts where printed, Deutsch connector, approximately 5/8-inch center bore, coil length, valve stem, crane model, and serial number.
Key Features & Performance
- 12-volt DC hydraulic solenoid coil
- Approximate 7.1-ohm, 1.7-amp, 20.5-watt electrical specification; verify marking
- Deutsch-style electrical connector
- Approximately 5/8-inch coil bore for the matching valve stem
Replaces Part Numbers
- 460160002
Common Uses
- Replacing a coil with an open or shorted winding
- Repairing an intermittent crane function after harness tests
- Restoring valve actuation when the hydraulic cartridge moves freely
Technical Specifications
- Product Type: Hydraulic solenoid valve coil
- Voltage: 12 VDC
- Nominal Power: 20.5 watts; verify original
- Condition: New aftermarket replacement
Installation & Fitment
- Stow and secure the crane and follow lockout procedures
- Relieve hydraulic pressure and disconnect electrical power
- Measure the old coil and identify the valve stem
- Inspect connector pins and harness voltage drop
- Install, energize briefly, and confirm the correct function without overheating
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application that is not shown above. Model year, production date, serial number, engine or equipment specification, installed options, and previous repairs can change fitment. Match the original part, reference number, dimensions, connectors, mounting points, and product photos before purchase.
Frequently Asked Questions
Q: Does this include the hydraulic valve cartridge? A: No. This listing is for the electrical coil shown.
Q: Can I replace it based only on crane model? A: No. Match 460160002, voltage, connector, bore, and valve-stem dimensions.
Q: Why does the new coil click but the crane still not move? A: The valve spool, hydraulic supply, controller, relief setting, or mechanical system may be at fault.
Q: Is this an original-equipment part? A: No. This is a new aftermarket product. Brand names and part numbers are used only to identify compatible applications.
