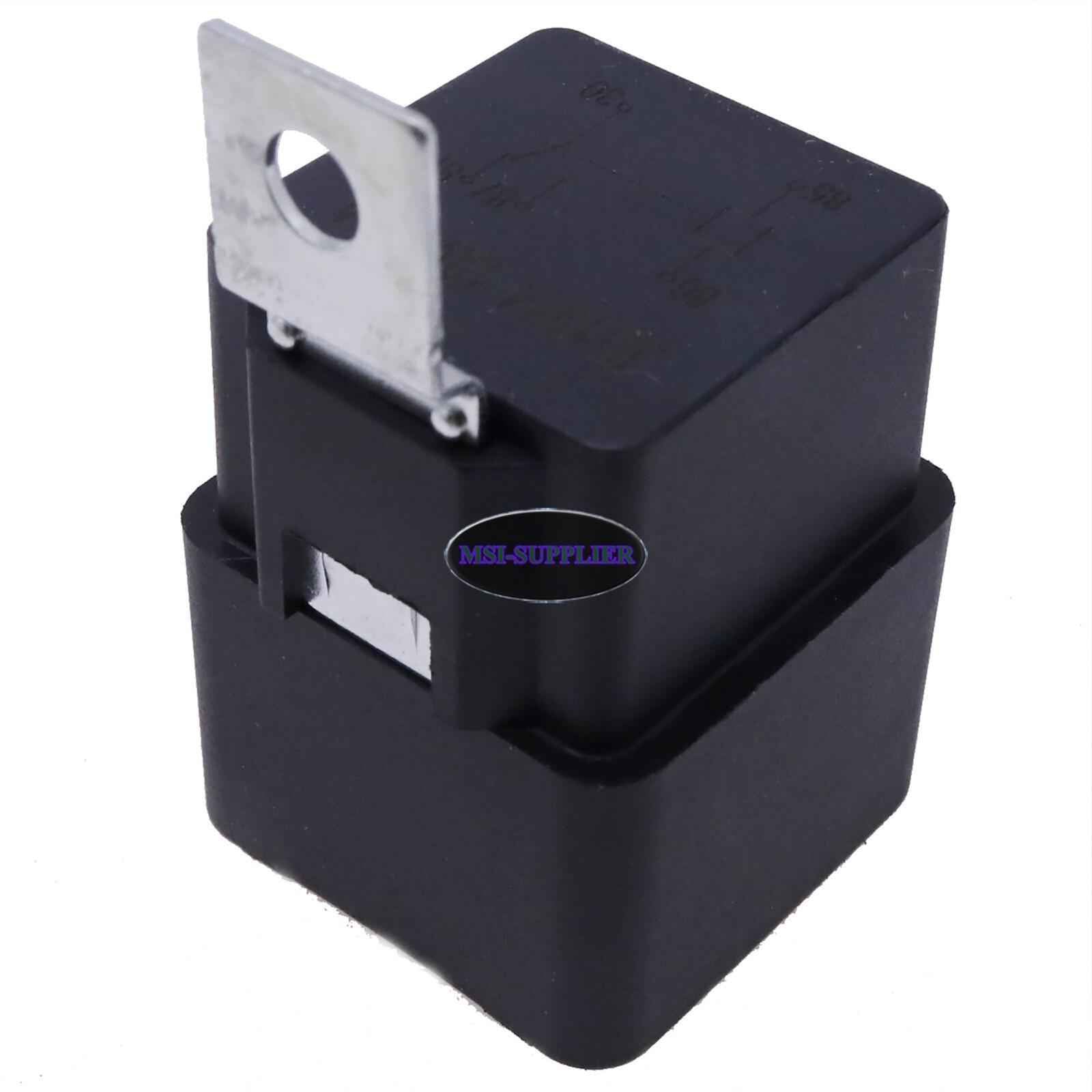

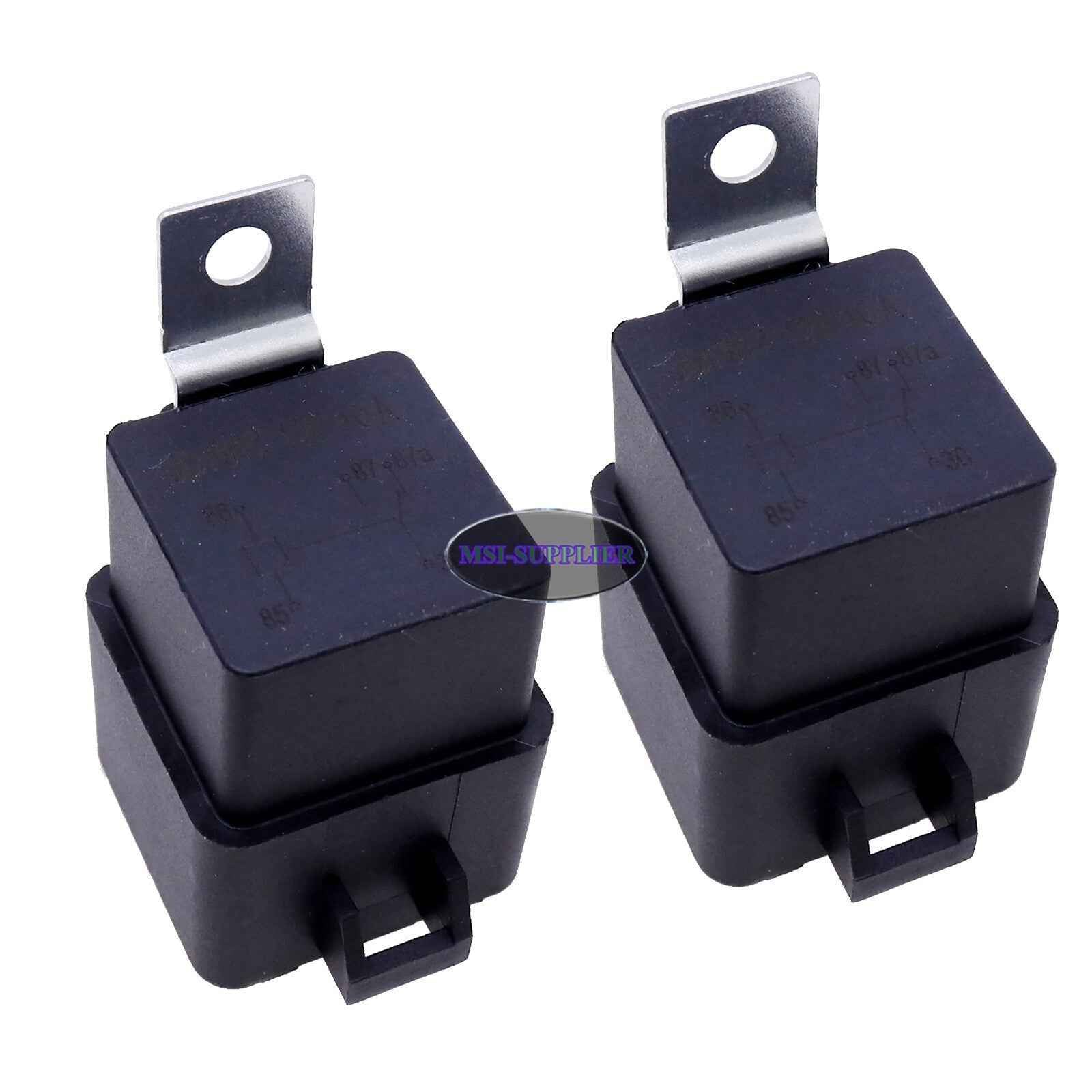

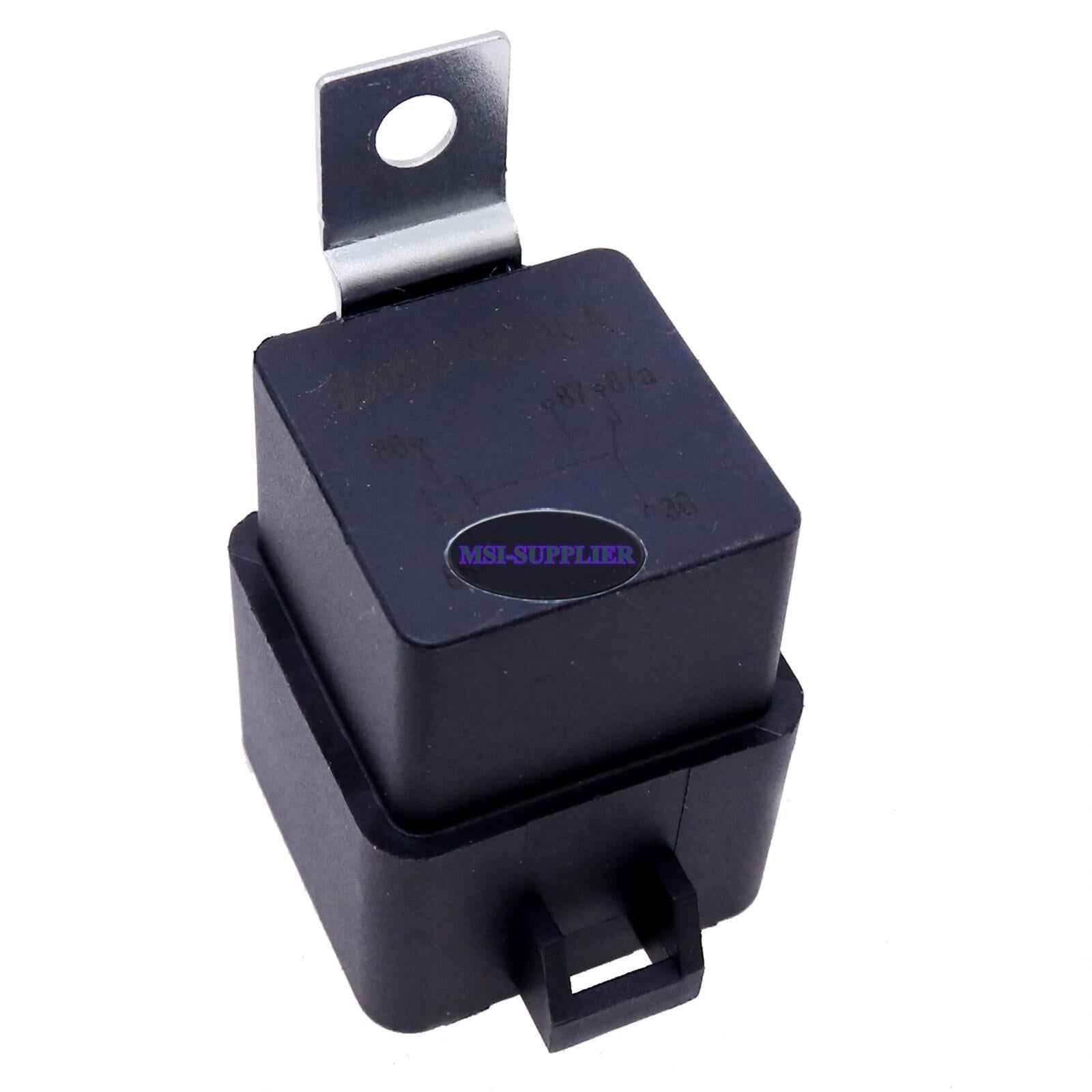

12V Electrical Relay for John Deere Gator HPX 4x2 4x4 Trail and 6x4 Replaces AT75769
$32.99
In Stock
$32.99
Sale price
$32.99
Regular price
This aftermarket 12V plug-in relay replaces AT75769 for compatible John Deere Gator utility vehicles.
Estimated delivery between
Let Northline Parts Do the Heavy Lifting for You!
Not sure which part you need? Our team can help you find the right replacement.
Parts Support Hours: Monday–Friday, 8:00 AM–5:00 PM CT
Live Chat: Available 24/7
I reached out for some replacement head bolts and they responded quickly with a few questions and cautionary information and is sending me some bolts. Great customer service! Thanks
Edward H. — Verified customer
Compatible Models
We do our best to list all compatible models. Although this may be the part you need, your exact model may not appear below.
Compatible equipment / model
- John Deere Gator HPX 4x2
- John Deere Gator HPX 4x4
- John Deere Gator HPX Trail 4x4
- John Deere Gator 6x4
Product Overview
A relay can fail intermittently—working cold, then dropping a circuit after vibration or heat. That can leave a starter, fuel, fan, or accessory circuit dead even when the switch side is working.
For the repair to hold up, the part still has to match the original application. This relay is a replacement for compatible Gator electrical panels using AT75769. Match the blade count, pin pattern, case shape, and circuit assignment before swapping it.
Key Features & Performance
- 12-volt relay design

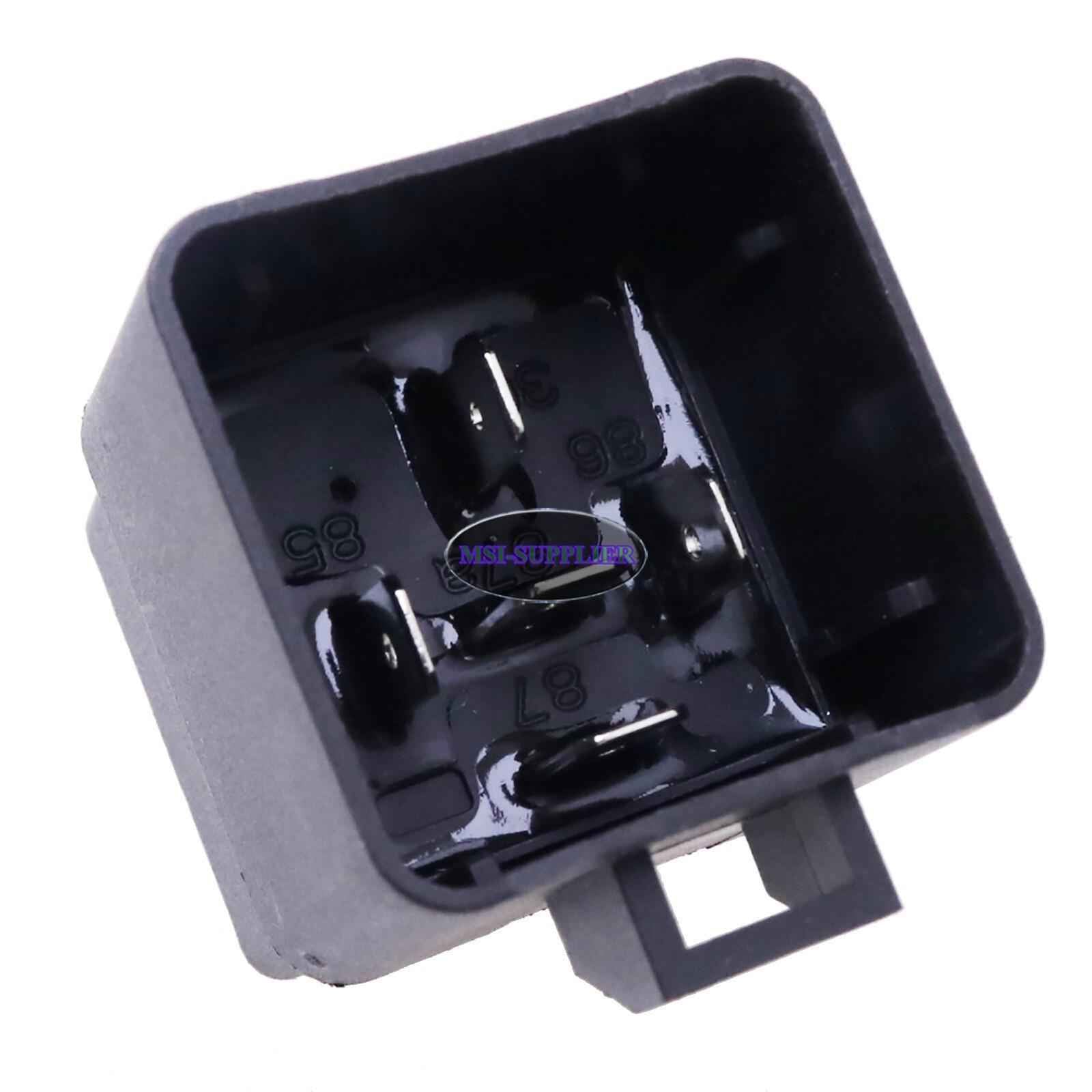

- Plug-in blade-terminal layout
- Compact sealed-style housing
- Restores switching in compatible Gator circuits
Replaces Part Numbers
- AT75769
Common Uses
- Replacing a confirmed failed or damaged plug-in electrical relay
- Correcting the symptoms described in the product overview after testing related parts
- Restoring dependable operation during repair or scheduled service
- Matching one of the listed reference numbers or compatible applications
Technical Specifications
- Product Type: Electrical relay
- System Voltage: 12V
- Primary Part Number: AT75769
- Replacement Type: Aftermarket
Installation & Fitment
- Turn the key off and disconnect the battery
- Locate the relay by wiring diagram, not guesswork
- Compare the pin diagram and terminal pattern
- Test the affected circuit after installation
Compatibility Notice
Northline Parts does its best to list all known compatible models, but the correct part may fit an application not shown.
Model names alone do not guarantee fitment. Production dates, serial-number breaks, engine packages, wiring, and installed options can change the part used on otherwise similar equipment.
Frequently Asked Questions
Q: What problem is this part commonly used to address? A: A relay can fail intermittently—working cold, then dropping a circuit after vibration or heat. That can leave a starter, fuel, fan, or accessory circuit dead even when the switch side is working.
Q: How should fitment be confirmed? A: Match the original part number first, then compare the connector or fittings, mounting points, dimensions, and machine or engine serial information.
Q: Is this an original equipment manufacturer part? A: No. This is an aftermarket replacement part for compatible applications.
Q: Can another fault cause similar symptoms? A: Yes. Wiring, grounds, hoses, filters, related controls, and mechanical wear should be tested as part of the diagnosis.
Q: What should be checked after installation? A: Confirm secure connections, normal operation, and no leaks, heat, binding, or warning indications before returning the equipment to service.
Part Summary
keywords: John Deere AT75769 relay, Gator HPX electrical repair, 6x4 Gator relay replacement, 12V plug in relay, Gator intermittent power problem, aftermarket John Deere relay
Brand names, model numbers, and reference part numbers are used for identification and compatibility purposes only. Verify the original component, dimensions, and application before purchase.
